T75 ISO Tank
- 20ft upgrade design: 42m³more payload. 42ton less deadweight. Every truck, every year.
- Superior Insulation： High-vacuum multi-layer insulation, minimizes evaporation rate, extra holding time for media
- Wide Pressure Range & Medium: Working pressures from 0.8–2.4 MPa, suitable for LNG, LOX, LN₂, LAr, LCO₂, LN₂O and more.
- Customizable Solutions:20FT/40FT configurations available; customizable by medium, pressure rating, and others.
Description
-

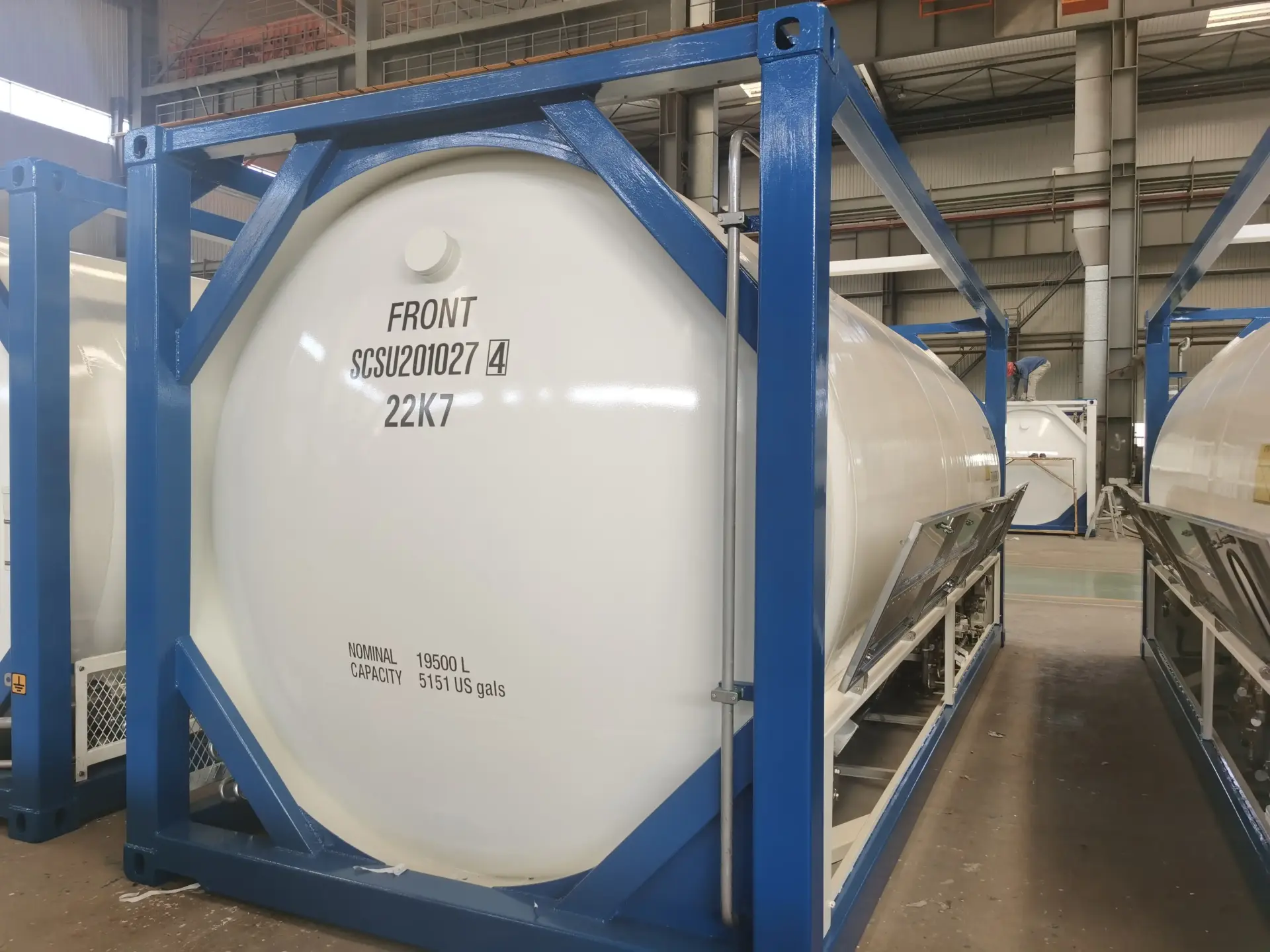

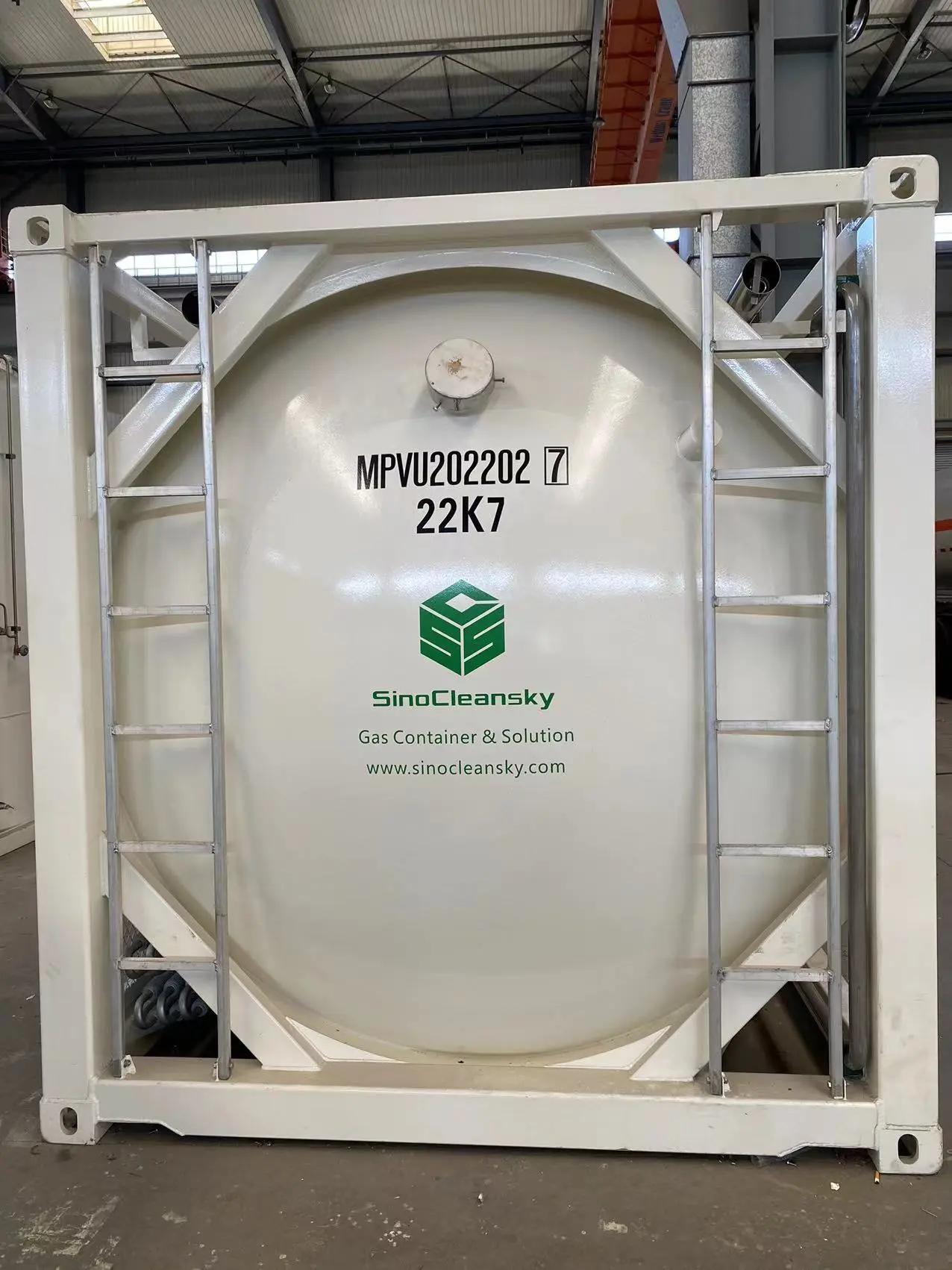

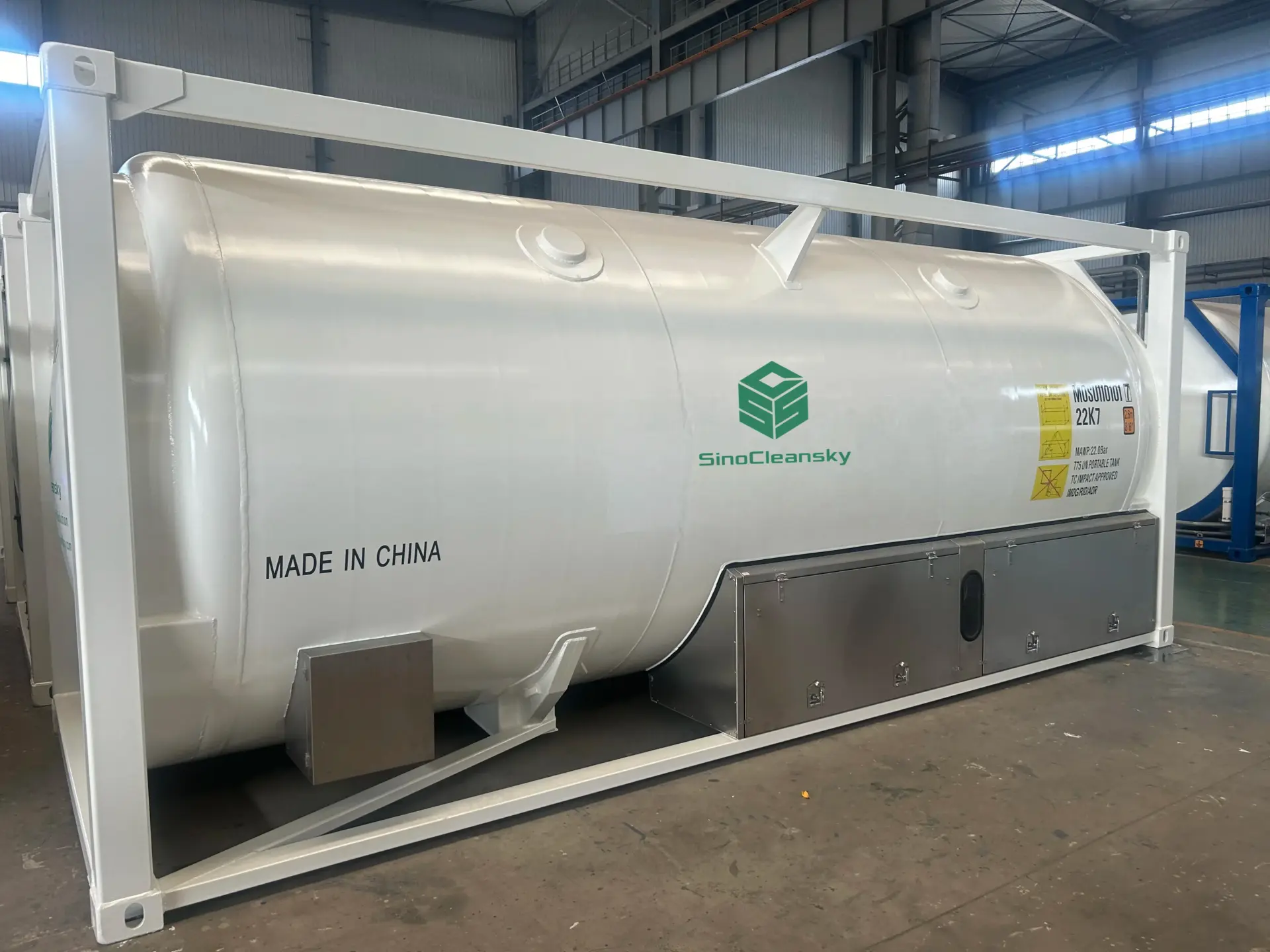

- The T75 ISO Tank Container is a high-performance pressure vessel designed for the storage and transportation of cryogenic liquefied gases. Featuring high-vacuum multi-layer insulation technology, it delivers superior thermal performance and extended holding times, enabling seamless intermodal transport across sea, rail, and road.
- Certified Quality: Certified by Lloyd’s Register, BV, and CCS; compliant with ASME+IMDG/ADR/RID TIR/ CSC / UIC / TC/ DOT/ GB and other international standards.
SinoCleansky’s T75 new design (20ft) brings you:
| Item | Upgrade | Before | Change | Change% | Benefit est. |
| Water Capacity (m³) | 21.4 | 21 | +0.4 | +2% | extra 42 m³ of payload capacity per truck per year |
| Tare Weight (kg) | 8,000 | 8,400 | -400 | -5% | 42 fewer tons to haul on every year |
Technical Specifications
Key Specs
| Item | Parameter |
| Filling Medium | LOX / LN₂ / LAr / LCO₂ / LNG / LN₂O |
| Working Pressure | 0.8 – 2.2 MPa |
| Water Capacity | 21 – 46m³ |
| Frame Size | 20 ft / 40 ft |
| Insulation | High-Vacuum Multi-Layer |
| Standards | ASME VIII DIV 1-2025Ed
IMDG, TIR, UIC, CSC, TC US DOT(CFR49), RID/ADR, ISO1496-3, CGA 341 |
| Certifications | LR · BV · CCS |
Technical Specifications
Model |
Standard | Filling Medium | M.A.W.P
(Mpa) |
Water Capacity
(m³) |
Tare Weight
(kg) |
| SCS-22K7
(20ft-0.8Mpa) |
CSC, ISO1496-3
ADR, ASME VIII DIV 1 RID, UIC, IMDG |
LOX/LIN/LAr | 0.8 | 21.0 | 7,700 |
| SCS-22KW
(20ft-1.6Mpa) |
CSC, ISO1496-3, ASME VIII DIV 1
ADR, CGA 341, GB 150 RID, IMDG |
LOX/LIN/LAr/LNG
LC2H4/LC2H6/LN2O |
1.6 | 21.1 | 8,000 |
| TCDSCS-21DB
(20ft-1.6Mpa) |
ASME VIII DIV 1
IMDG, TIR, UIC, CSC, TC CFR49, RID/ADR, ISO 1496-3, FRA |
LOX/LIN/LAr/LNG
LC2H4/LC2H6 |
1.6 | 21.0 | 7,710 |
| TCDSCS-22D
(20ft-1.8Mpa) |
EN 13530-2
IMDG, TIR, UEC, CSC, TC RID/ADR, UK-Dft, ISO 1496-3 |
LOX/LIN/LAr | 1.8 | 21.7 | 8,950 |
| TXDSCS-21BA
(20ft-2.2Mpa) |
ASME VIII DIV 1-2025Ed
IMDG, TIR, UIC, CSC, TC, RID/ADR US DOT(CFR49), ISO1496-3, CGA 341 |
LOX/LIN/LAr/LNG/LCO2
LC2H4/LC2H6/LN2O |
2.20 | 21.4 | 7,980 |
| TXDSCS-21BB
(20ft-2.2Mpa) |
ASME VIII DIV 1-2025Ed
IMDG, TIR, UIC, CSC, TC, RID/ADR US DOT(CFR49), ISO1496-3, CGA 341 |
LOX/LIN/Lar/LCO2/LN2O | 2.20 | 21.4 | 7,980 |
| TXDSCS-21BC
(20ft-2.2Mpa) |
ASME VIII DIV 1-2025Ed
IMDG, TIR, UIC, CSC, TC, RID/ADR US DOT(CFR49), ISO1496-3, CGA 341 |
LOX/LIN/LAr/LCO2/LN2O | 2.2 | 21.4 | 8,250 |
| SCS-NCU46A
(40ft-0.8Mpa) |
ASME VIII DIV 1-2025Ed
IMDG, TIR, UIC, CSC, TC RID/ADR, ISO1496-3, FRA, CGA 341 |
LNG/LIN/LC2H4
|
0.8 | 46.0 | 12,800 |
Packaging & Shipping
Packaging, Shipping & Logistics
- By Sea: Standard ISO dimensions for direct container vessel loading; global port-to-port delivery.
- By Rail: Fits standard rail flatcars; suitable for cross-border rail routes like China-Europe Express.

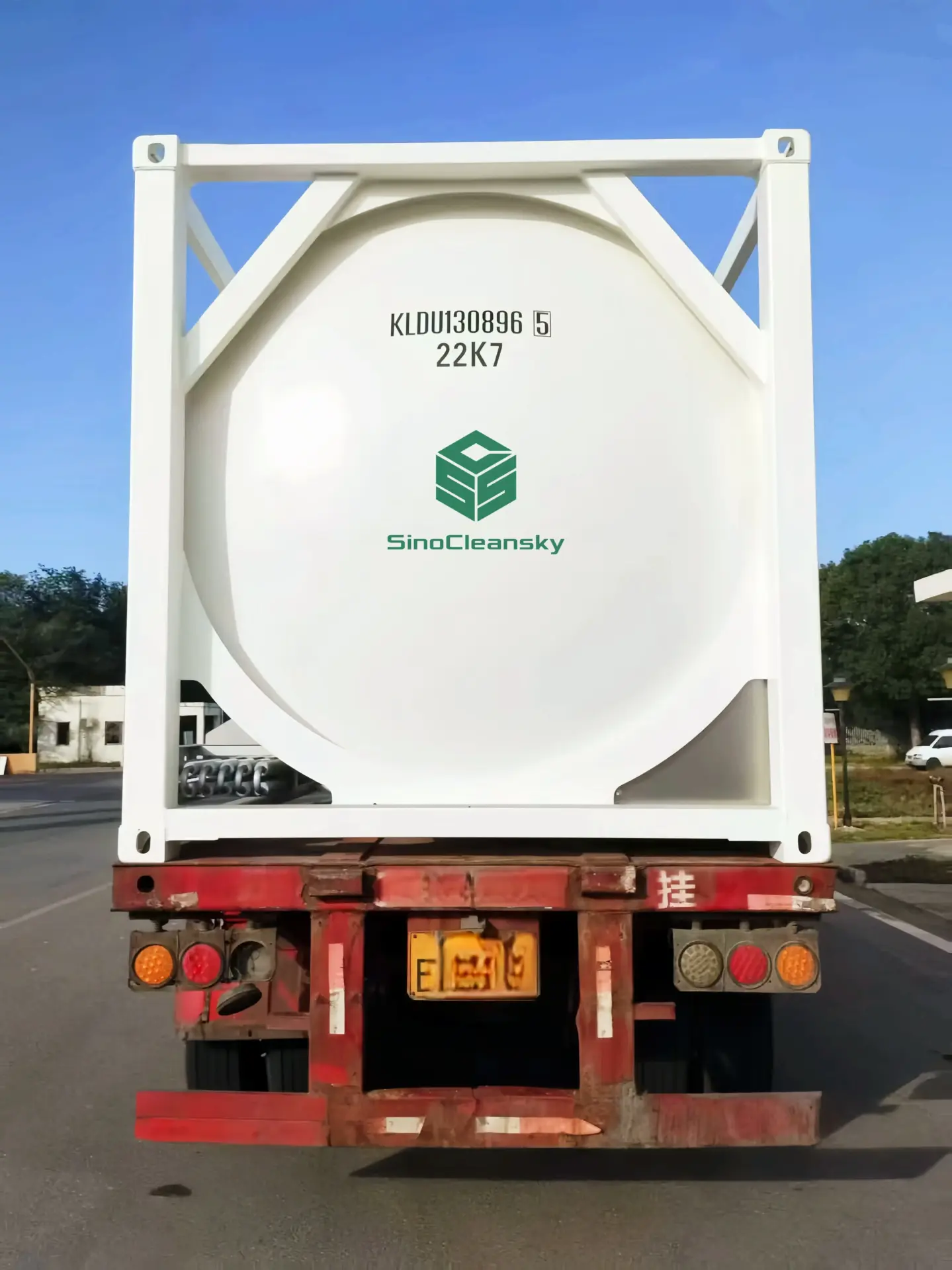

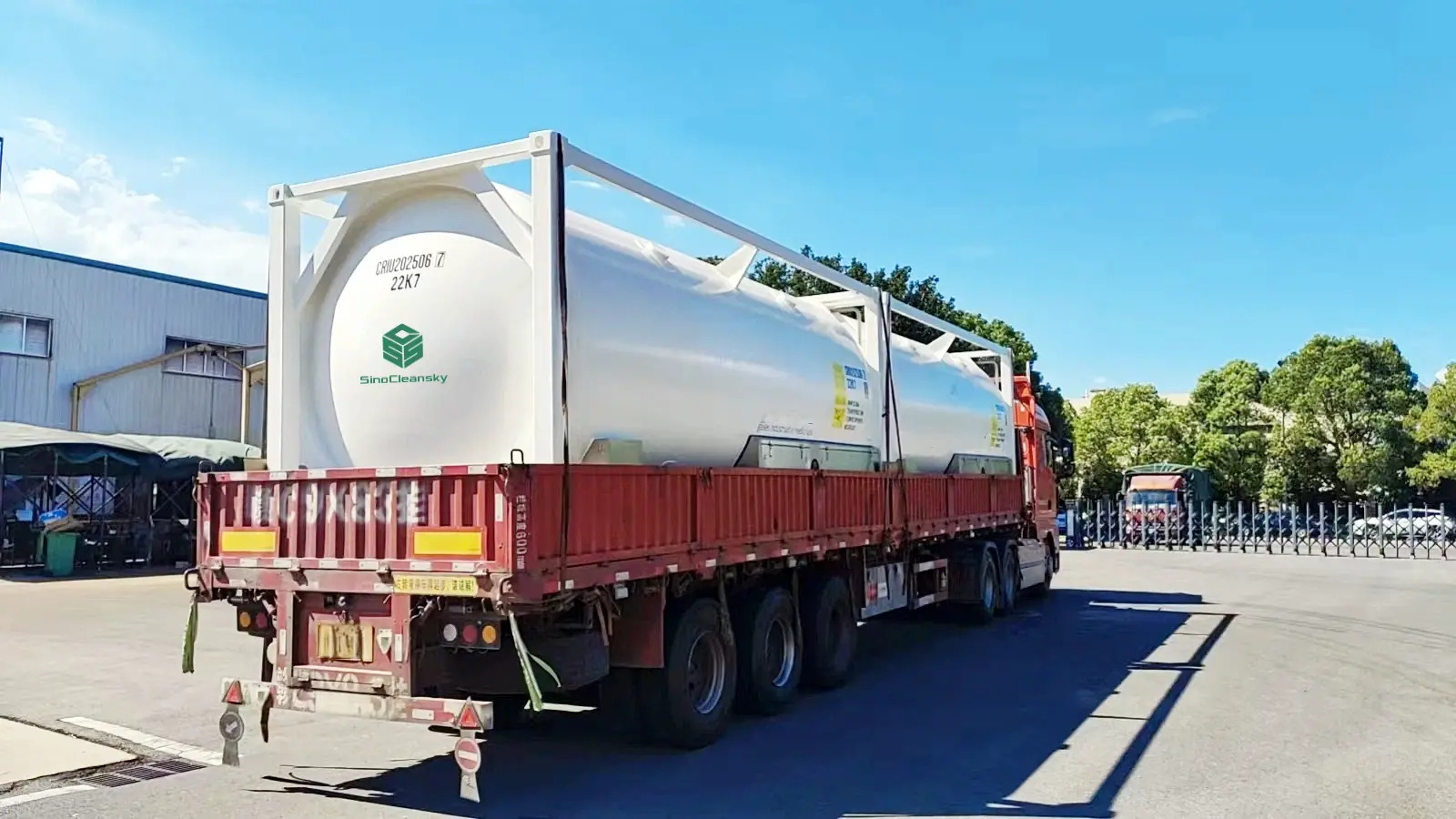

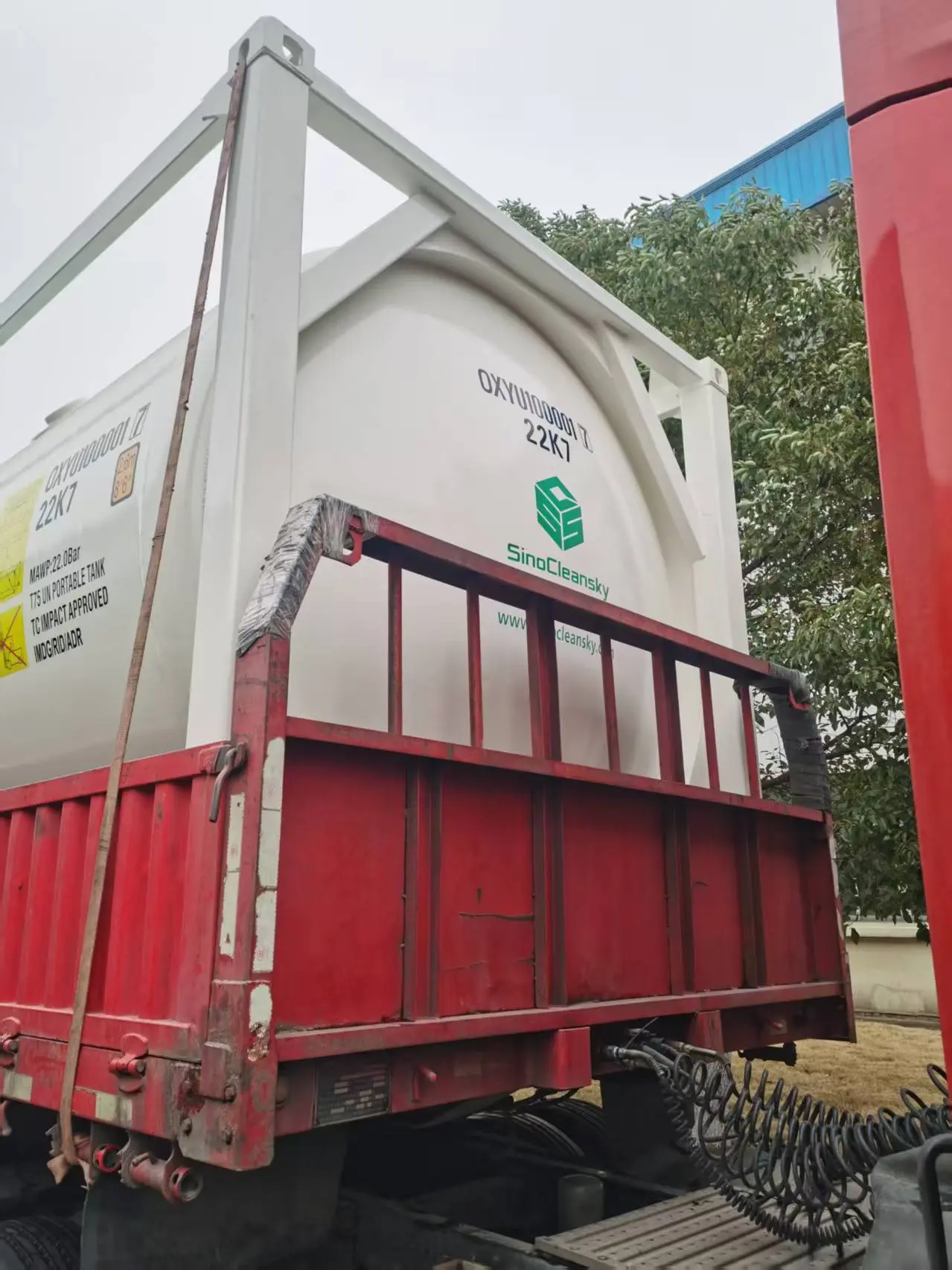

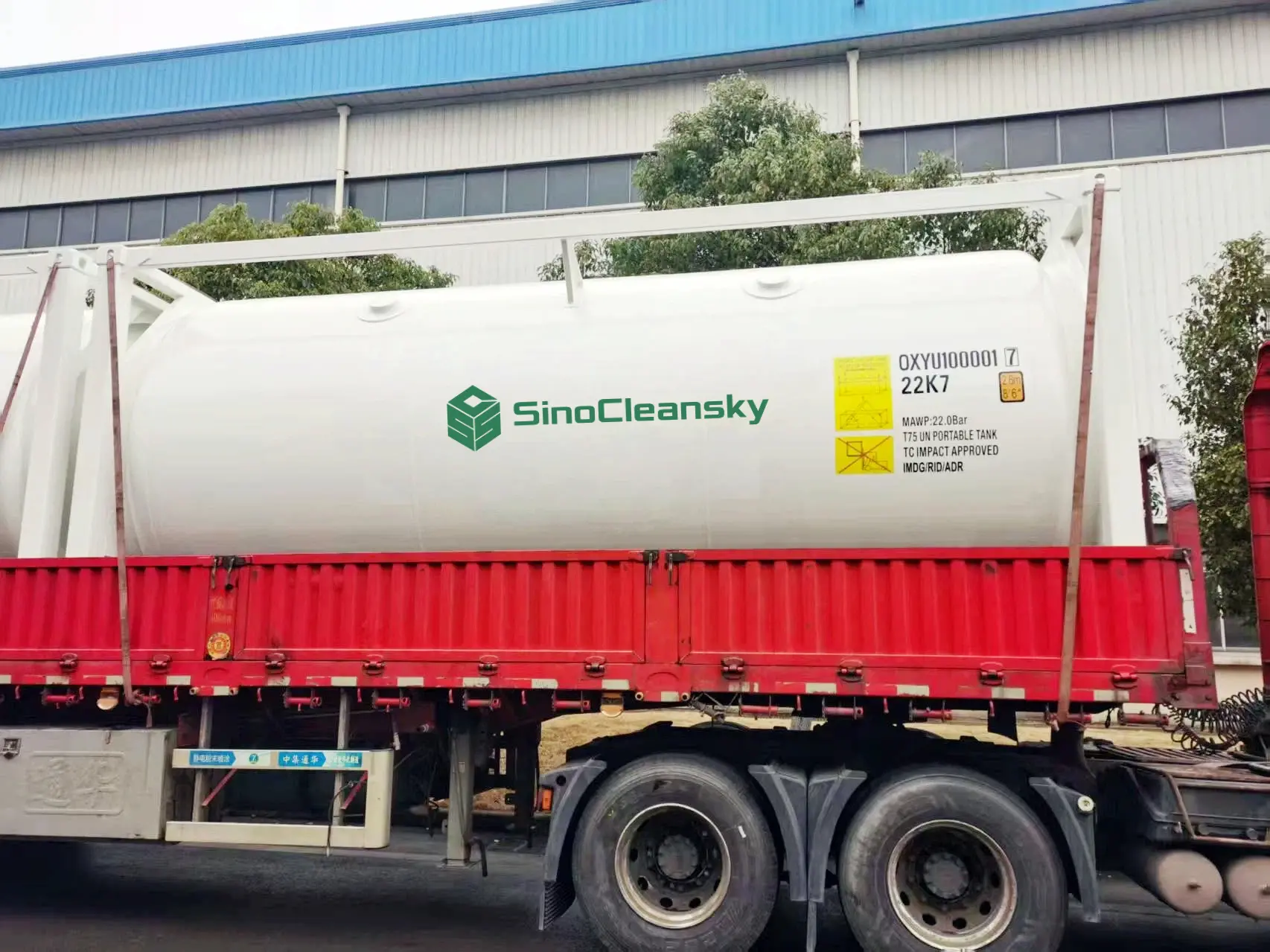

- By Road: Mounts on container chassis trucks for door-to-door delivery and last-mile distribution.
Shipping Guidelines & Delivery
- Inspection & Documents

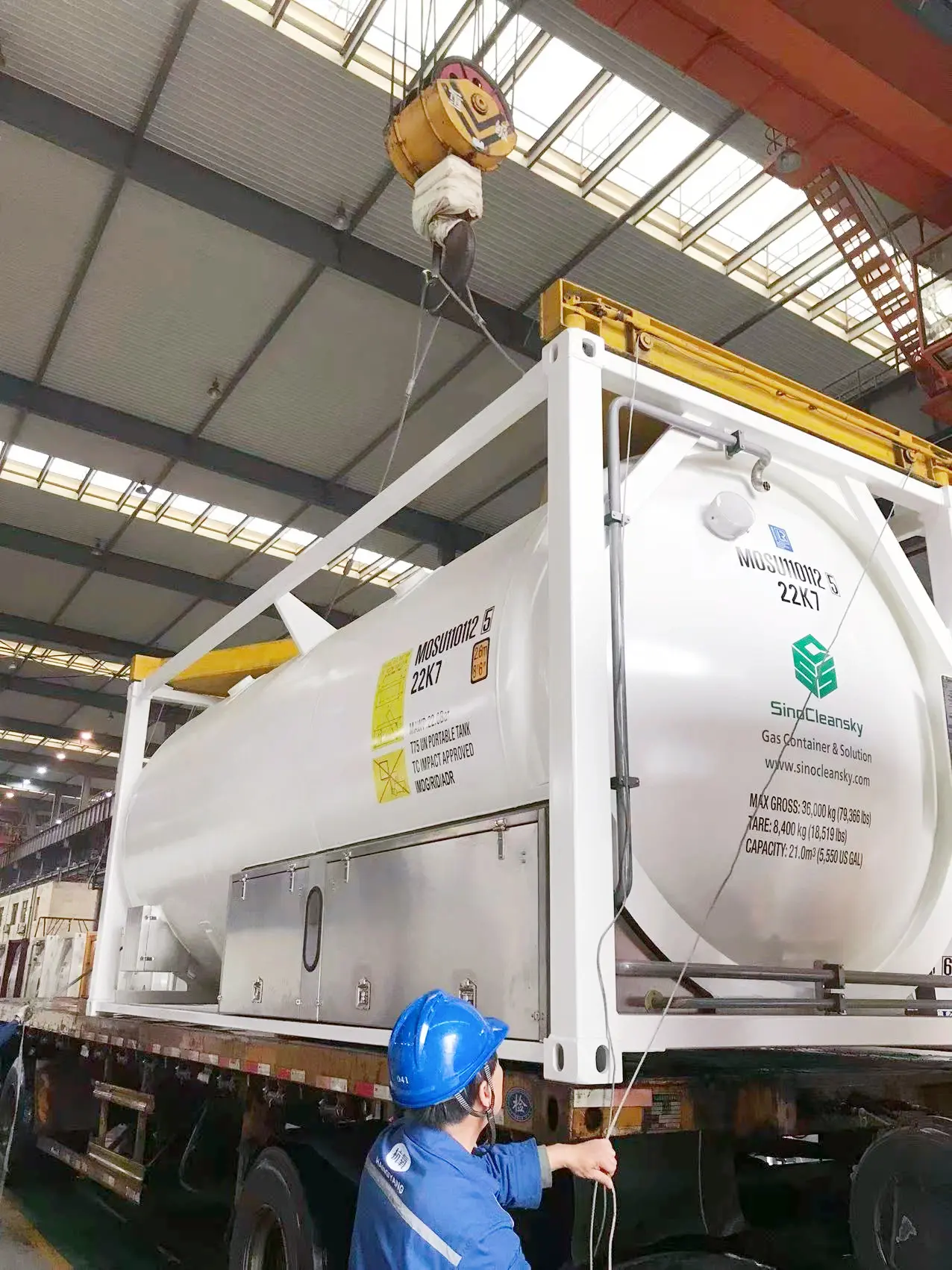

Each ISO Tank Container undergoes hydrostatic testing, pneumatic tightness testing, and helium mass spectrometer leak detection before leaving the factory. A complete set of technical documents is provided with each unit, including product certificate, CSC data plate, and inspection reports. - Packaging & Protection

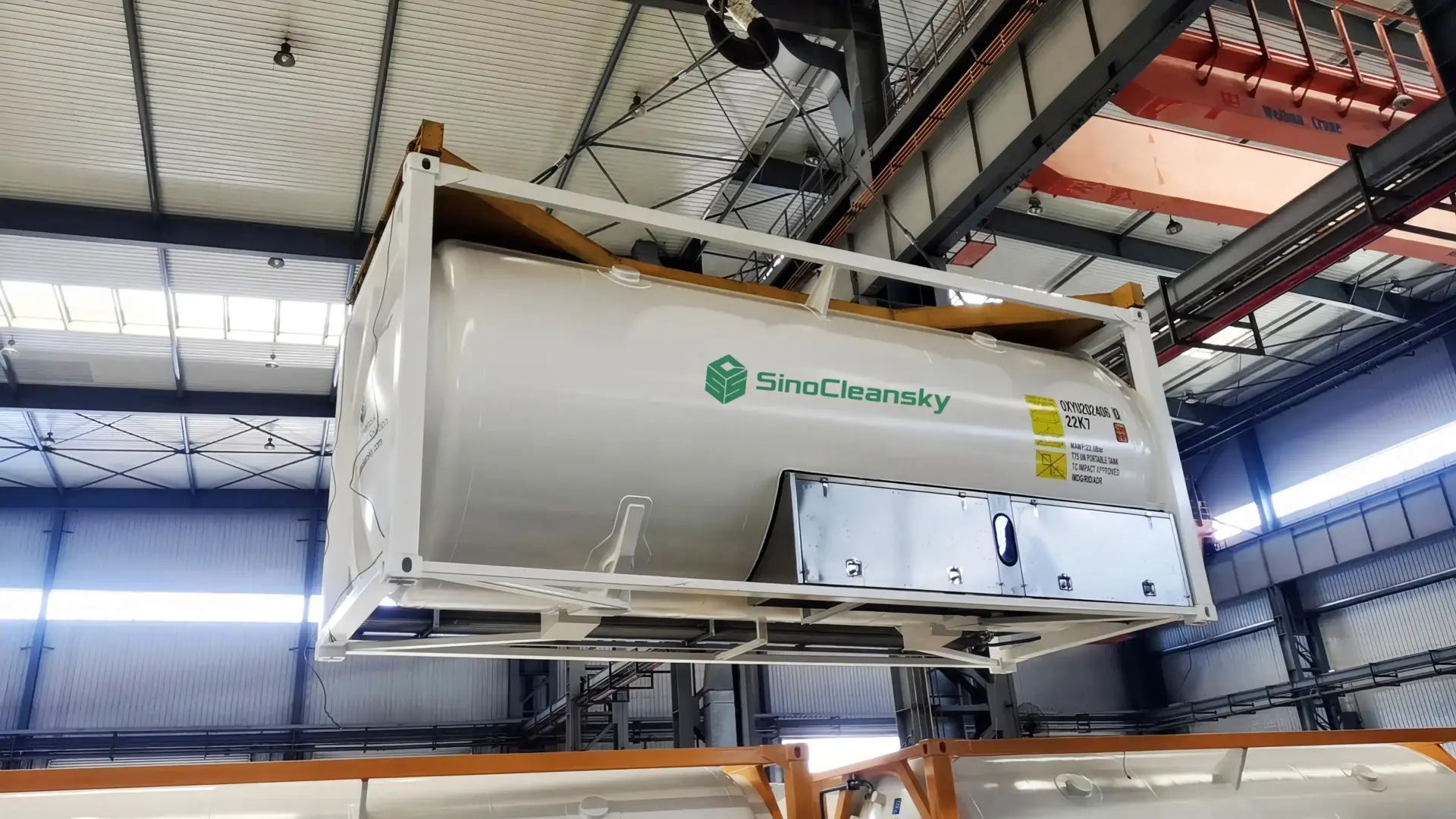

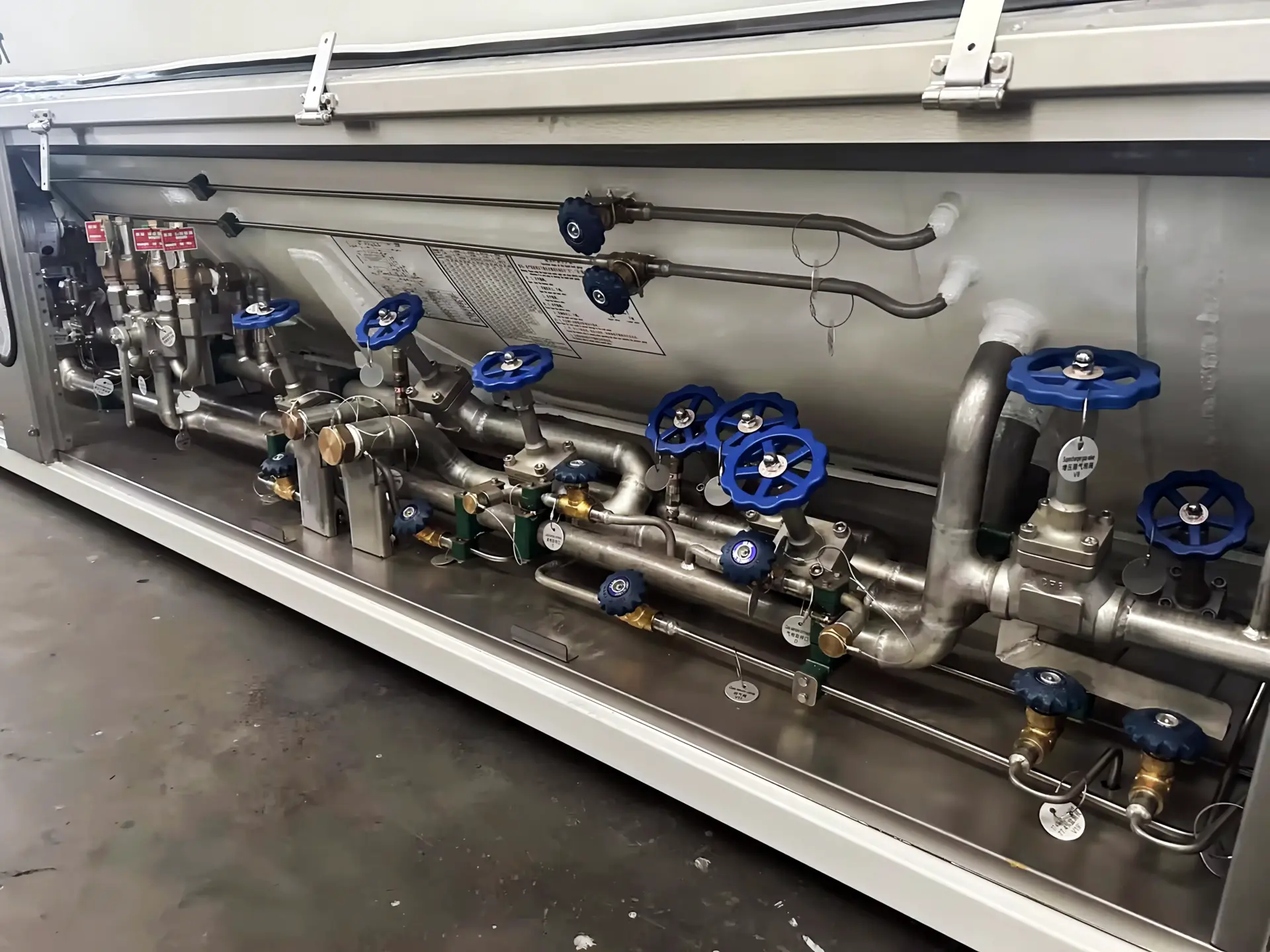

Exposed components such as valves and instruments are wrapped with protective covers; anti-collision blocks are installed on the frame corner fittings; and hazard labels and operational warning tags are affixed to the exterior of the tank. - Lead Time
Standard models are available in stock for fast delivery. Custom models have a production lead time of approximately 60–90 days, depending on specifications and order volume. - DG Compliance
Compliant with the IMDG Code (International Maritime Dangerous Goods Code), ADR (Agreement concerning the International Carriage of Dangerous Goods by Road), and RID (Regulations concerning the International Carriage of Dangerous Goods by Rail). - Warranty & Service
A 12-month warranty is provided from the date of delivery, covering free repair or replacement of non-artificial damages during the warranty period. Global technical support and spare parts supply are available. - Custom Logistics
One-stop logistics solutions can be provided based on the customer’s destination port, transport route, and delivery schedule requirements.
Report & Certifications
The containers are with Product Inspection Certificate, General Assembly drawing, tank container Flow Chart Scheme, User manual, Strength calculation certificate and etc, the third-party LIoyd’s Register CSC Certificate or CCS Certificate.Reference LRS CSC Certificate:E-mail [email protected] to get more detailed test report specimen.
FAQs
Pls indicate the parameters of the container you need, incl manufacture standard, working pressure, filling medium (only one kind of medium or various medium), pls also indicate the quantity you need.Usually we can provide 8-18bar working pressure for common liquid industrial gas, and 22bar for LCO2. The size incl 20ft and 40ft.
LOX, LIN, LAr, LNG, LCO2, LN2O
The manufacture standard incl EN, ASME, GB, and we also provide LIoyd’s Register CSC Certificate and CCS Certificate.

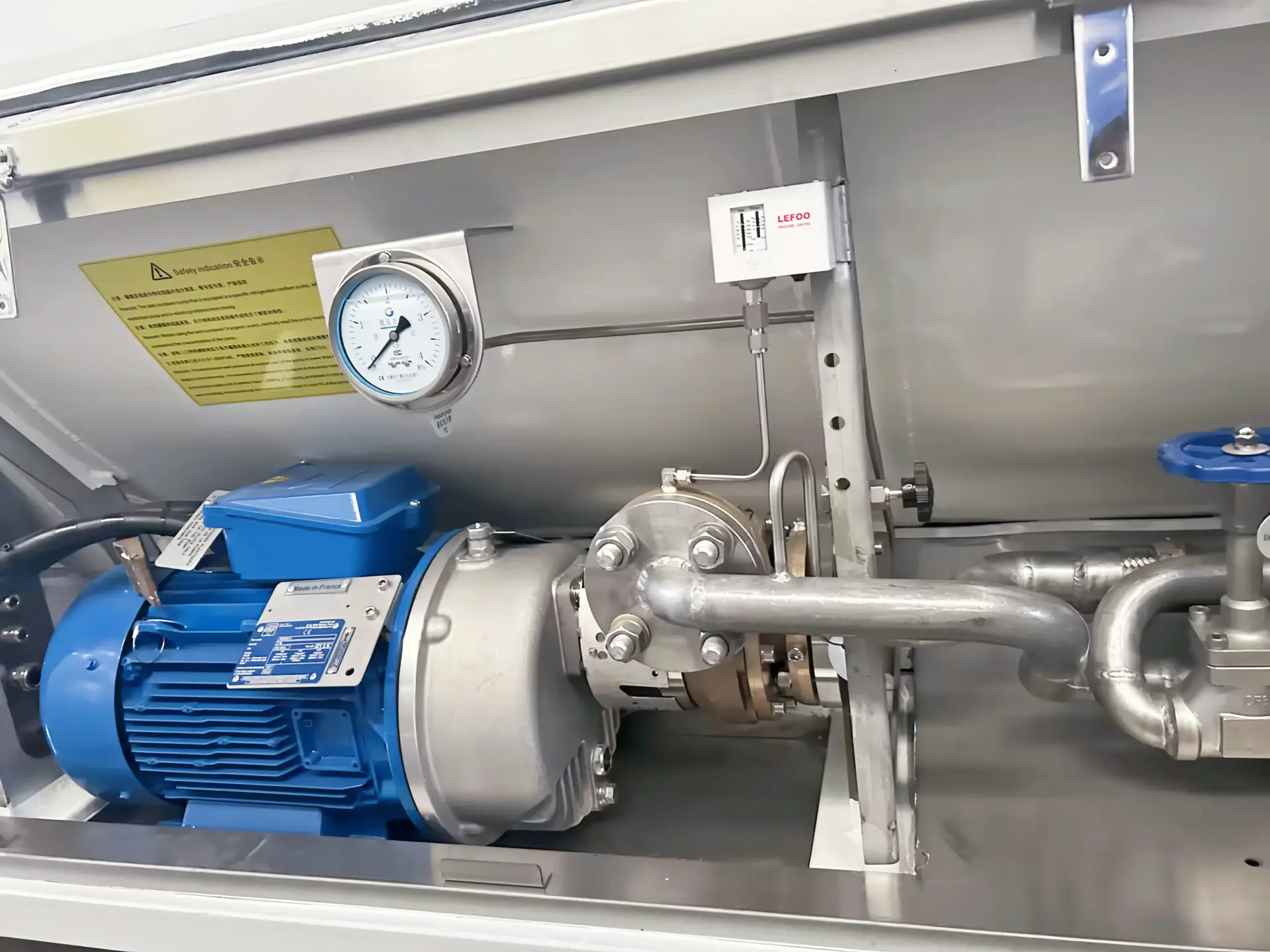

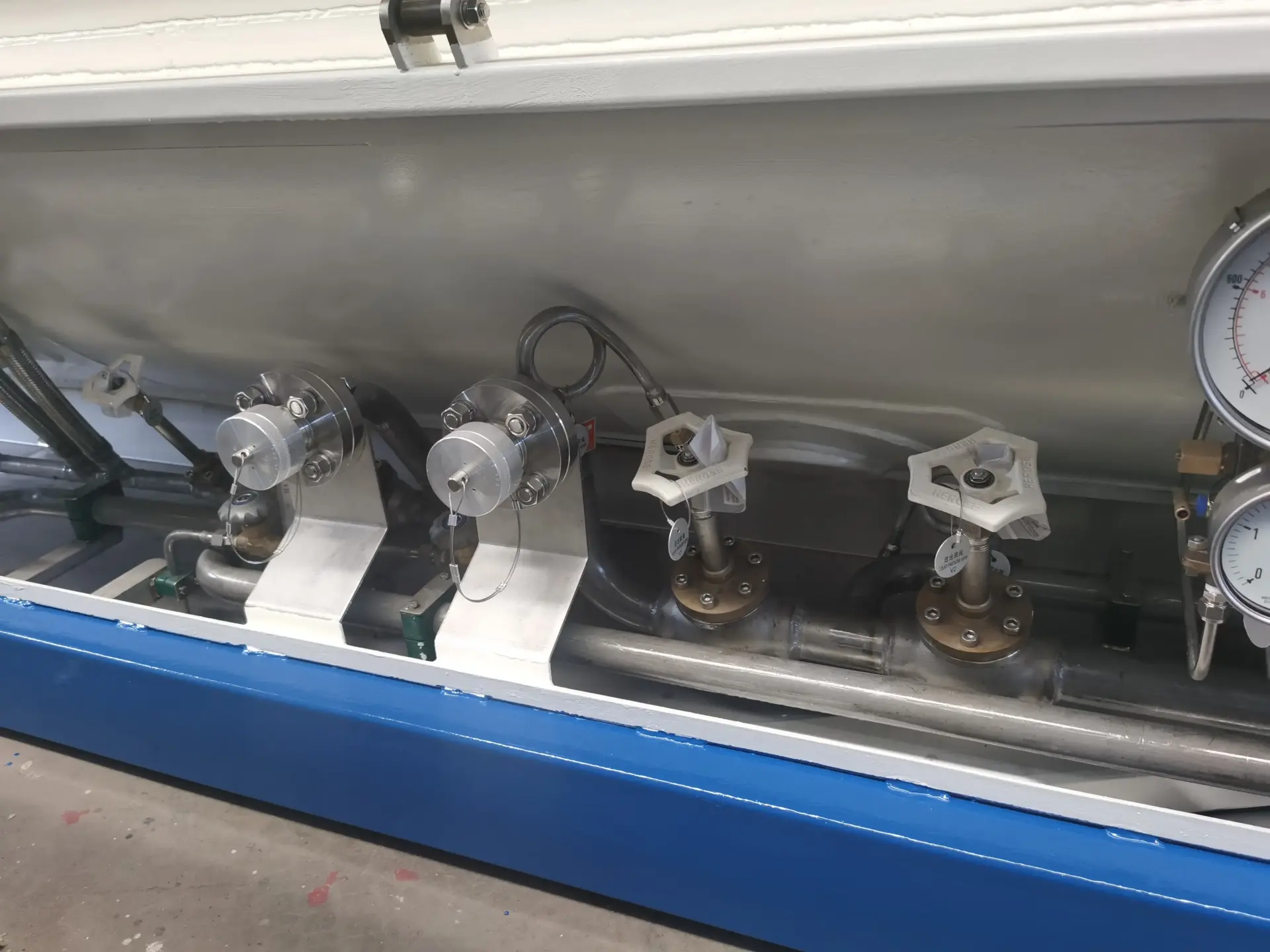

We can provide China valves and International valves. And we will provide valve list once confirmed.nMoreover, pump is optional. We can provide Smith pump, France Cryostar pump or without pump, the price is different.
If you choose the standard model that we are holding in stock, it can be shipped within 30 days. Normally customized products will cost around 60-90 days
