2D130H series Diaphragm Compressor
• High Reliability
• Low Maintenance
• High Purity
• Leak-tight
• High Pressure
Description

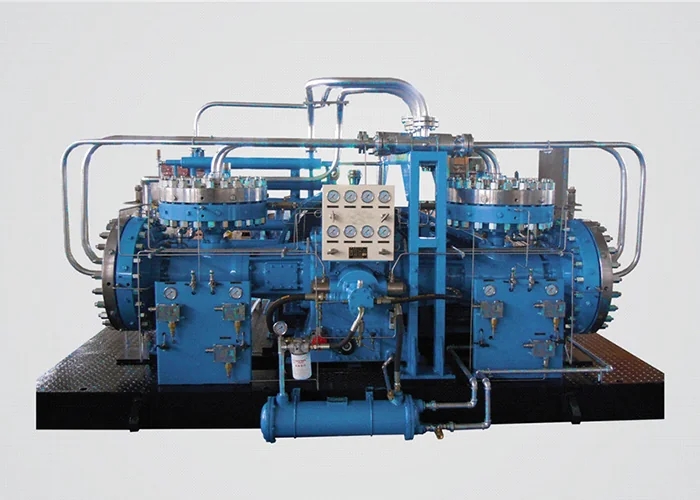

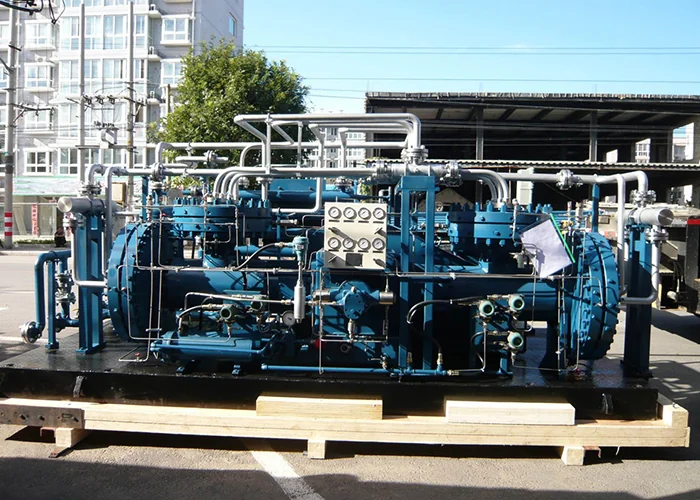

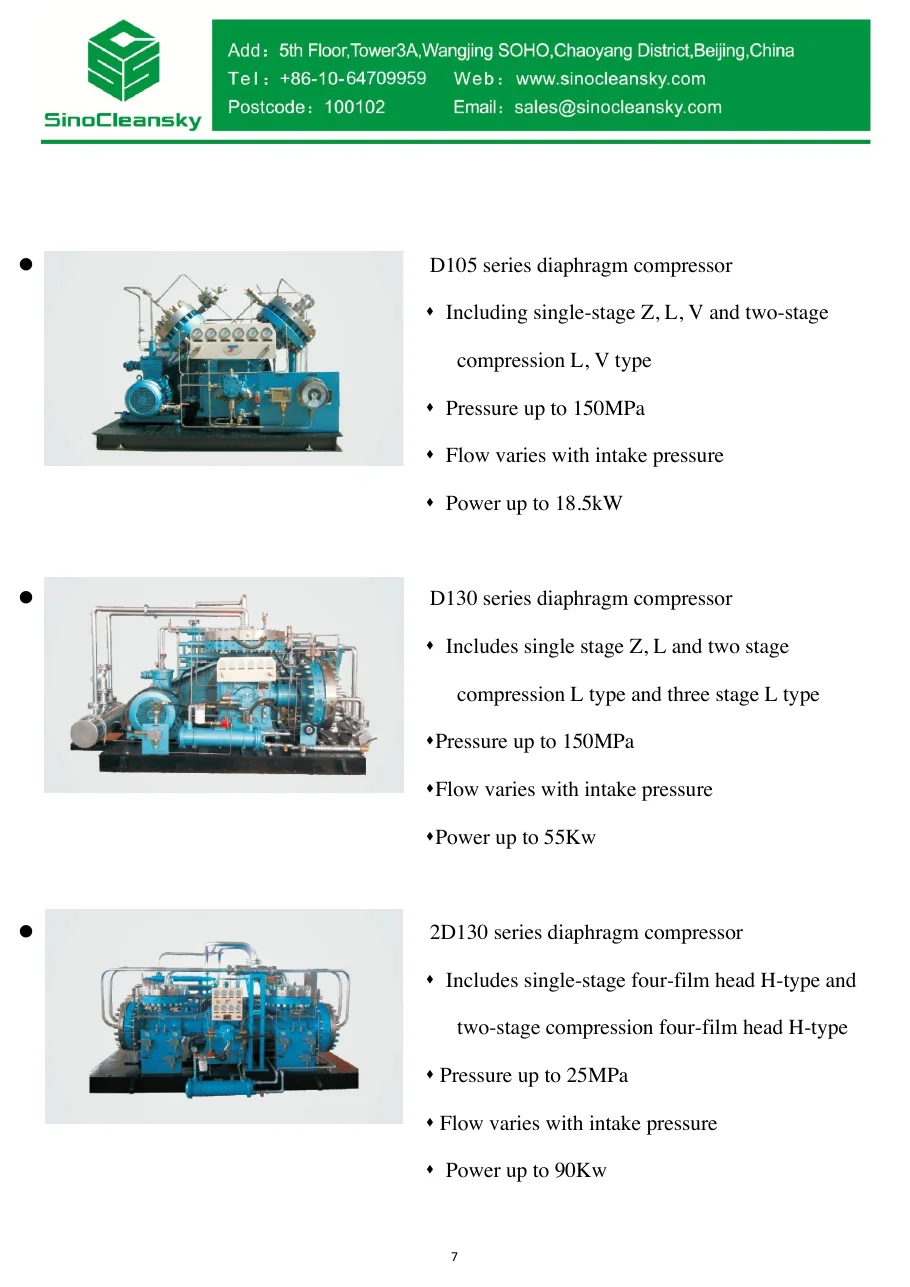

2D130H series diaphragm compressor
Includes single-stage four-film head H-type and two-stage compression four-film head H-type
Pressure up to 25MPa
Flow varies with intake pressure
Power up to 90Kw

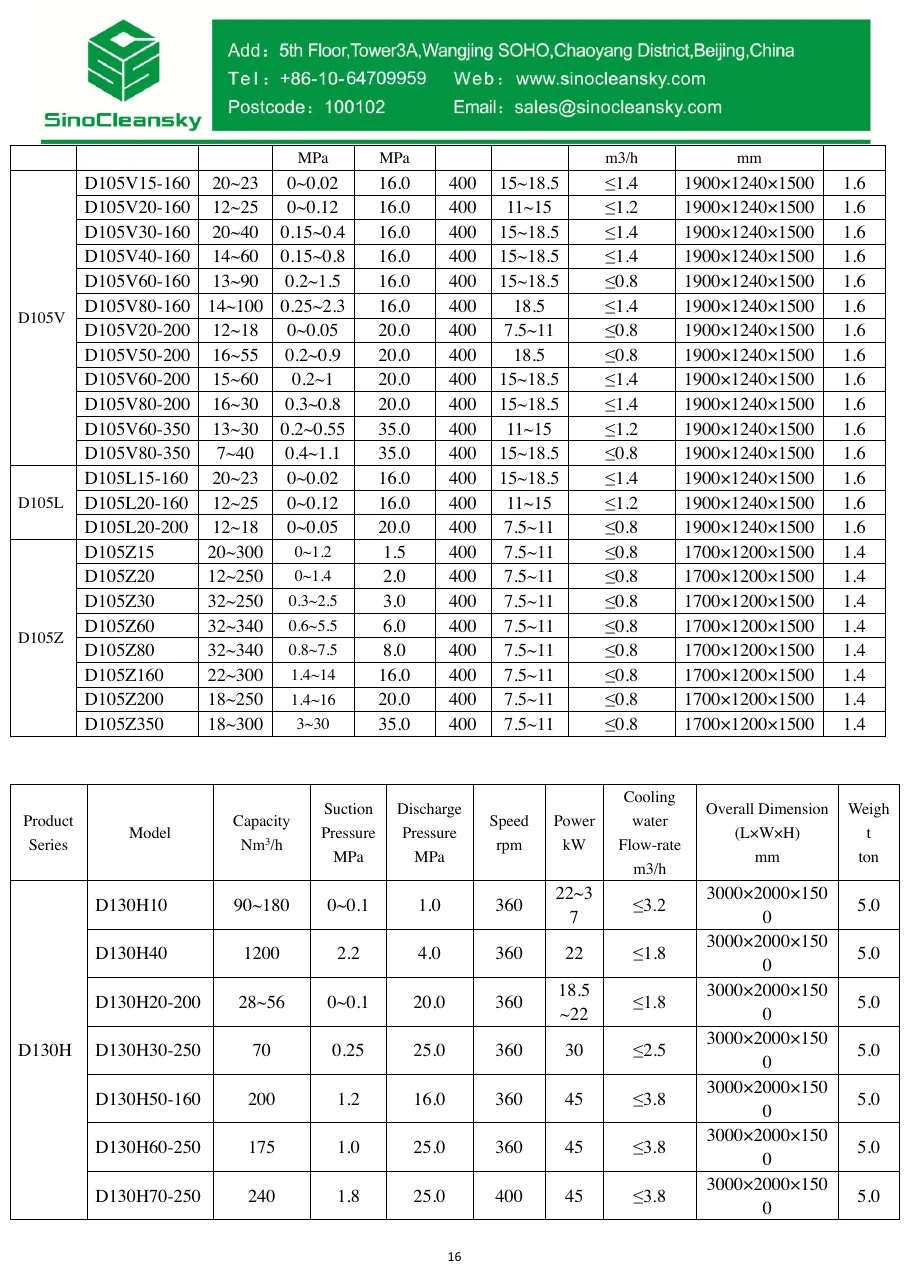

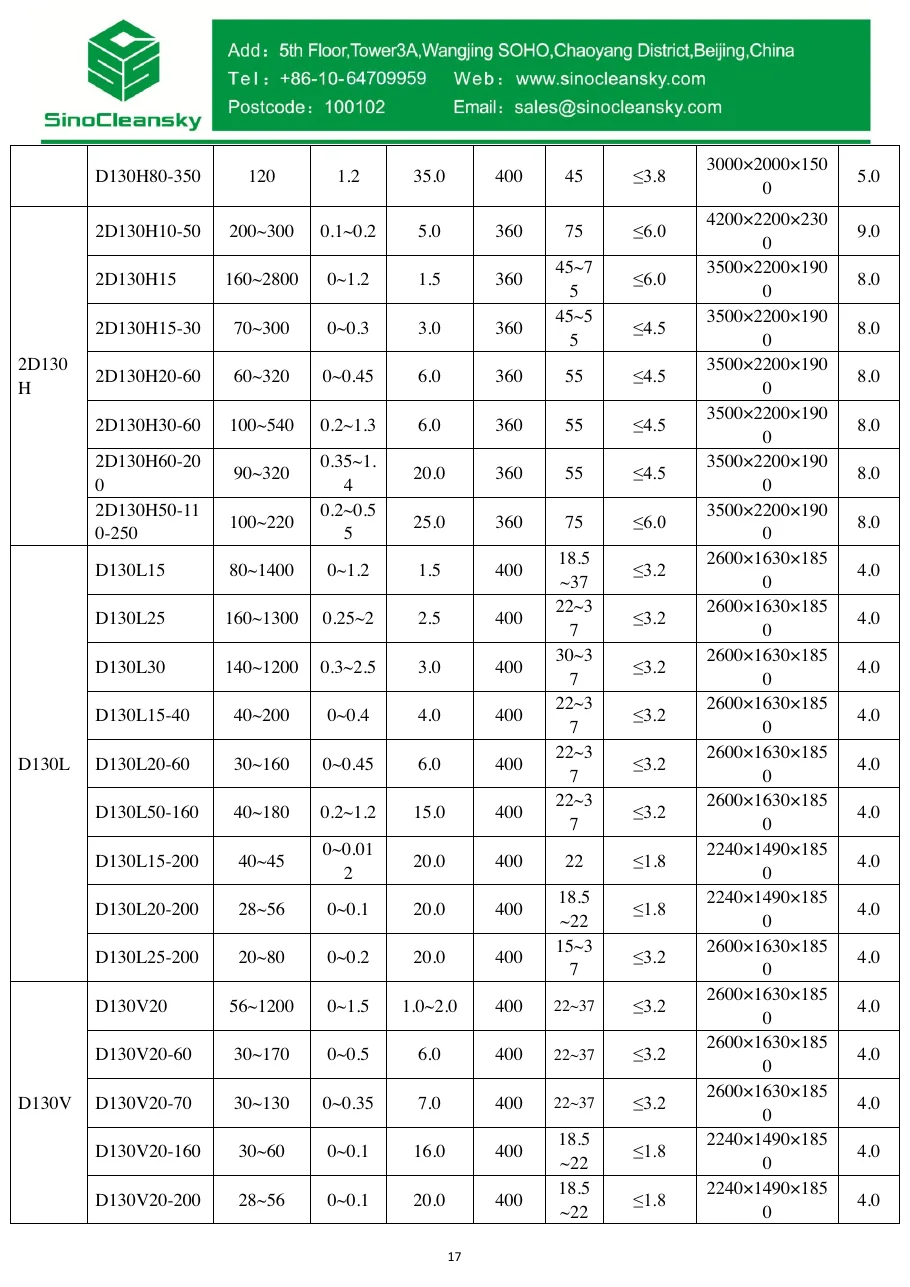

Technical Specifications
Custom-made type based on detailed request.
|
Product Series |
Model |
Capacity Nm3/h |
Suction Pressure MPA |
Discharge Pressure MP |
Speed rpm |
Power KW |
Cooling water Flow-rate m3/h |
Overall Dimension (L×W×H) mm |
Weight ton |
|
2D130H |
2D130H10-50 |
200~300 |
0.1~0.2 |
5.0 |
360 |
75 |
≤6.0 |
4200×2200×2300 |
9.0 |
|
2D130H15 |
160~2800 |
0~1.2 |
1.5 |
360 |
45~75 |
≤6.0 |
3500×2200×1900 |
8.0 |
|
|
2D130H15-30 |
70~300 |
0~0.3 |
3.0 |
360 |
45~55 |
≤4.5 |
3500×2200×1900 |
8.0 |
|
|
2D130H20-60 |
60~320 |
0~0.45 |
6.0 |
360 |
55 |
≤4.5 |
3500×2200×1900 |
8.0 |
|
|
2D130H30-60 |
100~540 |
0.2~1.3 |
6.0 |
360 |
55 |
≤4.5 |
3500×2200×1900 |
8.0 |
|
|
2D130H60-200 |
90~320 |
0.35~1.4 |
20.0 |
360 |
55 |
≤4.5 |
3500×2200×1900 |
8.0 |
|
|
2D130H50-110-250 |
100~220 |
0.2~0.55 |
25.0 |
360 |
75 |
≤6.0 |
3500×2200×1900 |
8.0 |

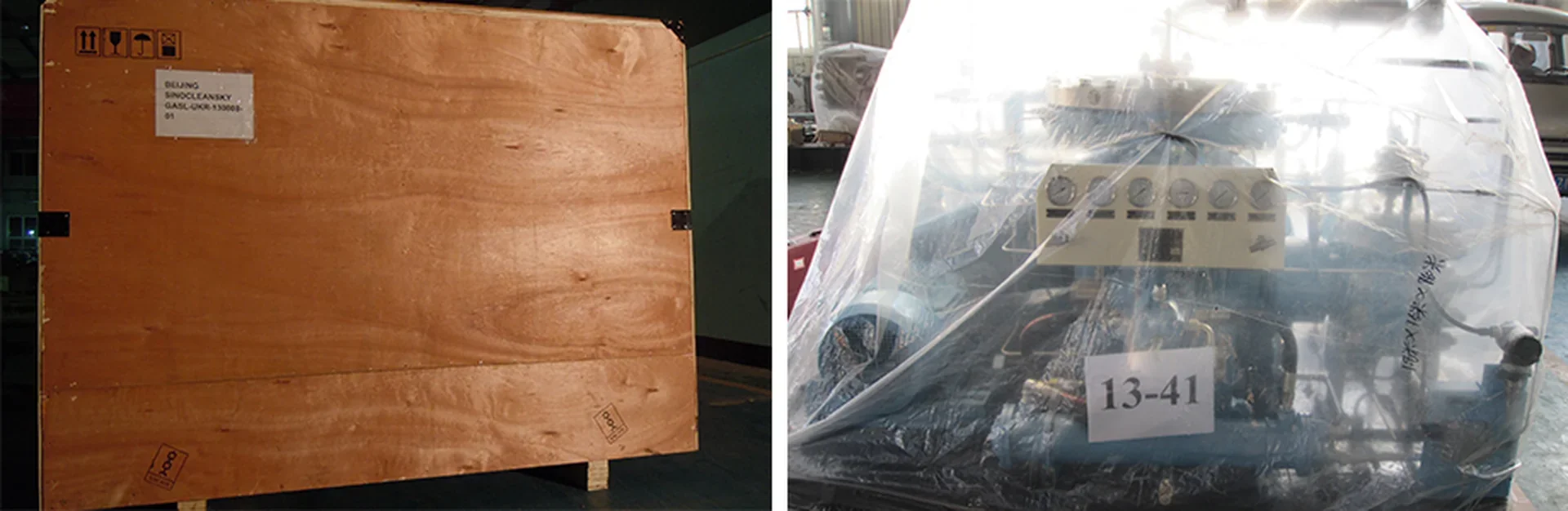

Packaging & Shipping
The compressor will be delivered with wooden box for protection.
Report & Certifications
FAQs
We need to know the gas, the flow rate, inlet pressure and outlet pressure.
We provide one set of spare parts together with compressor.
