410L-1000L Vertical Cryogenic Cylinder
• Large capacity for industrial-scale operations
• High-performance insulation system
• Enhanced safety features for transportation
Description
Our high-quality cryogenic cylinders, an advanced product designed for the storage of industrial gases, including oxygen, nitrogen and argon, carbon dioxide and LNG, etc.
The cryogenic cylinder is designed and manufactured to the highest standards to ensure the utmost safety when storing and transporting industrial gases.nThe good thermal insulation also extends the service life of the cryogenic cylinders, providing customers with long-term value.
Our cylinders can be customized to meet your specific requirements, including capacity, pressure level, connection method, etc., to meet your special needs..
Technical Specifications
| Standard | Type | Water capacity | MAWP |
| GB24159 | DPL700-410L/450L/500L-1.59 Mpa | 410L,450L,500L | 1.59MPA |
| GB24159 | DPL700-450L/500L-2.76 Mpa | 450L,500L | 2.76MPA |
| GB24159 | DPL700-750L/800L/1000L-3 Mpa | 750L,800L,1000L | 3MPA |
| GB24159 | DPL700-450L/500L-3.79 Mpa | 450L,500L | 3.79MPA |
Remark: The above specifications are only for typical types. The more accurate & detailed parameters and technical drawings are available upon request

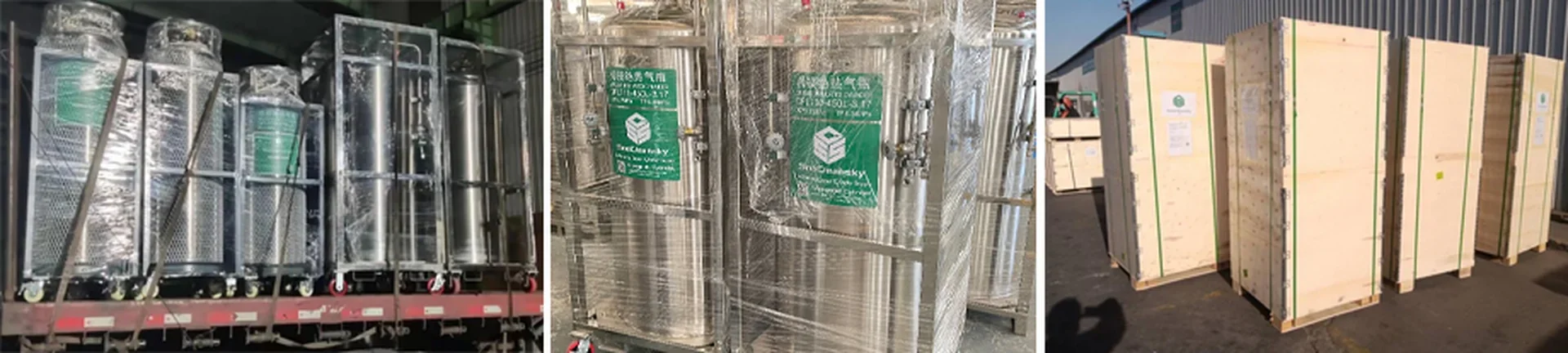

Packaging & Shipping
All the cylinders will be packed with plastic film or carton or wooden boxes for protection of surface. And the cylinders can be delivered directly or with pallet, or loose in container.

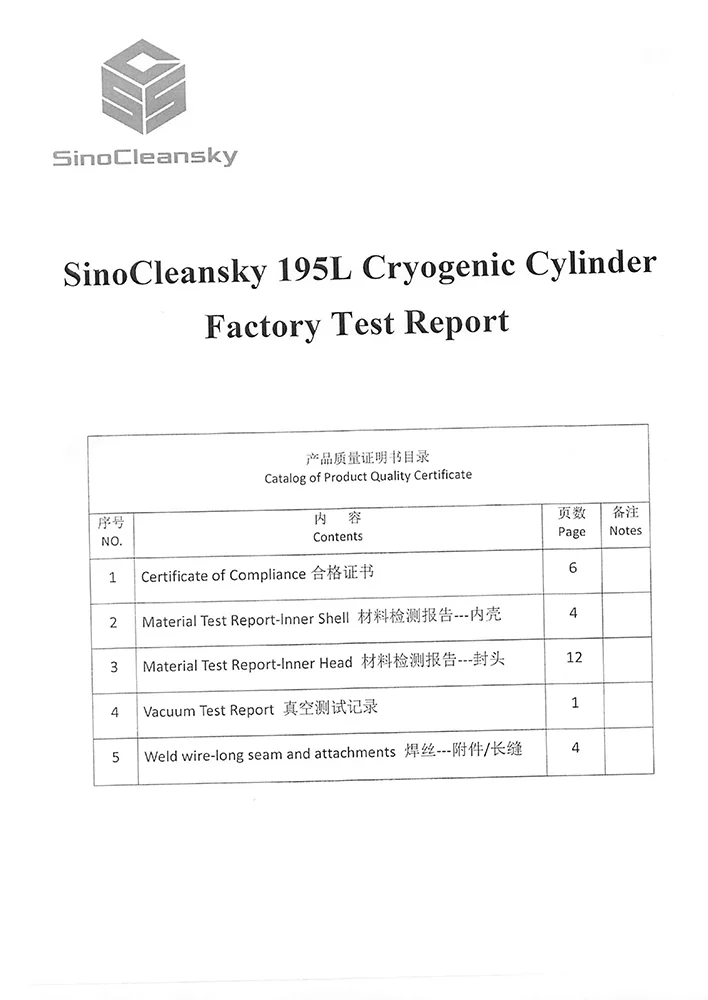

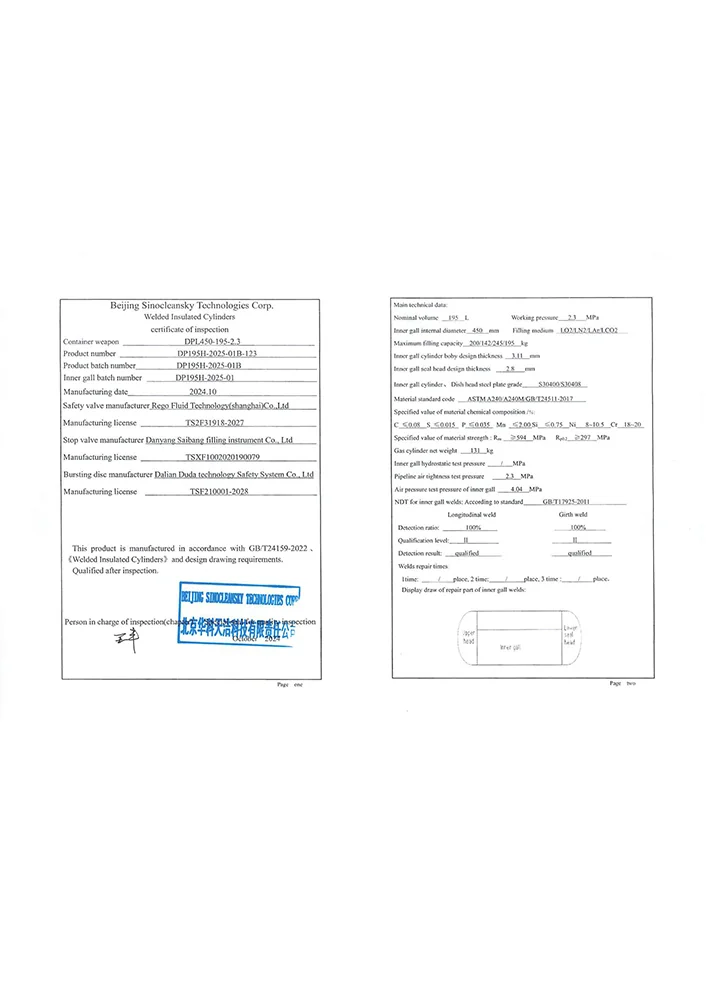

Report & Certifications
Cylinders are delivered with detailed factory test report. SinoCleansky Factory Report shows all the tests required by GB24159 std, which include: chemical composition test, radiographic inspection, etc.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.
