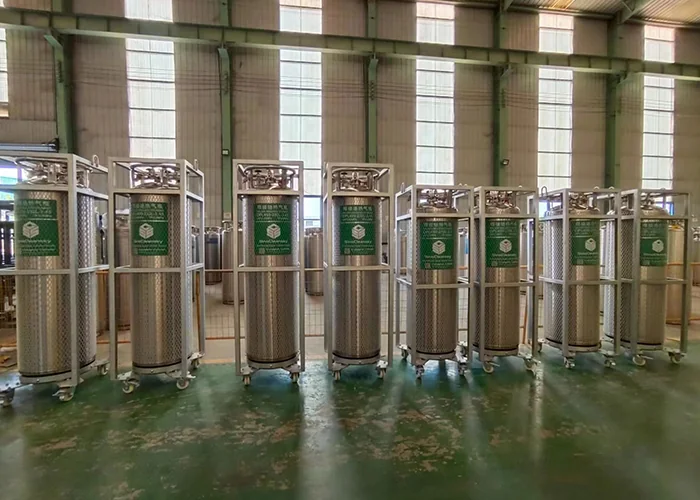

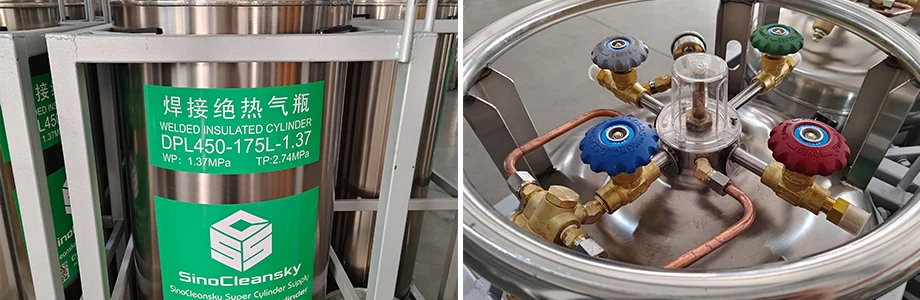

50L-300L Vertical Cryogenic Cylinder

Cryogenic cylinders are specialized containers designed to store and transport substances at extremely low temperatures. These cylinders are constructed with high quality materials to withstand the thermal and pressure stresses associated with cryogenic conditions. They feature excellent insulation properties to minimize heat transfer and maintain the low temperature of the stored materials, such as liquefied gases. The cylinders are equipped with safety valves and pressure relief mechanisms to ensure safe operation. Their robust design and reliable construction make them essential for various industries, including medical, industrial gas supply, and scientific research, where the storage and handling of cryogenic substances are crucial.
Sinocleansky 50L-300L Vertical Cryogenic Cylinder are popular used for Liquid Oxygen (LOX), Liquid Argon ( LAr), Liquid Nitrogen (LIN), LCO2 and LNG, etc.

Standard	Type	Water capacity	MAWP
GB24159	DPL450-175L/195L/210L-1.59 Mpa	175L,195L,210L	1.59MPA
GB24159	DPL450-175L/195L/210L-2.41 Mpa	175L,195L,210L	2.41MPA
GB24159	DPL450-175L/195L/210L-3.62 Mpa	175L,195L,210L	3.62 MPA
GB24159	DPL450-240L/290L/300L-2.34 Mpa	240L,290L,300L	2.34MPA

Remark: The above specifications are only for typical types. The more accurate & detailed parameters and technical drawings are available upon request

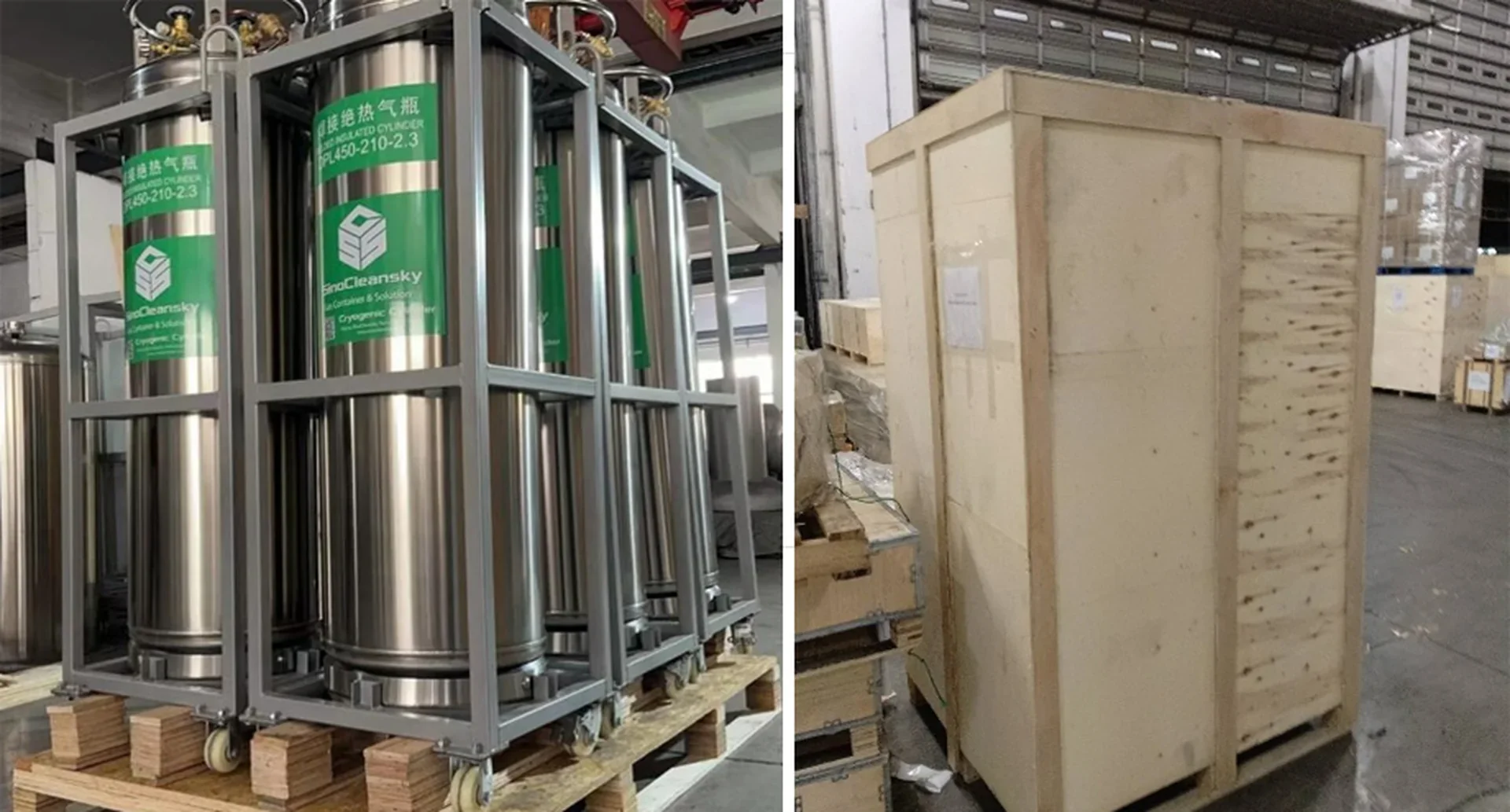

All the cylinders will be packed with plastic film or carton or wooden boxes for protection of surface. And the cylinders can be delivered directly or with pallet, or loose in container.
