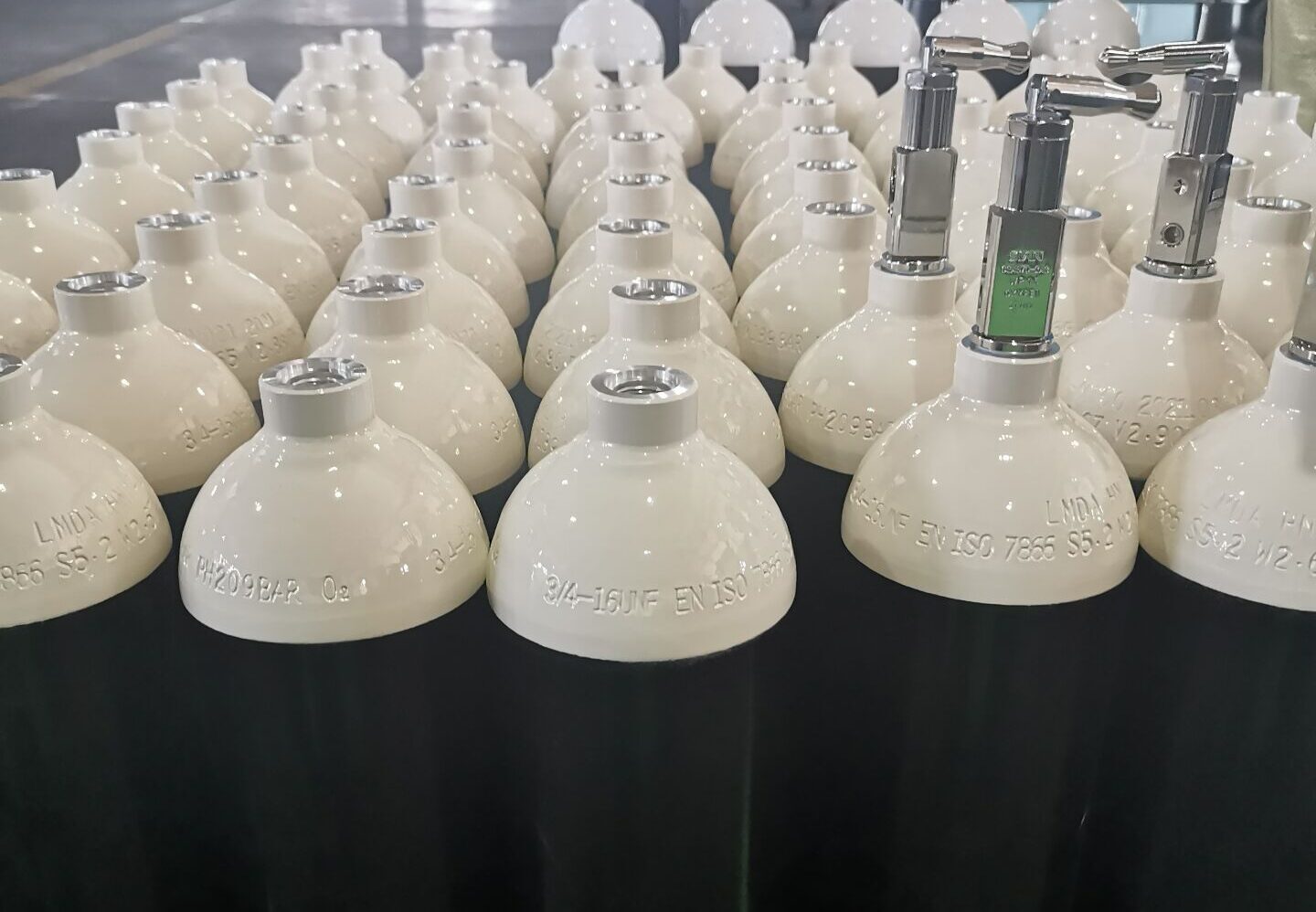

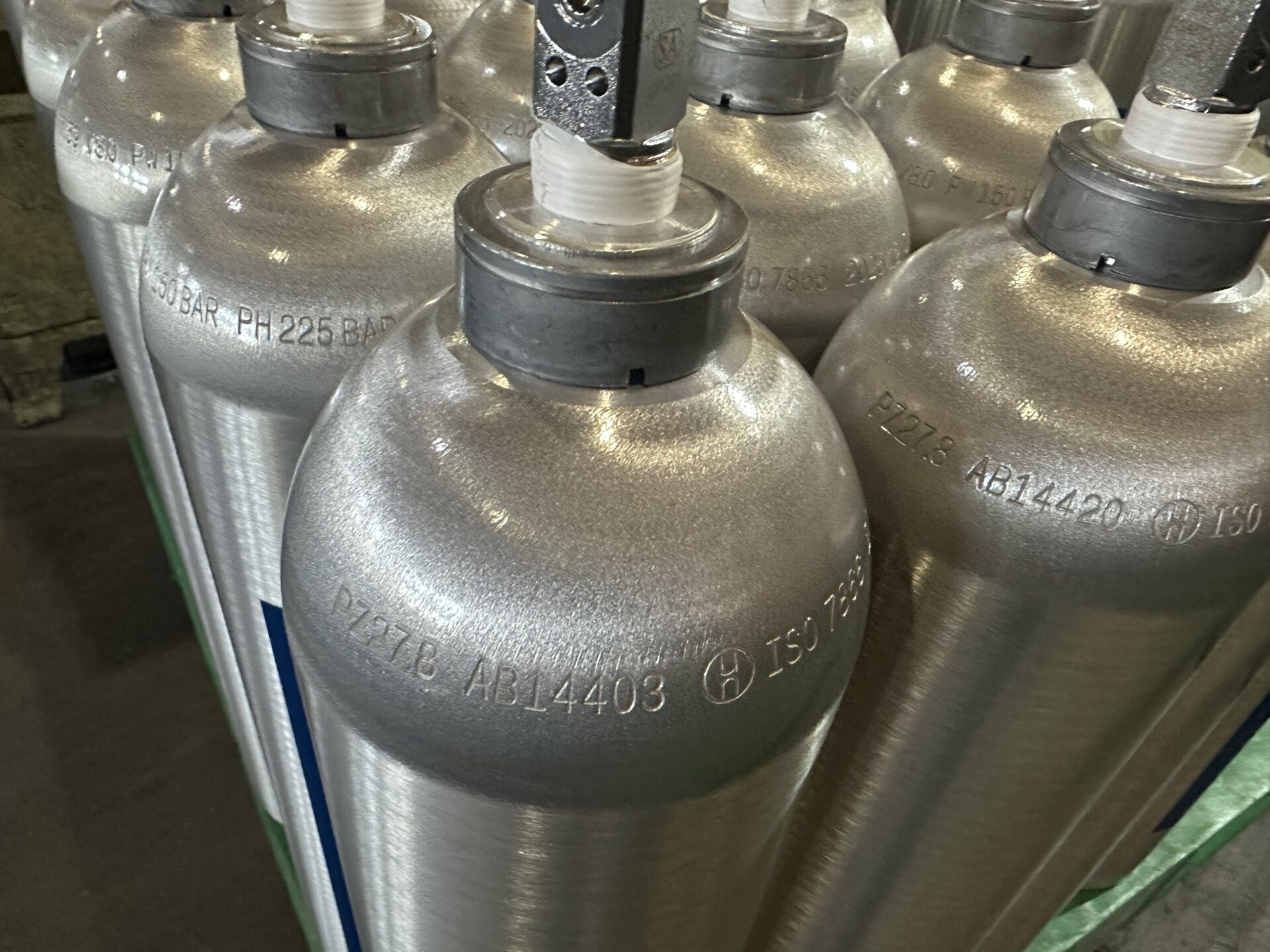

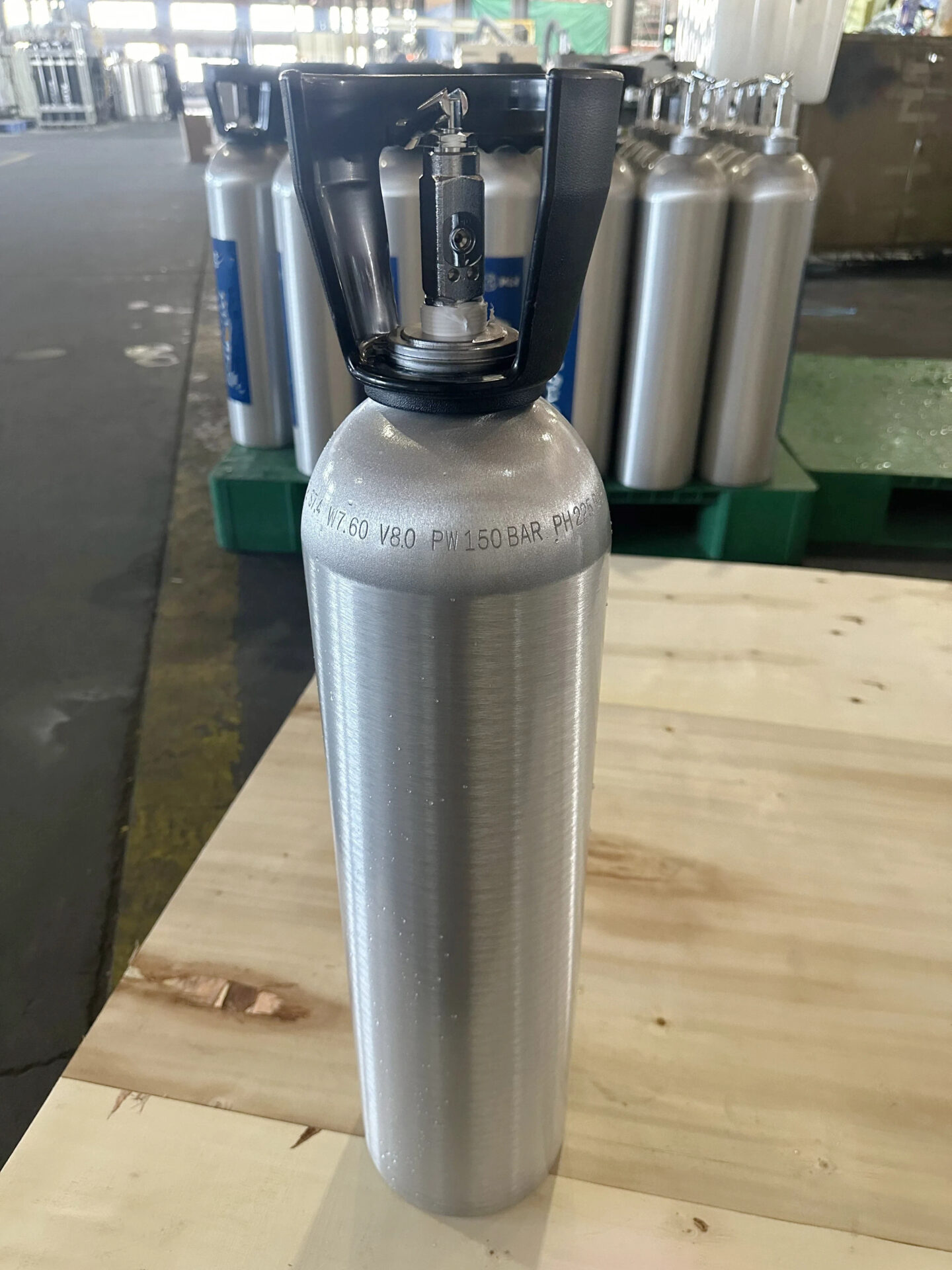

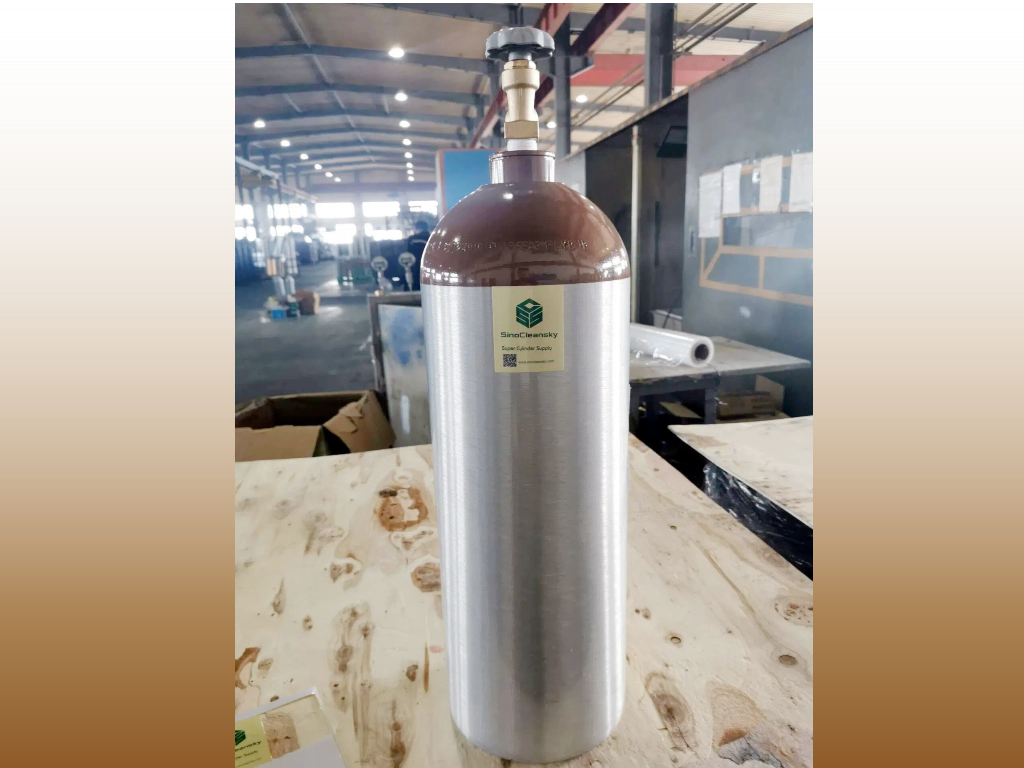

Aluminum Cylinder
• Material: high strength aluminum alloy 6061.
• Weight: 40% weight reduction than steel cylinders.
• Wide range line:
• Outside diameter: 89mm – 250mm
• Water capacity: 0.5L – 50L
• Working pressure: 12.4MPa, 13.9MPa, 15MPa, 15.4MPa, 20MPa, etc.
Description
SinoCleansky provide broadest range of high-performance Aluminum cylinders that can be used for many kinds of gases.
Some of the Sinocleansky Aluminum Cylinder are Interior surface treated with strength corrosion resistance, so it is ideal for a broad range of rare gas, specialty gas and high-purity gas mixture applications, including gases used in the manufacture of semiconductors and other electronic products, in which maintaining gas purity and stability is essential.
Technical Specifications
Manufactured standard: GB11640, ISO 7866, EN ISO 7866 and DOT-3AL etc.
Outside diameter: 89mm – 250mm
Water capacity: 0.5L – 50L
Working pressure: 12.4MPa, 13.9MPa, 15MPa, 15.4MPa, 20MPa, etc.
Aluminum Cylinder
|
Standard |
Type |
Outer diameter |
Water capacity |
Working pressure |
|
ISO 7866 |
159-10L-15MPa |
159 mm |
10 L |
15 MPa |
|
ISO 7866 |
203-20L-15MPa |
203 mm |
20 L |
15 MPa |
|
ISO 7866 |
232-30L-15MPa |
232 mm |
30 L |
15 MPa |
|
ISO 7866 |
250-50L-15MPa |
250 mm |
50 L |
15 MPa |
|
ISO 7866 |
204-20L-20MPa |
204 mm |
20 L |
20 MPa |
|
ISO 7866 |
250-50L-20MPa |
250 mm |
50 L |
20 MPa |
|
DOT-3AL |
250-46.4L-2219Psi |
250 mm |
46.4 L |
2219Psi |

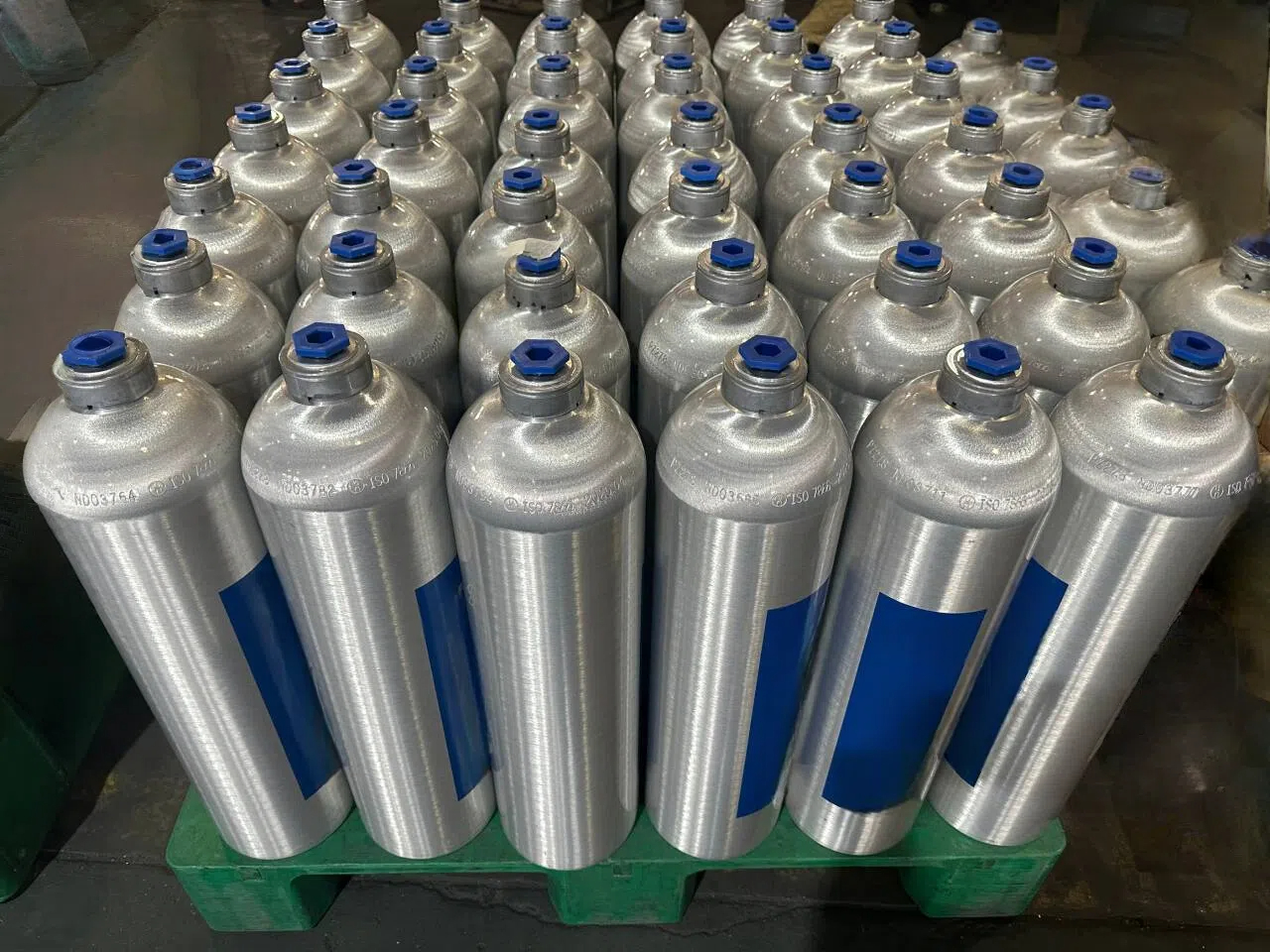

Packaging & Shipping

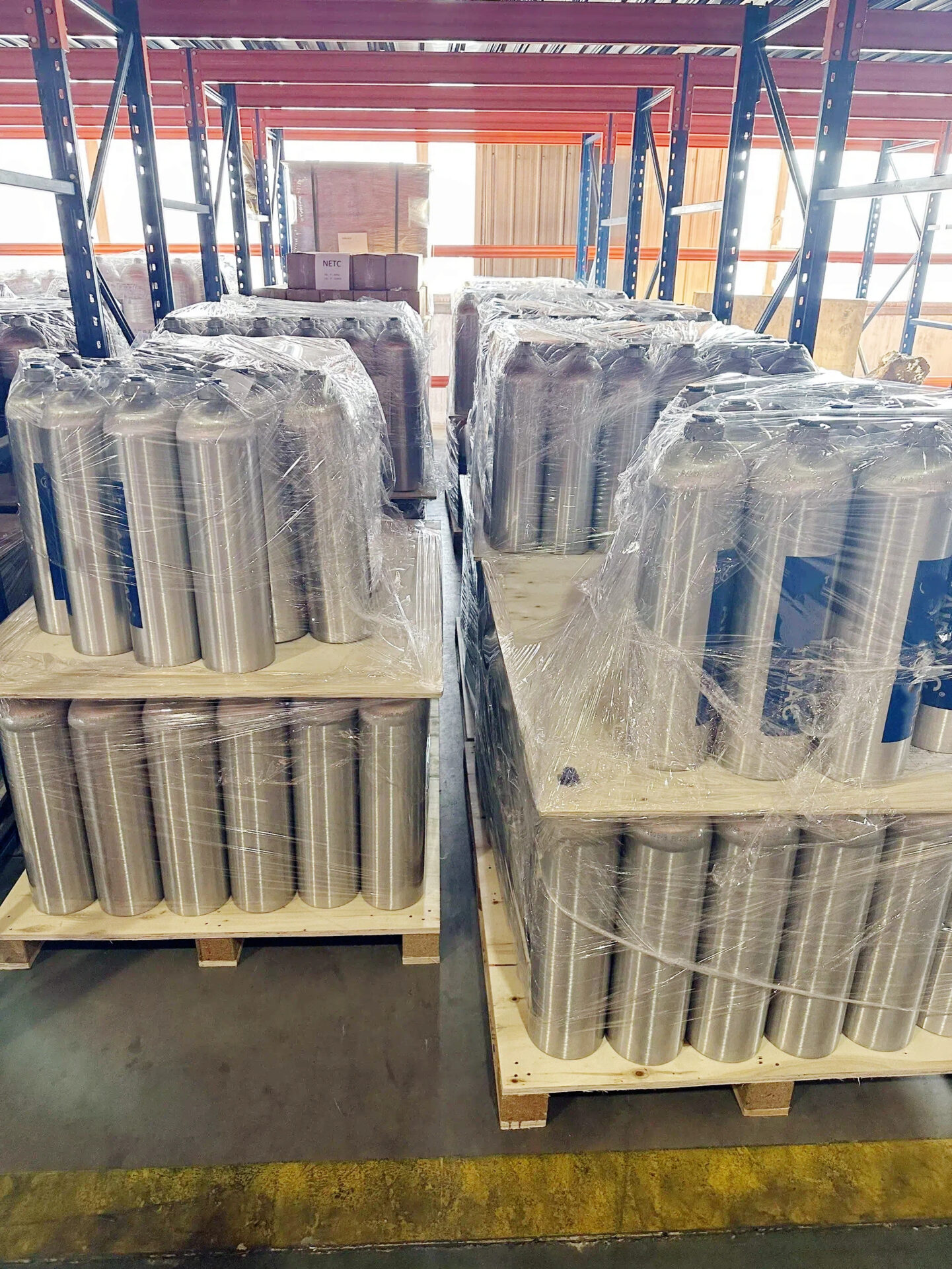

The cylinders can be packed with carton box each cylinder, with pallet or without pallet in container, 20ft or 40ft.
Report & Certifications

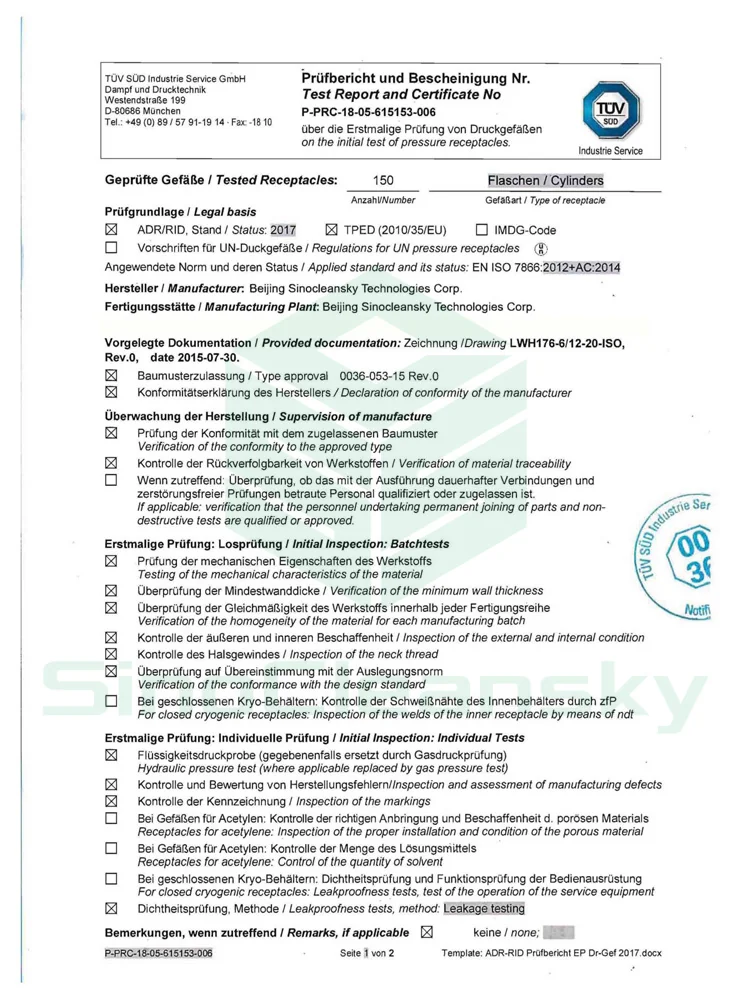

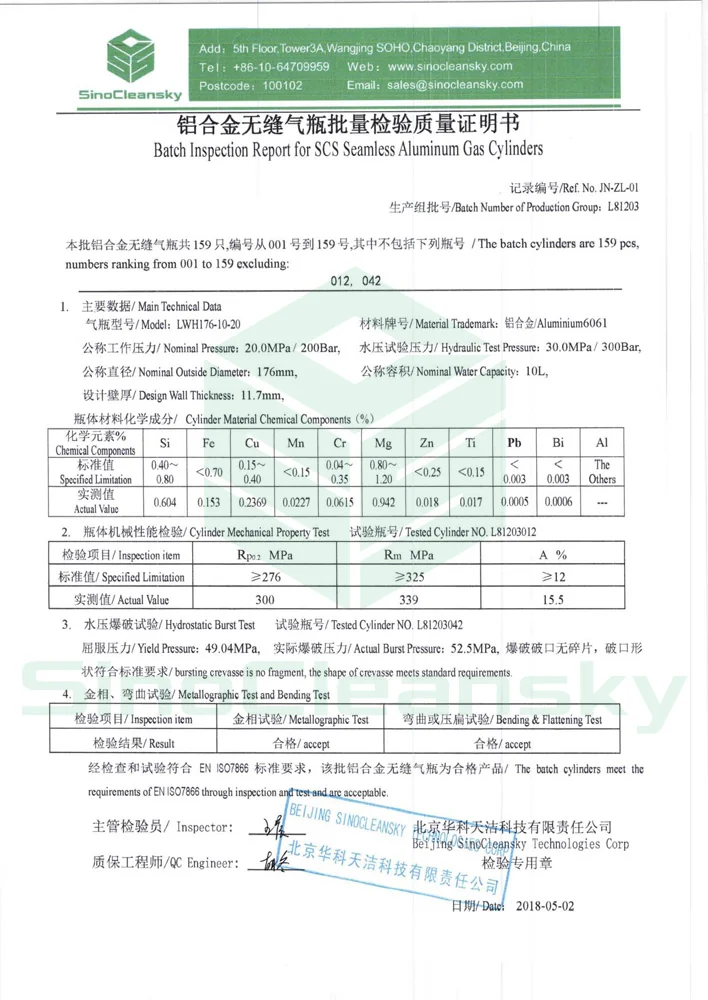

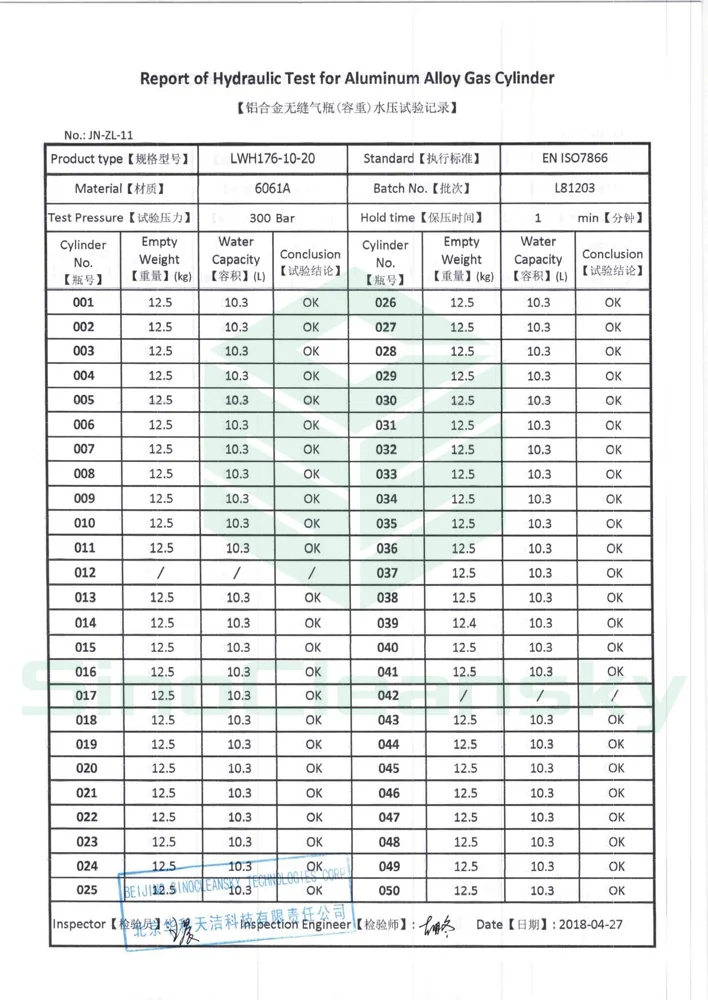

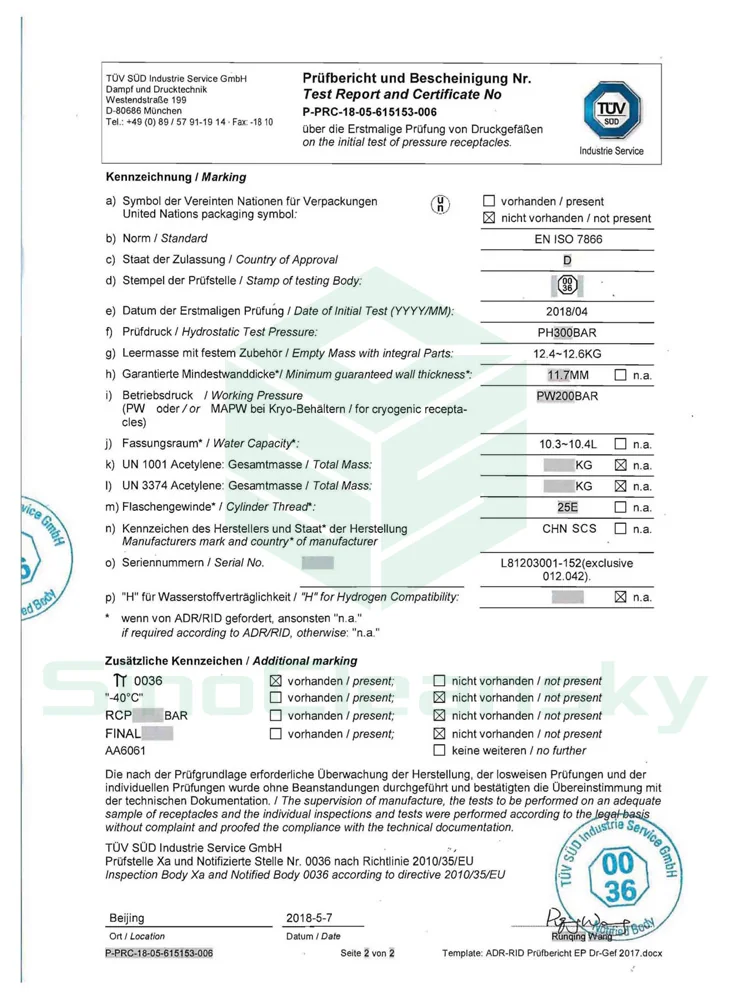

Cylinders are with detailed test report, including the factory test report, hydraulic test report， third-party test report etc.Reference Report:E-mail [email protected] to get more detailed test report specimen.
FAQs
40% weight reduction than steel cylinders.

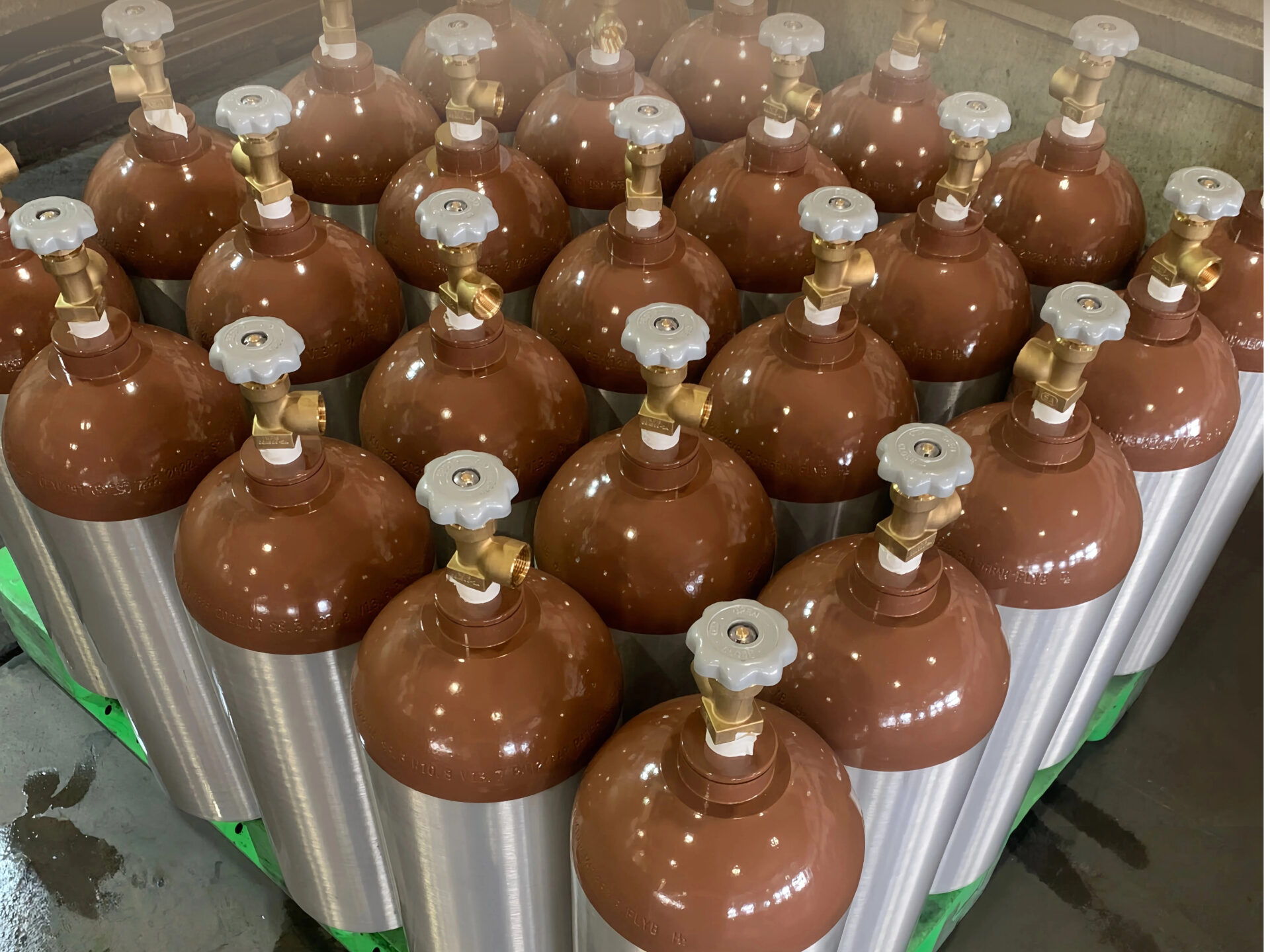

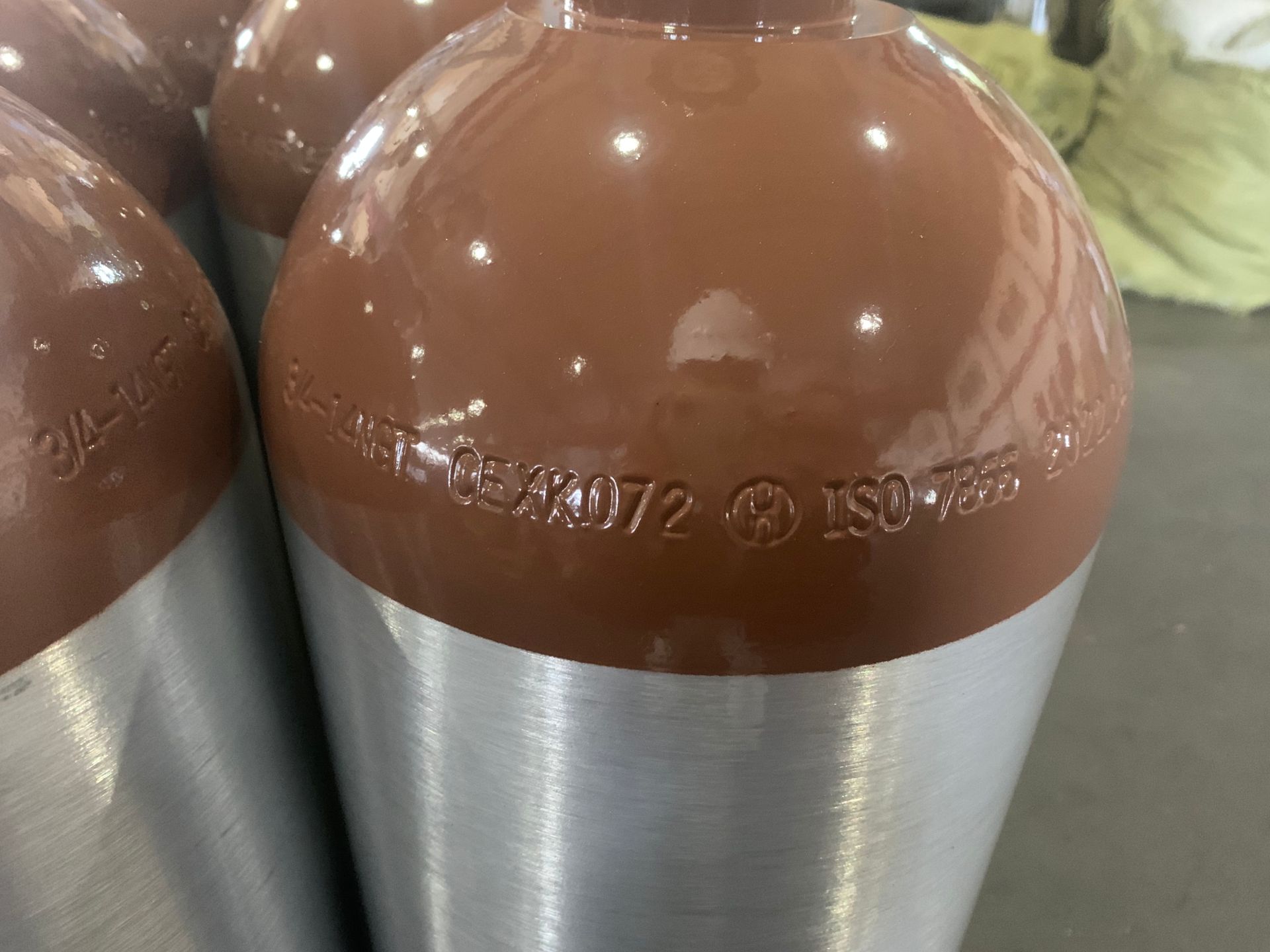

Brushed body with natural unpainted dome is standard. Full body powder coating is available.
For bulk purchase orders, it usually takes 4-6 weeks to finish the production.
