Calibration Gas Cylinder
• Material: high strength aluminum alloy 6061.
• Internal treatments: corrosion resistance.
• Weight: 40% weight reduction than steel cylinders.
• Wide range line:
• Outside diameter: 89mm – 250mm
• Water capacity: 0.5L – 50L
• Working pressure: 12.4MPa, 13.9MPa, 15MPa, 15.4MPa, 20MPa, etc.
Description
SinoCleansky aluminum gas cylinders are made by quality aluminum 6061 and manufactured strictly in accord with national and international safety standards, which assures consistency of wall thickness, weight and performance. They are the first choice to fill and refill various kinds of calibration gases, for different ppm grade.
Technical Specifications
Calibration Gas Cylinder
|
Standard |
Type |
Outer diameter |
Water capacity |
Working pressure |
|
EN1975 / ISO7866 |
159-10L-15MPa |
159 mm |
10 L |
15 MPa |
|
EN1975 / ISO7866 |
203-20L-15MPa |
203 mm |
20 L |
15 MPa |
|
EN1975 / ISO7866 |
232-30L-15MPa |
232 mm |
30 L |
15 MPa |
|
EN1975 / ISO7866 |
250-50L-15MPa |
250 mm |
50 L |
15 MPa |
|
EN1975 / ISO7866 |
204-20L-20MPa |
204 mm |
20 L |
20 MPa |
|
EN1975 |
250-50L-20MPa |
250 mm |
50 L |
20 MPa |
|
DOT-3AL |
250-46.4L-2219Psi |
250 mm |
46.4 L |
2219Psi |

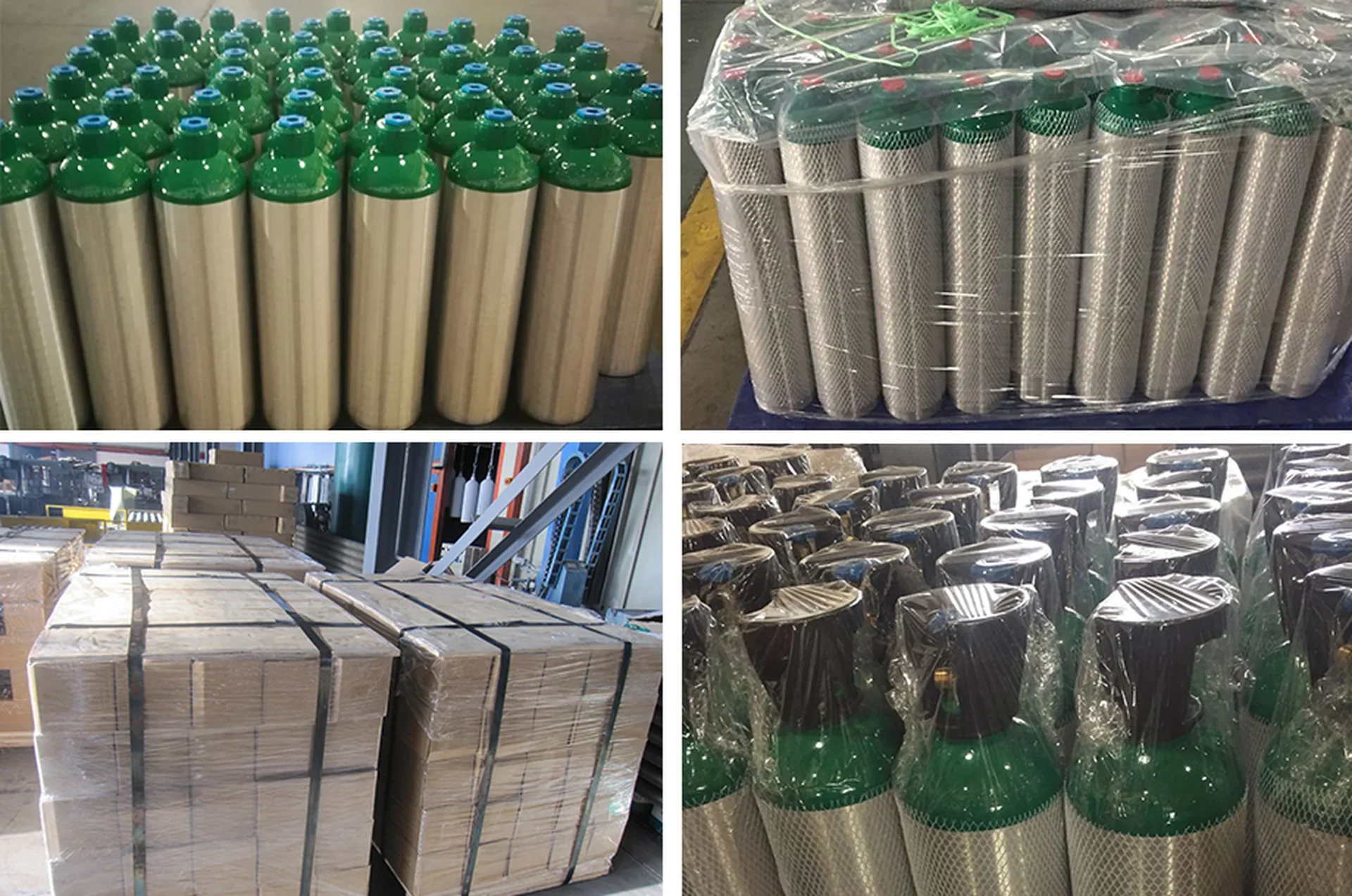

Packaging & Shipping
The cylinders can be packed with carton box each cylinder, with pallet or without pallet in container, 20ft or 40ft.

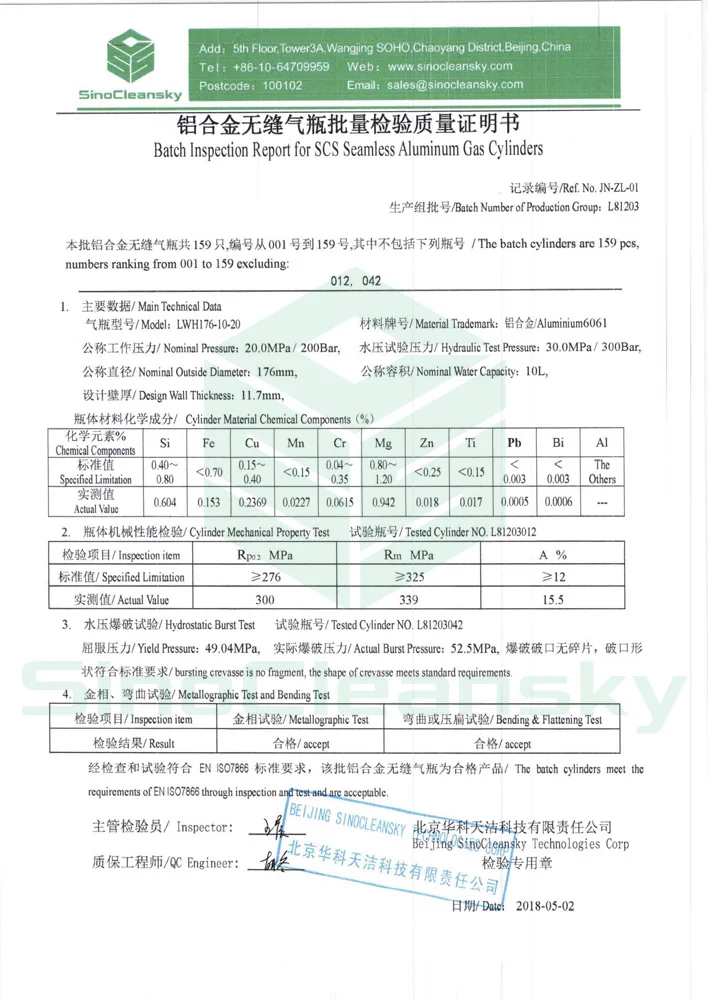

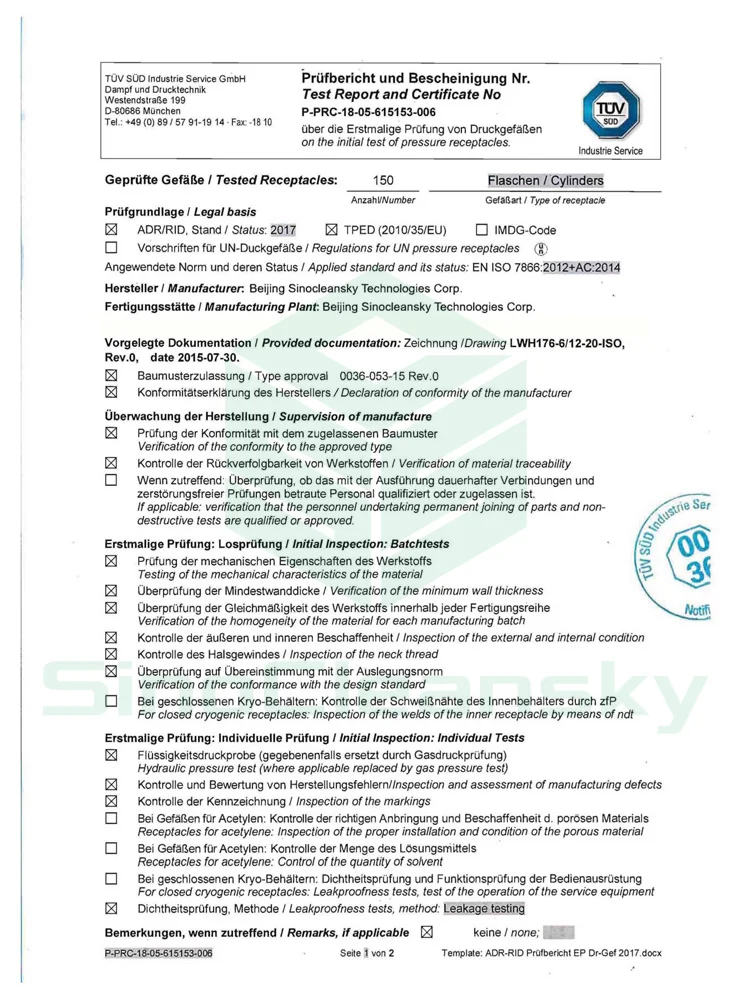

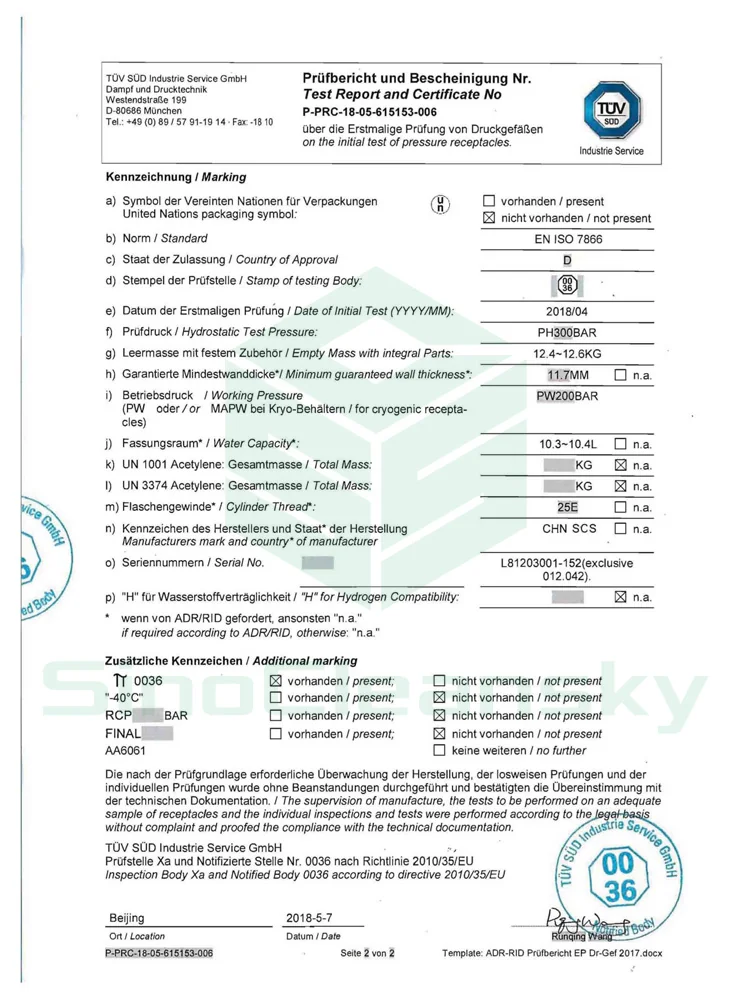

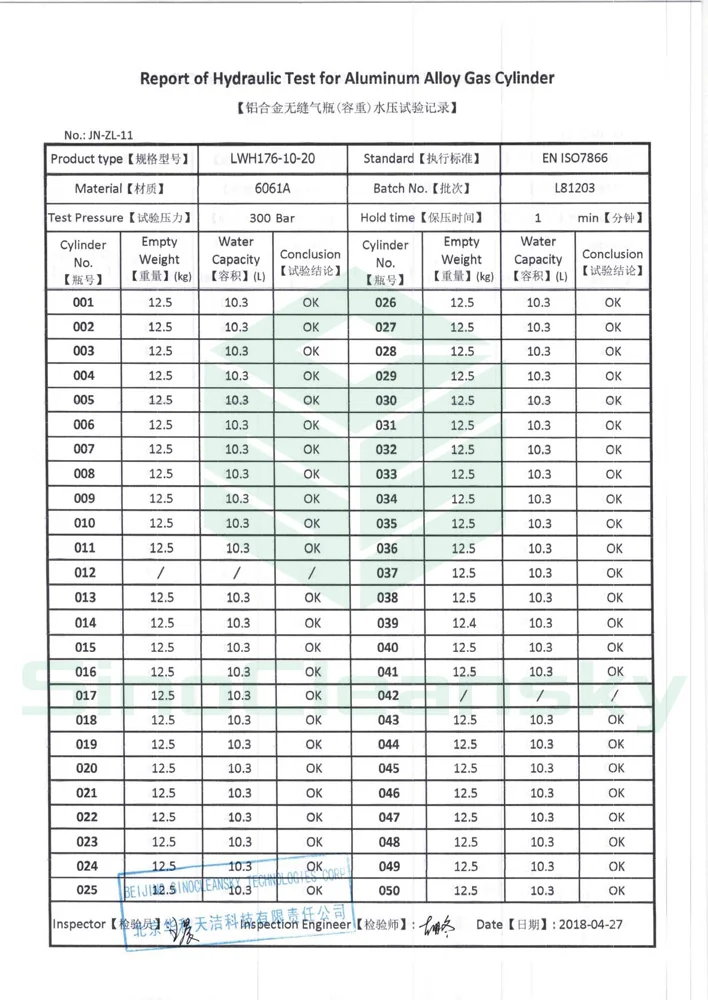

Report & Certifications
Cylinders are with detailed test report, including the factory test report, hydraulic test report， third-party test report etc.Reference BV Report:E-mail [email protected] to get more detailed test report specimen.
FAQs
Calibration Gases, the cylinder inner wall will be polishing or coated.
We can provide GB, EN1975, ISO7866, DOT-3AL and etc.
Cylinders are delivered with detailed test report, and as per the different standard, we provide TUV Test Report and Factory Test Report.
