CNG Cylinder
• Manufacturing standard: ISO11439, ISO11119, NZS5454, ECE R110, NGV2-2000, DOT and etc.
• OD: 232mm, 273mm, 279mm, 325mm, 356mm, 406mm, etc
• WC: 20L—225L.
• WP: 20MPA & 25MPA
Description

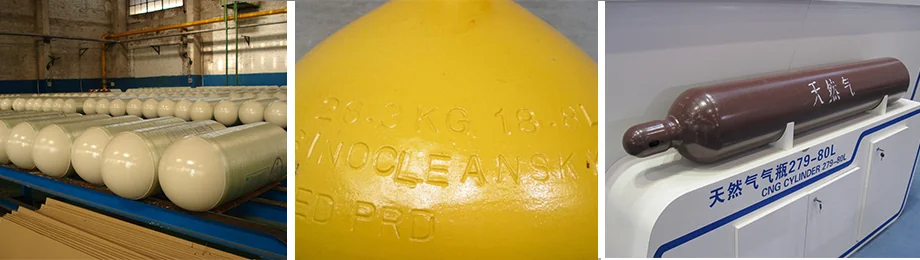

SinoCleansky specializes in providing a comprehensive solution of NGV (Natural Gas Vehicle), covering various products and services. Particularly, SinoCleansky has a strong advantage in providing the essential part of NGV, the high-pressure cylinder, which is used to store the compressed natural gas on board the vehicle or as back-up storage as cascade cylinders.

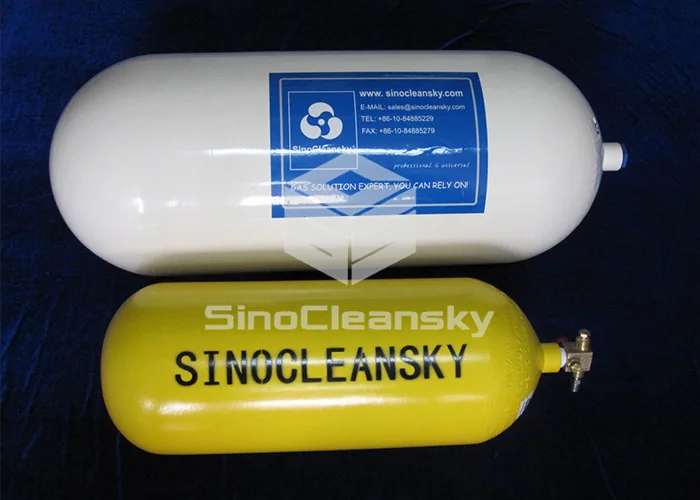

◆ Type I CNG steel cylinder for vehicle
◆ Type II CNG composite cylinder for vehicle (steel liner hoop-wrapped with glass fiber)
◆ Type III CNG composite cylinder for vehicle (aluminum liner fully-wrapped with carbon fiber)
◆ CNG storage cylinder for cascade, both type I and type II and type III
SinoCleansky CNG cylinders (NGV) are manufactured as per different international standards, principally ISO11439, ISO11119, NZS5454, ECE R110, NGV2-2000, DOT etc. Our productions have been certified by the international third-party authorities including LRS, BV, SGS etc.
Technical Specifications

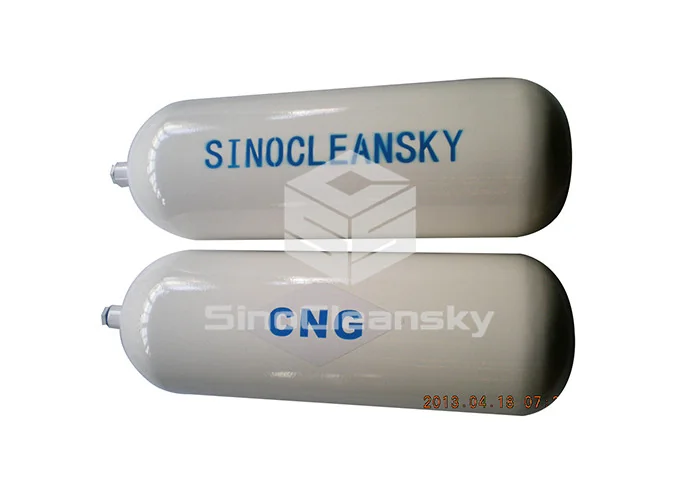

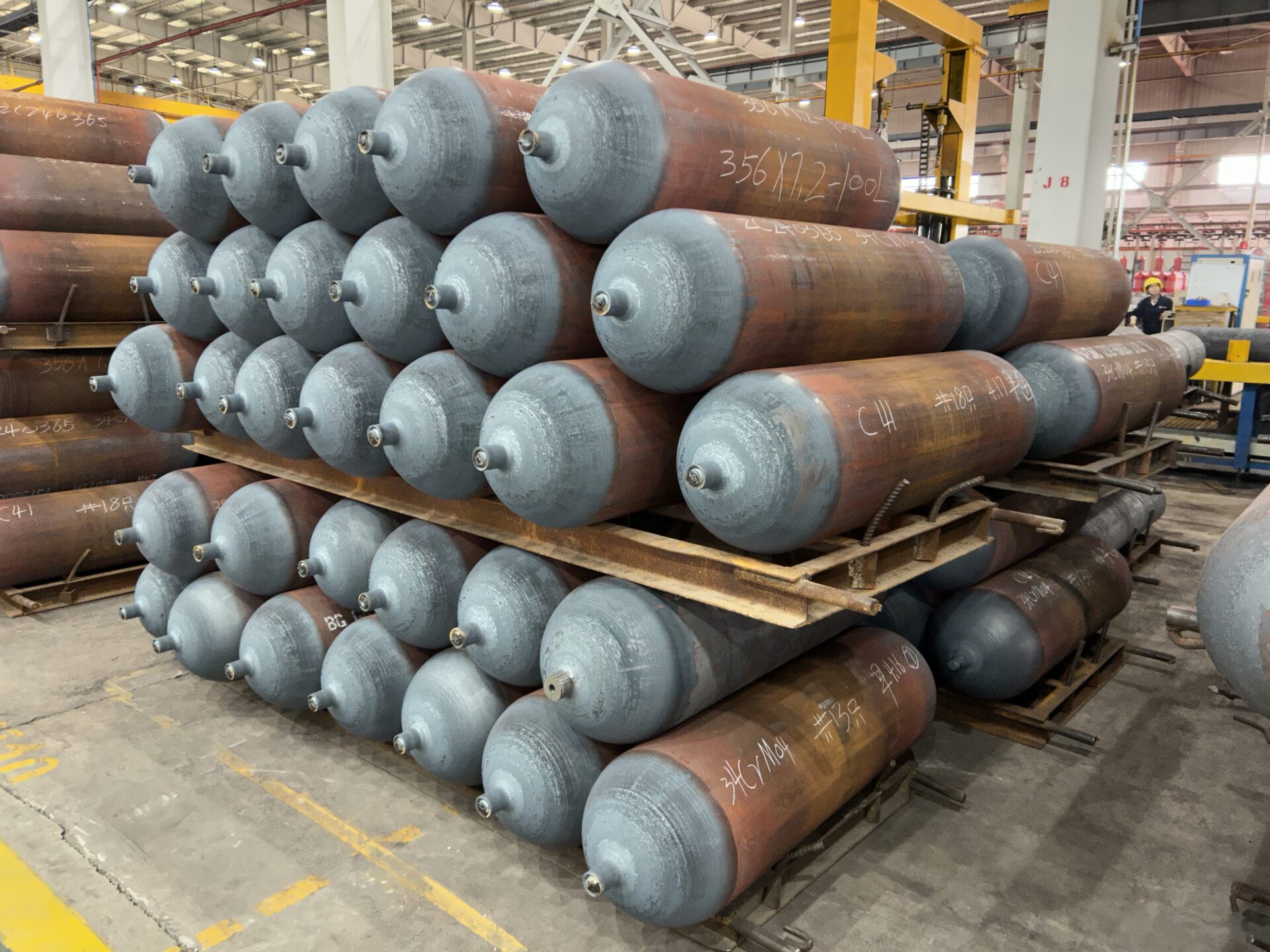

Ø Type I CNG steel cylinder
Manufacturing standard: ISO11439, NZS5454, ECE R110
OD: 232mm, 273mm, 279mm, 325mm, 356mm, 406mm, etc
WC: 20L—225L
WP: 20MPA

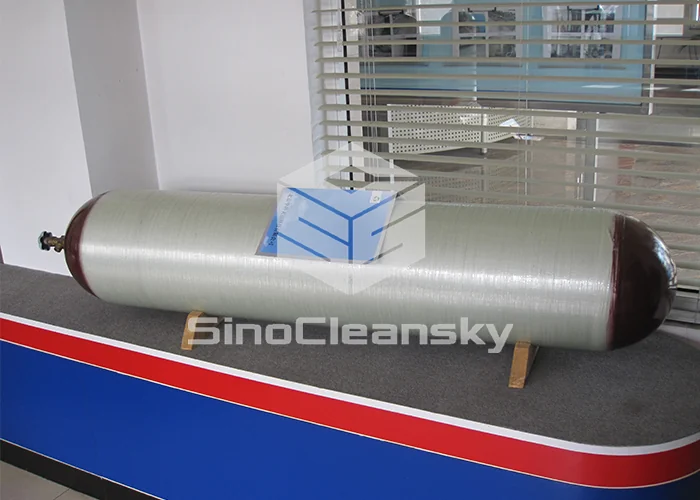

Ø Type II CNG composite cylinder (steel liner hoop-wrapped with glass fiber)
Manufacturing standard: ISO11439, ECE R110
OD: 325mm, 356mm, 406mm, etc
WC: 50L-200L
WP: 20MPA
Ø Type III CNG composite cylinder (aluminum liner fully-wrapped with carbon fiber)
Manufacturing standard: NGV2, ISO11119
OD: 373mm, 383mm etc
WC: 80L-207L
WP: 25MPA
Packaging & Shipping

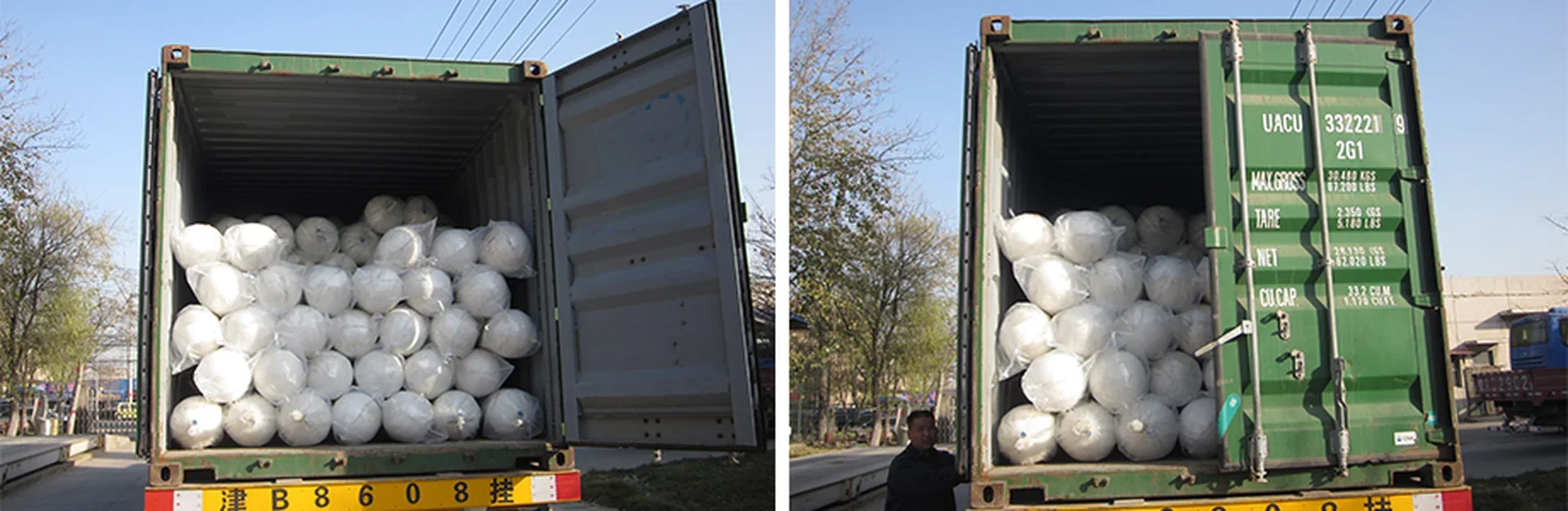

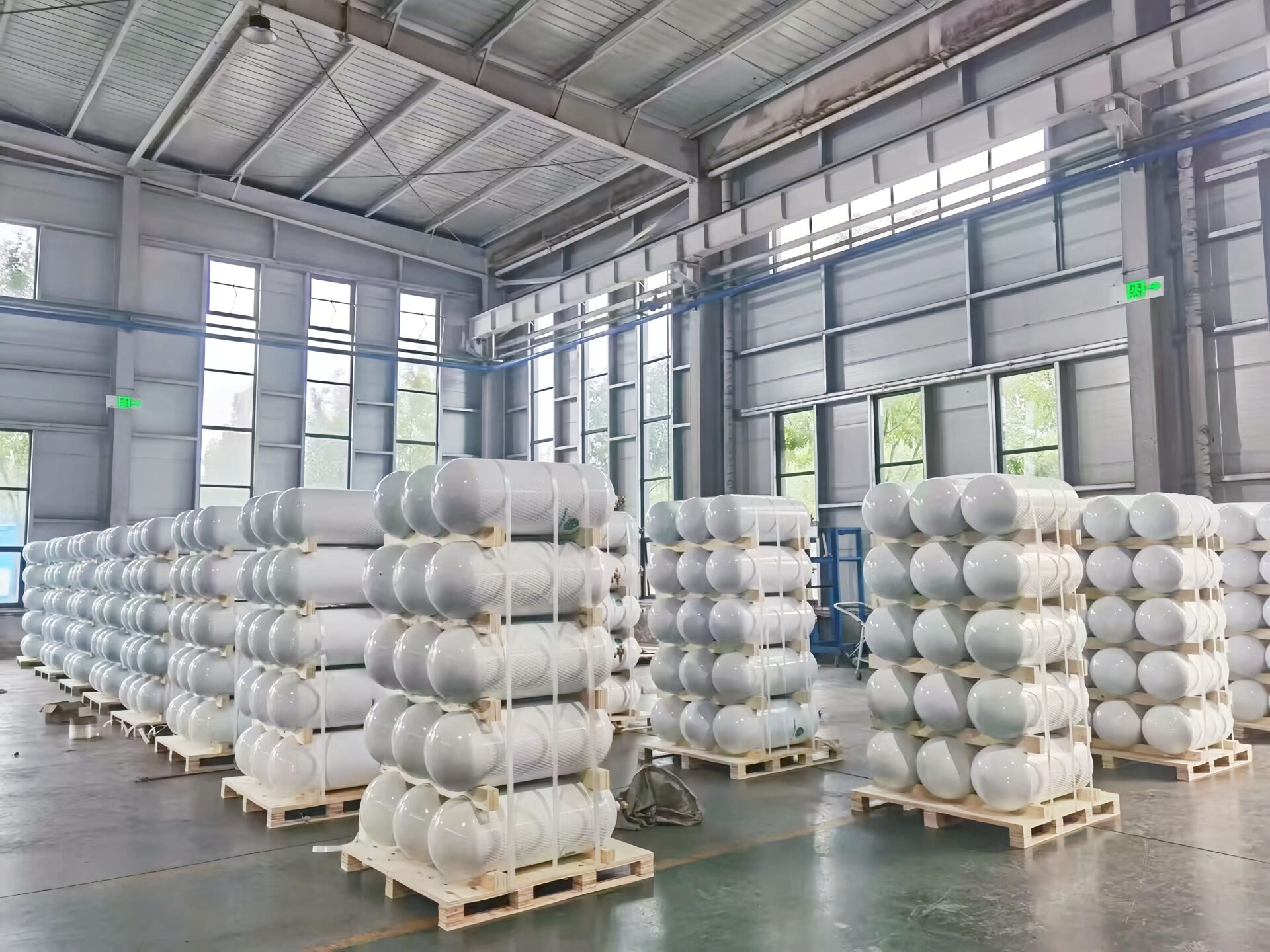

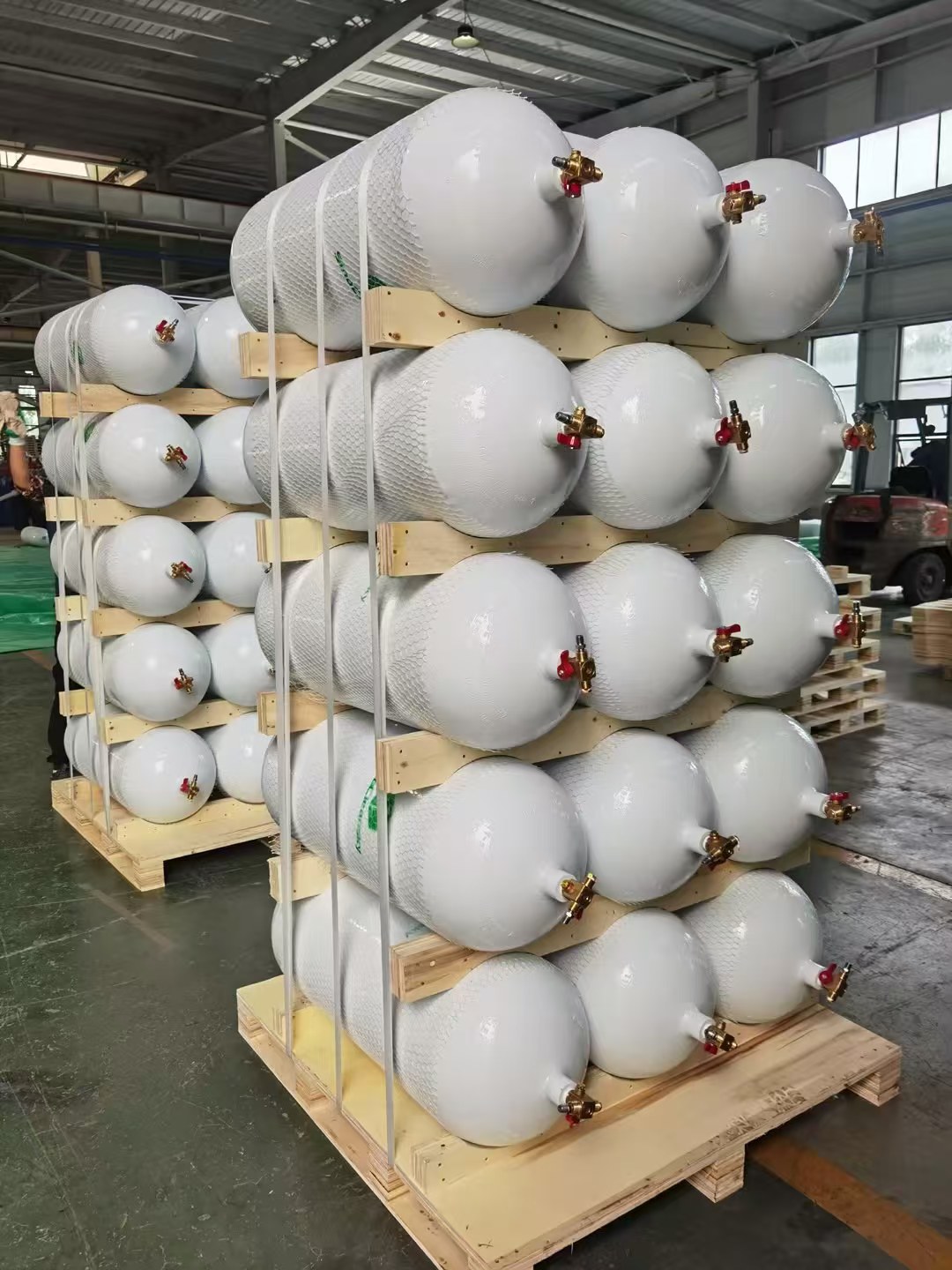

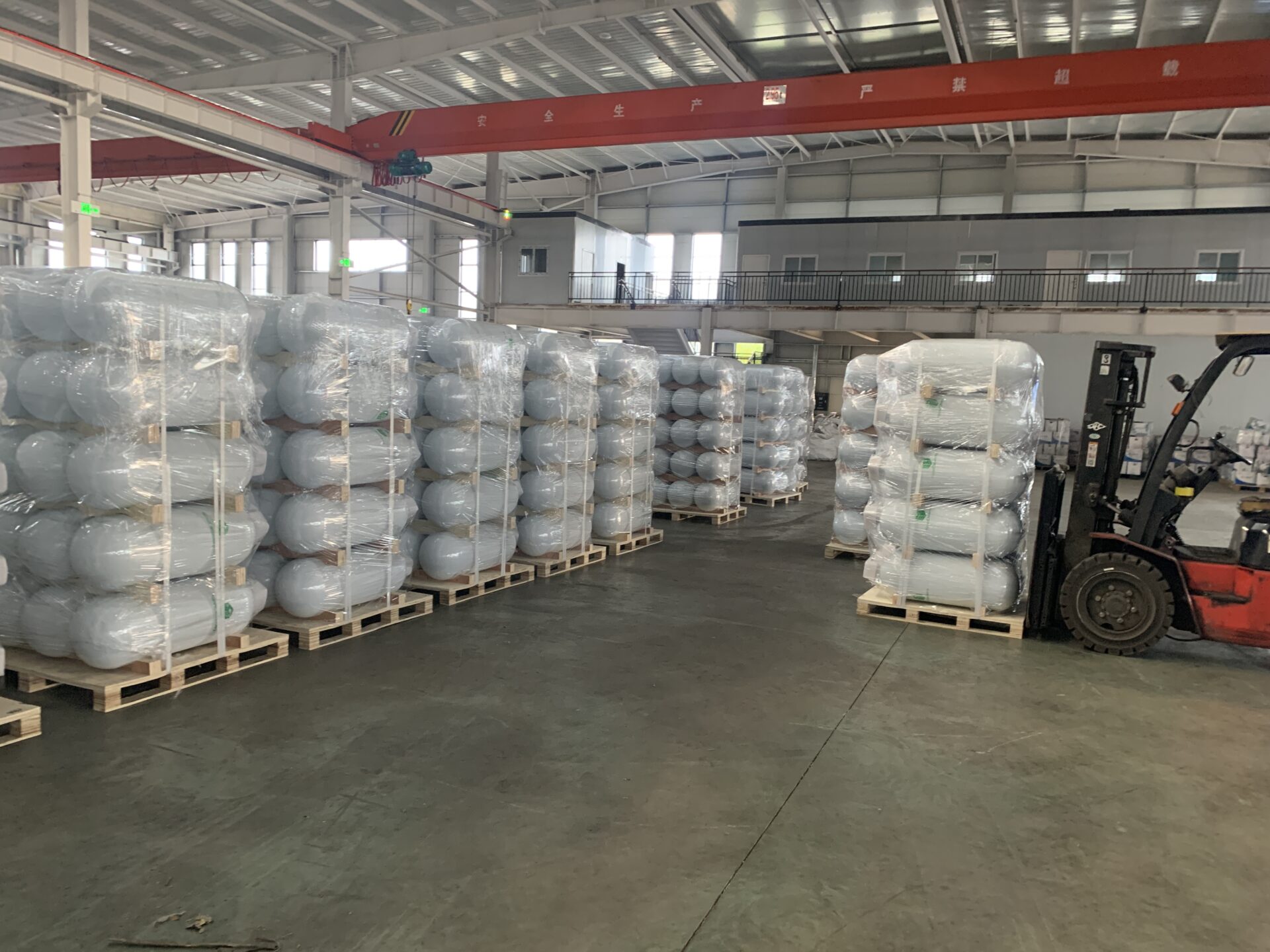

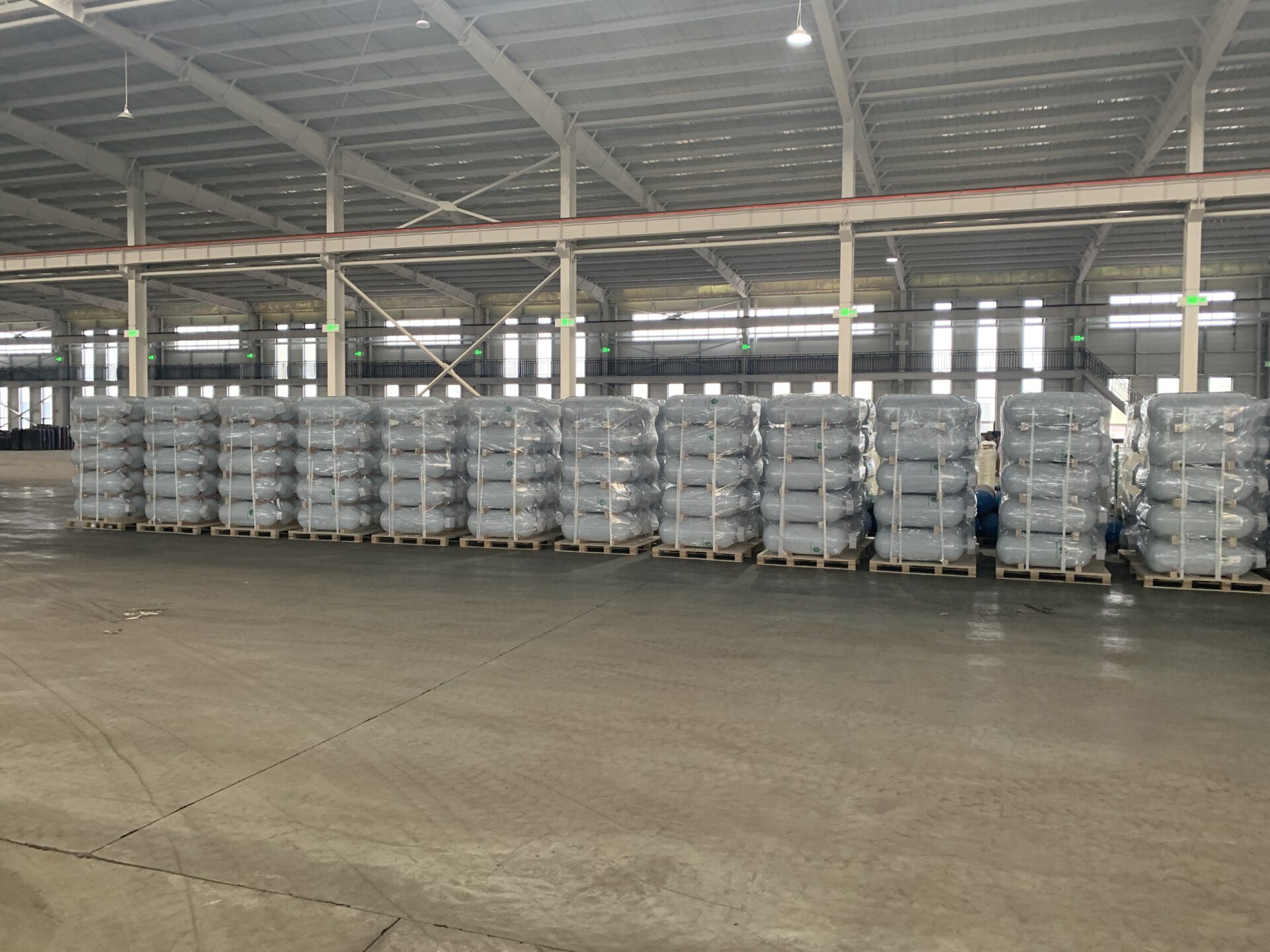

All the cylinders will be packed with plastic net for protection of painting. And the cylinders can be delivered with pallet, or loose in container based on quantity.

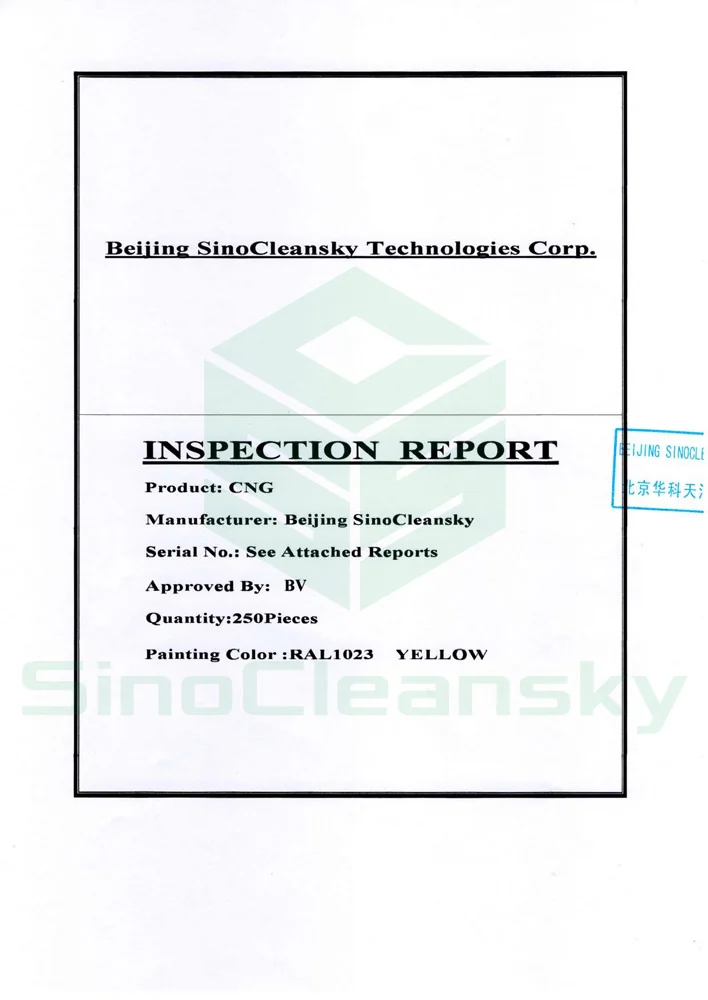

Report & Certifications

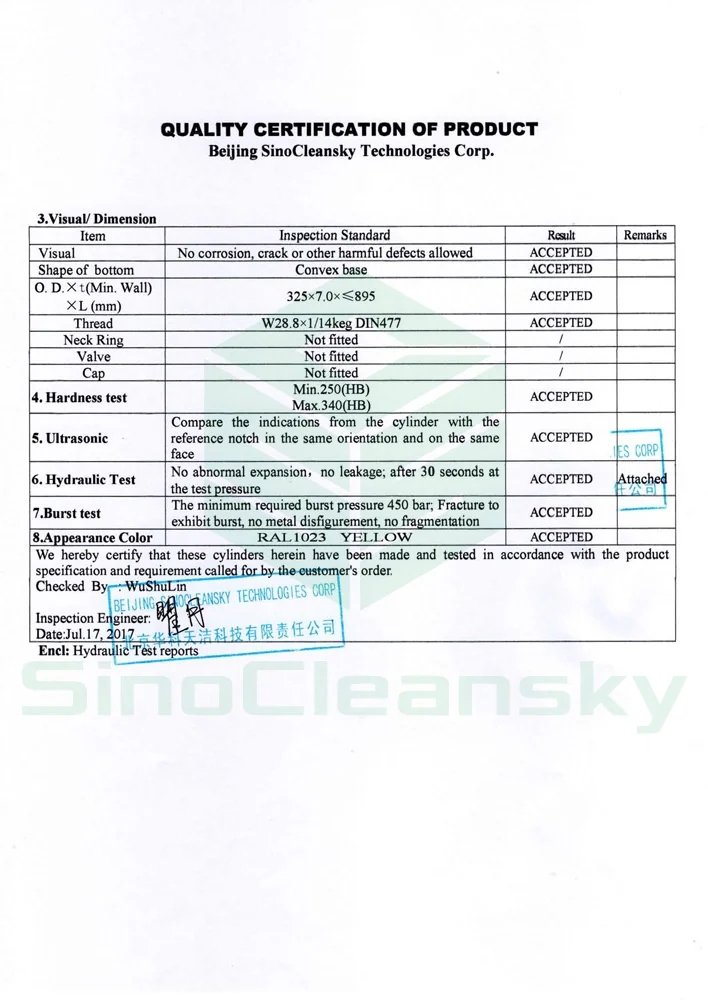

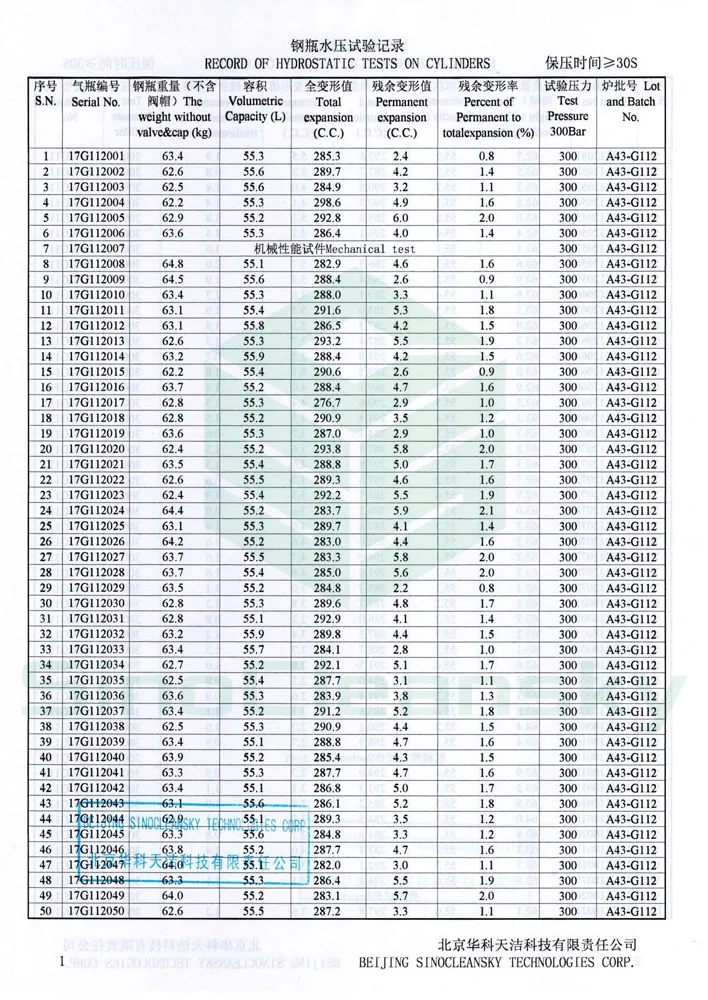

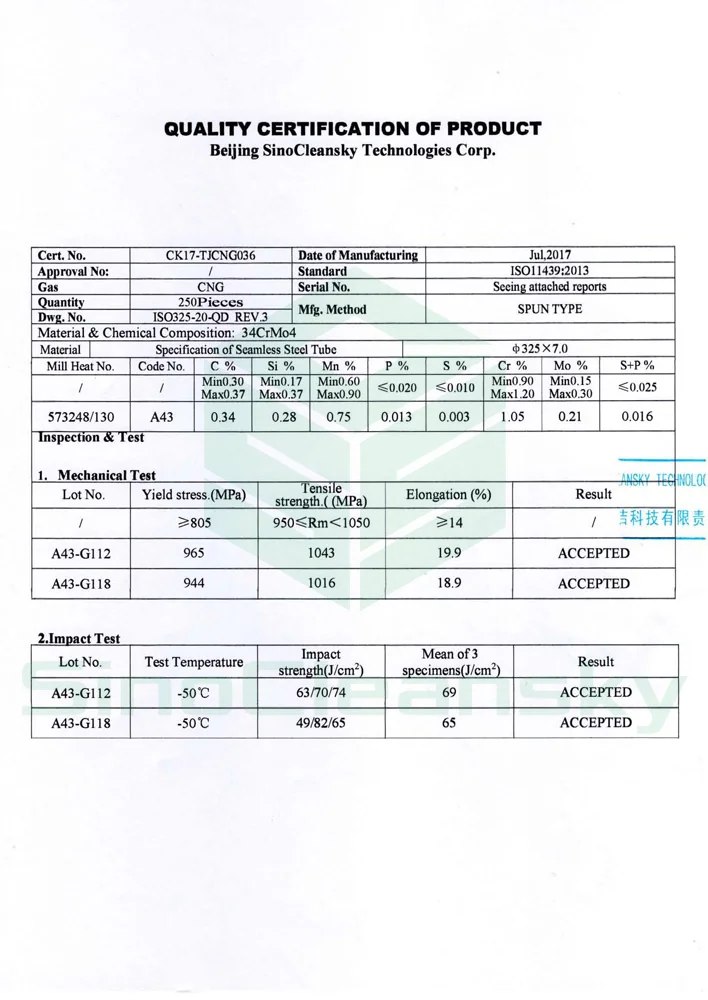

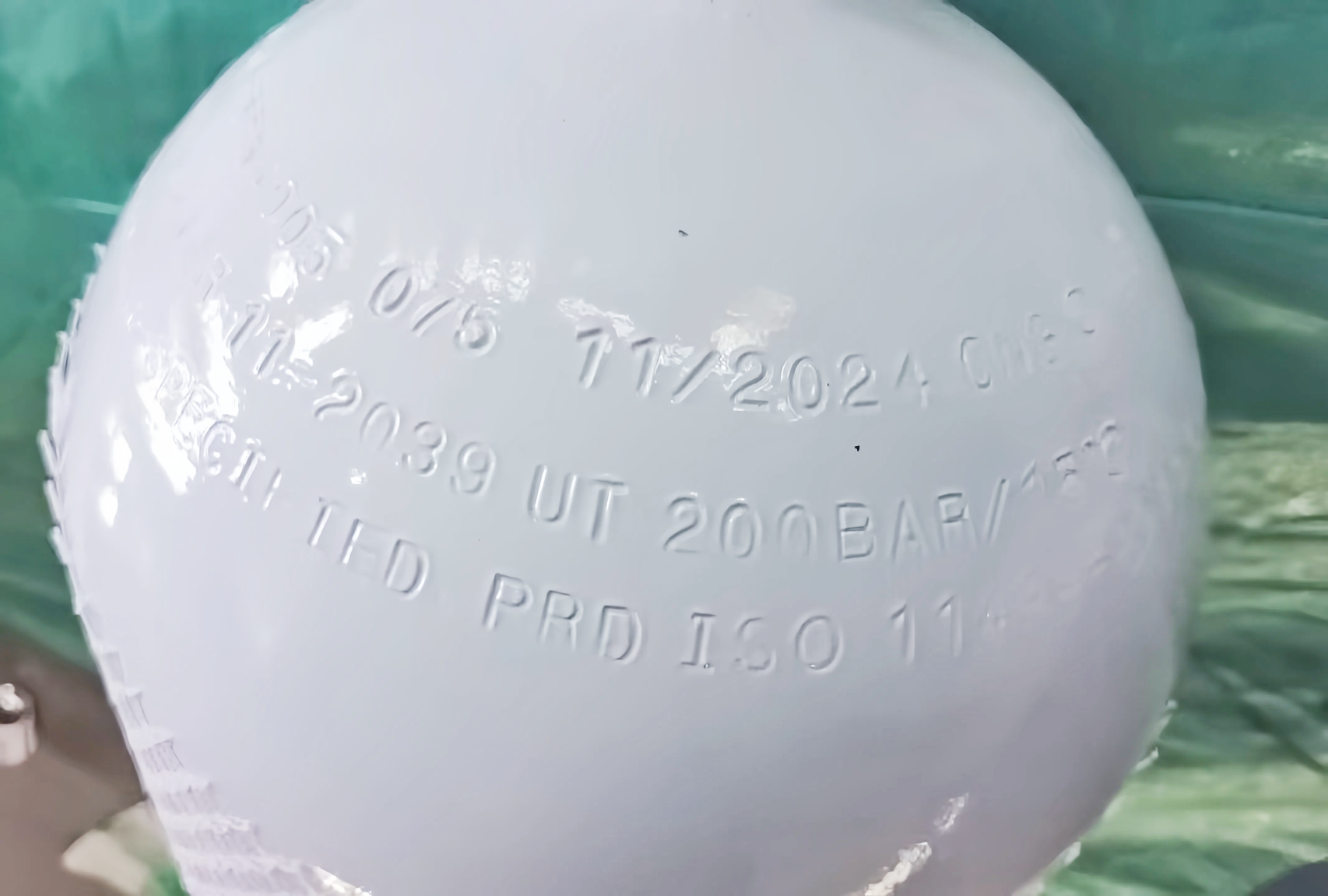

SinoCleansky CNG cylinders are manufactured under strictly compliant with international quality control system. The CNG cylinders are delivered with detailed test report, including the third-party certificate such as BV, SGS etc. and factory test report with which include: quality certification, hydrostatic test etc. We assure you that all cylinders are 100% traceable.
Reference certifications and reports:
FAQs

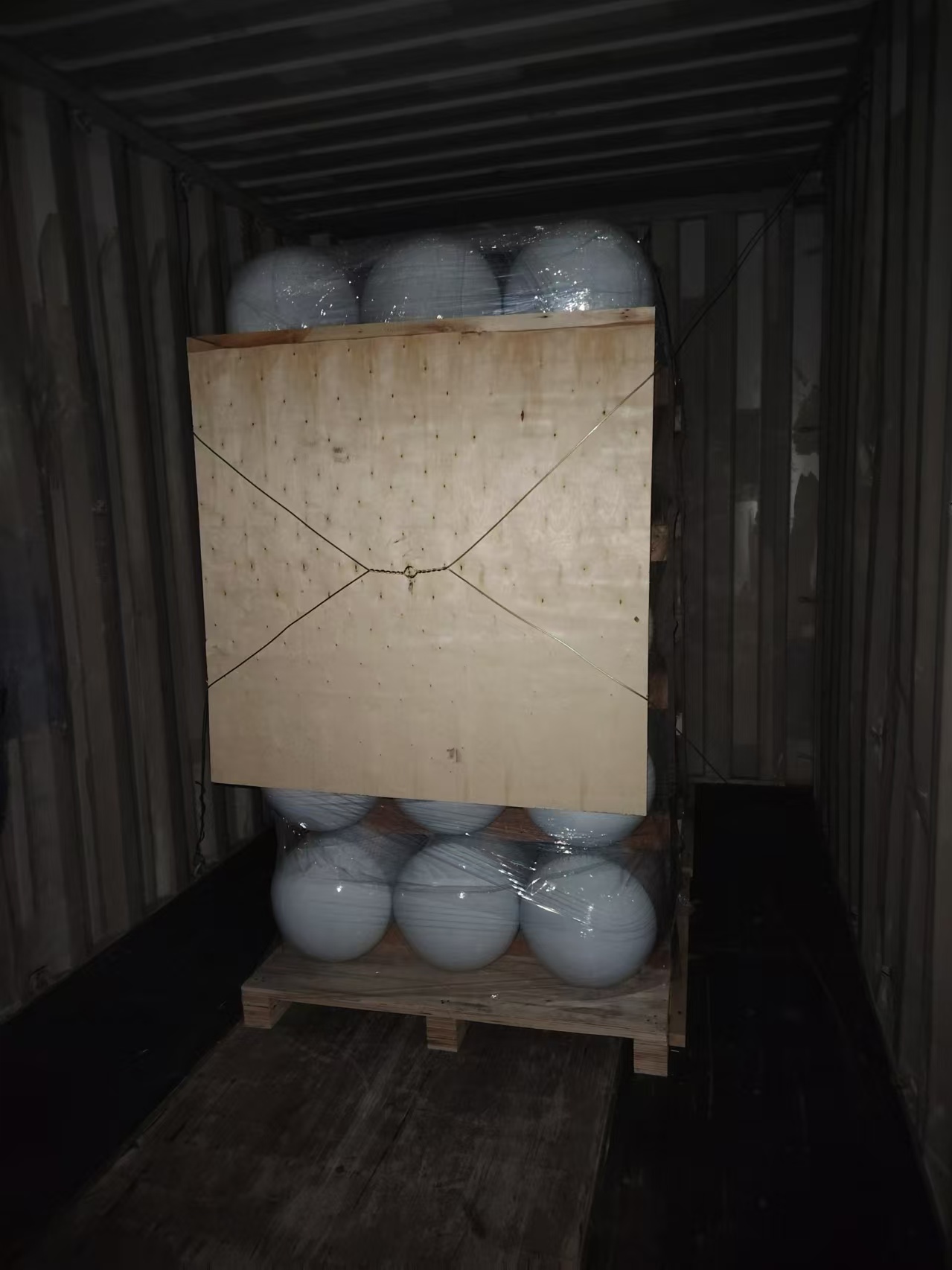

Generally, the cylinders will be shipped by 20ft container, if without pallet, the loading quantity is 276pcs for 325-60L, 165pcs for 356-75L.
We can provide the third-party Certificate issued by BV, SGS and etc, and factory test report which include Quality Certification, Hydrostatic Test and etc.
