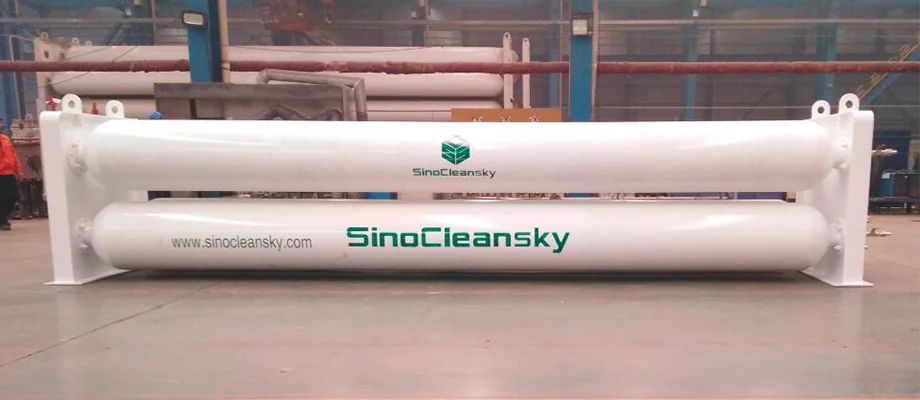

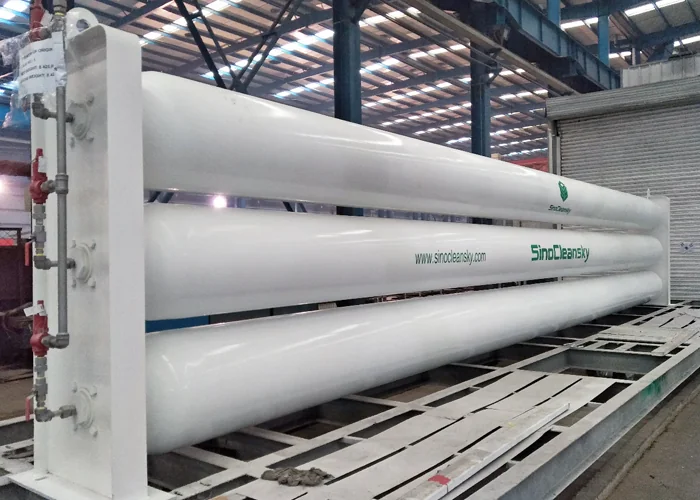

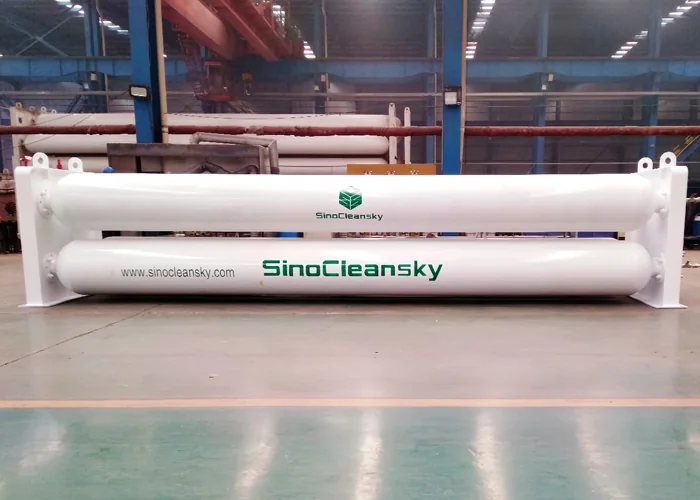

CNG Jumbo Cylinder Cascade
• Close-spinning technology applied, seamless structure, and reliable for safety operation.
• Large-size structure, fewer valves, tubes and joints, and less danger of gas leakage.
• Cleanliness in design and structure, and less maintenance on site.
• Easily discharging of residue liquid.
• Equipped with branch-tubes and accessories, easy for operation and maintenance.
Description
Customized cascade will be manufactured after undergoing dual design verification to ensure the safety and stability of the framework and jumbo cylinders.
The frame and tube’s structure is engineered to maintain its integrity under extreme pressure conditions, preventing any potential gas leaks.
Safety features are integral to the CNG Jumbo Tube. It is equipped with reliable pressure – control mechanisms such as safety valves that release gas in case of over – pressure situations.
Additionally, the tube is often designed with redundant safety systems to minimize risks.
The customized framework of Jumbo Tube Cascade can meet the requirements of customers for various gas usage scenarios.
Technical Specifications
Typical type for cascade with ASME Certificate
|
Type |
Working pressure (MPa) |
Gas capacity (NM3) |
Filling weight (kg) |
Cylinder weight (kg) |
Max weight (kg) |
Dimension (mm) |
|
GPR06-7800-CNG-25 |
24.8 |
2437 |
1754 |
18720 |
22940 |
7050*1400*2185 |
Customized products
|
Type |
Working pressure (MPa) |
Water capacity (M3) |
Net weight (kg) |
Filling Medium |
Cylinder material |
Cylinder number |
|
SCS0425CS-20F-559 17.4mm cylinder wall thickness |
25 |
4200L |
6396 |
CNG |
4130X |
4 |
|
SCS0425CS-40F-559 17.4mm cylinder wall thickness |
25 |
8840L |
12079 |
CNG |
4130X |
4 |
|
SCS0225CS-40F-559 14.8mm cylinder wall thickness |
25 |
4900 |
5500 |
CNG |
4130X |
4 |
|
SCS0425CS-40F-559 14.8mm cylinder wall thickness |
25 |
9800L |
11000 |
CNG |
4130X |
4 |
Packaging & Shipping

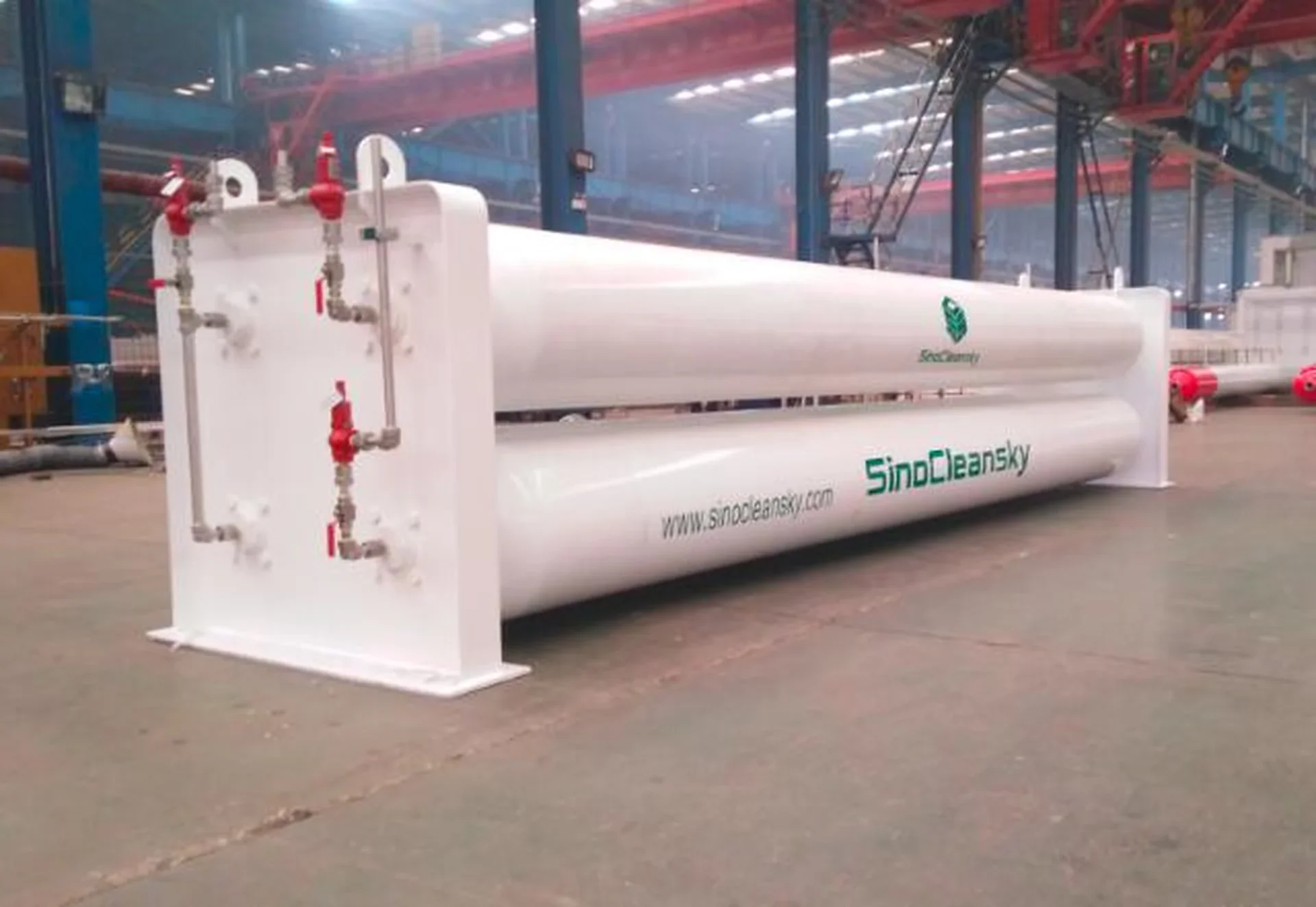

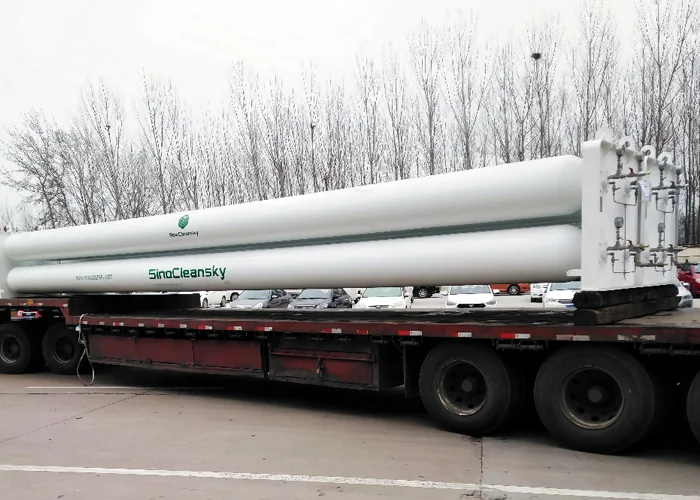

CNG jumbo cylinder cascade can be shipped by standard containers, open top containers, or bulk cargo based on sizes. CNG cylinder cascade will be delivered with special protection if in container.
Report & Certifications

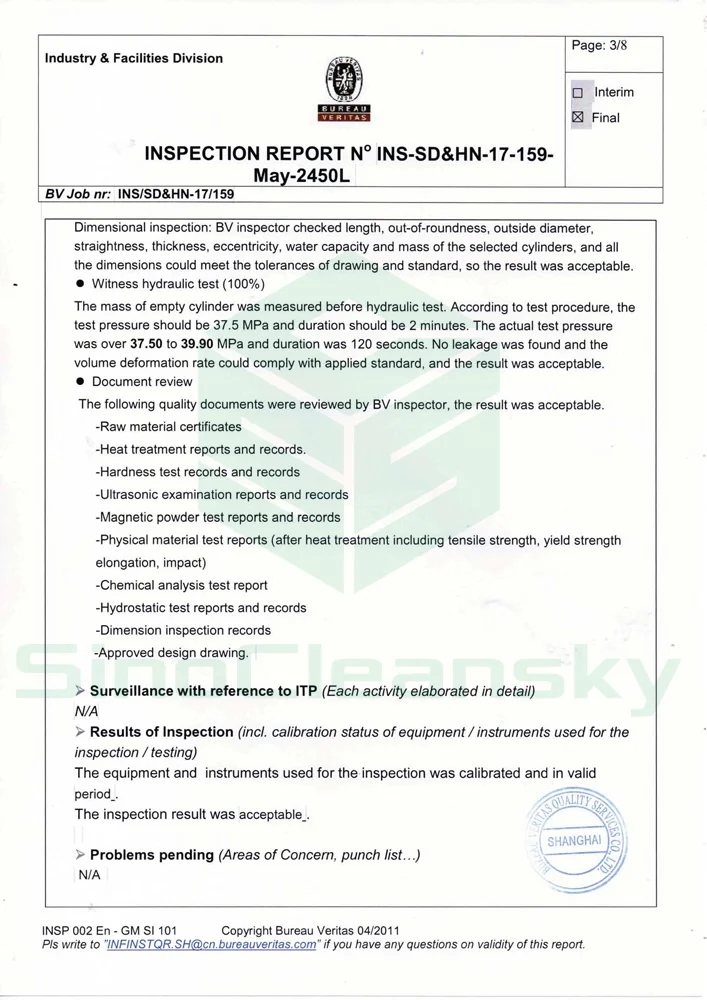

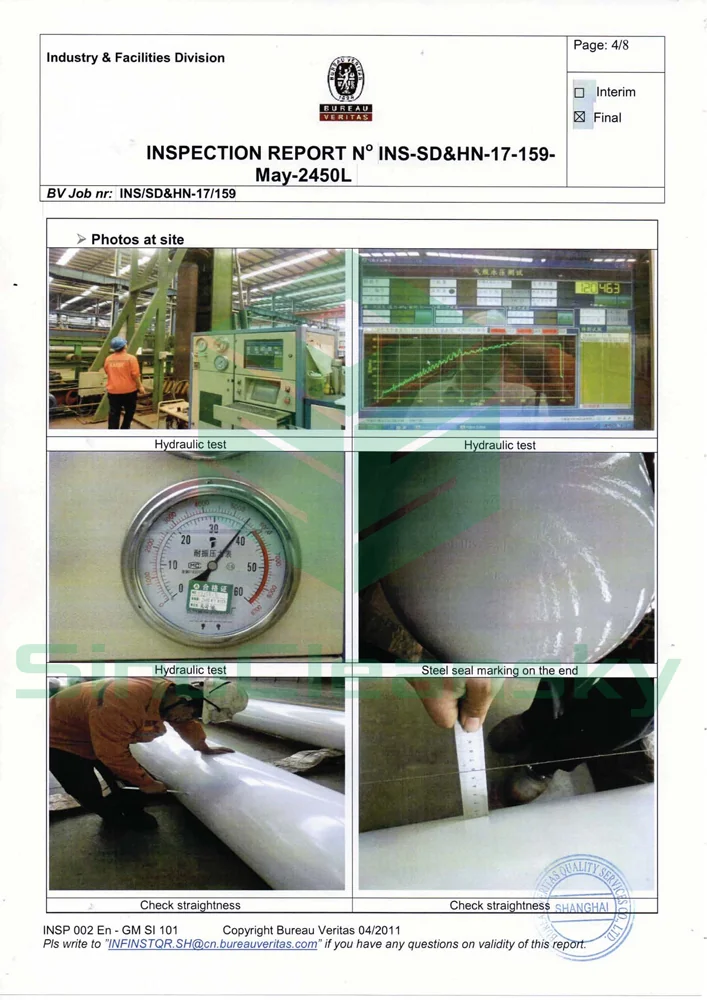

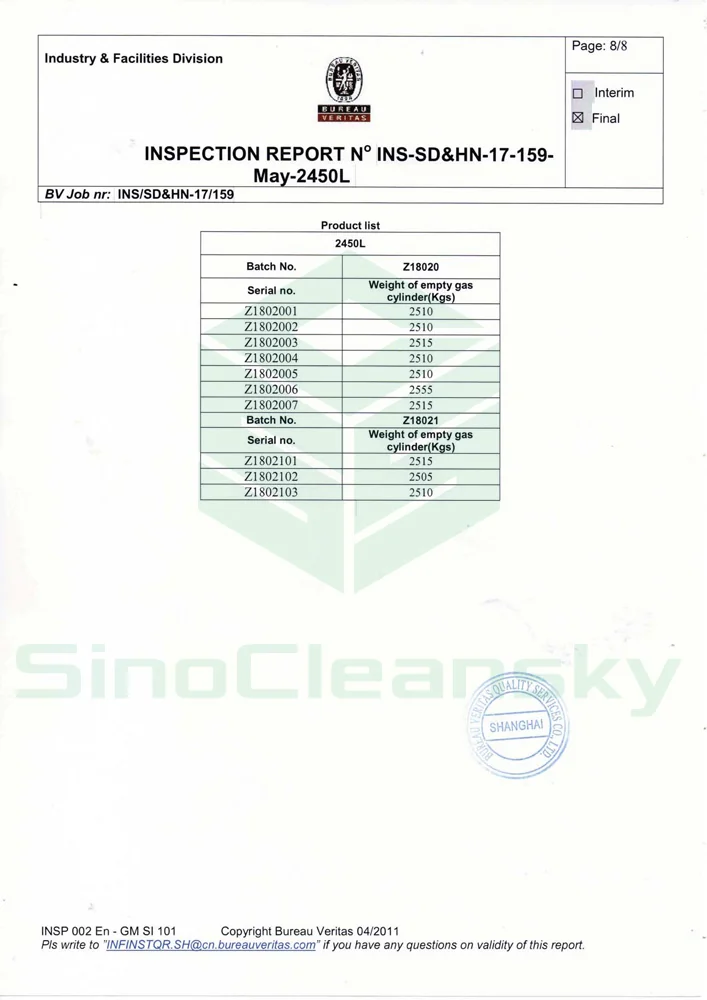

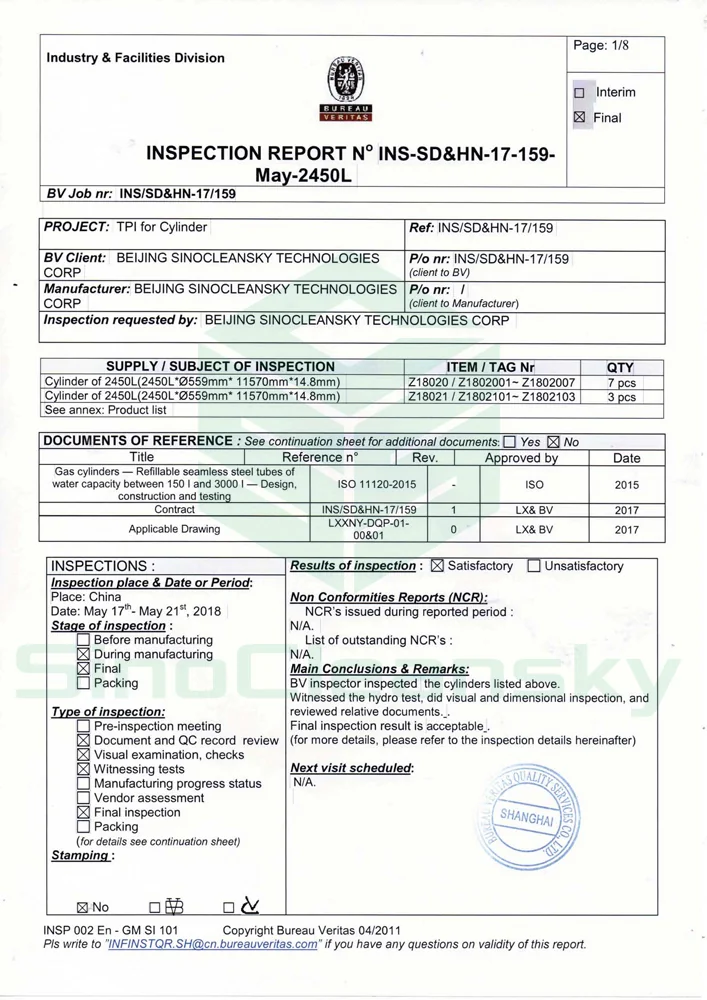

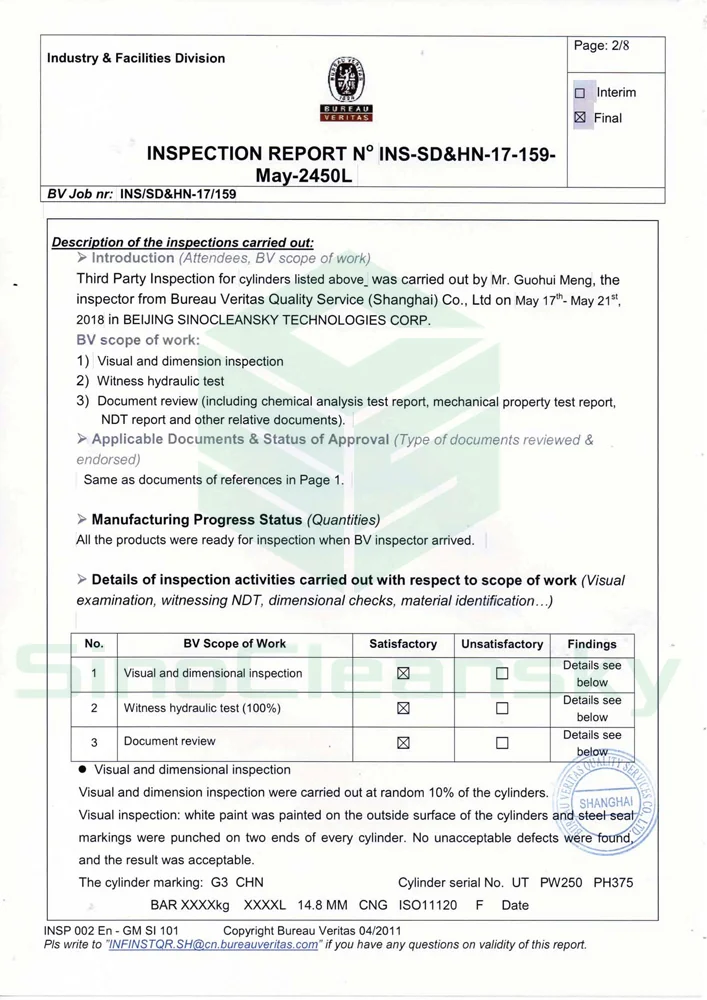

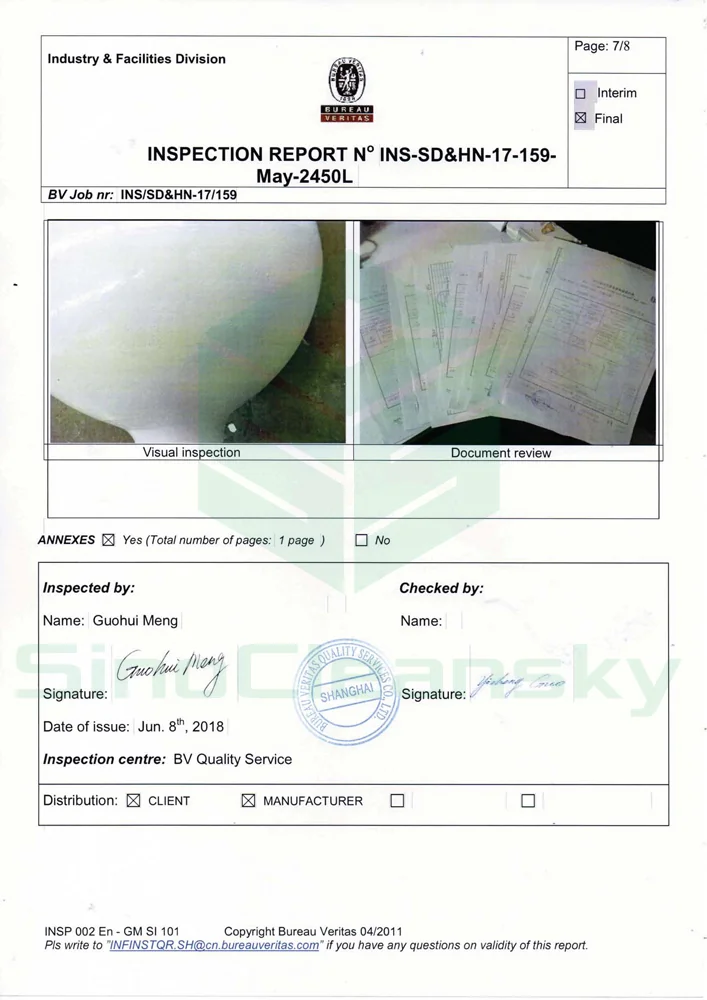

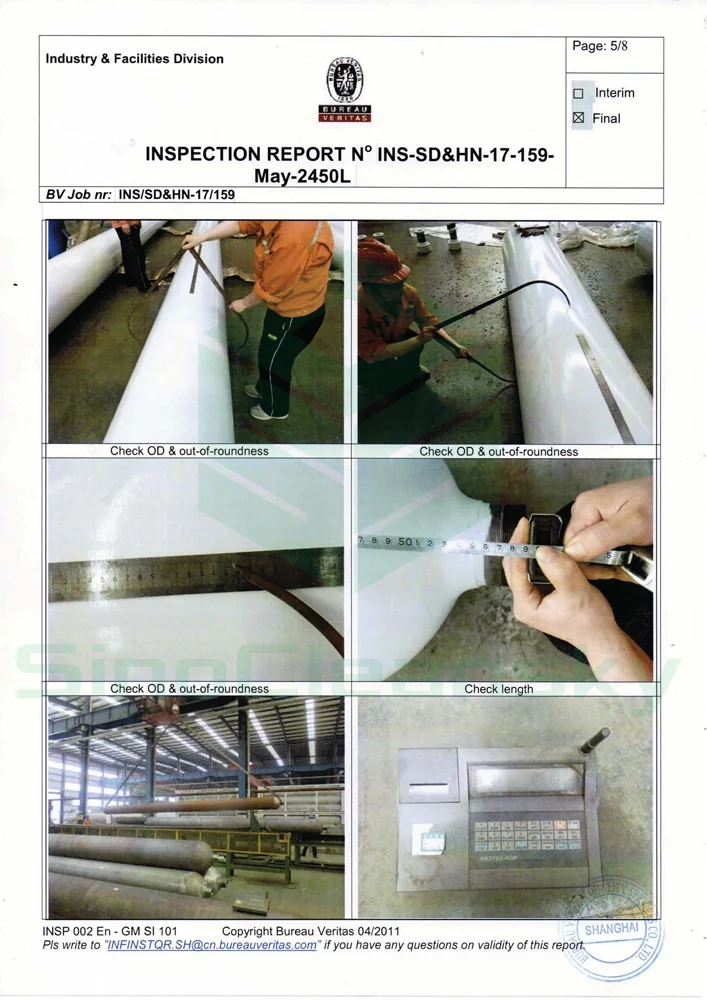

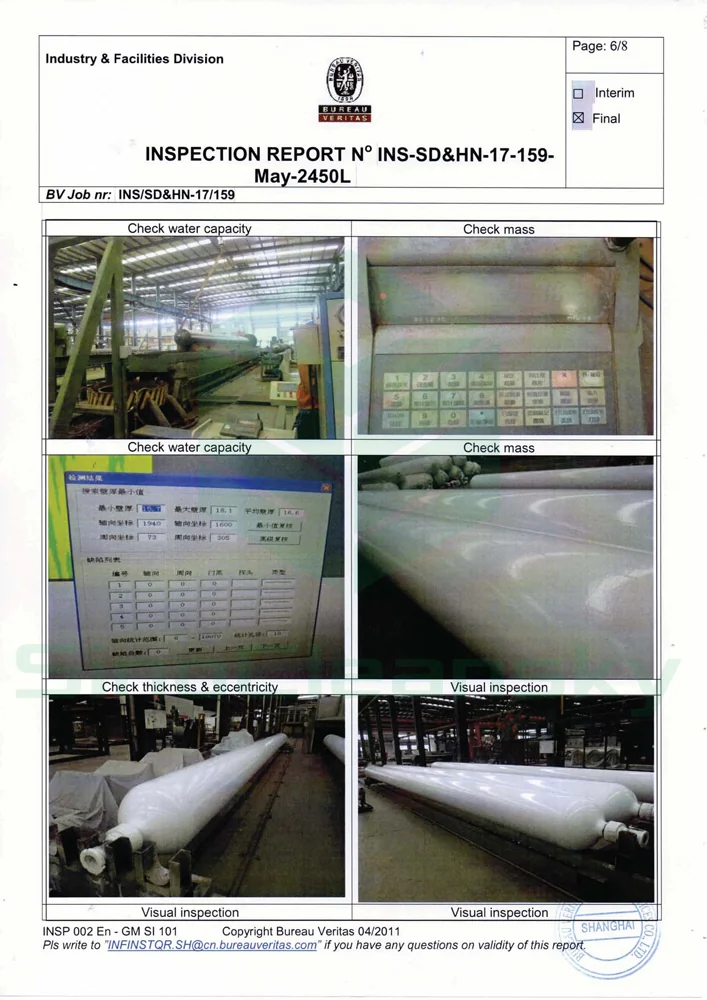

SinoCleansky CNG jumbo tube products are manufactured under strictly compliant with international quality control system. The CNG jumbo cylinders are inspected by International Third-Party BV/TUV/LRs as per ISO11120 std, with inspection report submitted to clients. With client’s requirements, SinoCleansky will also provide some other certificates as per clients’ request. We assure you that all jumbo cylinders are 100% traceable.Reference certifications and reports:
FAQs
We have an existing product list for you to check and choose; Or you can tell us your required Filling medium / Working pressure / Water capacity, then we will recommend the suitable model for you;
For valve, we can provide Chinese brand or international brand (such as Parker, DK etc.).For other accessories, we can provide a list for you to check when you purchase from us.
Within 12 months from the date of shipment, under the premise of proper installation and use, we provide free repair service for product failures. If your order quantity is large, we can even send engineer to your premises.
