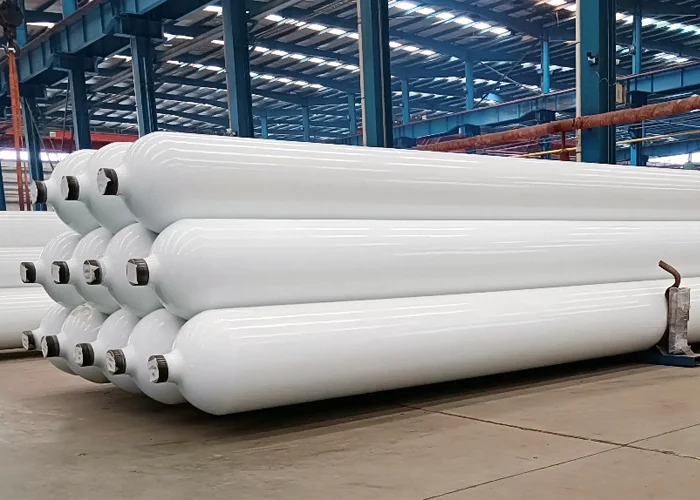

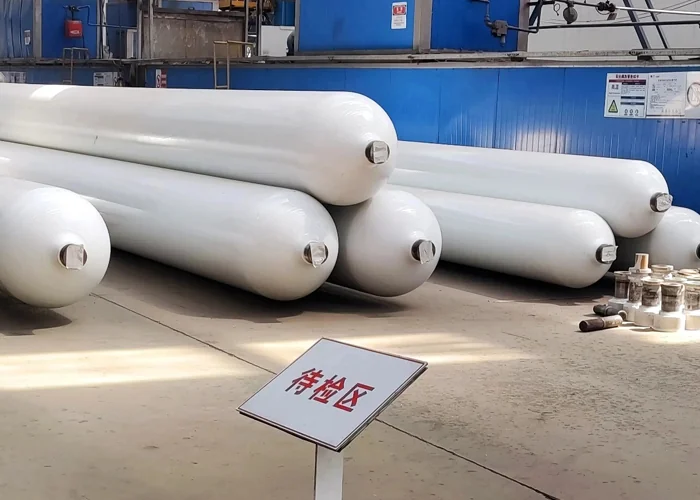

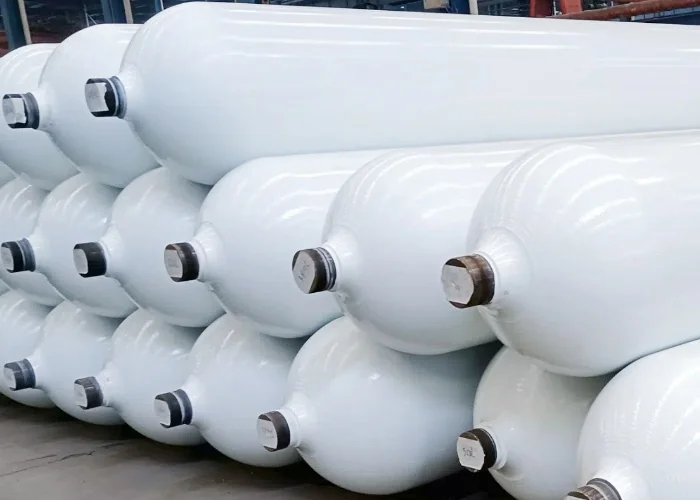

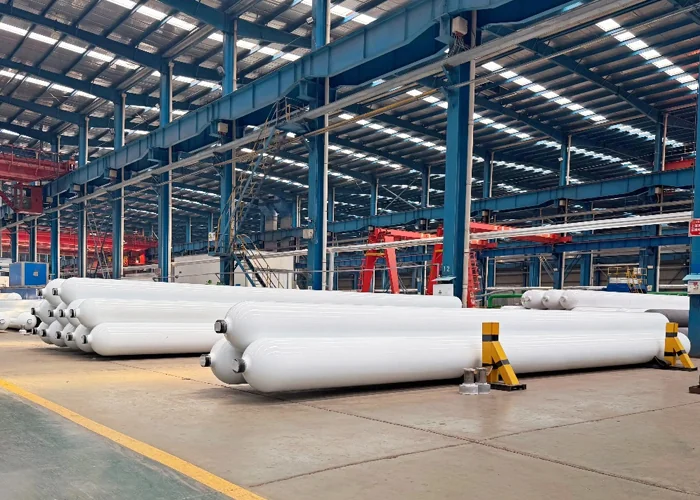

CNG Jumbo Cylinder

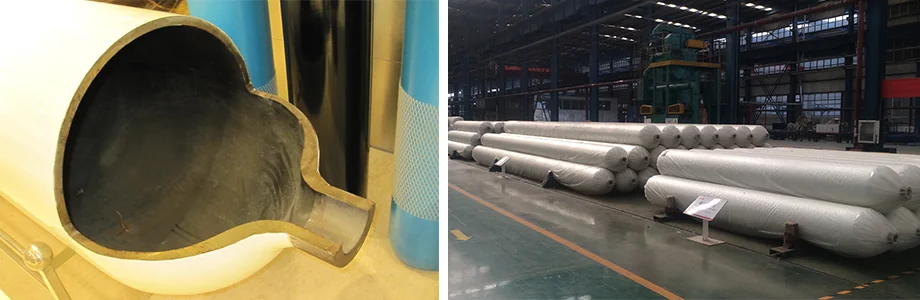

• Close-spinning technology applied, seamless structure, and reliable for safety operation.
• Large-size structure, fewer valves, tubes and joints, and less danger of gas leakage.
• Cleanliness in design and structure, and less maintenance on site.
• Easily discharging of residue liquid.
• Equipped with branch-tubes and accessories, easy for operation and maintenance.
• Lower weight of whole vehicle, reducing of tractor work and investment.
Description
SinoCleansky CNG jumbo cylinders are produced as per ISO11120, DOT, or ASME, with inspection report (certificate) issued by BV, LRS, TUV or equivalent international third-party.
High pressure jumbo cylinder is widely used in industrial gas storing, CNG station, transportation, power generating plant, industrial factory and etc. It will reduce the pressure loss and leakage due to long distance transportation, more energy saving, more economic.
Product advantage:
Large storing capacity, variety sizes, highly safety and reliability, stable performance, convenience transportation, nice appearance, flexibility.
Technical Specifications
Typical type for 17.4mm wall thickness cylinder, outside diameter 559mm
|
Filling medium |
CNG，Industrial Gases such as argon, nitrogen, air, hydrogen etc. |
||||
|
Water capacity (L) |
1050 |
2160 |
2180 |
2210 |
2348 |
|
Weight (kg) |
1366 |
2610 |
2620 |
2769 |
2928 |
|
Length (mm) |
5400 |
10450 |
10500 |
10950 |
11580 |
|
Working / Test pressure (MPa) |
25 / 37.5 |
||||
Typical type for 14.8mm wall thickness cylinder, outside diameter 559mm
|
Filling medium |
Compressed and liquefied gases without risk of hydrogen embrittlement in accordance with ISO11114-1:2012 |
||||
|
Water capacity (L) |
1000 |
2000 |
2320 |
2450 |
3000 |
|
Weight (kg) |
1057 |
2032 |
2344 |
2471 |
3008 |
|
Length (mm) |
4950 |
9515 |
10976 |
11570 |
14082 |
|
Working / Test pressure (MPa) |
25 / 37.5 |
||||
Packaging & Shipping

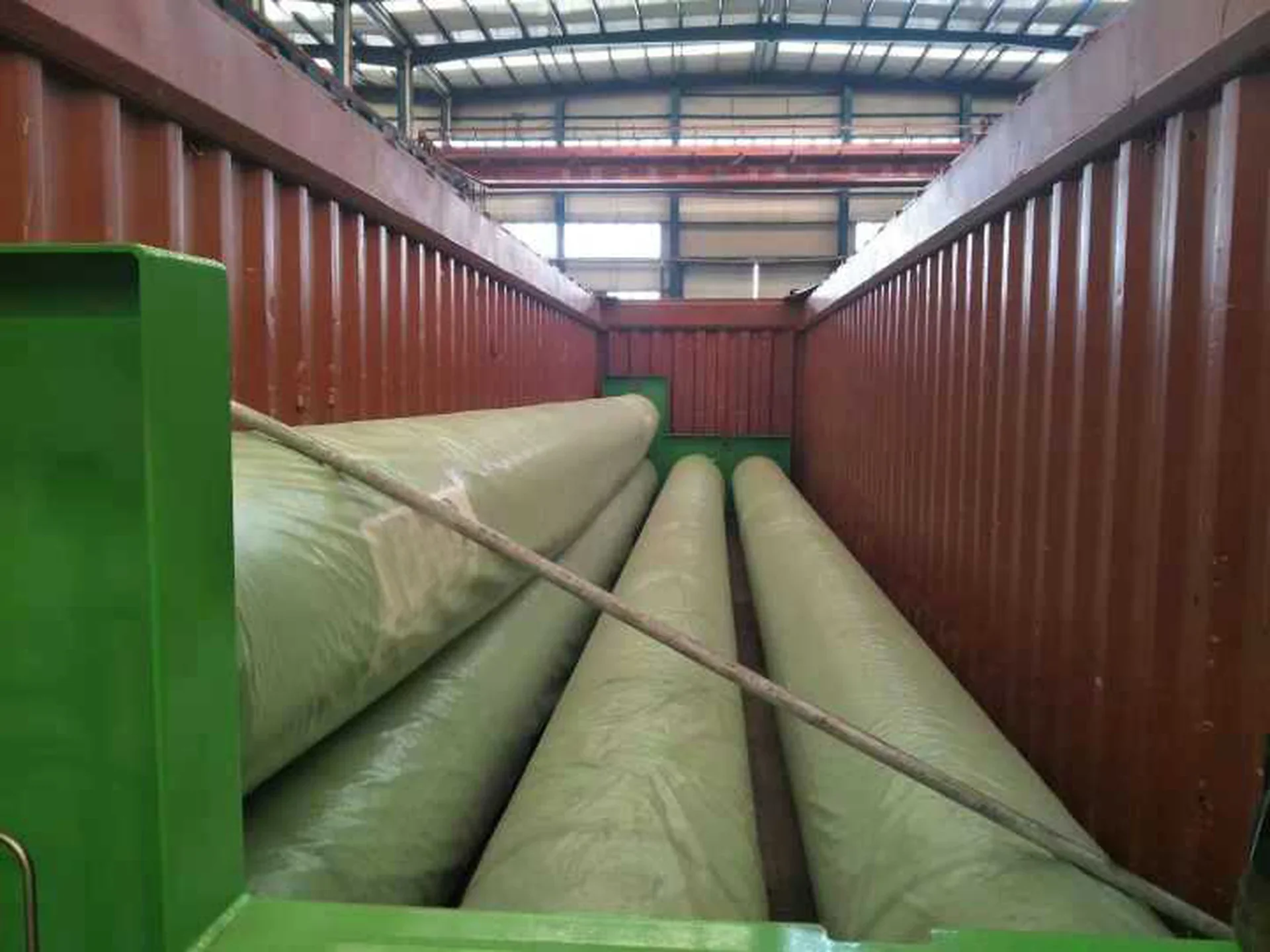

CNG jumbo cylinders can be shipped by standard containers, open top containers based on sizes. The cylinders will be delivered with special protection if in container.
Report & Certifications

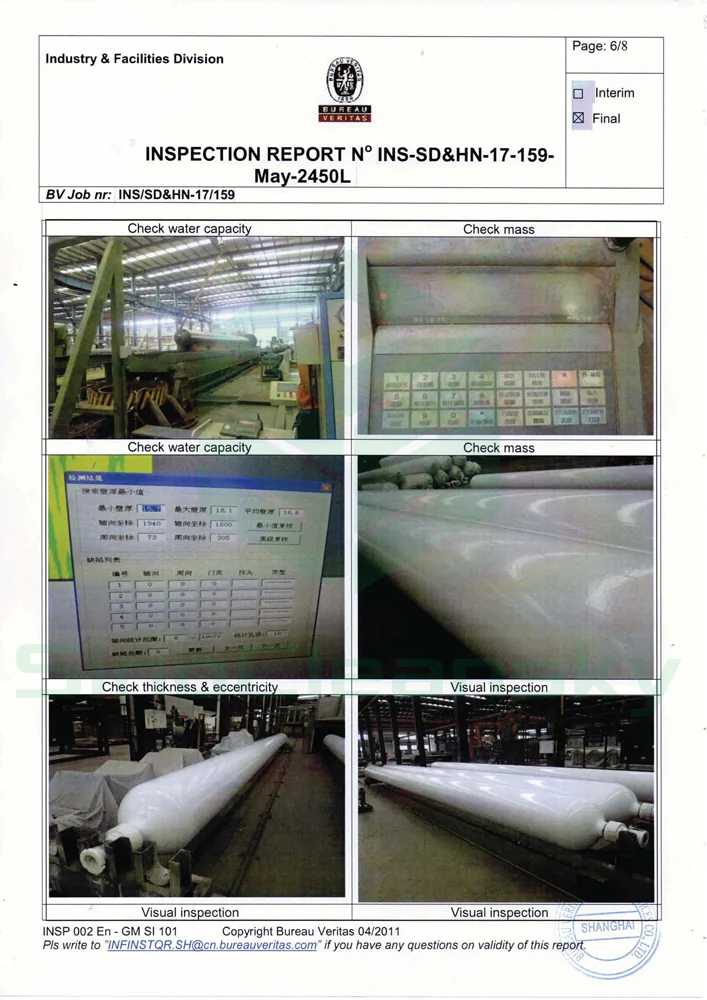

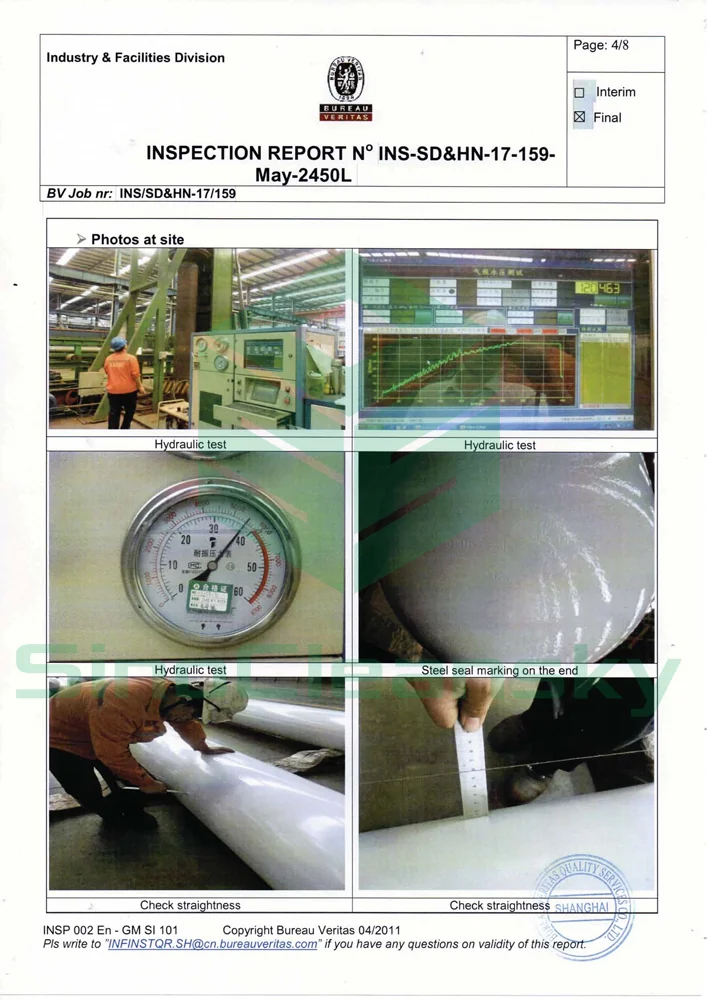

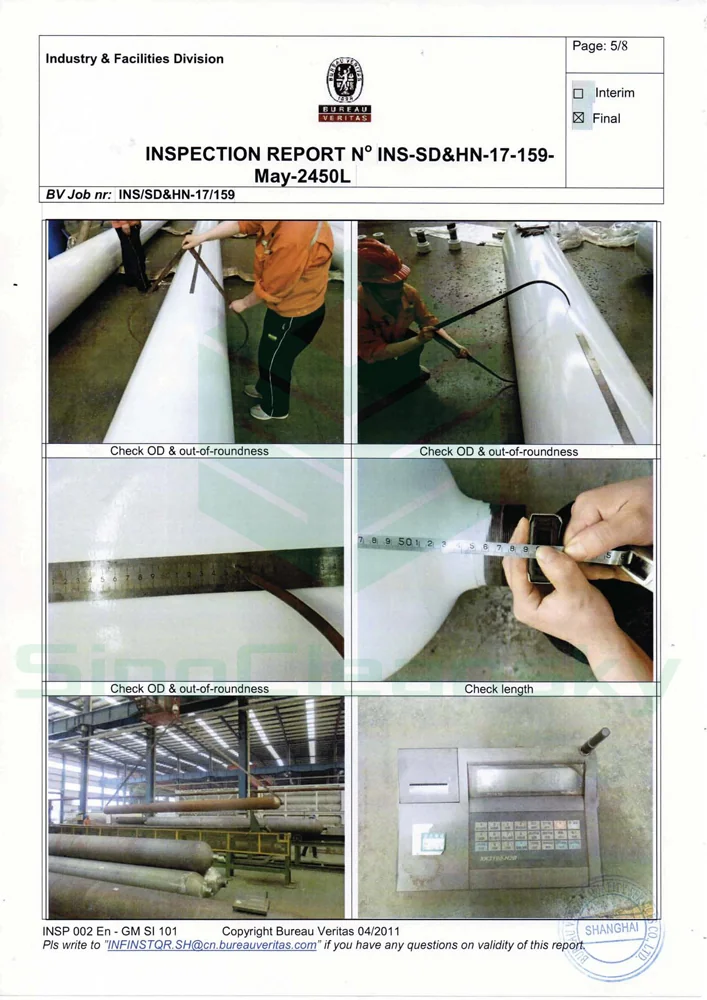

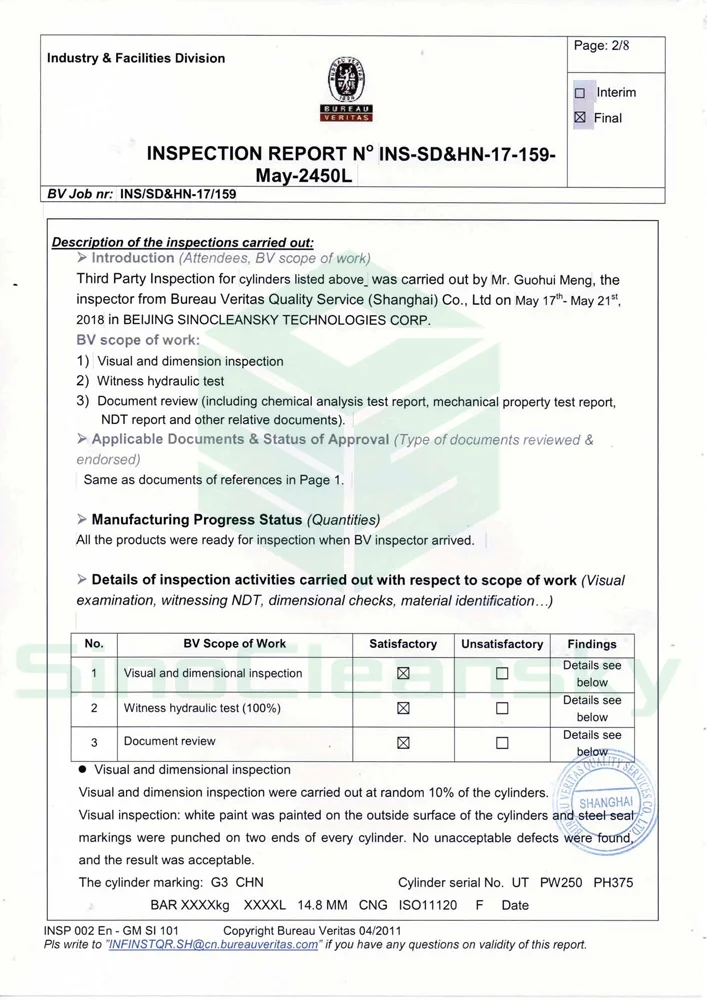

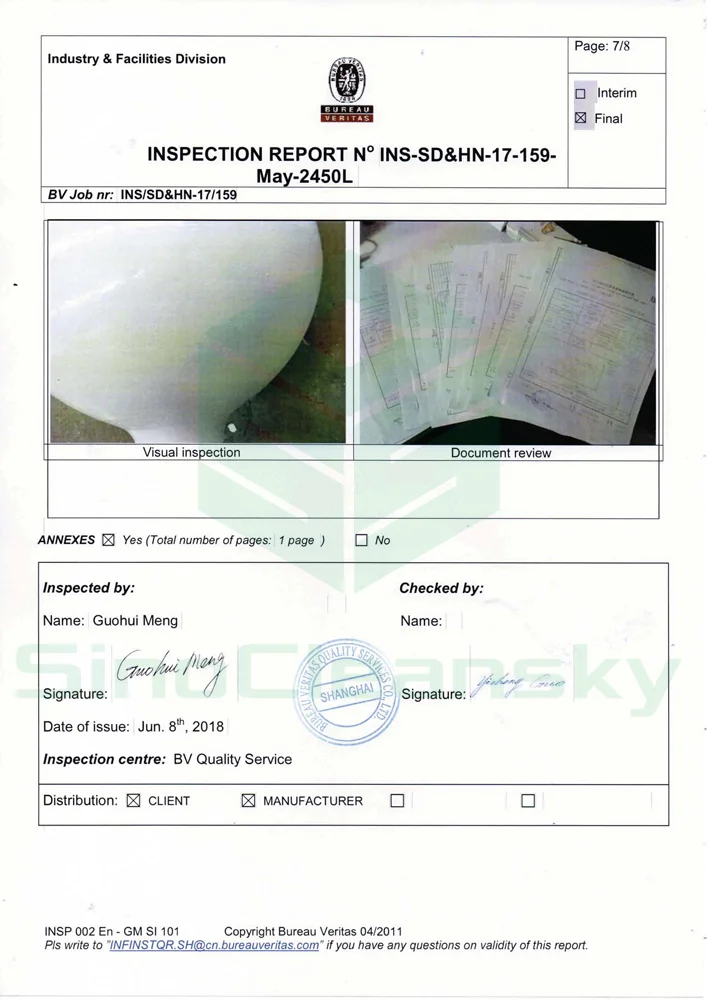

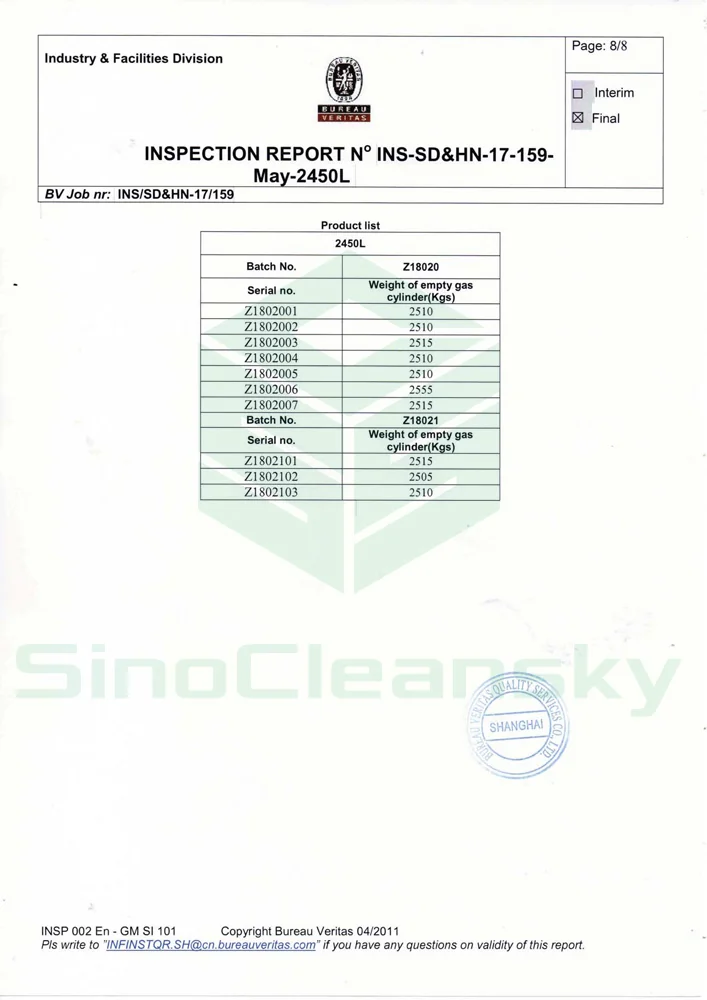

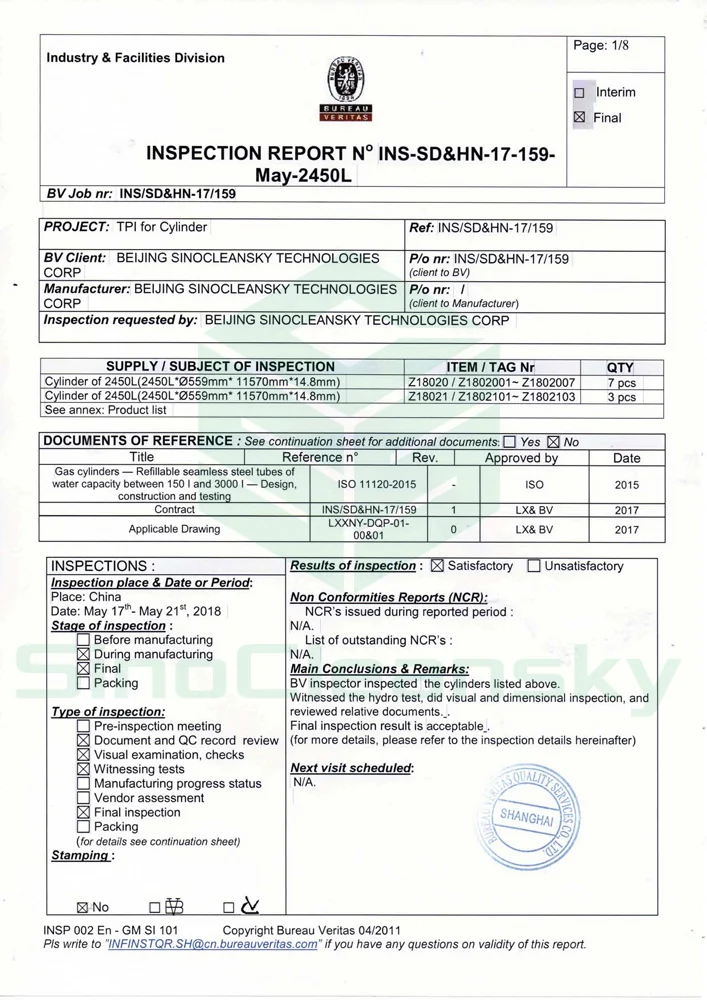

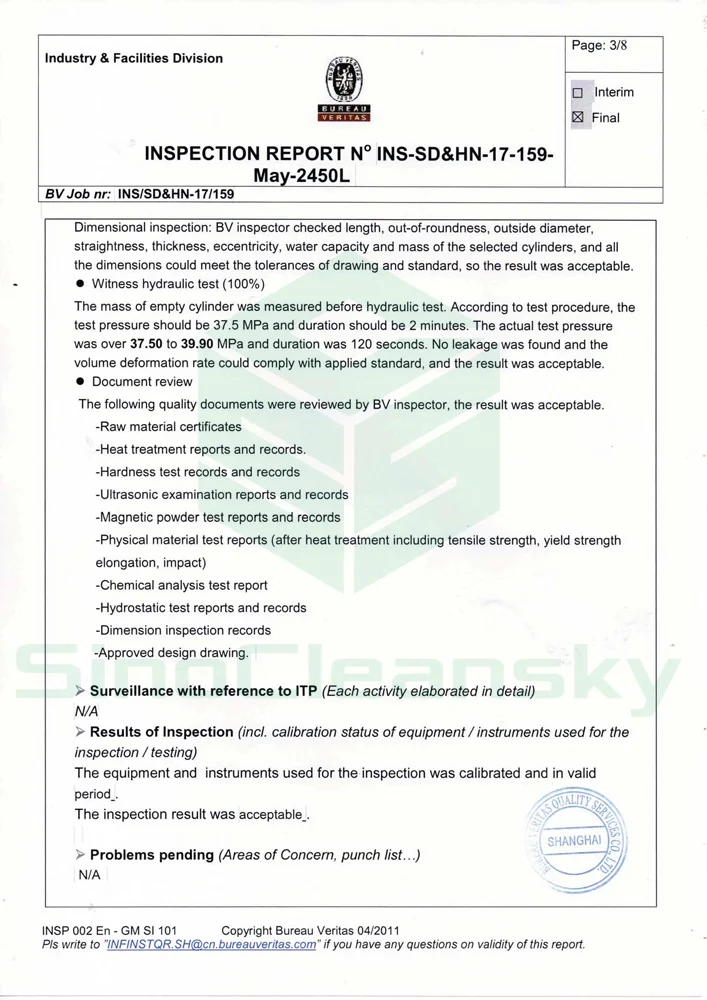

The cylinders are with third-party test report and detailed factory report. The third-party can be BV, TUV, or others.The TPED approval can be issued for specific cylinder types.Reference BV Report :E-mail [email protected] to get more detailed test report specimen.
FAQs
We have an existing product list for you to check and choose; nOr you can tell us your required Filling medium / Working pressure / Water capacity / Application (Ground stationary storage or intermodal transportation), then we will recommend the suitable model for you;
Our jumbo cylinders are manufactured according to ISO11120 / DOT / ASME standard, and we can provide inspection report (certificate) issued by BV, LRS, TUV or equivalent international third-party.In addition, our jumbo cylinders can be certified by TPED, some models of our Jumbo Tube Skid have been certified by ADR, and other models can be certified according to customer requirements.
For valve, we can provide Chinese brand or international brand (such as Parker, DK etc.).For other accessories, we can provide a list for you to check when you purchase from us.
