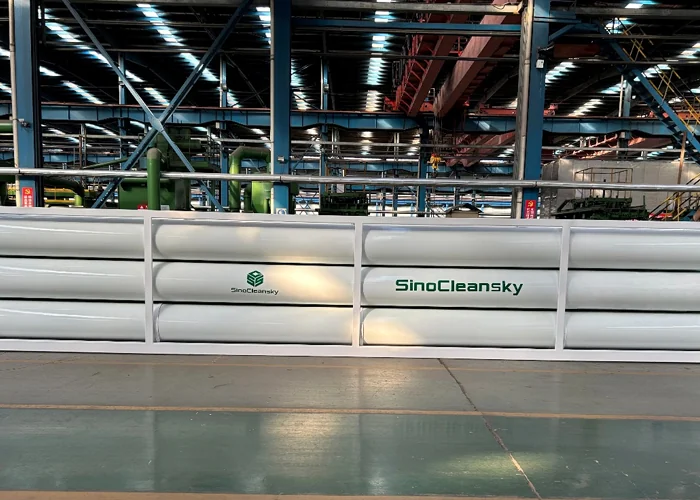

CNG Jumbo Tube Skid Container
• Close-spinning technology applied, seamless structure, and reliable for safety operation.
• Large-size structure, fewer valves, tubes and joints, and less danger of gas leakage.
• Cleanliness in design and structure, and less maintenance on site.
• Easily discharging of residue liquid.
• Equipped with branch-tubes and accessories, easy for operation and maintenance.
• Lower weight of whole vehicle, reducing of tractor work and investment.
Description

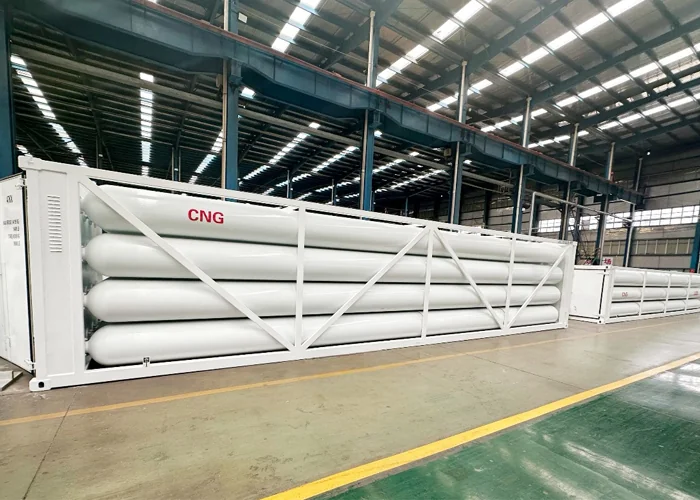

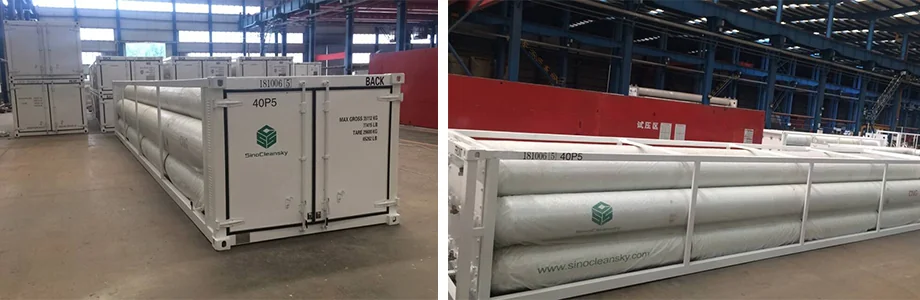

SinoCleansky’s 8Tubes 40ft Jumbo Tube Skid Container is a lightweight, high-efficiency solution for CNG and industrial gas storage—tailored for countries with lower road load requirements. As the lightest model in the MEGC (Mobile Equipment for Gas Container) series, it combines compact design with reliable performance, making it ideal for small-to-medium gas supply chains (e.g., regional CNG distribution, industrial gas delivery to factories).
Ultra-lightweight advantage: Upgraded 4142 steel reduces equipment weight by 6% (24240KG for light type) compared to traditional models, while increasing water capacity by 11% (19.6M⊃3;) for higher storage efficiency.
ISO 11120 compliance: Manufactured to international standards for refillable seamless steel tubes, with optional DOT/ASME certifications for North American and European markets.
Versatile filling media: Compatible with CNG, H₂, He, O₂, N₂O, and Ar—adapting to diverse industrial needs (e.g., hydrogen fuel cells, medical oxygen supply).
Easy integration: Simplified design with fewer valves and joints reduces on-site maintenance, while standard skid dimensions (12192×2438mm) fit most transport vehicles.
This container balances portability and capacity, making it a top choice for clients prioritizing road load compliance and cost-effective gas transport.
Technical Specifications
17.4mm Wall Thickness Popular Type for CNG
| Model No. | SCS0825CS-40F-559 | SCS0925CS-40F-559 | SCS1025CS-40F-559 | SCS1125CS-40F-559 | SCS1225CS-40F-559 | SCS1225CS-20F-559 |
| Cylinder quantity | 8 | 9 | 10 | 11 | 12 | 12 |
| Working pressure/MPa | 25 | 25 | 25 | 25 | 25 | 25 |
| Cylinder size/mm | OD559x17.4×10975 | OD559x17.4×10975 | OD559x17.4×10975 | OD559x17.4×10975 | OD559*17.4*10975 | OD559*17.4*5400 |
| Steel type | 4130X | 4130X | 4130X | 4130X | 4130X | 4130X |
| Working temperature | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ |
| Equipment weight /KG | 25752 | 28721 | 31490 | 34259 | 37028 | 19632 |
| Water volume/M3 | 17.68 | 19.89 | 22.1 | 24.31 | 26.52 | 12.6 |
| Filling gas volume /NM3 | 5569 | 6265 | 6961 | 7657 | 8353 | 3969 |
| Total weight/KG | 29730 | 33197 | 36462 | 39728 | 42995 | 22467 |
| Skid/trailer dimension | 12192x2438x1400 | 12192x2438x1890 | 12192x2438x1890 | 12192x2438x1890 | 12192x2438x2000 | 6058x2438x2000 |
14.8mm Wall Thickness Light Type for CNG
| Model No. | SCS0825CS-40F-559 | SCS0925CS-40F-559 | SCS1025CS-40F-559 | SCS1125CS-40F-559 | SCS1225CS-40F-559 | SCS1225CS-20F-559 |
| Cylinder quantity | 8 | 9 | 10 | 11 | 12 | 12 |
| Working pressure/MPa | 25 | 25 | 25 | 25 | 25 | 25 |
| Cylinder size/mm | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11577 | OD559*14.8*4950 |
| Steel type | 30CrMoLX | 30CrMoLX | 30CrMoLX | 30CrMoLX | 30CrMoLX | 30CrMoLX |
| Working temperature | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ |
| Equipment weight /KG | 24240 | 27020 | 29600 | 32180 | 34760 | 17580 |
| Water volume/M3 | 19.6 | 22.05 | 24.5 | 26.95 | 29.4 | 12.792 |
| Filling gas volume /NM3 | 6174 | 6945 | 7717 | 8489 | 9261 | 4029 |
| Total weight/KG | 28650 | 31981 | 35112 | 38243 | 41375 | 20480 |
| Skid/trailer dimension | 12192x2438x1400n(skid) | 12192x2438x1890n(skid) | 12192x2438x1890n(skid) | 12192x2438x1890n(skid) | 12192x2438x2000n(skid) | 6058x2438x2000n(skid) |
Remark: 1. The data of filling gas volume, loading weight and total weight is based on CNG. n 2. The above specifications are only for our typical types. The more accurate & detailed parameters and technical drawings are available upon request

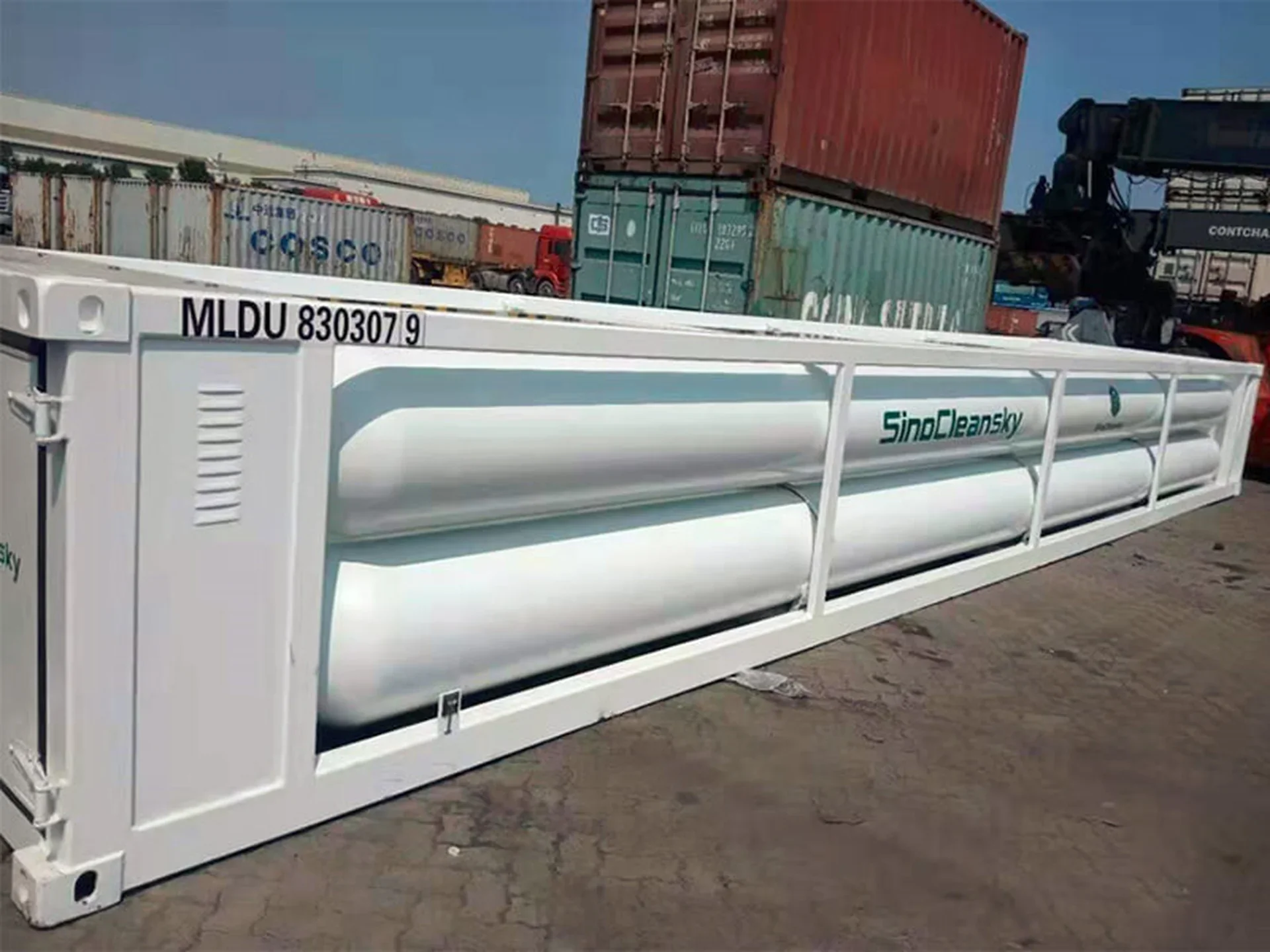

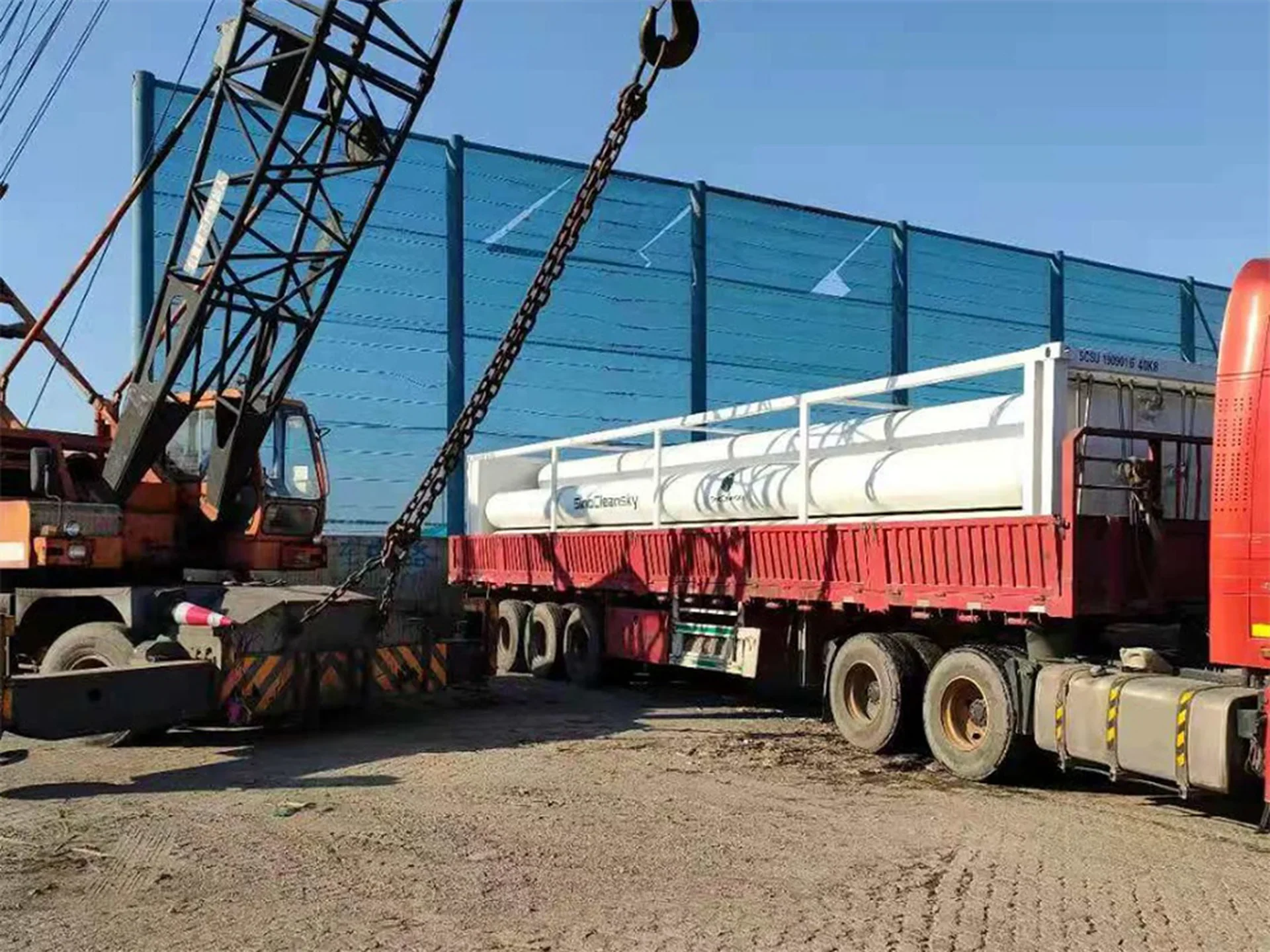

Packaging & Shipping
The 8Tubes 40ft Jumbo Tube Skid Container is shipped with a focus on safety, efficiency, and compliance:
Container compatibility: Fits in standard 40GP containers or open-top containers (40OT) for easy loading/unloading. Light type models can also be shipped in 20GP containers for cost savings.
Securement: Fixed to the container floor with high-tensile bolts and anti-vibration pads to prevent shifting during transit (sea, land, rail).
Protective packaging: Valves and fittings are covered with dust-proof caps; the skid frame is painted with anti-corrosion coating to resist saltwater or humidity during sea shipping.
Regional logistics: For Central Asian clients, railway transportation is available—offering a cost-effective alternative to road freight for long distances.
Documentation: Includes all necessary paperwork (certifications, inspection reports, packing lists) to ensure smooth customs clearance in target markets.
Report & Certifications

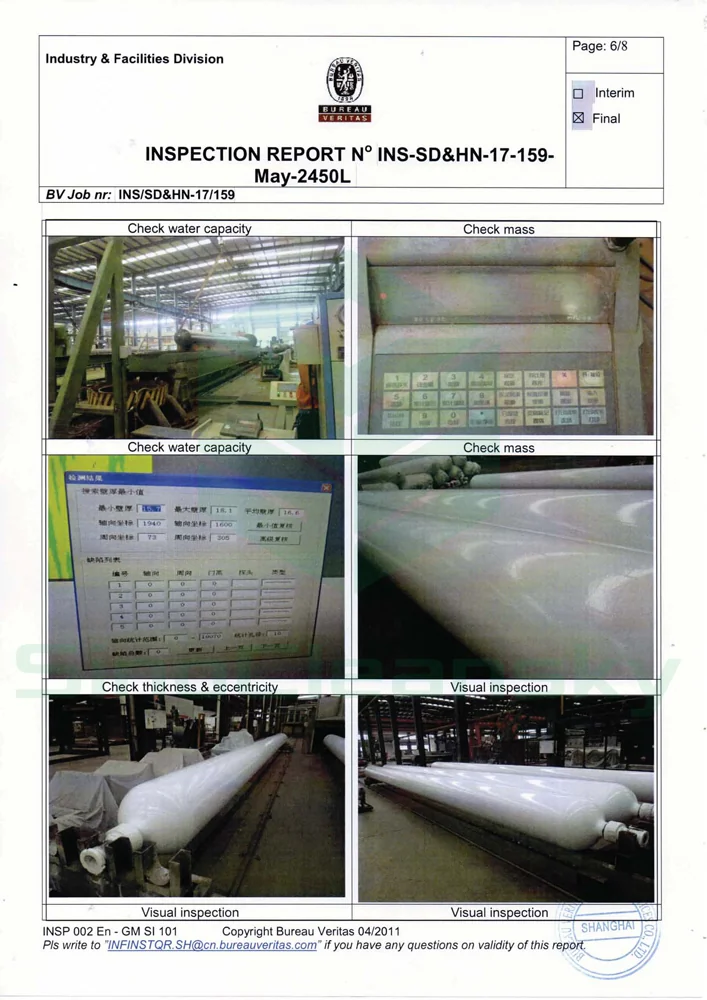

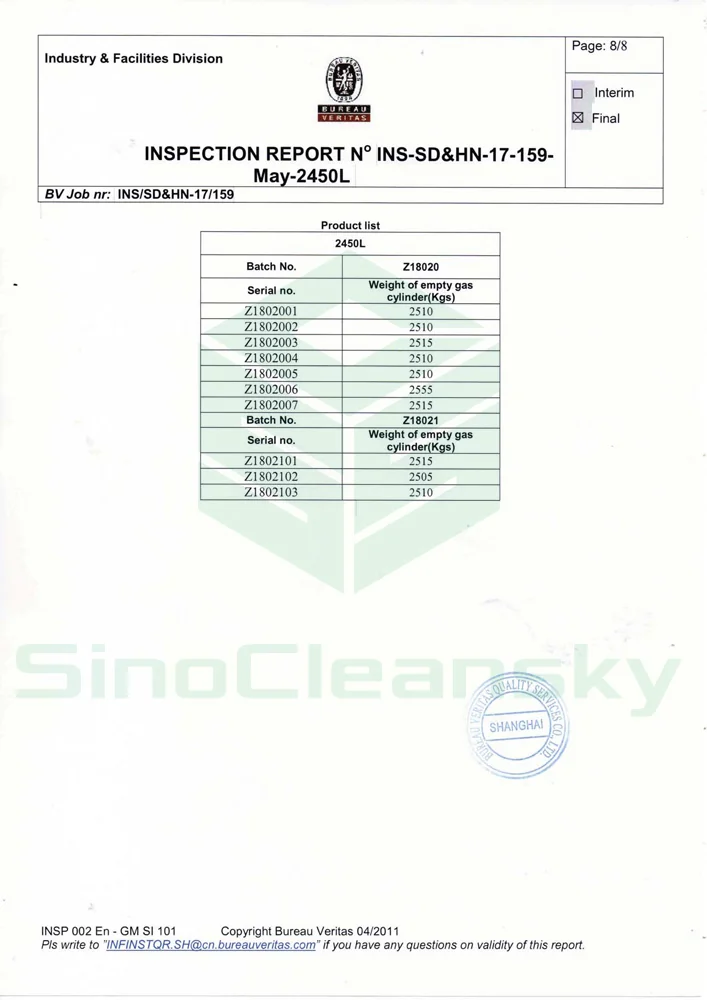

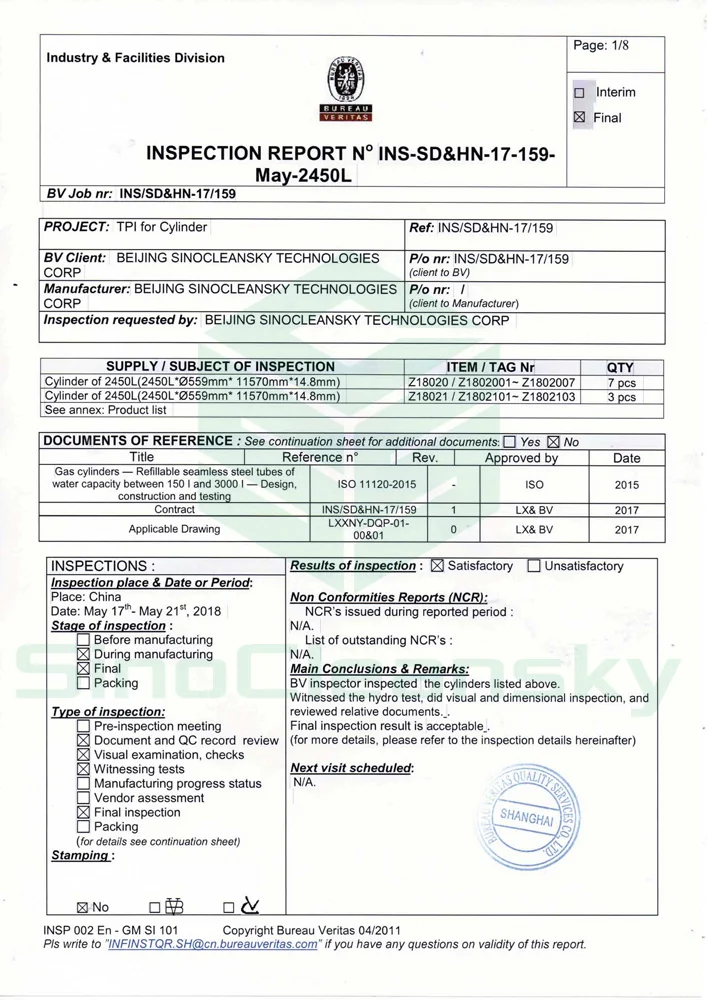

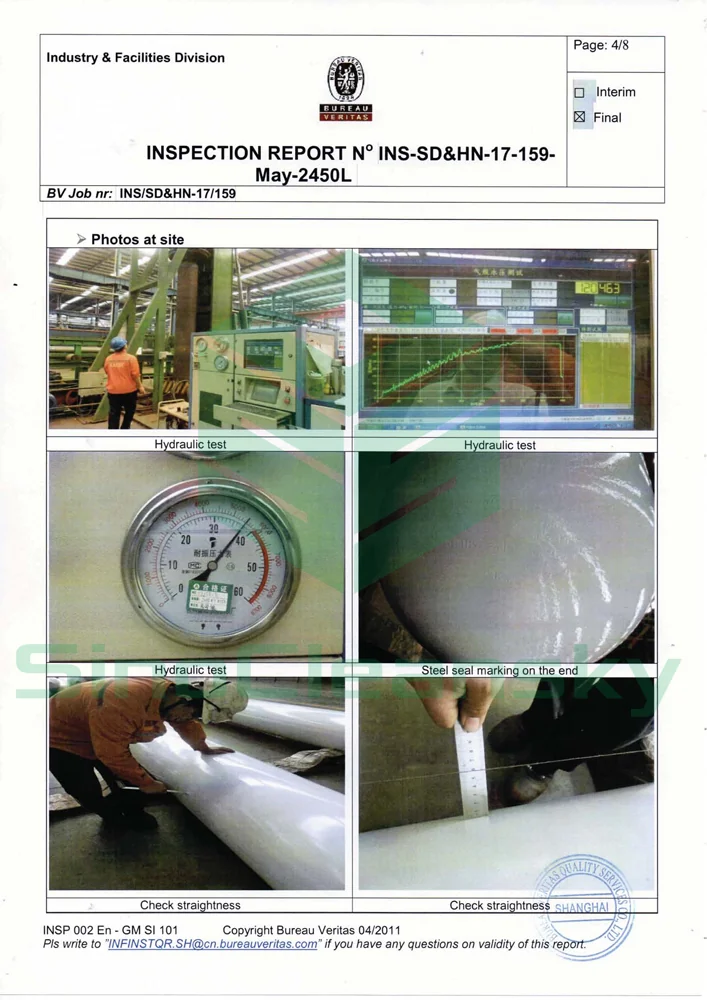

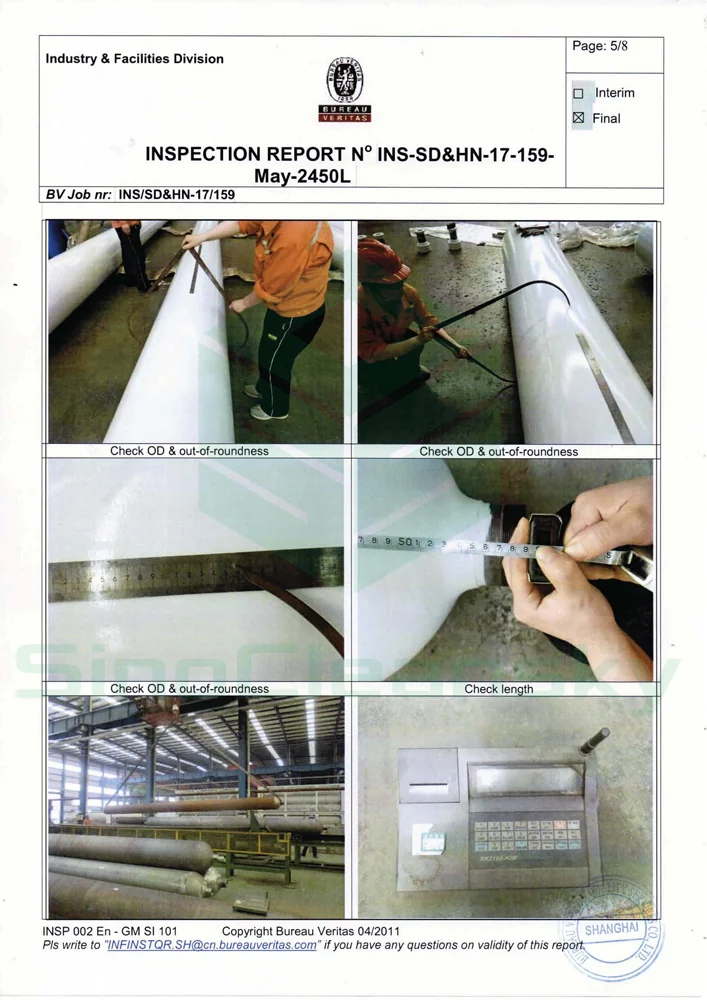

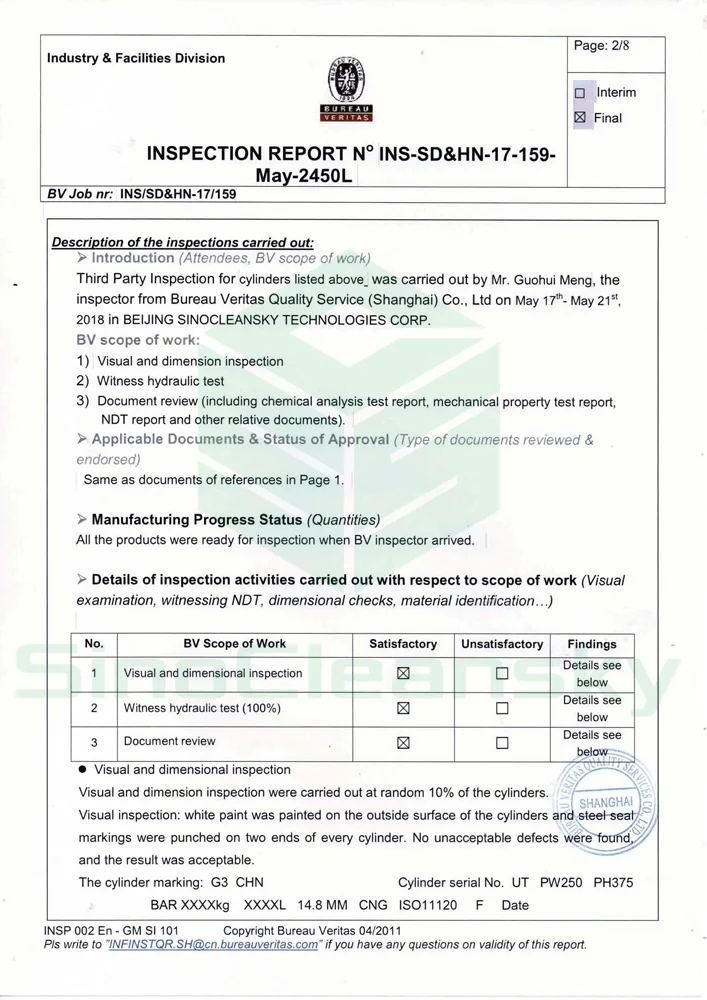

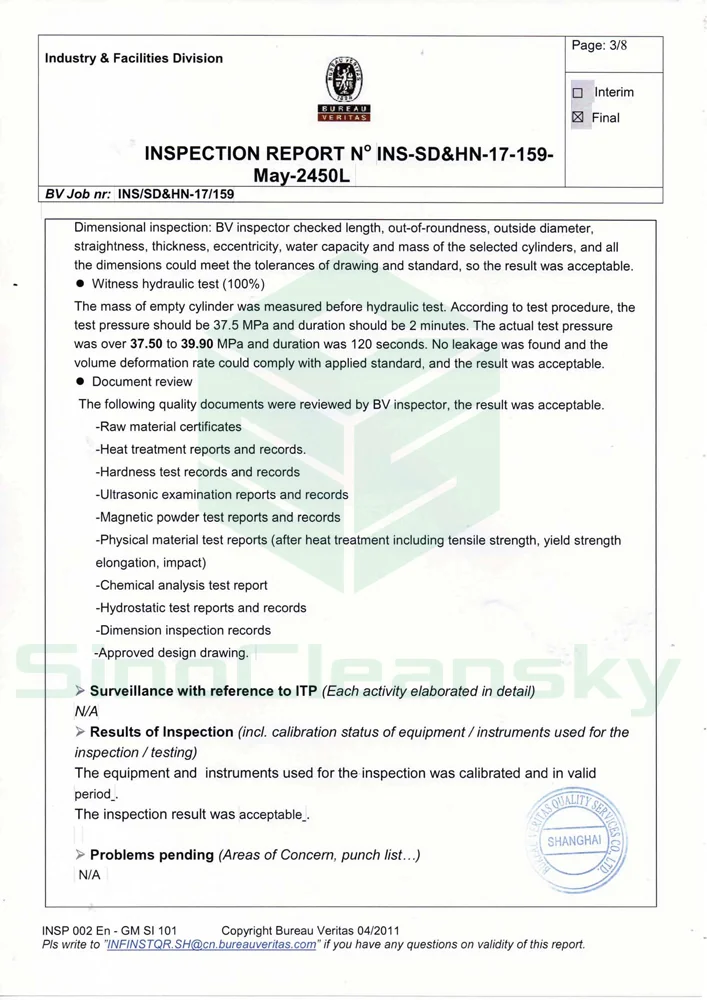

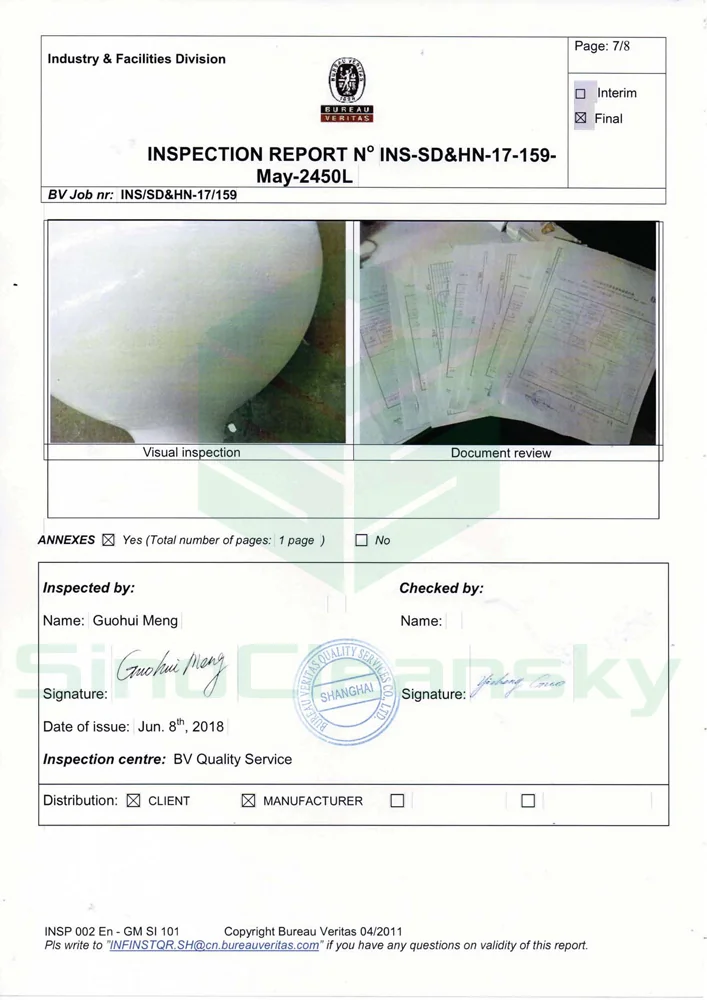

SinoCleansky guarantees the 8Tubes 40ft Jumbo Tube Skid Container meets global quality and safety benchmarks:Third-party validation : Inspected by BV, TUV, or LRS in accordance with ISO 11120. Inspection reports cover hydrostatic tests (37.5MPa, 2-minute duration), visual checks (no surface defects), and dimensional verification (compliant with drawings).Regional compliance: Optional DOT (US) and ASME (North America/EU) certifications to meet local regulatory requirements. For European clients, ADR and IMDG certifications are available.Traceability: Each tube has a unique serial number, with full traceability of raw materials (4130X/4142 steel) and production processes (heat treatment, NDT tests).Warranty & support: 12-month standard warranty for manufacturing defects. SinoCleansky’s technical team provides on-site installation guidance and maintenance training upon request.Reference certifications and reports:
FAQs
We have an existing product list for you to check and choose; nOr you can tell us your required Filling medium / Working pressure / Water capacity / Application (Ground stationary storage or intermodal transportation), then we will recommend the suitable model for you;nBesides, the Jumbo Tube Skid can be customized, so we can discuss it if there are any special requirements.
Our jumbo cylinders are manufactured according to ISO11120 / DOT / ASME standard, and we can provide inspection report (certificate) issued by BV, LRS, TUV or equivalent international third-party.In addition, our jumbo cylinders can be certified by TPED, some models of our Jumbo Tube Skid have been certified by ADR, and other models can be certified according to customer requirements.
Docs issued by factory: Quality certificate / Instruction manual / Factory test report etc.Docs issued by third-party: Complete inspection report (Including physical properties, chemical properties, water pressure test reports, etc.)
Docs issued by factory: Quality certificate / Instruction manual / Factory test report etc.nDocs issued by third-party: Complete inspection report (Including physical properties, chemical properties, water pressure test reports, etc.)
