Corrosive Gas Cylinder
• Material: high strength aluminum alloy 6061.
• Internal treatments: corrosion resistance.
• Weight: 40% weight reduction than steel cylinders.
• Wide range line:
• Outside diameter: 89mm – 250mm
• Water capacity: 0.5L – 50L
• Working pressure: 12.4MPa, 13.9MPa, 15MPa, 15.4MPa, 20MPa, etc.
Description
SinoCleansky aluminum gas cylinders are made by quality aluminum 6061 and manufactured strictly in accord with national and international safety standards. We treat aluminum alloy gas cylinders’ inner surface with foreign patent technologies, and the cylinders with corrosion-resistant feature after special inner wall treatment, and are widely used for corrosive gases.
Technical Specifications
Corrosive Gas Cylinder
|
Standard |
Type |
Outer diameter |
Water capacity |
Working pressure |
|
EN1975 / ISO7866 |
159-10L-15MPa |
159 mm |
10 L |
15 MPa |
|
EN1975 / ISO7866 |
203-20L-15MPa |
203 mm |
20 L |
15 MPa |
|
EN1975 / ISO7866 |
232-30L-15MPa |
232 mm |
30 L |
15 MPa |
|
EN1975 / ISO7866 |
250-50L-15MPa |
250 mm |
50 L |
15 MPa |
|
EN1975 / ISO7866 |
204-20L-20MPa |
204 mm |
20 L |
20 MPa |
|
EN1975 |
250-50L-20MPa |
250 mm |
50 L |
20 MPa |
|
DOT-3AL |
250-46.4L-2219Psi |
250 mm |
46.4 L |
2219Psi |

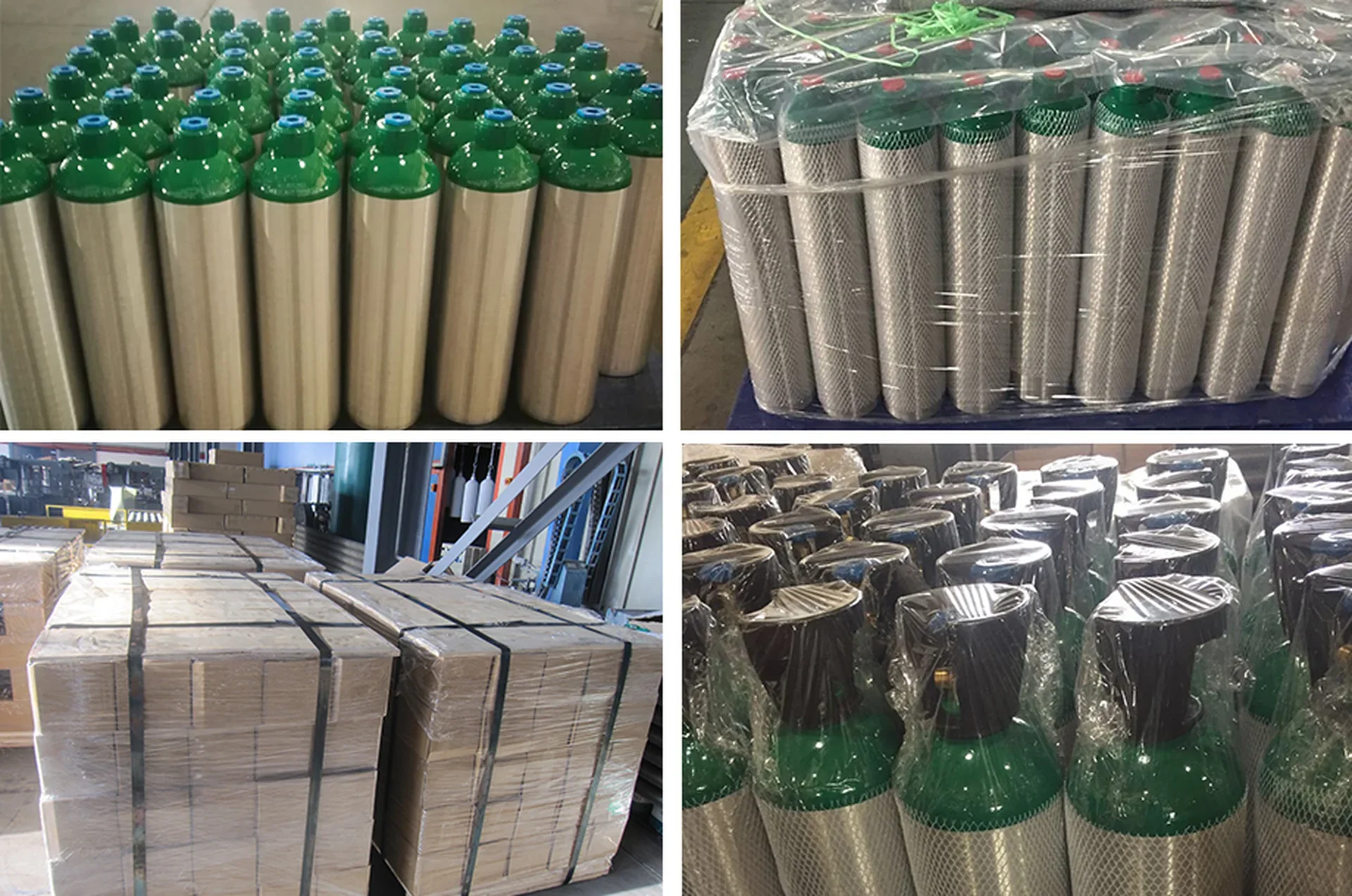

Packaging & Shipping
The cylinders can be packed with carton box each cylinder, with pallet or without pallet in container, 20ft or 40ft.

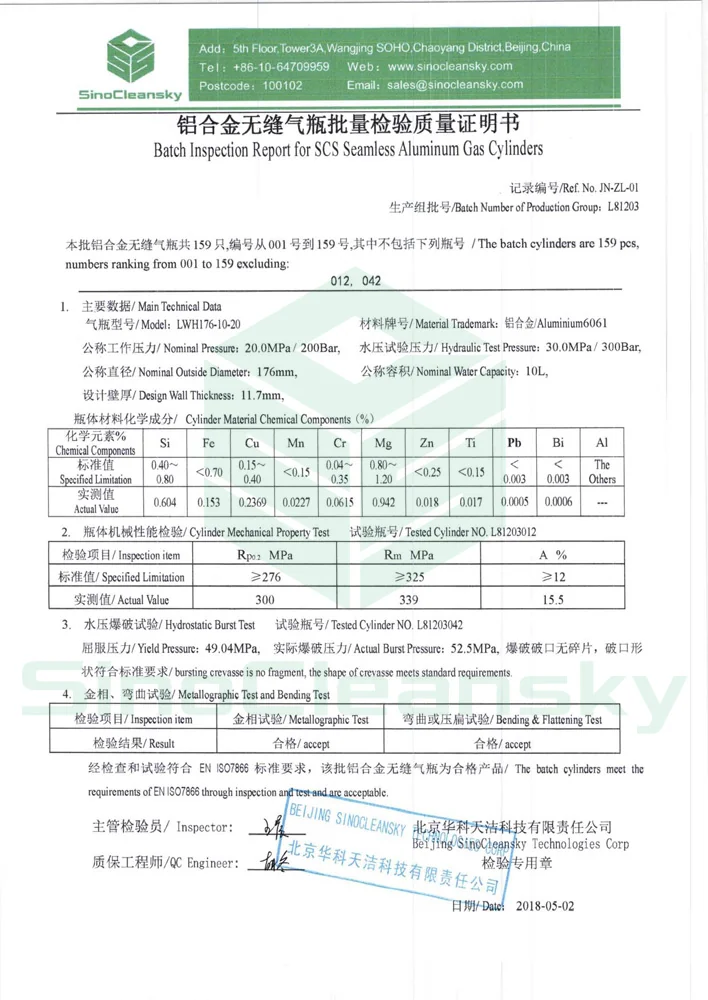

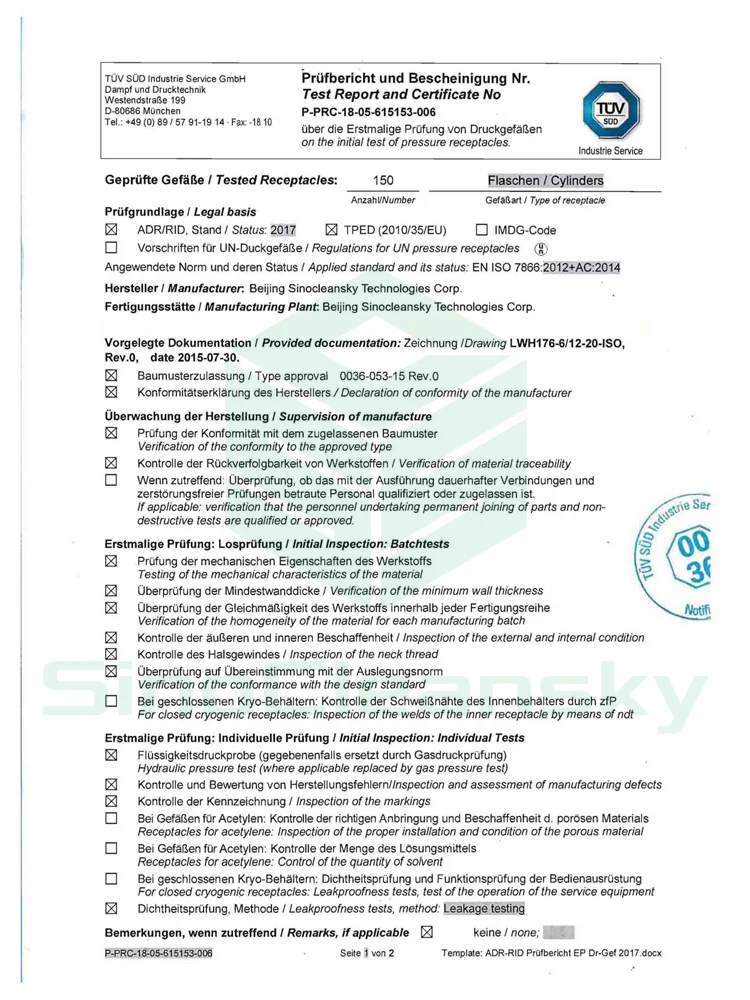

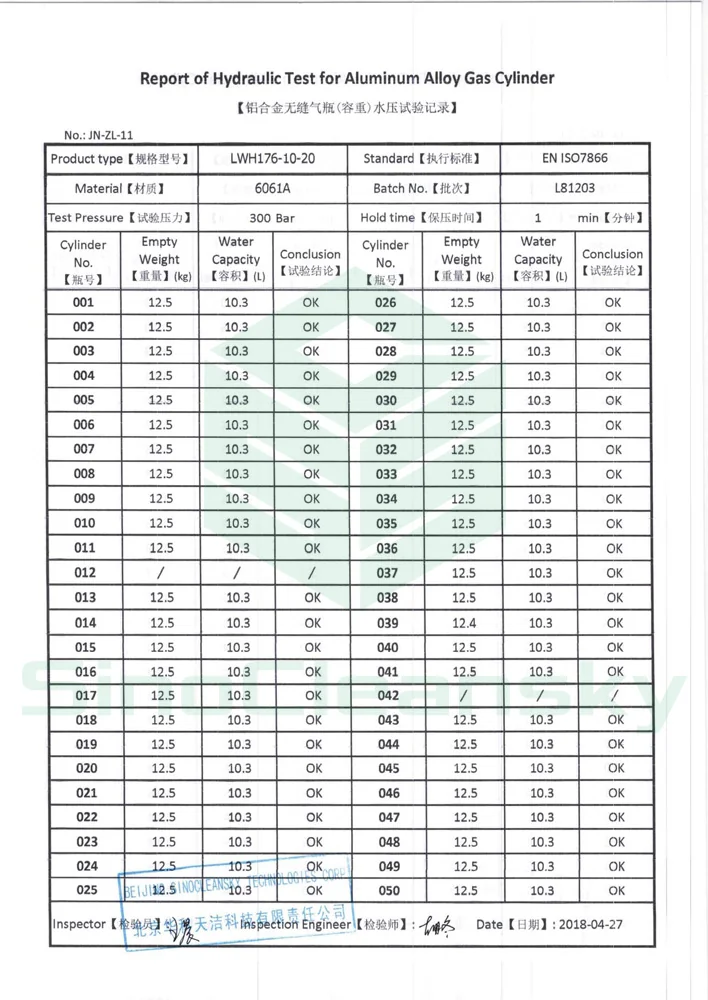

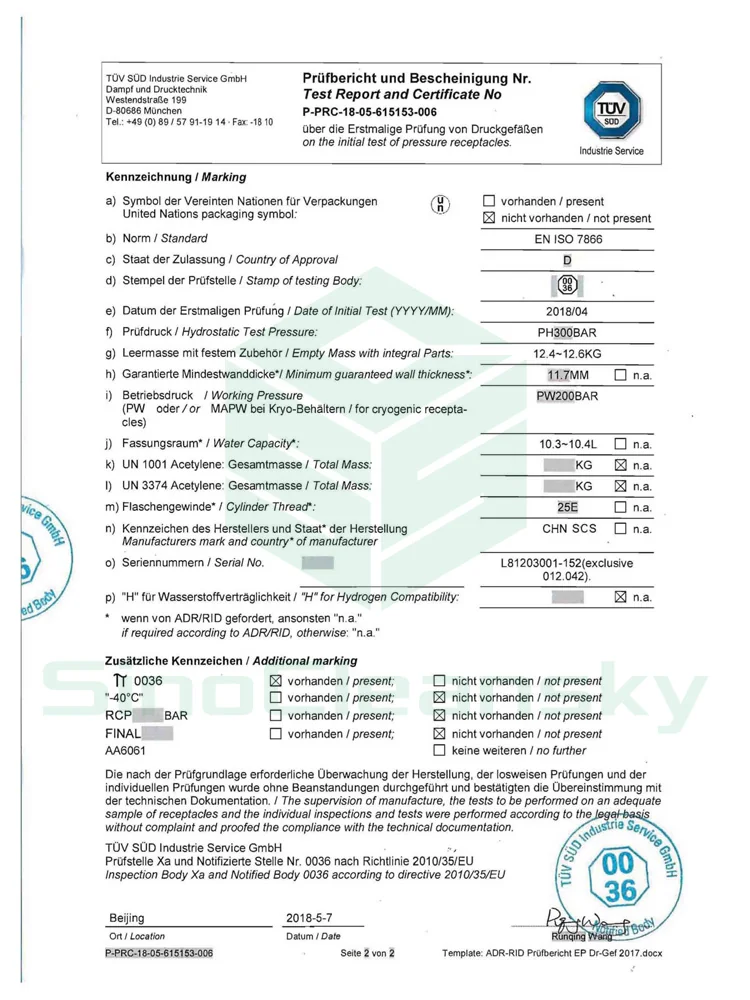

Report & Certifications
Cylinders are with detailed test report, including the factory test report, hydraulic test report， third-party test report etc.Reference BV Report:E-mail [email protected] to get more detailed test report specimen.
FAQs
Corrosive Gases
Quality aluminum 6061
Cylinders are delivered with detailed test report, and as per the different standard, we provide TUV Test Report and Factory Test Report.
We can provide GB, EN1975, ISO7866, DOT-3AL and etc.
