Cryogenic Cylinder For Medical Oxygen

• Manufacturing standards: DOT-4L, EN1251, GB (Chinese standard), etc.
• Water capacity: 175 L – 500L
• Working pressure:1.37Mpa, 1.59Mpa, 2.02Mpa, 2.3Mpa, 2.4Mpa, 2.88Mpa, 3.45Mpa etc.
• For medical oxygen, liquid oxygen LOX

Quote Now

Description

SinoCleansky vast array of models offer everything you need to transport, store and dispense liquefied gases safely and securely.
Product Features
1. Technology: high-vacuum multi-layer insulation
2. Application: LOX, LIN, LAR, LCO2, LNG storage and transportation, especially for medical oxyen.
3. Standard: DOT-4L, EN1251, GB24159, ASME ， and other international standards
u High-performance super insulation
u Minimum product vapor loss
u Convenient storage and transportation
u Customized vaporization coils provide constant gas flow rates

Technical Specifications

Manufacturing standards: DOT-4L, EN1251, GB (Chinese standard), etc.

Water capacity: 175 L – 500L

Working pressure: 1.37Mpa, 1.59Mpa, 2.02Mpa, 2.3Mpa, 2.4Mpa, 2.88Mpa, 3.45Mpa etc

Typical types (Vertical) :

GB24159	DPL450-175L/195L/210L-1.37Mpa
GB24159	DPL450-175L/195L/210L-2.3Mpa
GB24159	DPL450-175L/195L/210L-2.88Mpa
GB24159	DPL450-175L/195L/210L-3.45Mpa
GB24159	DPL450-232L-1.37Mpa
GB24159	DPL450-232L-3.45Mpa
EN1251	EN160HP(175L-2.4Mpa)
EN1251	EN180HP(197L-2.4Mpa)
EN1251	EN200HP(216L-2.4Mpa)
DOT-4L	CT160HP(175L-2.02Mpa)
DOT-4L	CT180HP(195L-2.02Mpa)
DOT-4L	CT200HP(205L-2.02Mpa)
DOT-4L	CT240HP(250L-2.02Mpa)

Big capacity popular types（Vertical / Horizontal optional）:

GB24159	DPL700-410L-1.37Mpa Vertical
GB24159	DPL700-500L-1.37Mpa Vertical
GB24159	DPL700-410L-2.3Mpa Vertical

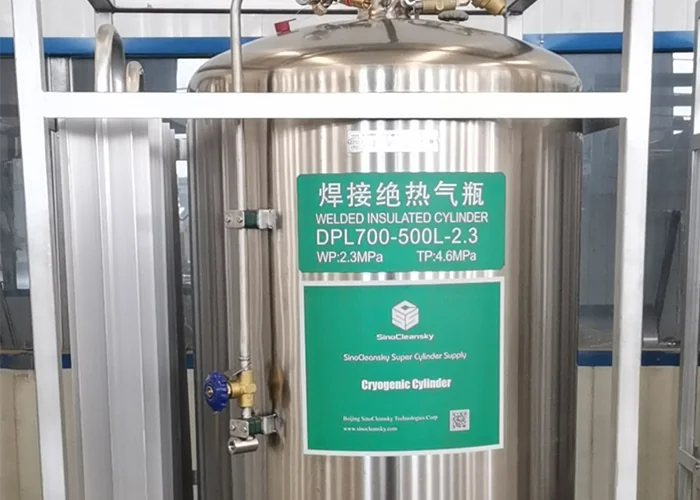

GB24159	DPL710-500L-2.3Mpa Vertical
GB24159	DPW650-410L/499L-1.59Mpa Horizontal
GB24159	DPW650-499L-2.5Mpa Horizontal
GB24159	DPW650-499L-3.45Mpa Horizontal

Packaging & Shipping

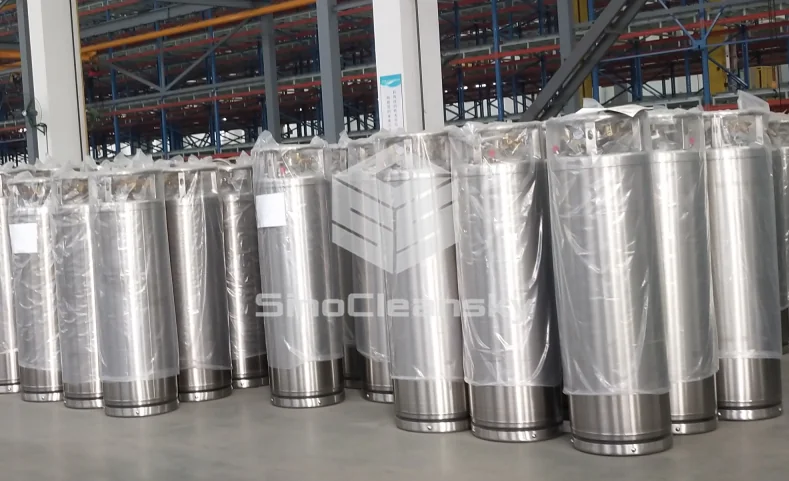

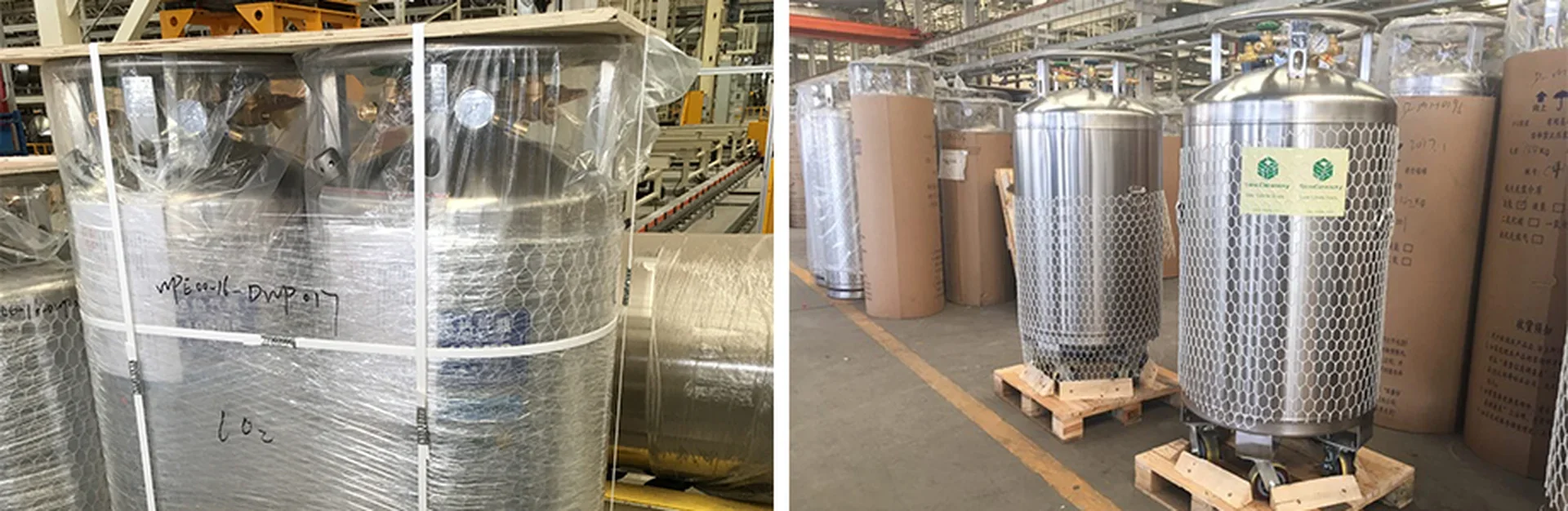

All the cylinders will be packed with plastic film or carton or wooden boxes for protection of surface. And the cylinders can be delivered with pallet, or loose in container.

Report & Certifications

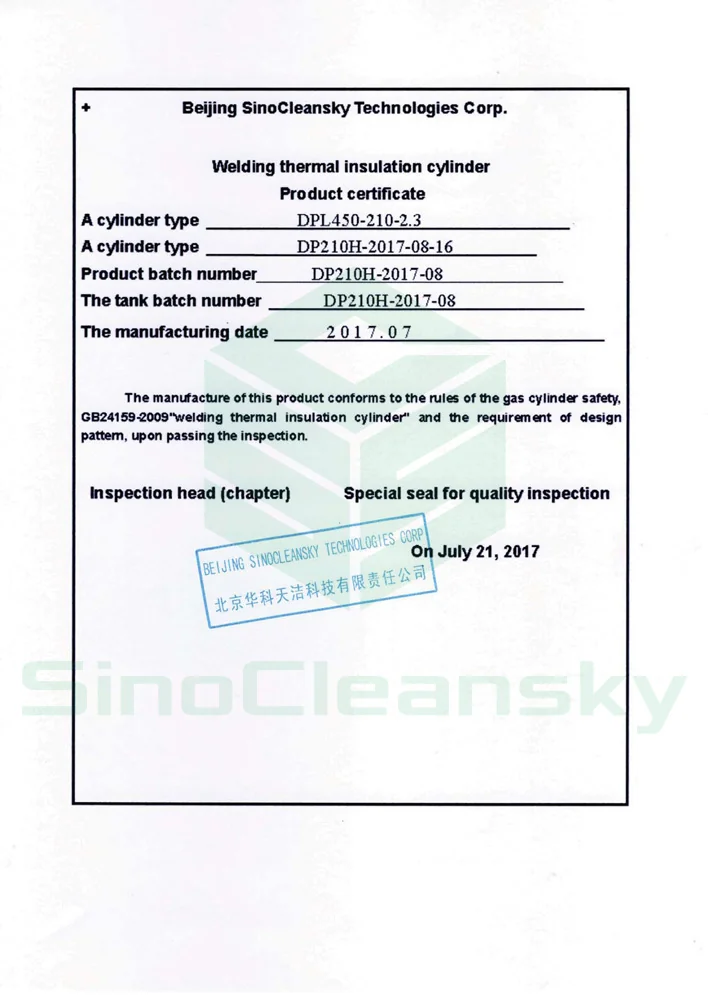

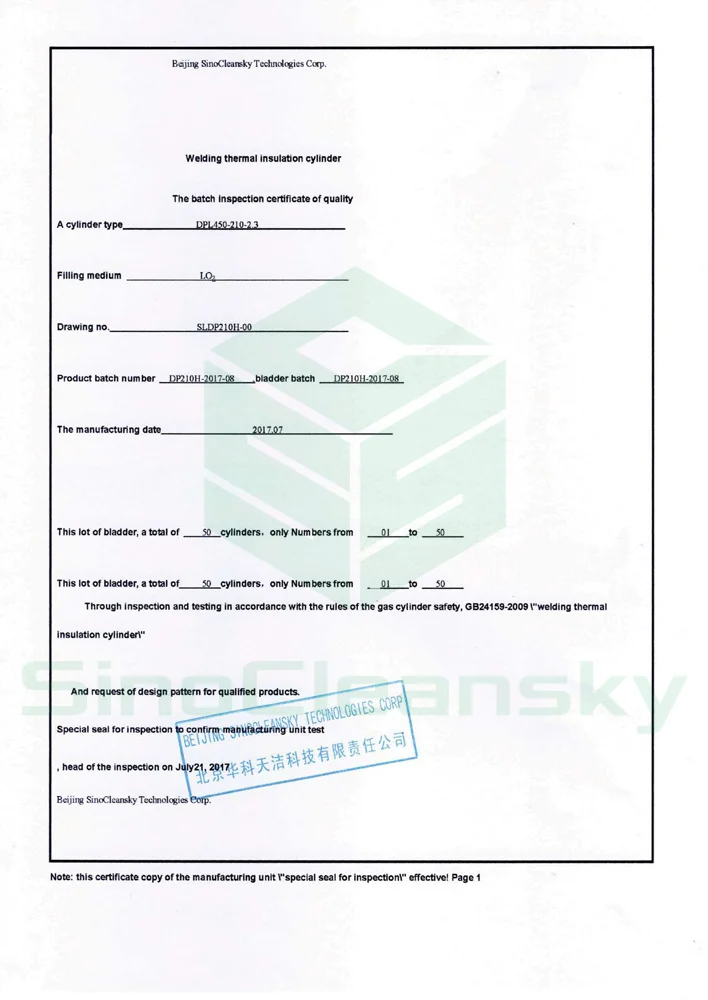

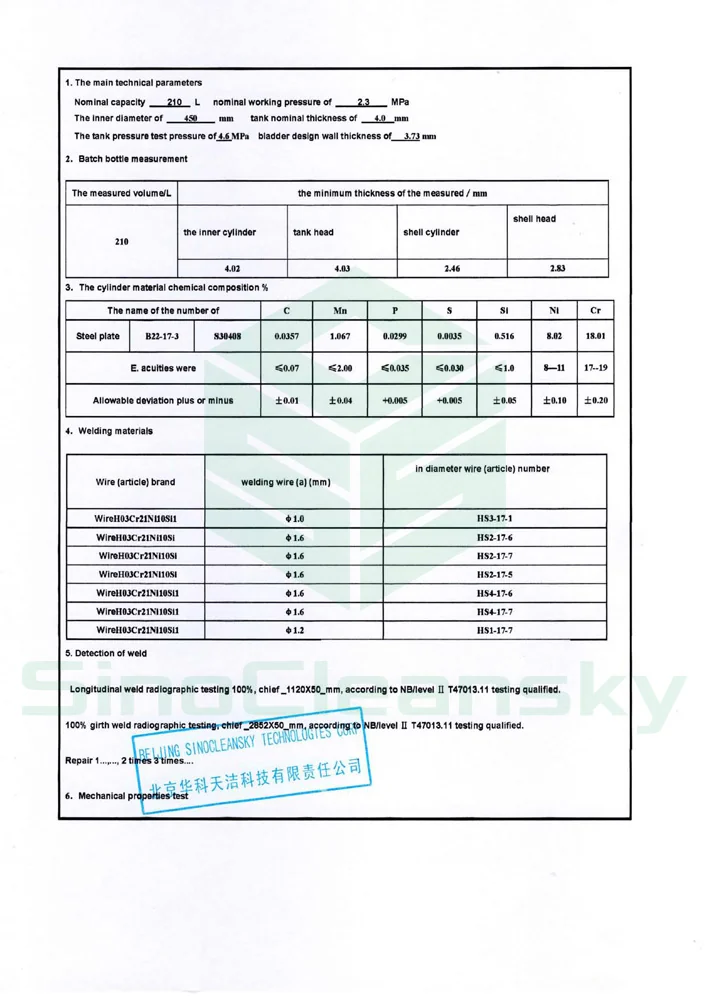

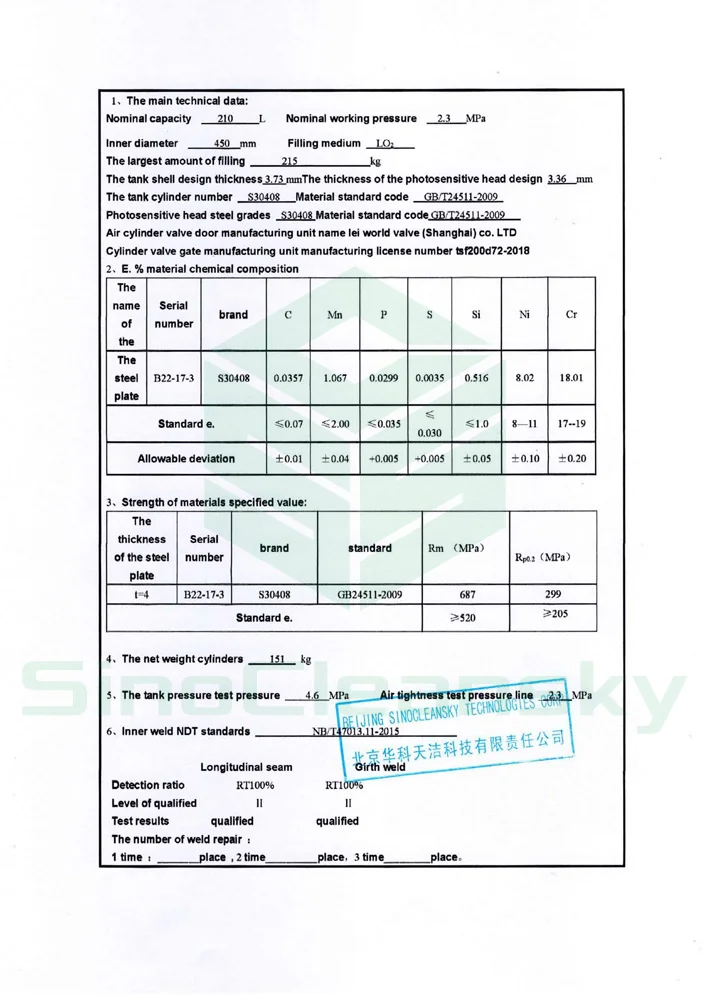

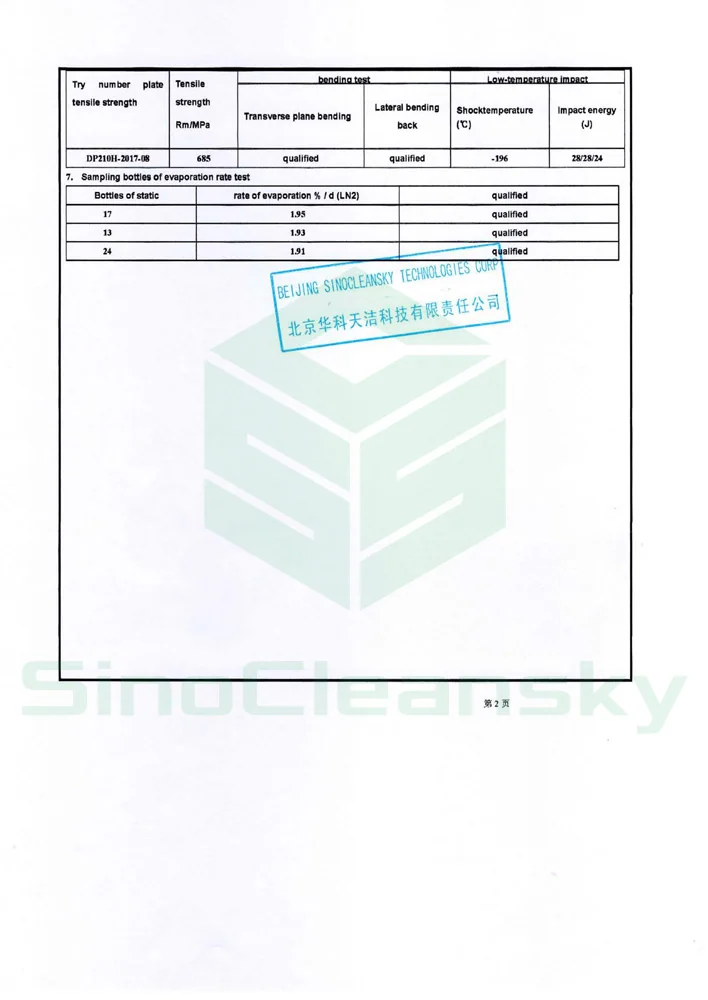

Cylinders are delivered with detailed factory test report. SinoCleansky Factory Report shows all the tests required by GB24159 std, which include: chemical composition test, radiographic inspection, etc.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.

FAQs

What about the shipment for these cylinders?

For popular types like DPL450-175L/195L/210L dewar flasks, usually they will be shipped by 20ft container, the loading quantity is around 50pcs.

What about the delivery time of this type of cylinder?

For a 20ft-container quantity, it usually takes 4-6 weeks to finish the production. nBut if there are stocks, then the delivery time could be about 2 to 3 weeks.

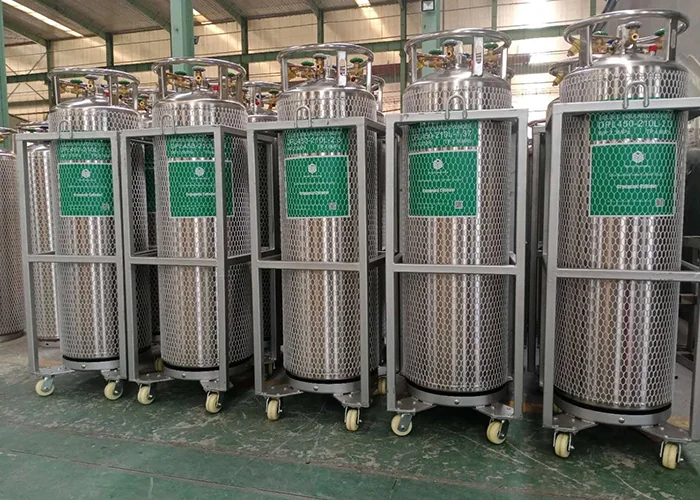

Is there frame and wheels available?

Yes, we can provide frame and wheels.
