Cryogenic Cylinder

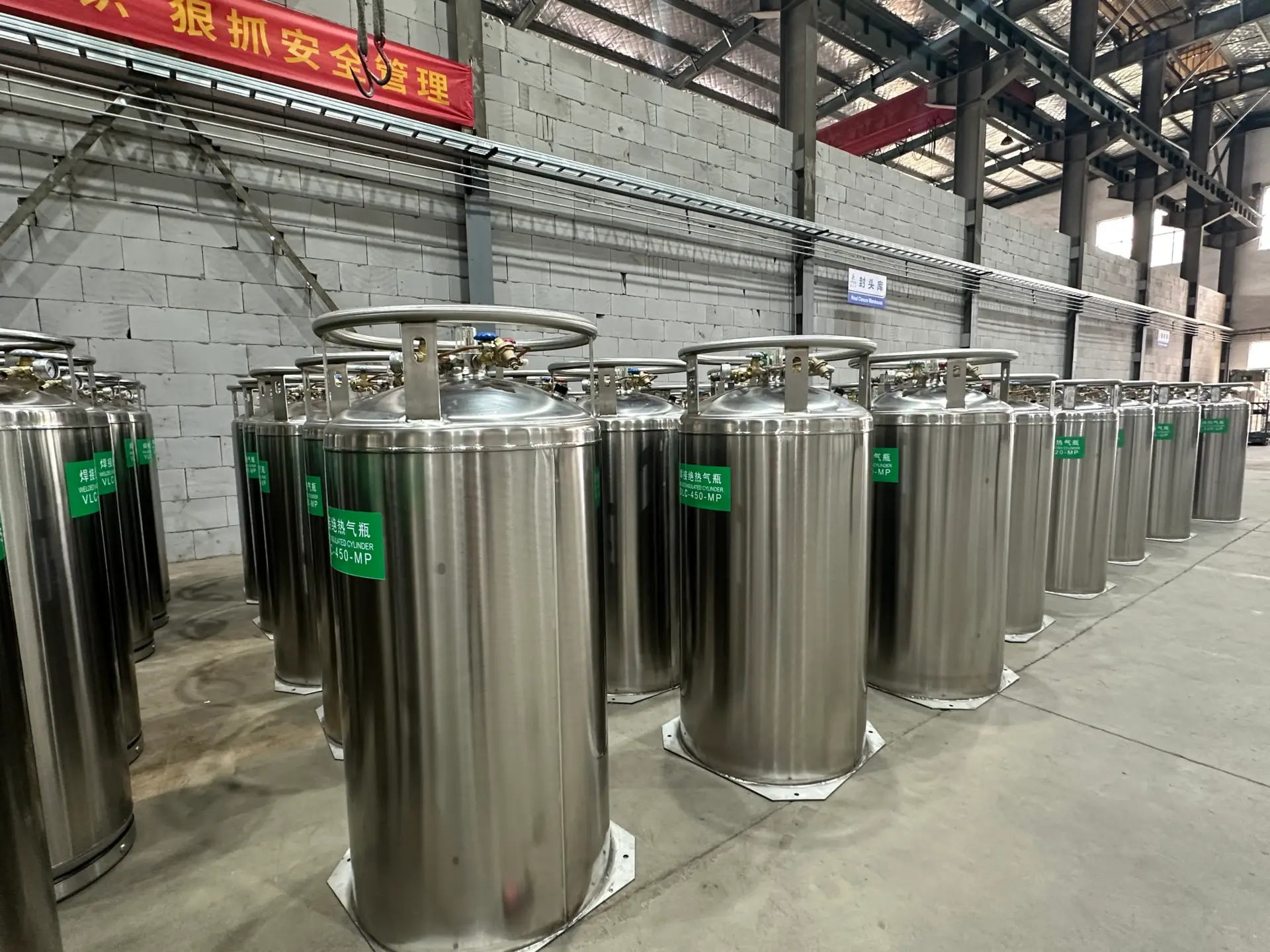

SinoCleansky Cryogenic Cylinder is a type of high vacuum multi-layer heat insulating removable cryogenic liquid vessel which can be applied to store, transport the liquefied gas products (liquefied oxygen, liquefied argon, liquefied nitrogen, liquefied carbon dioxide and N2O).
At the same time, the quality of the cylinders can be effectively guaranteed with characteristics of safety, reliability, convenience in operation, high capacity of gas charging and refilling ability.

Manufacturing standards: DOT-4L, EN1251, GB (Chinese standard), etc.

Water capacity: 175 L – 500L

Working pressure: 1.37Mpa, 2.02Mpa, 2.4Mpa, 2.84Mpa etc.

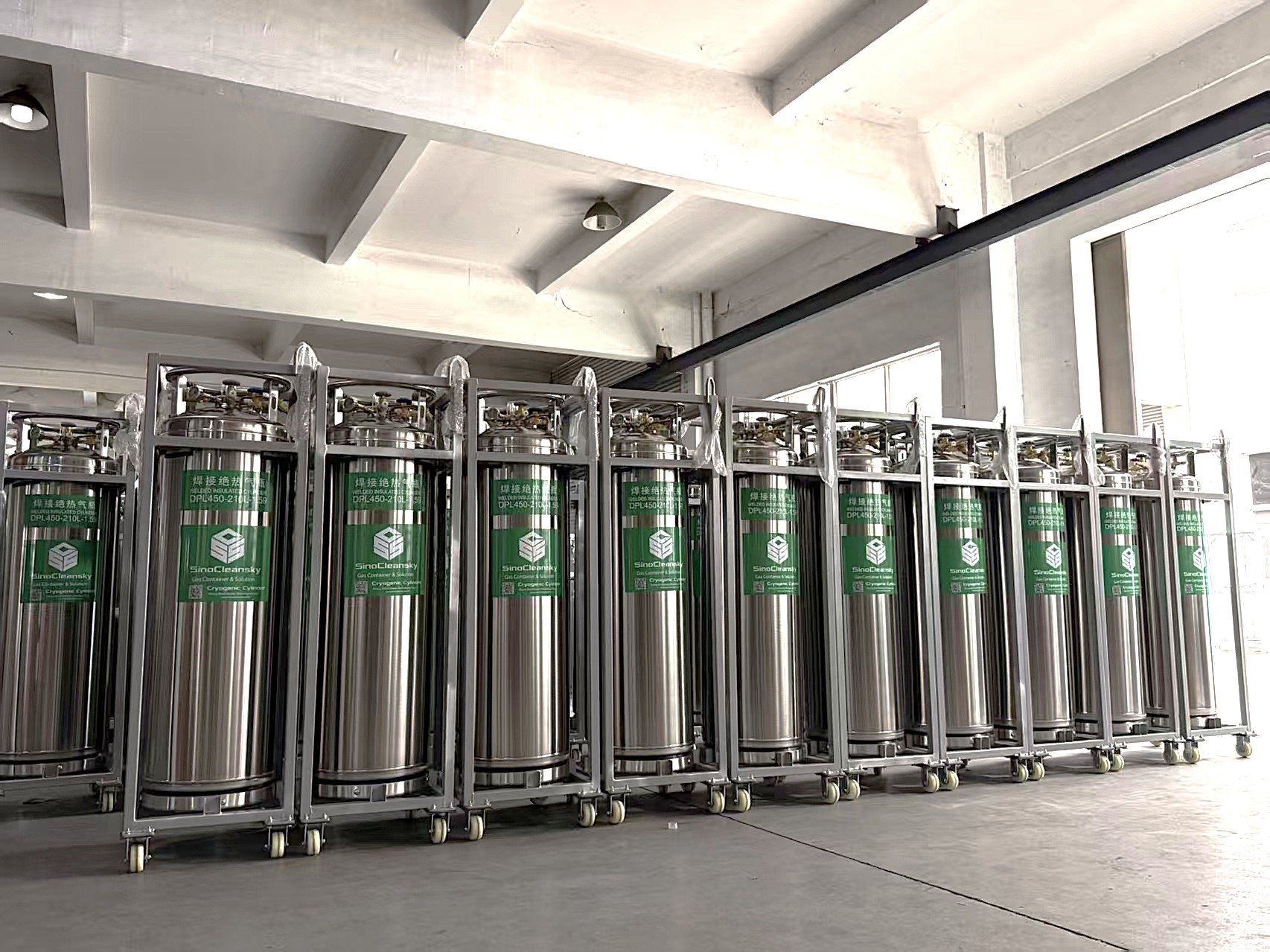

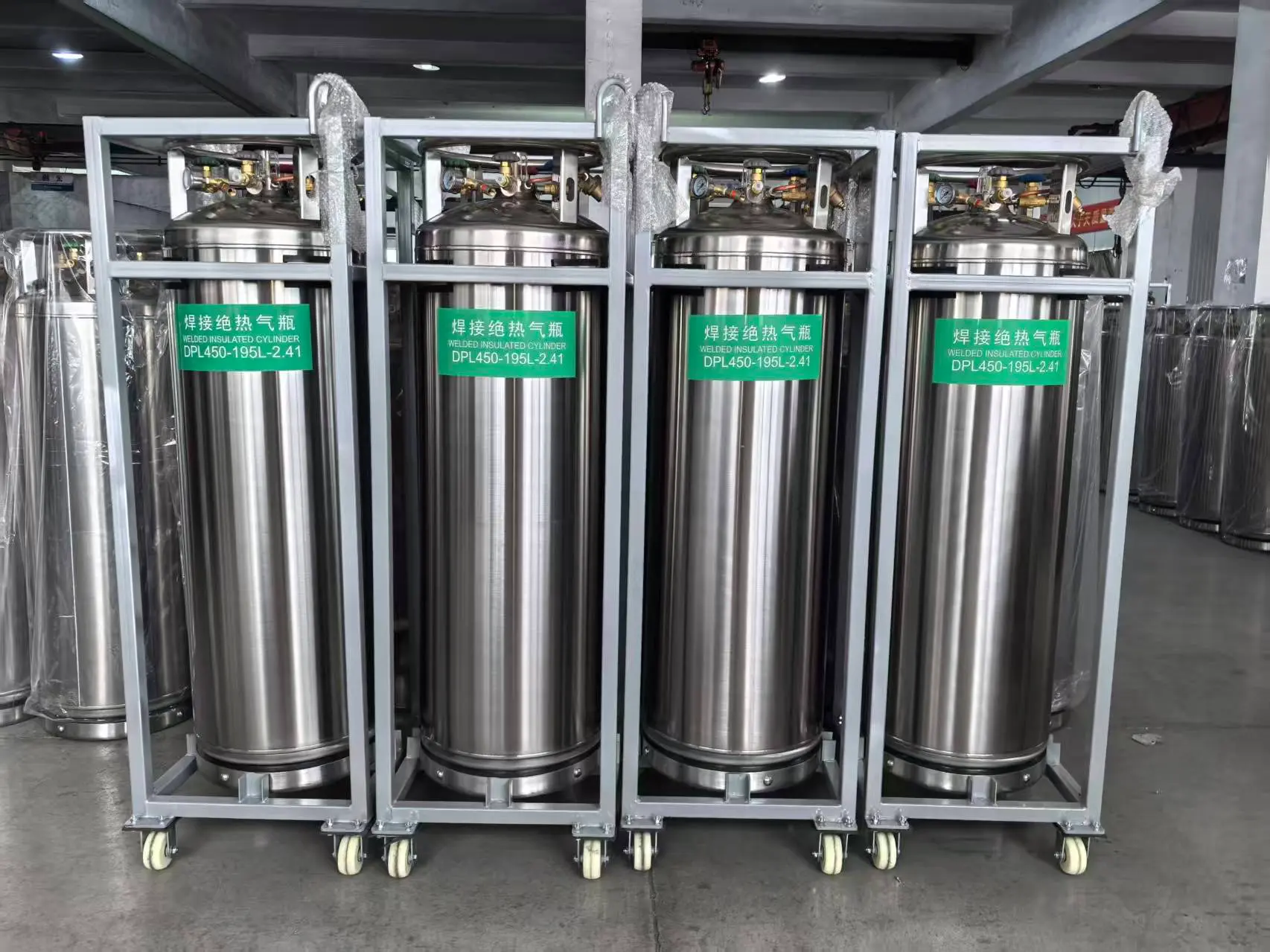

Typical types (Vertical) :

Standard	Type
GB24159	DPL452-175-1.37 Mpa
GB24159	DPL452-195-1.37 Mpa
GB24159	DPL450-210-1.37 Mpa
GB24159	DPL450-175-2.02 Mpa
GB24159	DPL450-195-2.02 Mpa
GB24159	DPL450-210-2.02 Mpa
EN1251	EN160HP(175L-2.4 Mpa)
EN1251	EN180HP(197L-2.4 Mpa)
EN1251	EN200HP(216L-2.4 Mpa)
DOT-4L	CT160HP(175L-2.02Mpa)
DOT-4L	CT180HP(195L-2.02Mpa)
DOT-4L	CT200HP(205L-2.02Mpa)
DOT-4L	CT240HP(250L-2.02Mpa)
ASME	BC500-208L-2.07Mpa(LCO2)
ASME	BC750-344L-2.07Mpa(LCO2)

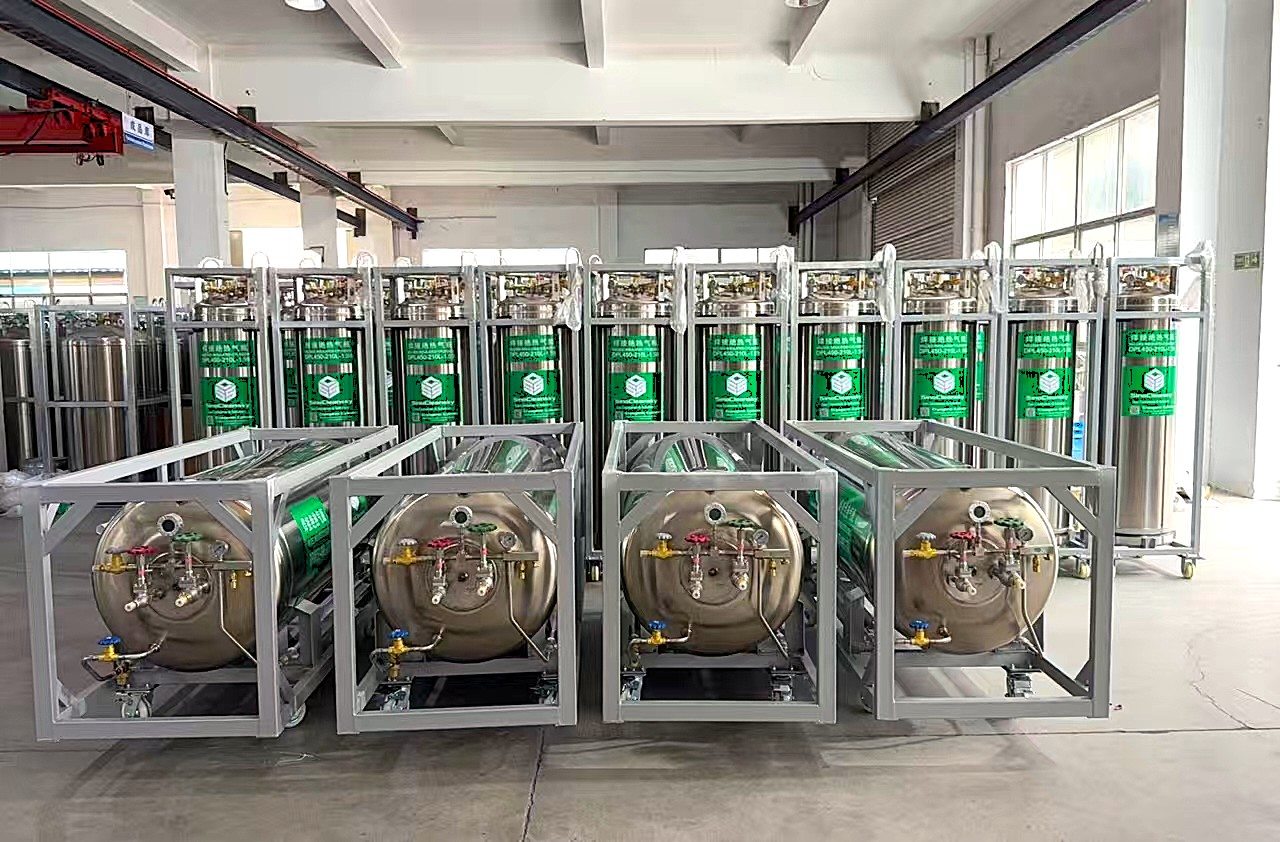

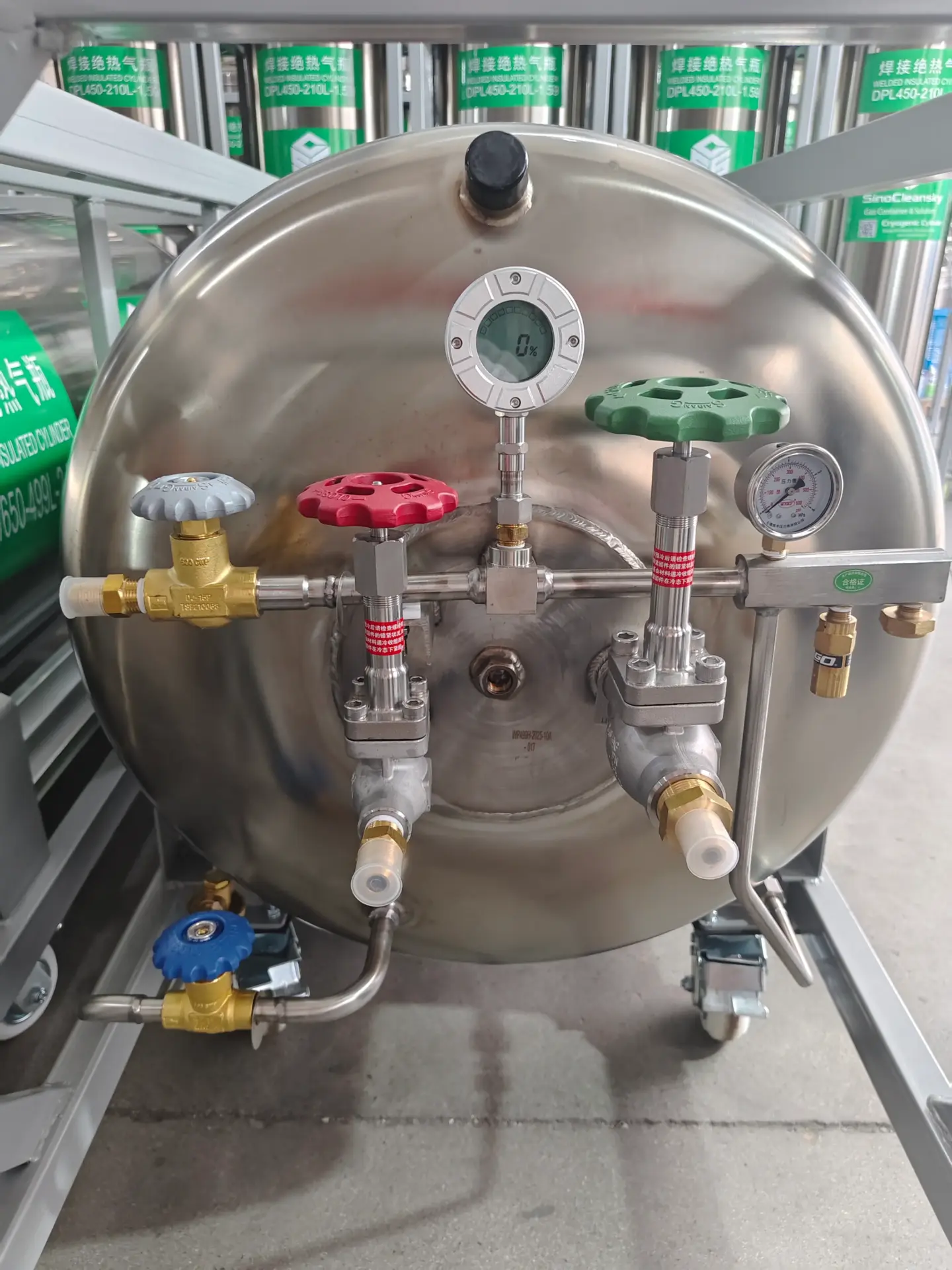

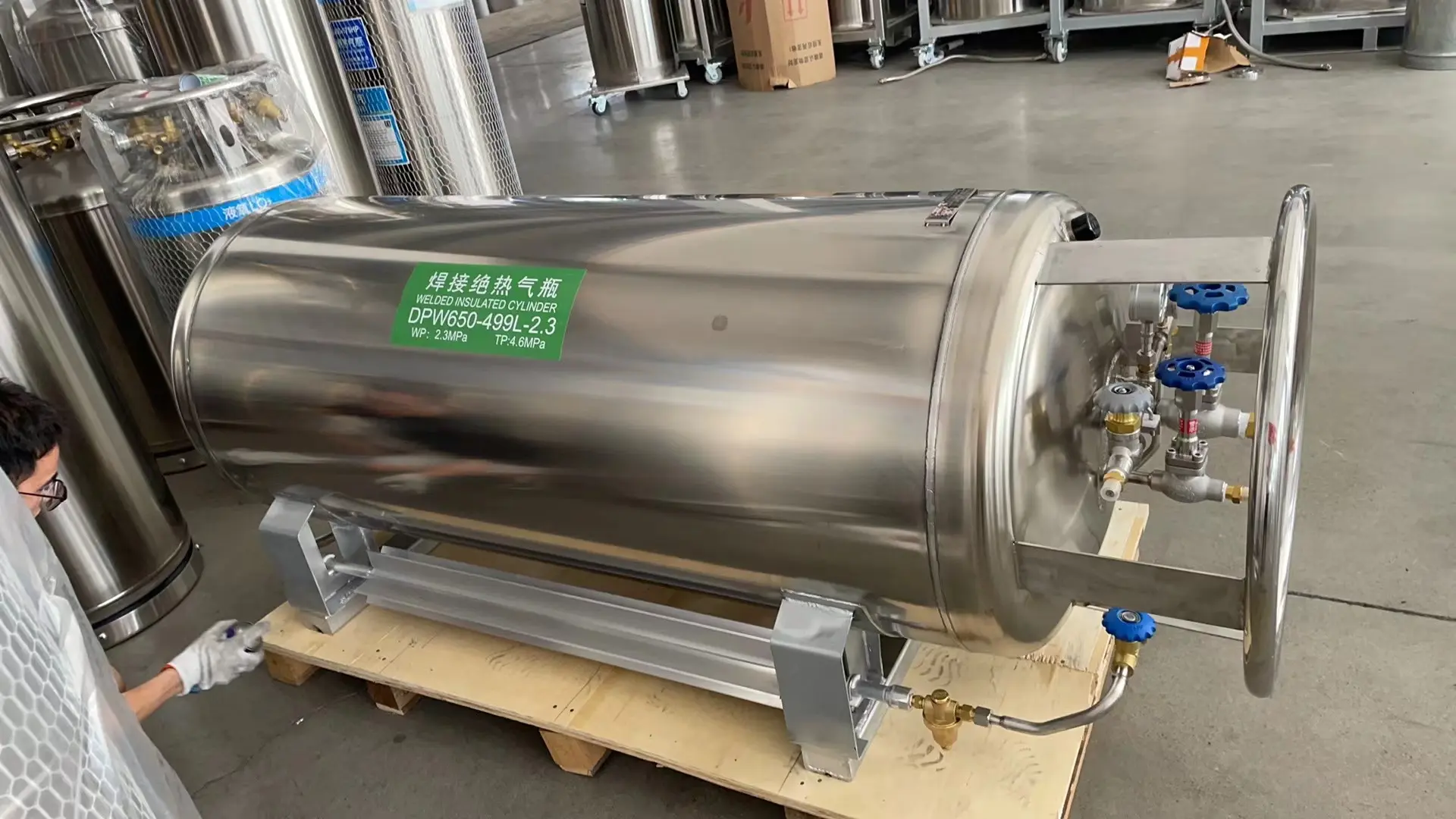

Big capacity popular types（Vertical / Horizontal optional）:

Standard	Type
GB24159	DPL700-450-1.59 Mpa
GB24159	DPW650-499-1.59Mpa
GB24159	DPL700-500-1.59Mpa
GB24159	DPW650-499-2.5Mpa
GB24159	DPW650-500-2.4Mpa
GB24159	DPL700-500-2.88Mpa
GB24159	DPL700-500-3.5Mpa

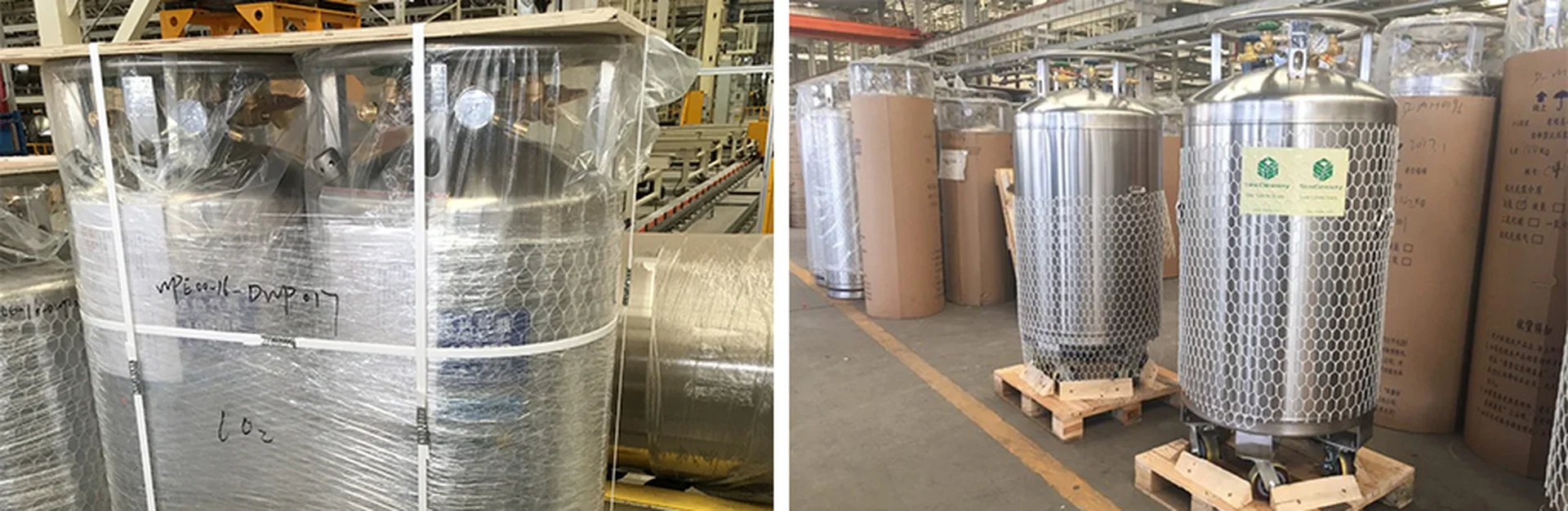

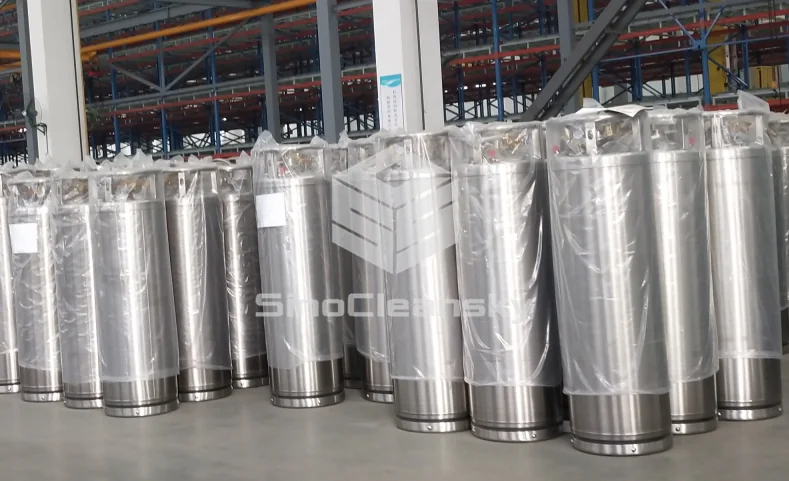

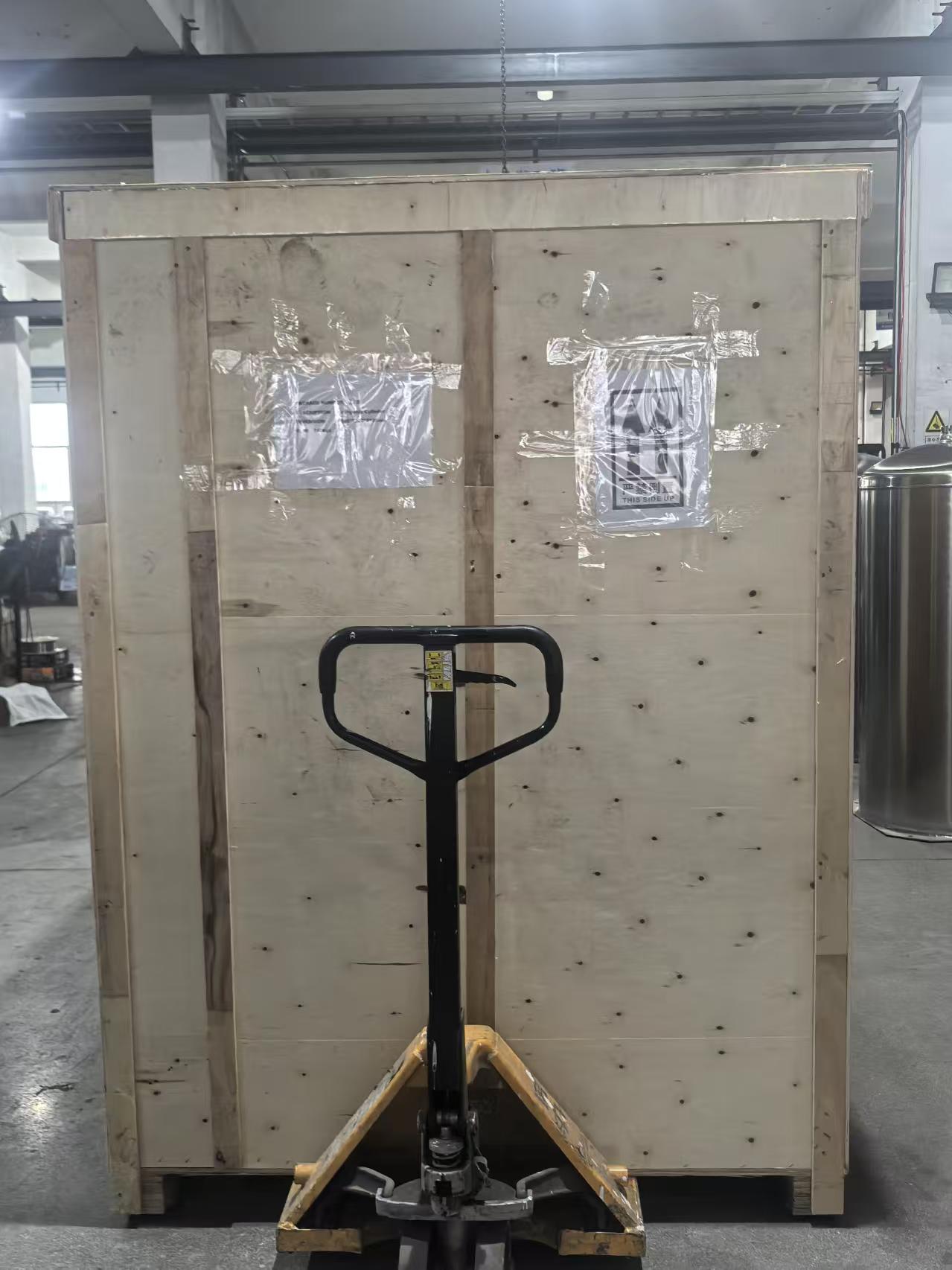

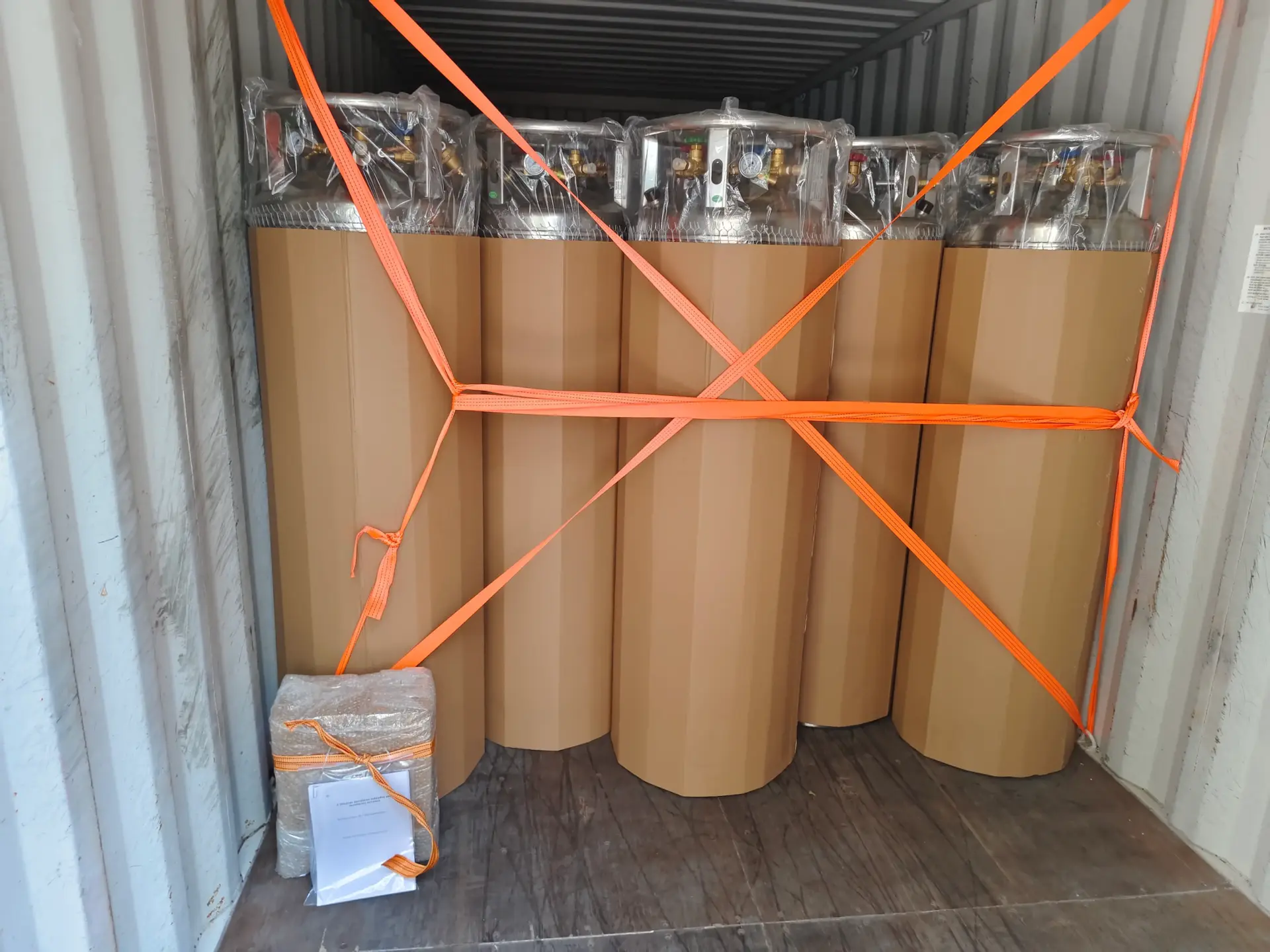

All the cylinders will be packed with plastic film or carton or wooden boxes for protection of surface. And the cylinders can be delivered with pallet, or loose in container.
