Cryogenic Tank For Medical Oxygen
• Type: vertical, horizontal
• Manufacture standard: GB, ASME, EN
• Popular Capacity: 5M3 – 50M3
• Working pressure: 0.8MPa, 1.6MPa, 2.0MPa, 2.4MPa, etc
• Medium: Medical Gas, especially for LOX
Description
SinoCleansky design and manufactures the vertical and horizontal Cryogenic Storage Tank for medical gas. The thermal-insulating modes are including perlite powder vacuum insulation and super vacuum mulit-layer insulation.

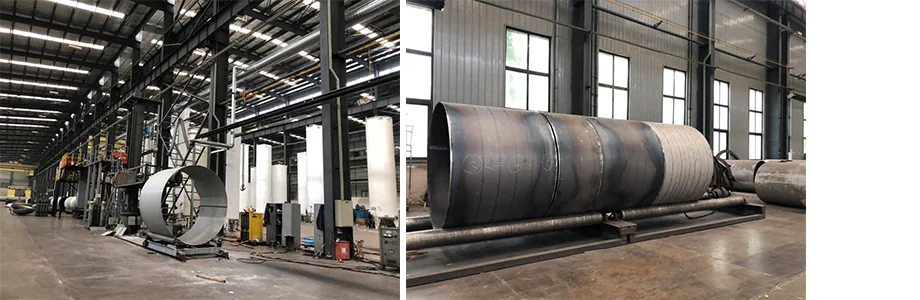

To provide high-performance equipment, Sinocleansky make a series of stringent tests, including automatic welding process, X-ray and ultrasonic tests, Vacuum production and testing, hydraulic tests, leak test for inner vessel, etc.
Technical Specifications
Cryogenic Storage Tank
|
Standard |
Volume |
Working Pressure |
Medium |
|
ASME / GB |
5 M3 |
8 bar |
LOX medical oxygen |
|
ASME / GB |
5 M3 |
16 bar |
LOX medical oxygen |
|
ASME / GB |
10 M3 |
8 bar |
LOX medical oxygen |
|
ASME / GB |
10 M3 |
16 bar |
LOX medical oxygen |
|
ASME / GB |
15 M3 |
8 bar |
LOX medical oxygen |
|
ASME / GB |
15 M3 |
16 bar |
LOX medical oxygen |
|
ASME / GB |
20 M3 |
8 bar |
LOX medical oxygen |
|
ASME / GB |
20 M3 |
16 bar |
LOX medical oxygen |
|
ASME / GB |
30 M3 |
8 bar |
LOX medical oxygen |
|
ASME / GB |
30 M3 |
16 bar |
LOX medical oxygen |
Packaging & Shipping

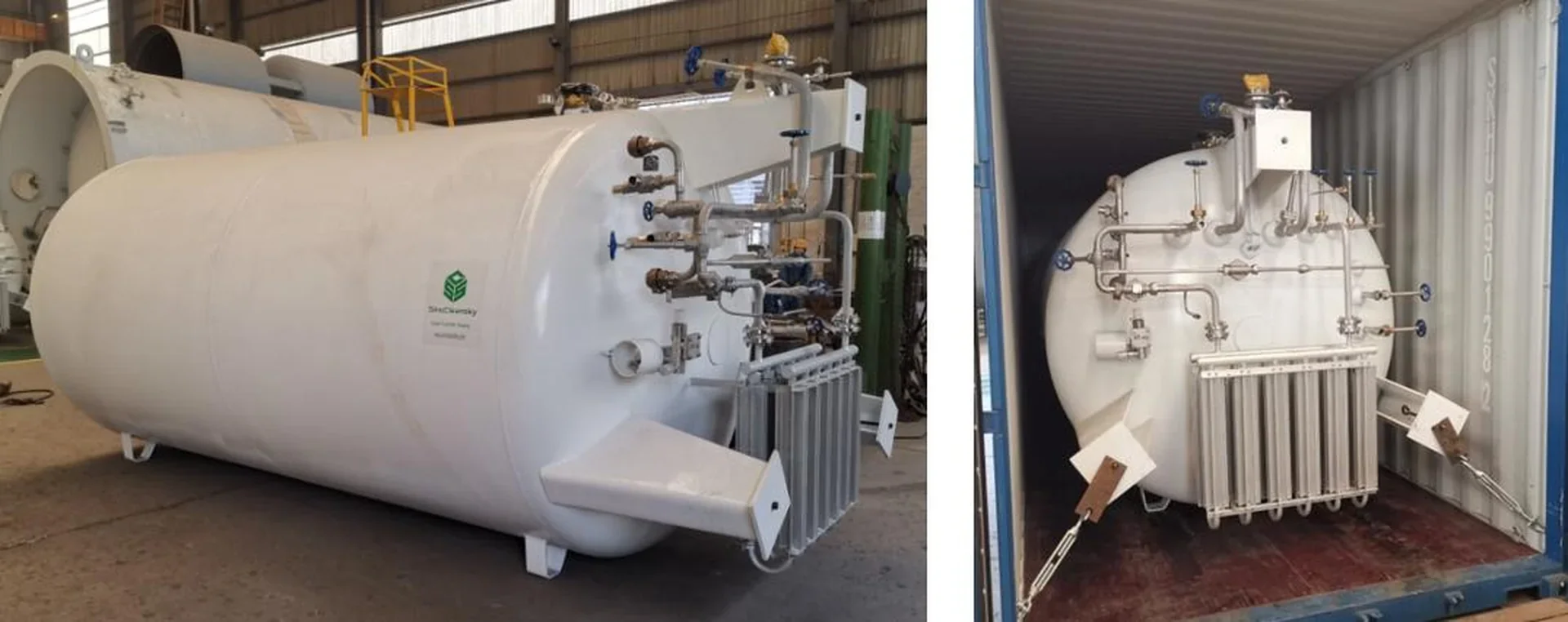

The tanks will be packed in container & fixed with ropes, or shipped in bulk directly.
Report & Certifications
The tanks are delivered with detailed factory test report and third-party test report.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.
FAQs
It usually takes 2-4 months to finish the production, based on the raw material delivery time.
The manufacture standard including GB/ASME/EN.
This product and the parts according to the shipment date can enjoy of 12 months (vacuum problems 36 months) warranty service.
