Cryogenic Tank
• Type: vertical, horizontal
• Manufacture standard: GB, ASME, EN
• Capacity: 1M3 – 200M3
• Working pressure: 0.8MPa, 1.6MPa, 2.0MPa, 2.4MPa, etc
• Medium: LOX, LIN, LAr, LCO2, LNG
Description
SinoCleansky design and manufactures the vertical and horizontal GB standard Liquid Gas Storage Tank from 3m3 to 200m3. The thermal-insulating modes are including perlite powder vacuum insulation and super vacuum mulit-layer insulation.
SinoCleansky Cryogenic Storage Tank can be widely used in gas, chemical, machinery, metallurgy, medical, nuclear power and other industries.

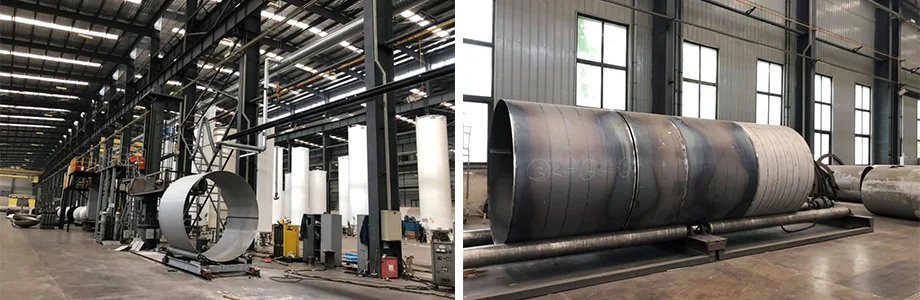

To provide high-performance equipment, Sinocleansky make a series of stringent tests, including automatic welding process, X-ray and ultrasonic tests, Vacuum production and testing, hydraulic tests, leak test for inner vessel, etc.
Technical Specifications
Cryogenic Storage Tank
|
Standard |
Type |
Medium |
|
GB |
3M3-16BAR |
LOX / LIN / LAr |
|
GB |
5M3-16BAR |
LOX / LIN / LAr |
|
GB |
10M3-16BAR |
LOX / LIN / LAr |
|
GB |
20M3-11BAR |
LOX / LIN / LAr |
|
GB |
20M3-16BAR |
LOX / LIN / LAr |
|
GB |
20M3-8BAR |
LOX / LIN / LAr |
|
GB |
25M3-16BAR |
LOX / LIN / LAr |
|
GB |
50M3-16BAR |
LOX / LIN / LAr |
|
GB |
100M3-8BAR |
LOX / LIN / LAr |
|
GB |
2M3-22BAR |
LCO2 |
|
GB |
10M3-25BAR |
LCO2 |
|
GB |
30M3-22BAR |
LCO2 |
|
GB |
30M3-25BAR |
LCO2 |

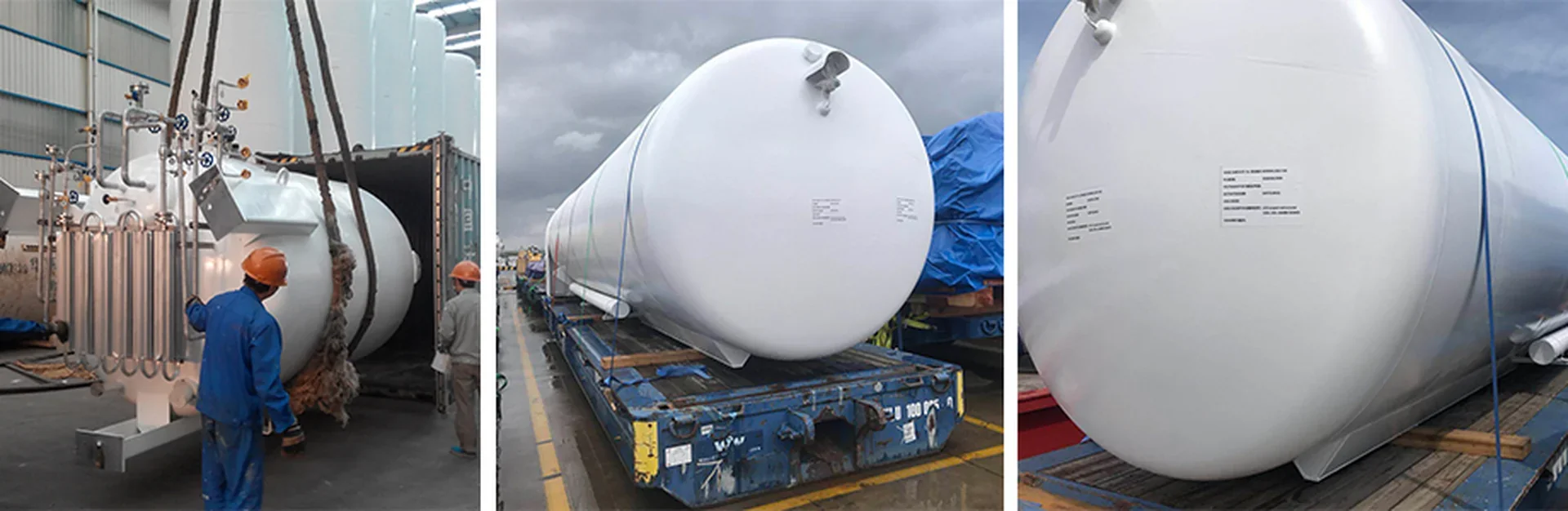

Packaging & Shipping
The tanks will be packed in container & fixed with ropes, or shipped in bulk directly.
Report & Certifications
The tanks are delivered with detailed factory test report and third-party test report.
ASME standard test report reference:
E-mail [email protected] to get more detailed test report specimen.
FAQs
It usually takes 2-4 months to finish the production, based on the raw material delivery time.
The manufacture standard including GB/ASME/EN.
This product and the parts according to the shipment date can enjoy of 12 months (vacuum problems 36 months) warranty service.
