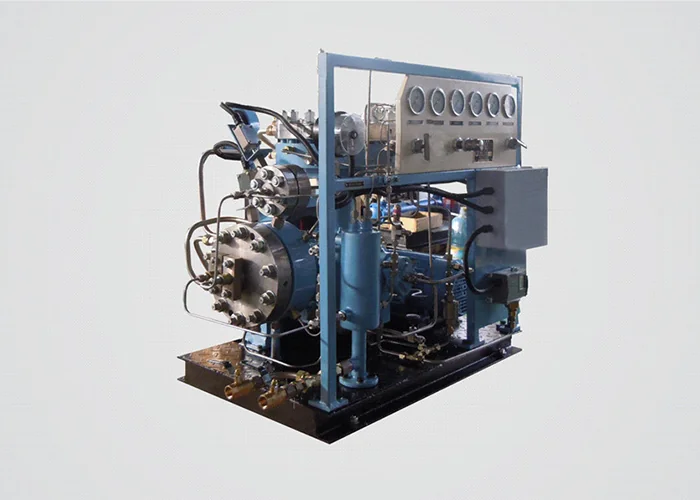

D044 series Diaphragm Compressor
• High Reliability
• Low Maintenance
• High Purity
• Leak-tight
• High Pressure
Description
D044 series Diaphragm Compressor
Includes single stage Z, type and two stage
Compression L type
Pressure up to 100Mpa
Flow varies with intake pressure
Powder up to 2.2KW

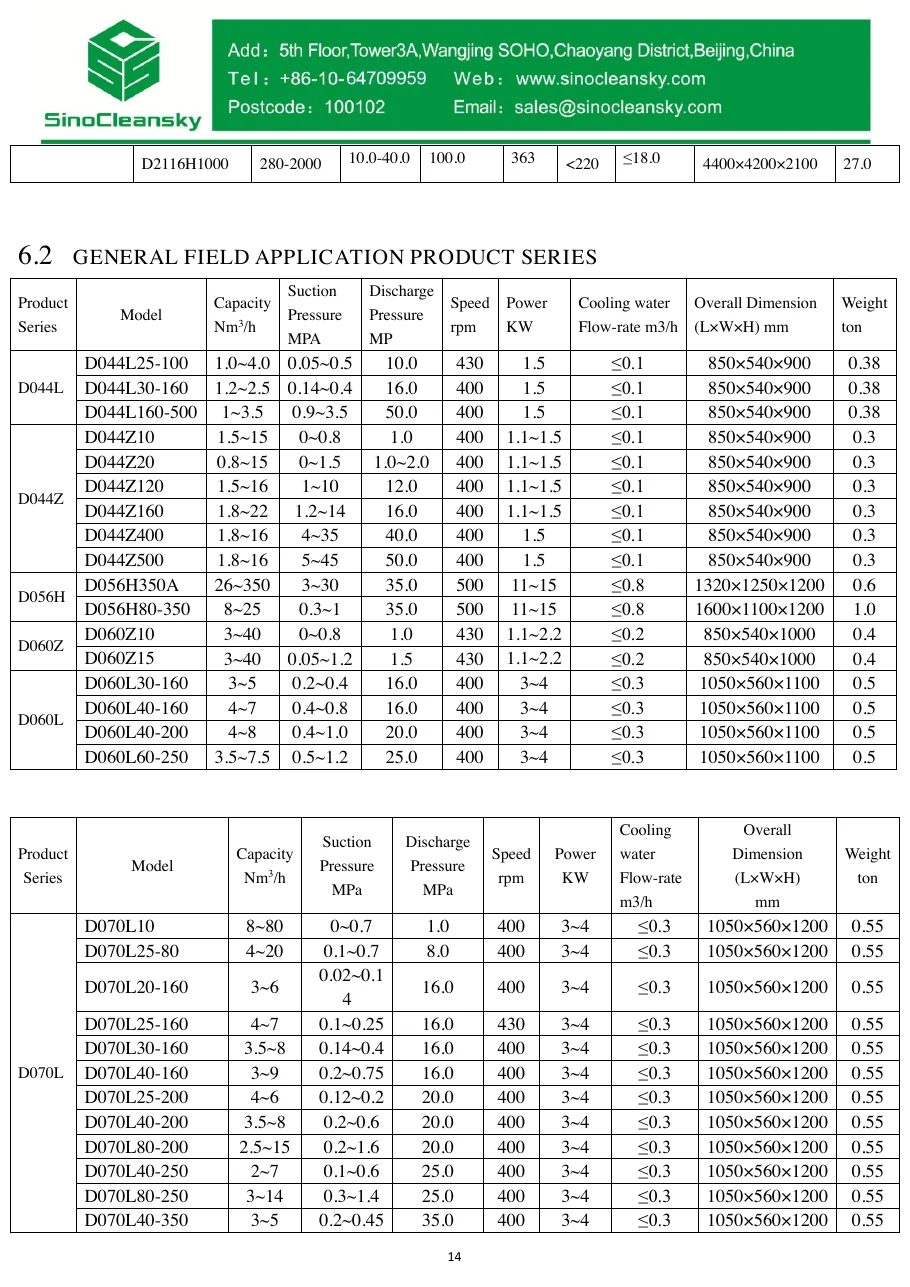

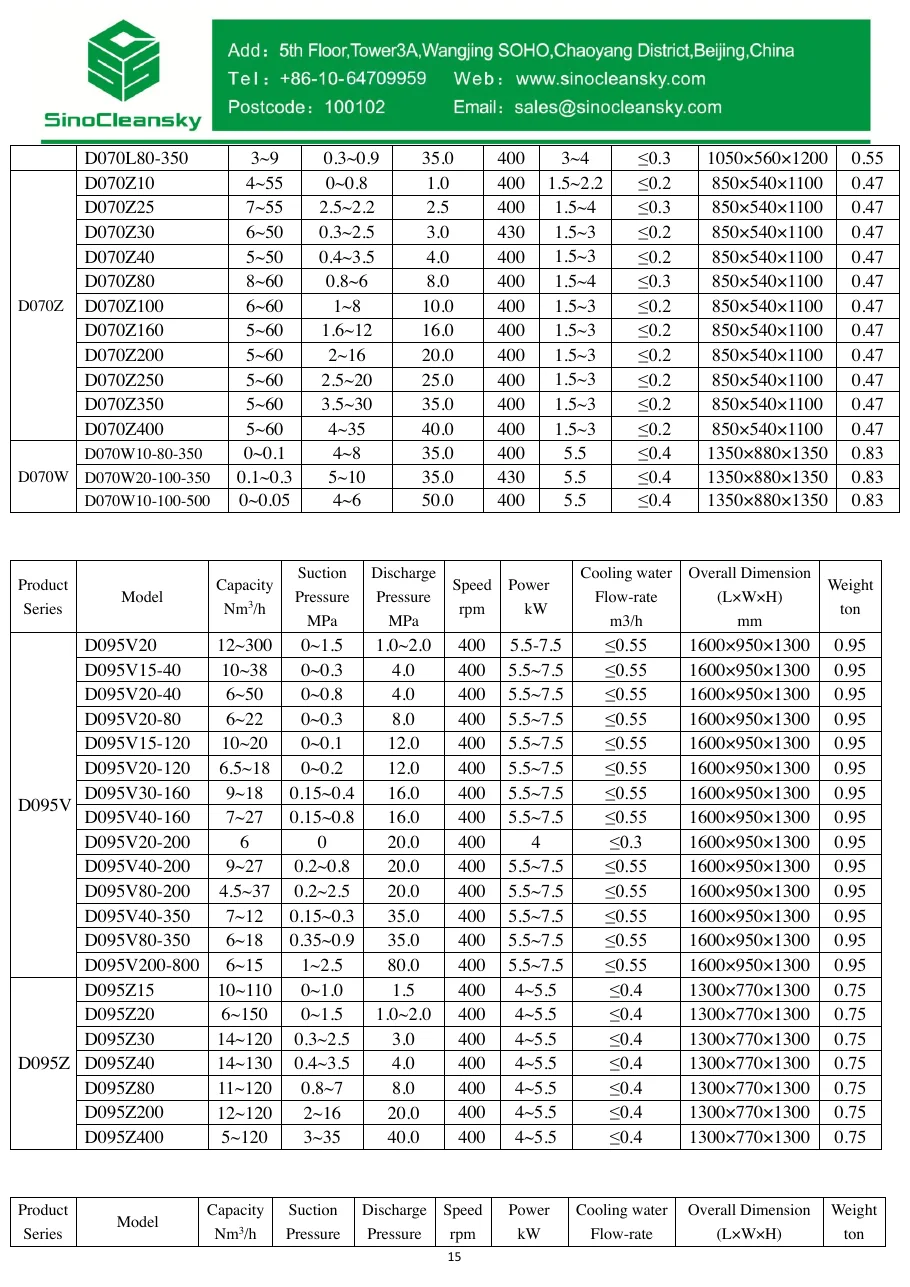

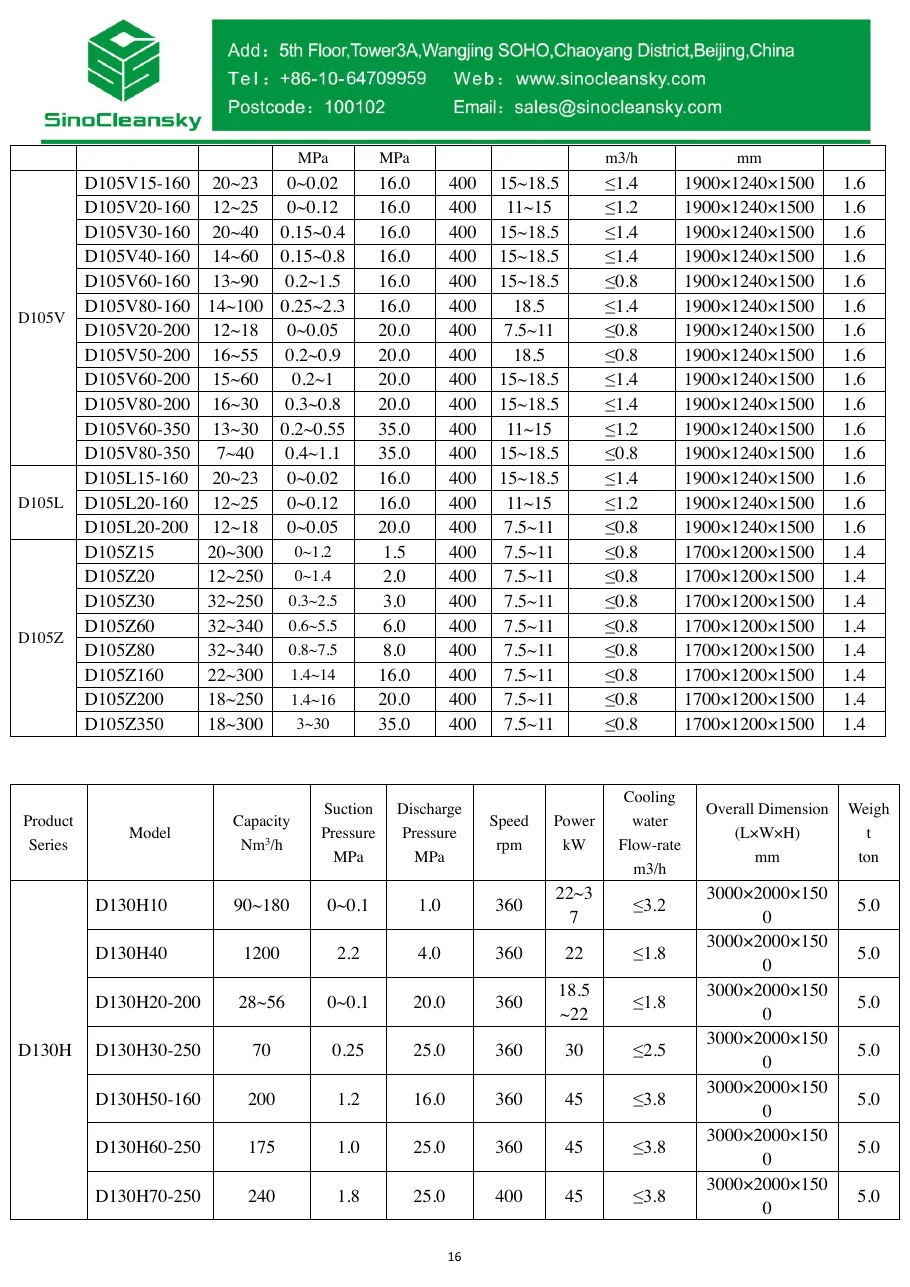

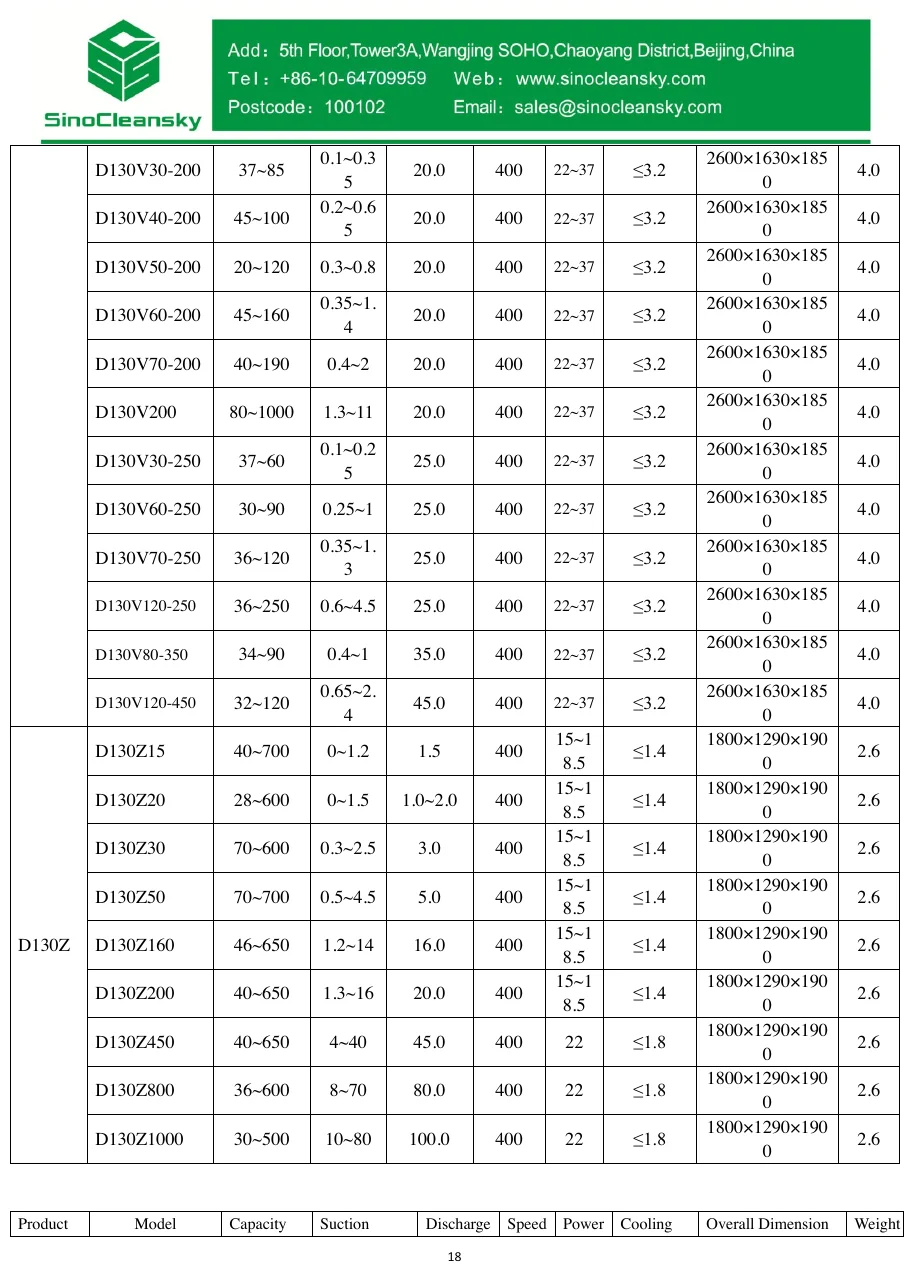

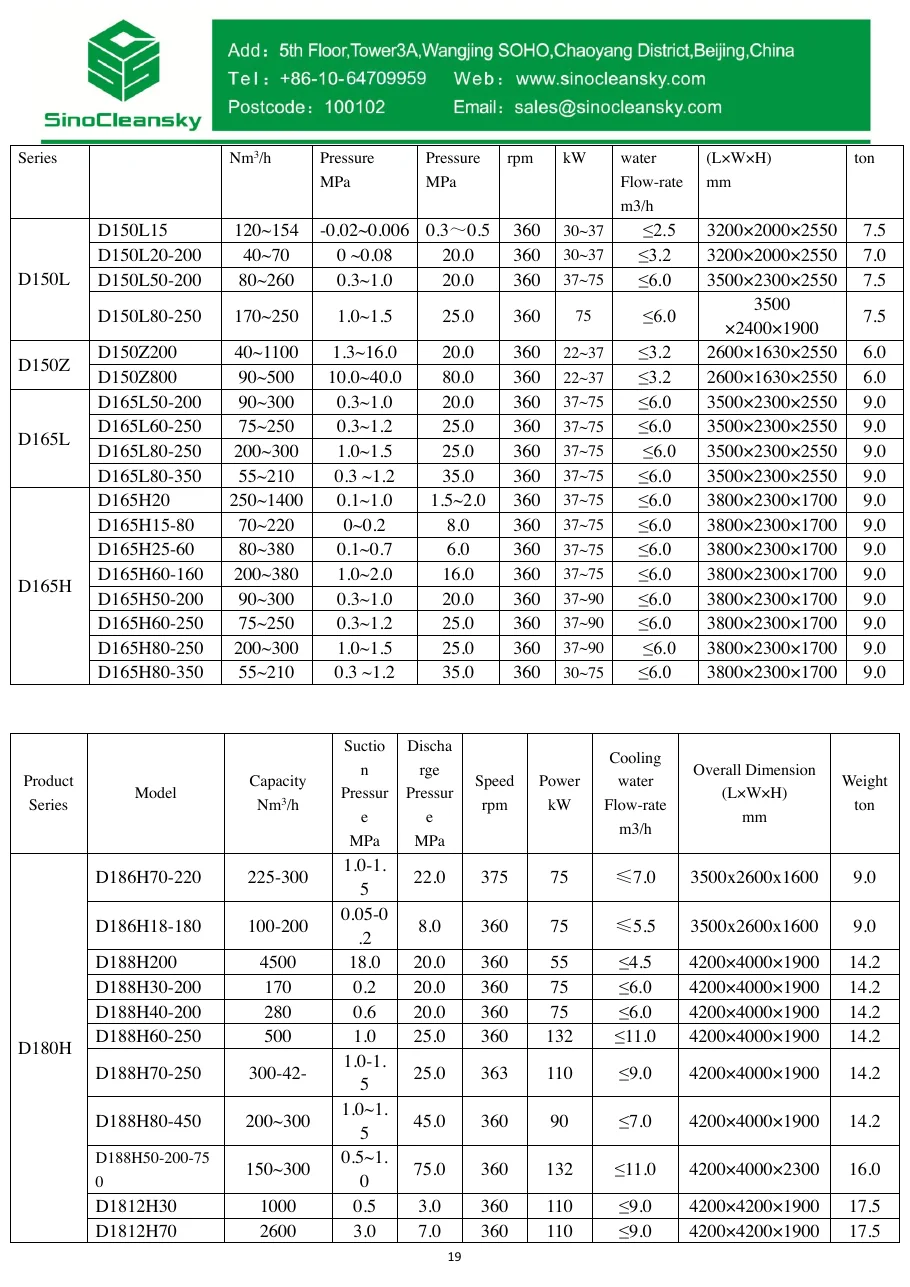

Technical Specifications
Custom-made type based on detailed request.
|
Product Series |
Model |
Capacity Nm3/h |
Suction Pressure MPA |
Discharge Pressure MP |
Speed rpm |
Power KW |
Cooling water Flow-rate m3/h |
Overall Dimension (L×W×H) mm |
Weight ton |
|
D044L |
D044L25-100 |
1.0~4.0 |
0.05~0.5 |
10.0 |
430 |
1.5 |
≤0.1 |
850×540×900 |
0.38 |
|
D044L30-160 |
1.2~2.5 |
0.14~0.4 |
16.0 |
400 |
1.5 |
≤0.1 |
850×540×900 |
0.38 |
|
|
D044L160-500 |
1~3.5 |
0.9~3.5 |
50.0 |
400 |
1.5 |
≤0.1 |
850×540×900 |
0.38 |
|
|
D044Z |
D044Z10 |
1.5~15 |
0~0.8 |
1.0 |
400 |
1.1~1.5 |
≤0.1 |
850×540×900 |
0.3 |
|
D044Z20 |
0.8~15 |
0~1.5 |
1.0~2.0 |
400 |
1.1~1.5 |
≤0.1 |
850×540×900 |
0.3 |
|
|
D044Z120 |
1.5~16 |
1~10 |
12.0 |
400 |
1.1~1.5 |
≤0.1 |
850×540×900 |
0.3 |
|
|
D044Z160 |
1.8~22 |
1.2~14 |
16.0 |
400 |
1.1~1.5 |
≤0.1 |
850×540×900 |
0.3 |
|
|
D044Z400 |
1.8~16 |
4~35 |
40.0 |
400 |
1.5 |
≤0.1 |
850×540×900 |
0.3 |
|
|
D044Z500 |
1.8~16 |
5~45 |
50.0 |
400 |
1.5 |
≤0.1 |
850×540×900 |
0.3 |
Packaging & Shipping

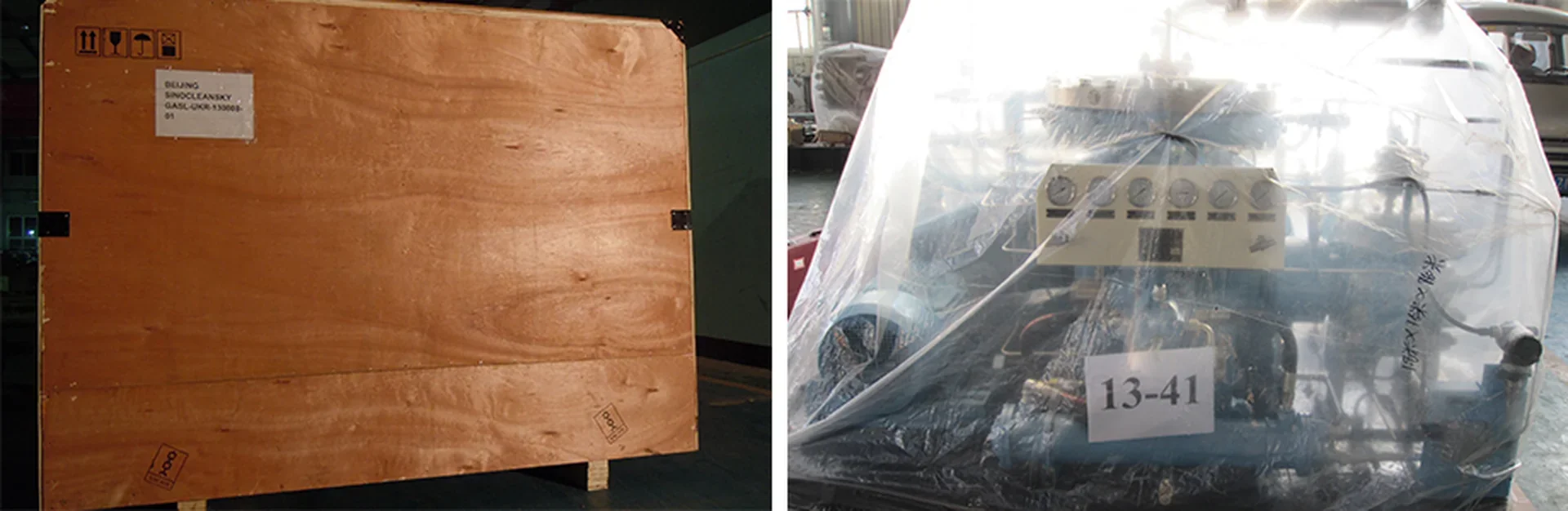

The compressor will be delivered with wooden box for protection.
Report & Certifications
FAQs
We need to know the gas, the flow rate, inlet pressure and outlet pressure.
We provide one set of spare parts together with compressor.
