D060 series Diaphragm Compressor
• High Reliability
• Low Maintenance
• High Purity
• Leak-tight
• High Pressure
Description

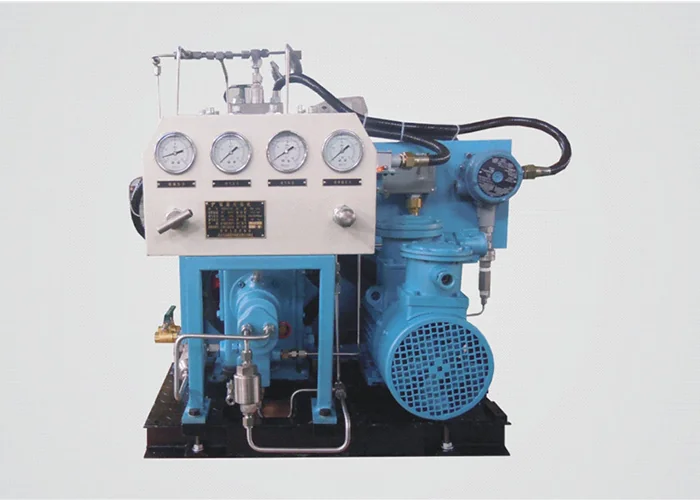

D060 series Diaphragm Compressor
Including single Z L type and two stage compression L type
Pressure up to 120MP
Flow varies with intake pressure
Power up to 4.0kW

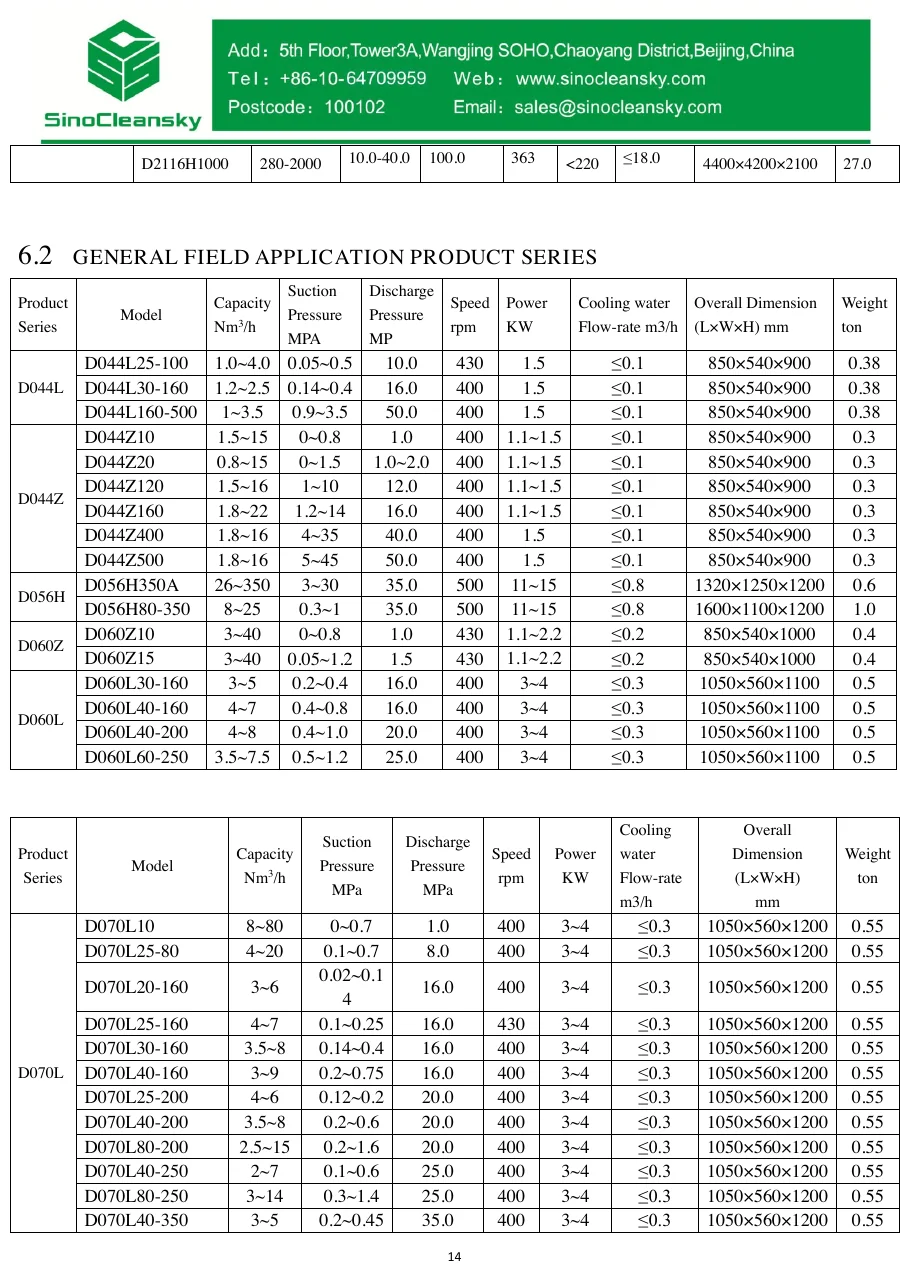

Technical Specifications
Custom-made type based on detailed request.
|
Product Series |
Model |
Capacity Nm3/h |
Suction Pressure MPA |
Discharge Pressure MP |
Speed rpm |
Power KW |
Cooling water Flow-rate m3/h |
Overall Dimension (L×W×H) mm |
Weight ton |
|
D060Z |
D060Z10 |
3~40 |
0~0.8 |
1.0 |
430 |
1.1~2.2 |
≤0.2 |
850×540×1000 |
0.4 |
|
D060Z15 |
3~40 |
0.05~1.2 |
1.5 |
430 |
1.1~2.2 |
≤0.2 |
850×540×1000 |
0.4 |
|
|
D060L |
D060L30-160 |
3~5 |
0.2~0.4 |
16.0 |
400 |
3~4 |
≤0.3 |
1050×560×1100 |
0.5 |
|
D060L40-160 |
4~7 |
0.4~0.8 |
16.0 |
400 |
3~4 |
≤0.3 |
1050×560×1100 |
0.5 |
|
|
D060L40-200 |
4~8 |
0.4~1.0 |
20.0 |
400 |
3~4 |
≤0.3 |
1050×560×1100 |
0.5 |
|
|
D060L60-250 |
3.5~7.5 |
0.5~1.2 |
25.0 |
400 |
3~4 |
≤0.3 |
1050×560×1100 |
0.5 |
Packaging & Shipping

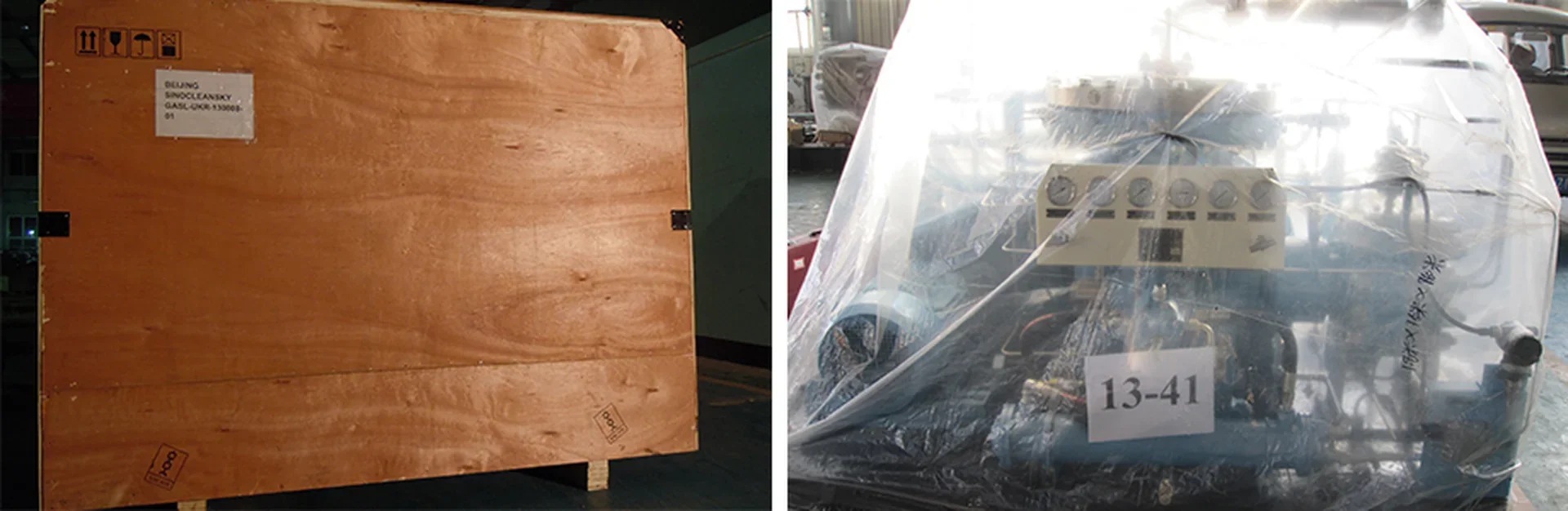

The compressor will be delivered with wooden box for protection.
Report & Certifications
FAQs
We need to know the gas, the flow rate, inlet pressure and outlet pressure.
We provide one set of spare parts together with compressor.
