D210H series Diaphragm Compressor
• High Reliability
• Low Maintenance
• High Purity
• Leak-tight
• High Pressure
Description

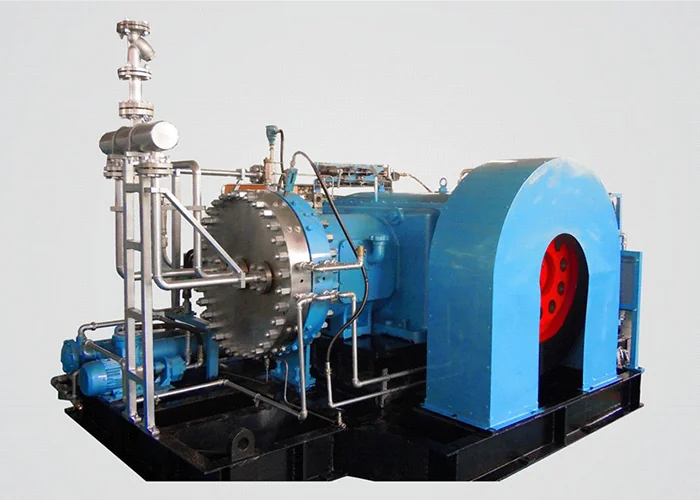

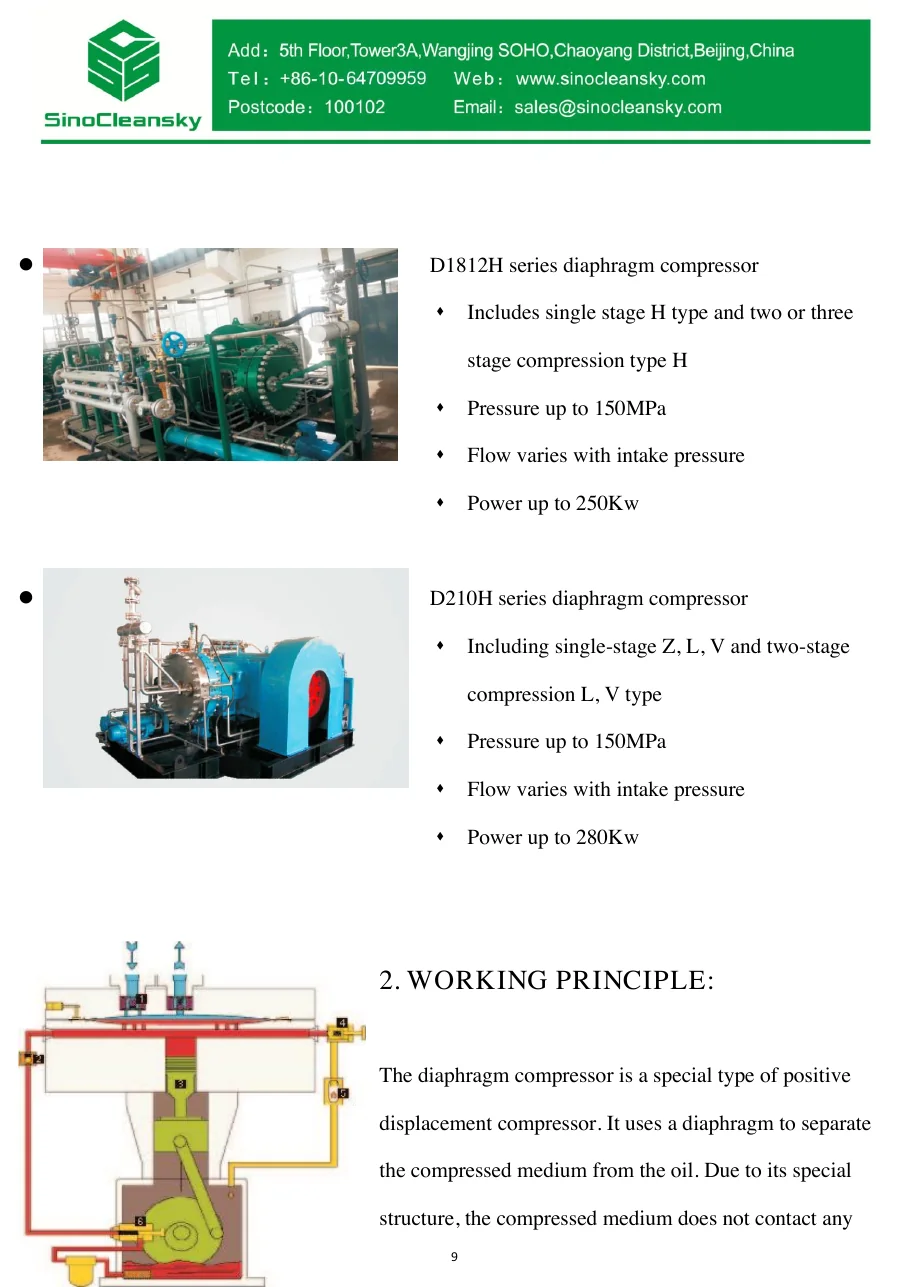

D210H series Diaphragm Compressor
Including single-stage Z, L, V and two-stage compression L, V type
Pressure up to 150MPa
Flow varies with intake pressure
Power up to 280Kw

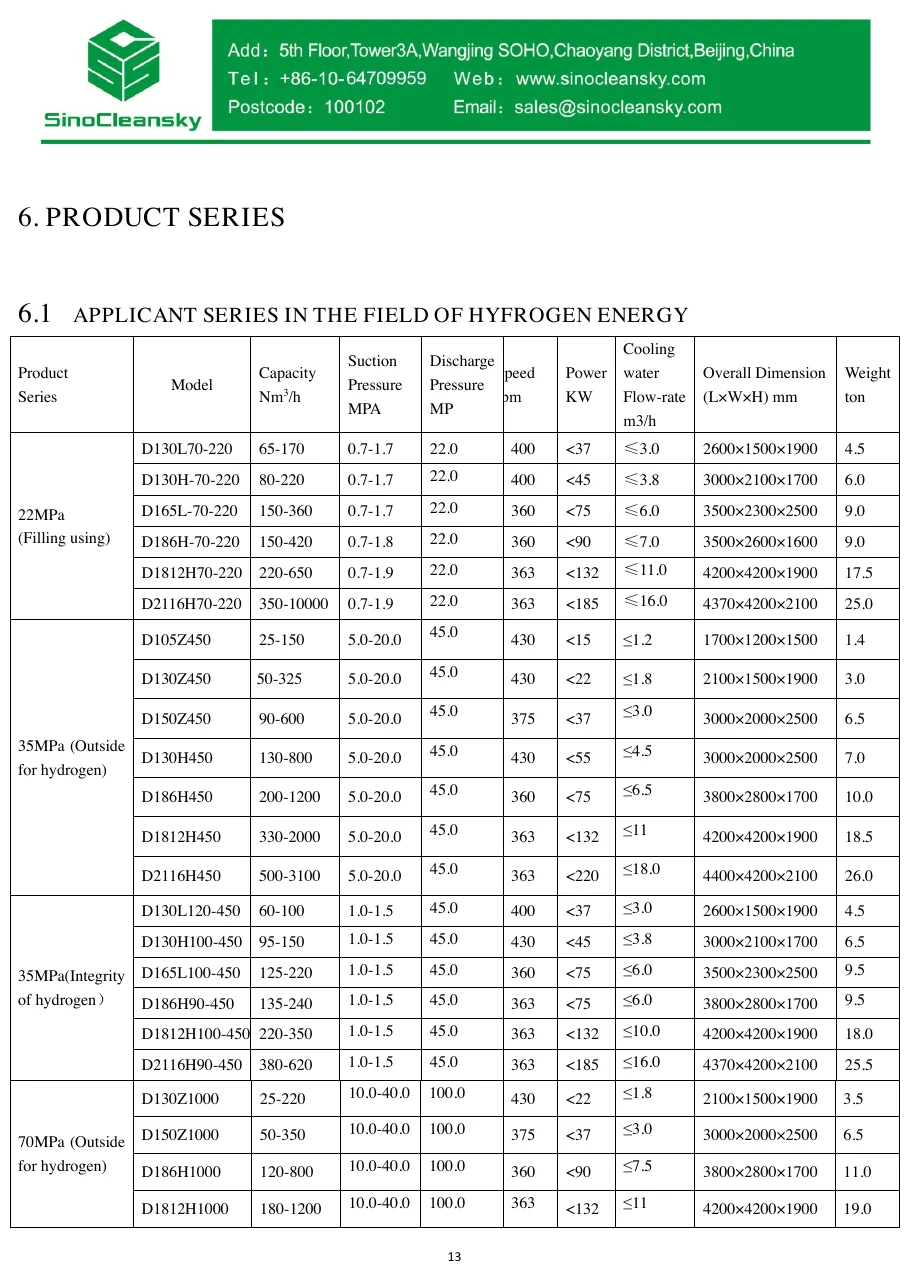

Technical Specifications
Custom-made type based on detailed request.
|
Product Series |
Model |
Capacity Nm3/h |
Suction Pressure MPa |
Discharge Pressure MPa |
Speed rpm |
Power kW |
Cooling water Flow-rate m3/h |
Overall Dimension (L×W×H) mm |
Weight ton |
|

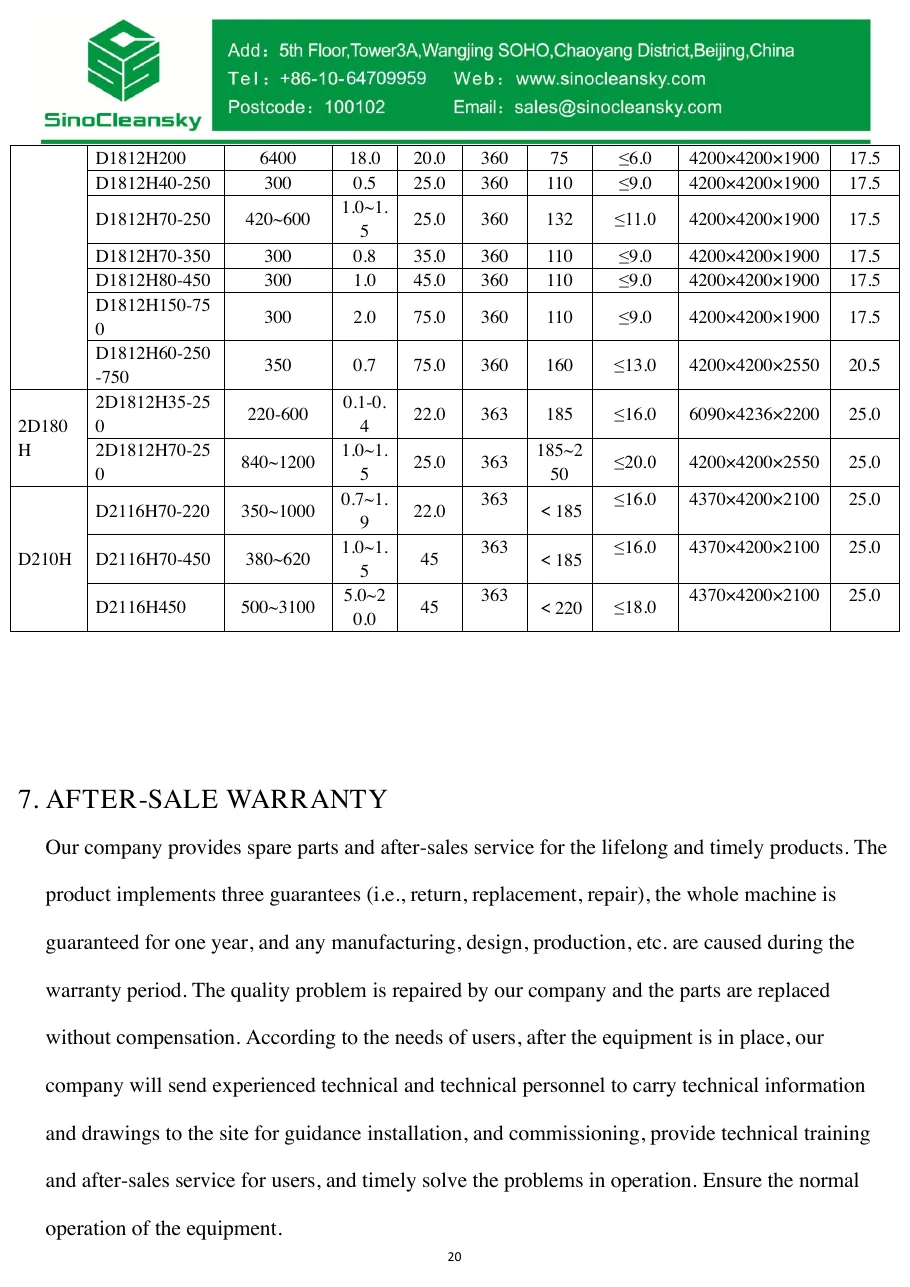

D210H |
D2116H70-220 |
350~1000 |
0.7~1.9 |
22.0 |
363 |
＜185 |
≤16.0 |
4370×4200×2100 |
25.0 |
|
D2116H70-450 |
380~620 |
1.0~1.5 |
45 |
363 |
＜185 |
≤16.0 |
4370×4200×2100 |
25.0 |
|
|
D2116H450 |
500~3100 |
5.0~20.0 |
45 |
363 |
＜220 |
≤18.0 |
4370×4200×2100 |
25.0 |
Packaging & Shipping
The compressor will be delivered with wooden box for protection.
Report & Certifications
FAQs
We need to know the gas, the flow rate, inlet pressure and outlet pressure.
We provide one set of spare parts together with compressor.
