DOT Cylinder
• DOT standard approved.
• International inspection authority certified.
• Applied for oxygen, nitrogen, argon, CO2 etc.
• Widely used for welding and cutting.
Description

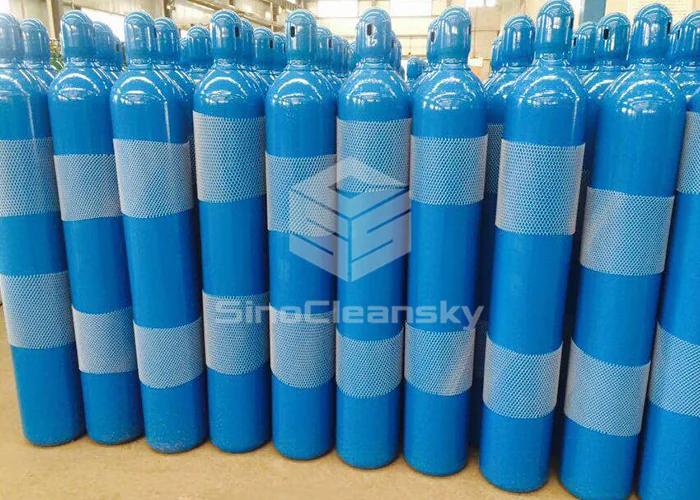

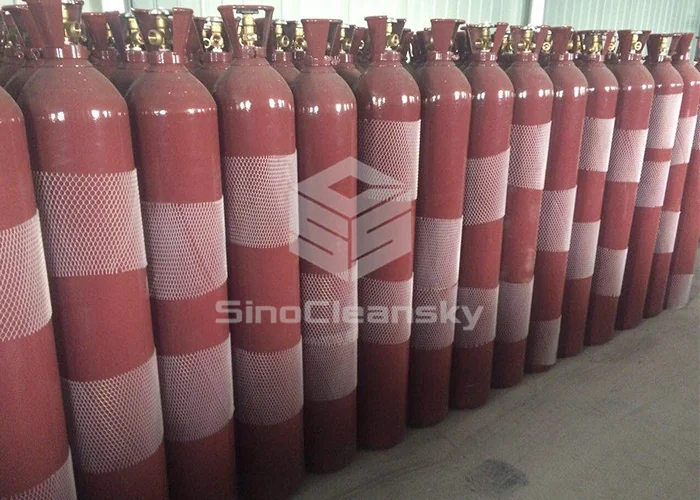

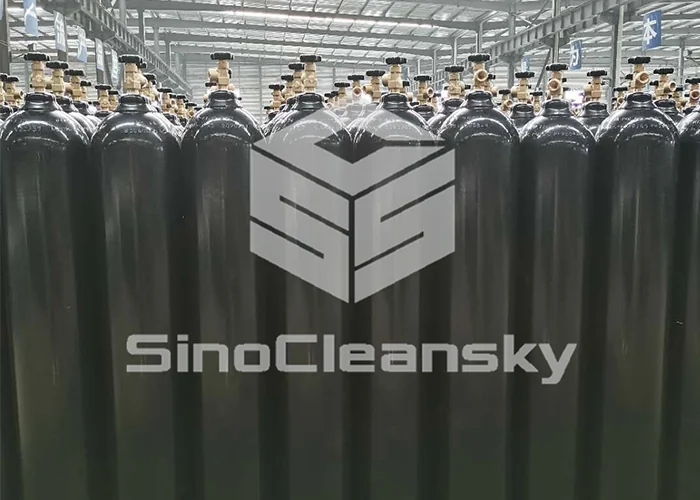

SinoCleansky DOT gas cylinder is manufactured under DOT-3AA standard. This standard cylinder is mainly for the South American and North American market, with international third-party test reports. Some specific types are widely used in welding and cutting field, such as 20CF and 40CF, which are popular in Middle East market, too.
The cylinders are widely used for Oxygen (O2), Nitrogen (N2), Argon (Ar), Carbon Dioxide (CO2), Helium (He), Nitrous Oxide (N2O), Hydrogen (H2) and so on, which covers industrial, fire-fighting, energy, medical, city construction and other sectors.
Technical Specifications
DOT Cylinder
|
Standard |
Type |
Outer diameter |
Water capacity |
Working pressure |
|
DOT-3AA |
20CF (MC10) |
133 mm |
3.6 L |
2015 psi |
|
DOT-3AA |
40CF (B40) |
178 mm |
7.8 L |
2015 psi |
|
DOT-3AA |
225CF |
229 mm |
43.3 L |
2015 psi |
Packaging & Shipping

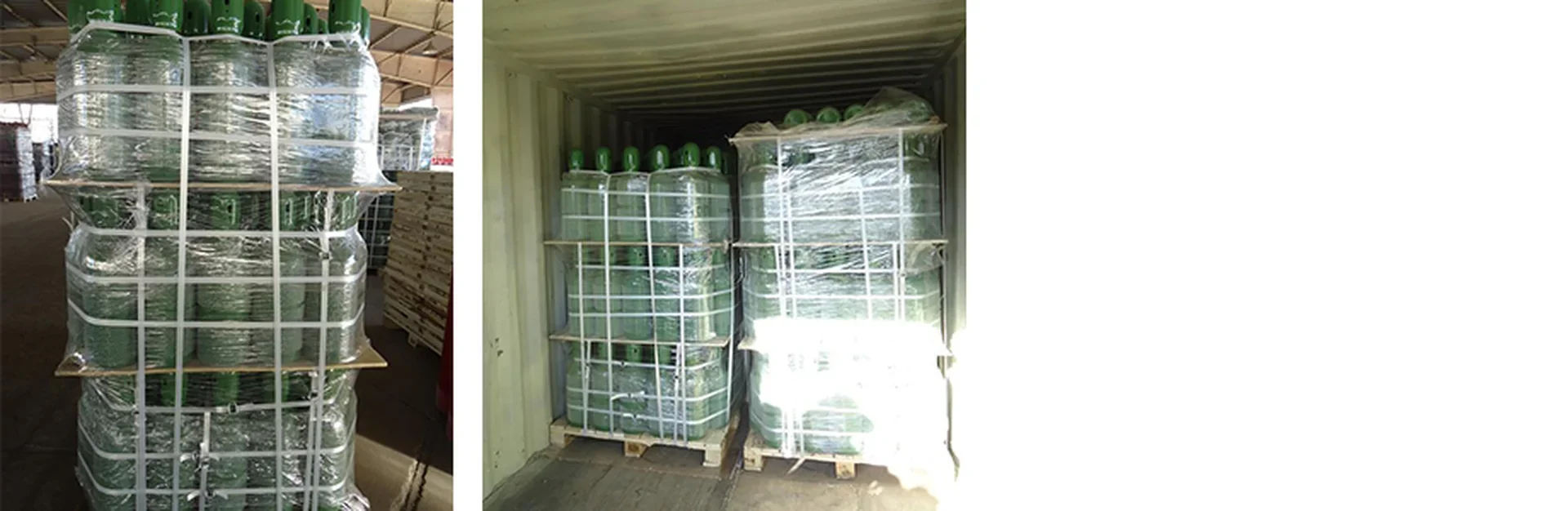

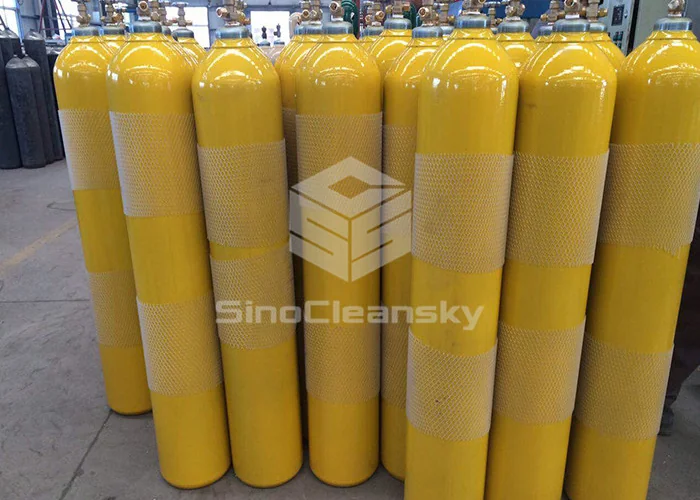

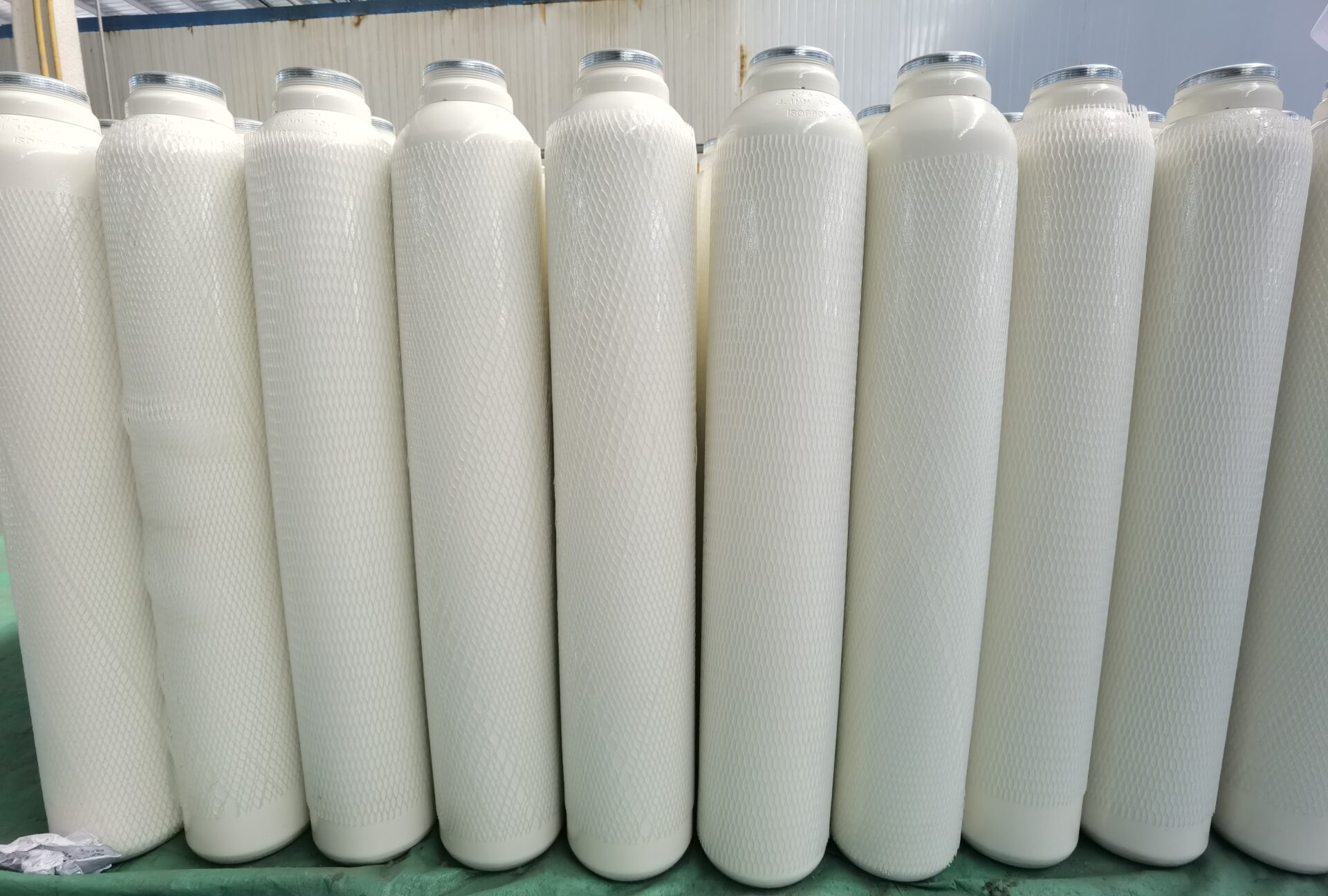

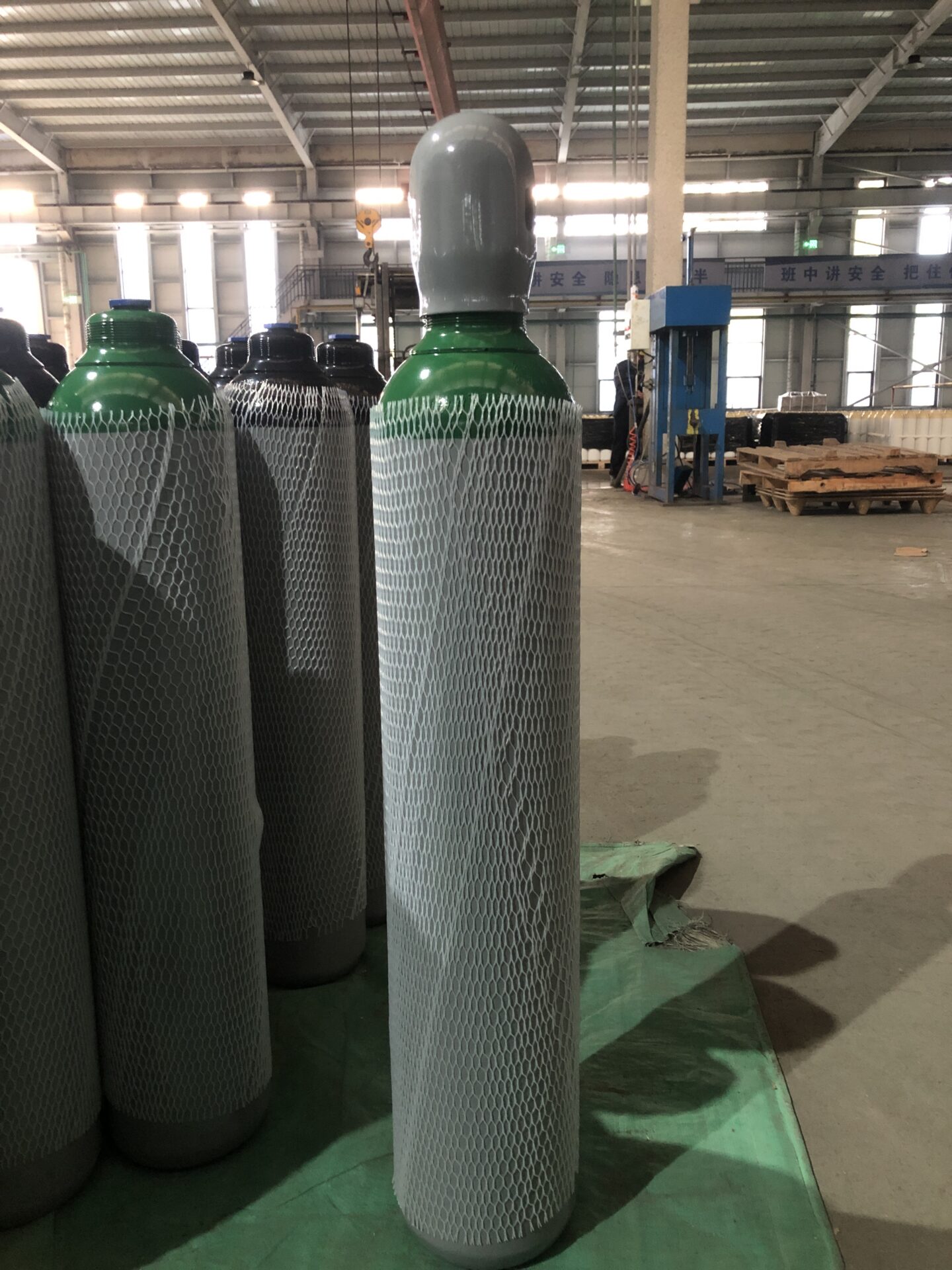

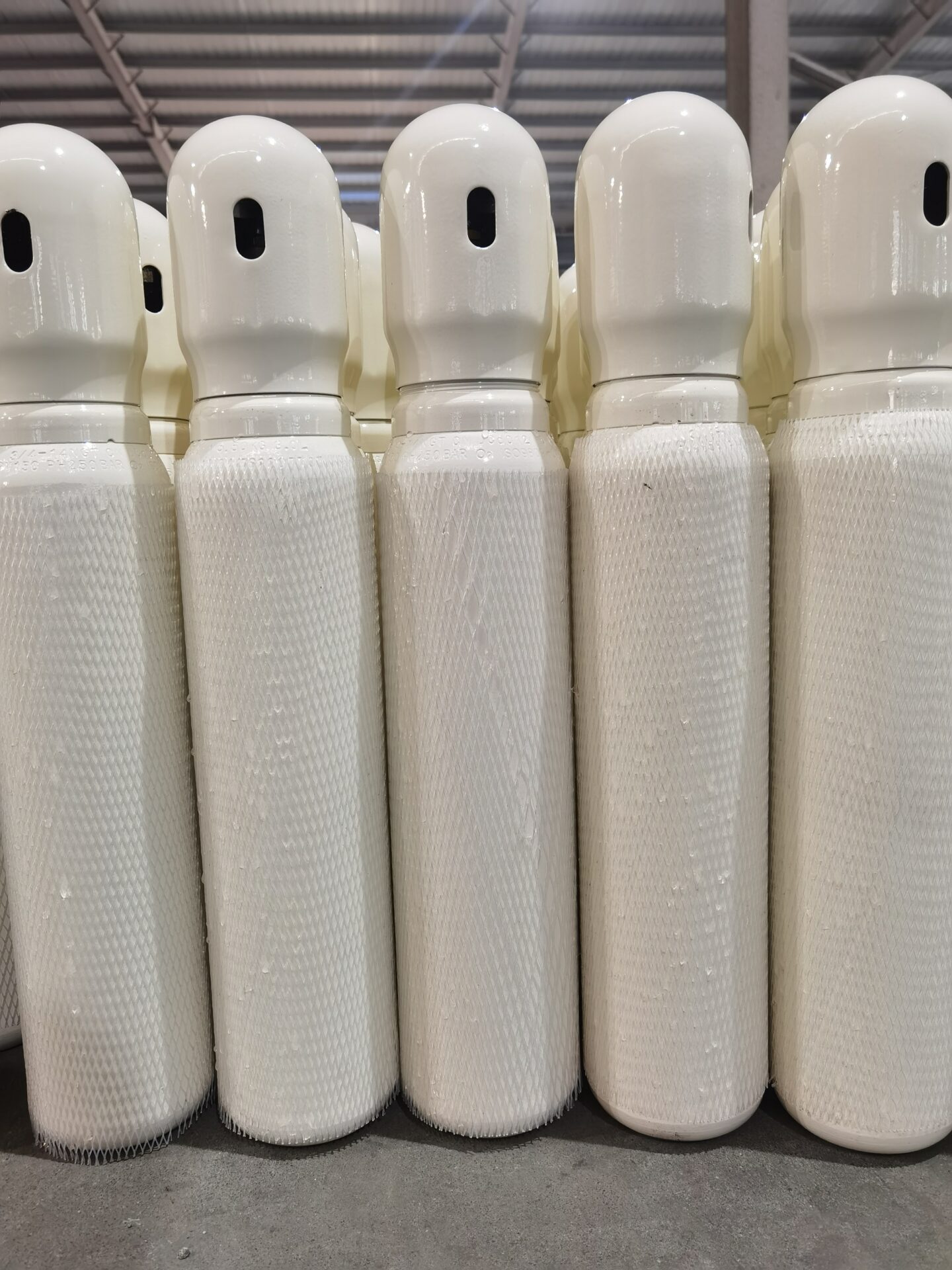

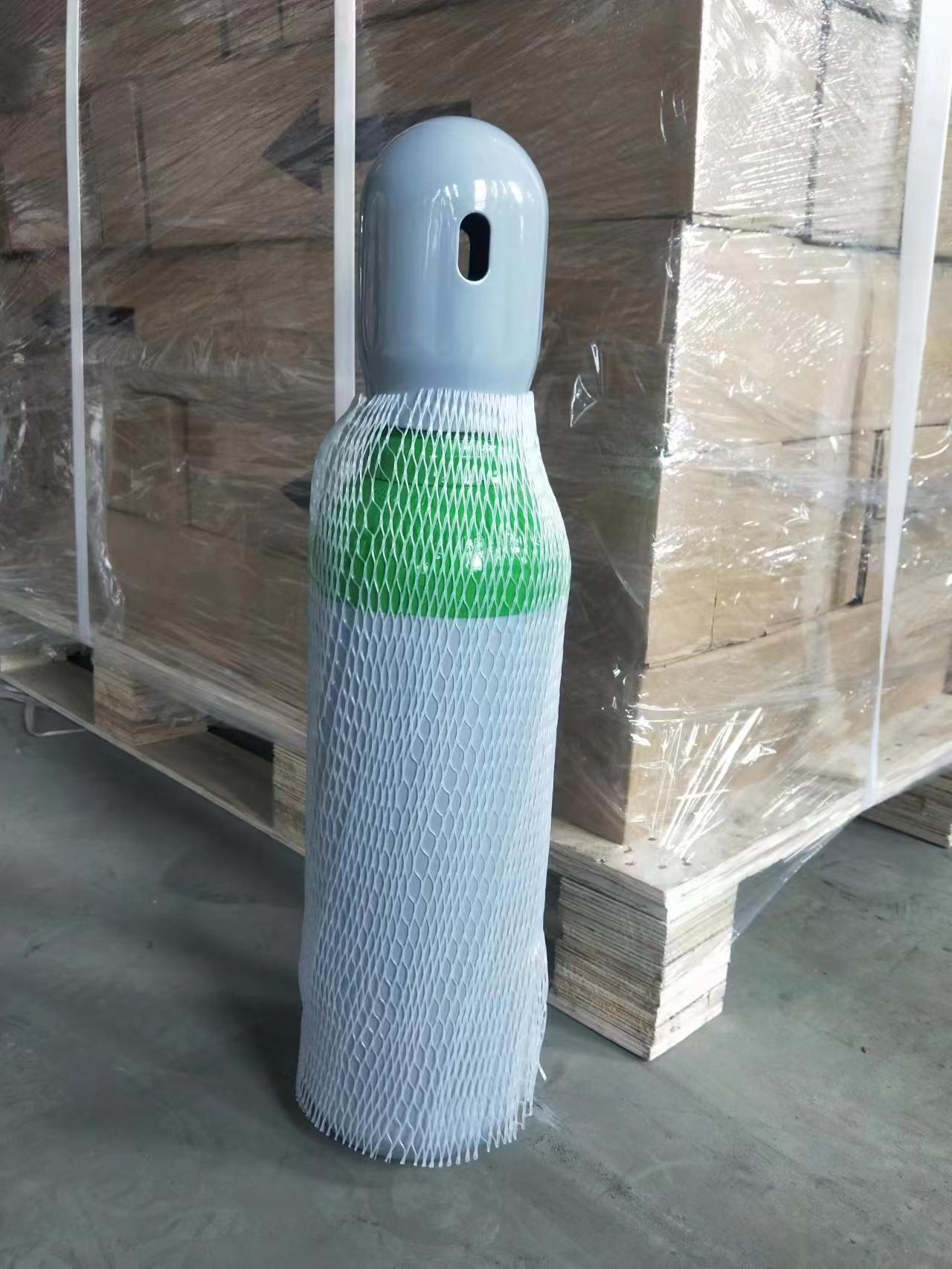

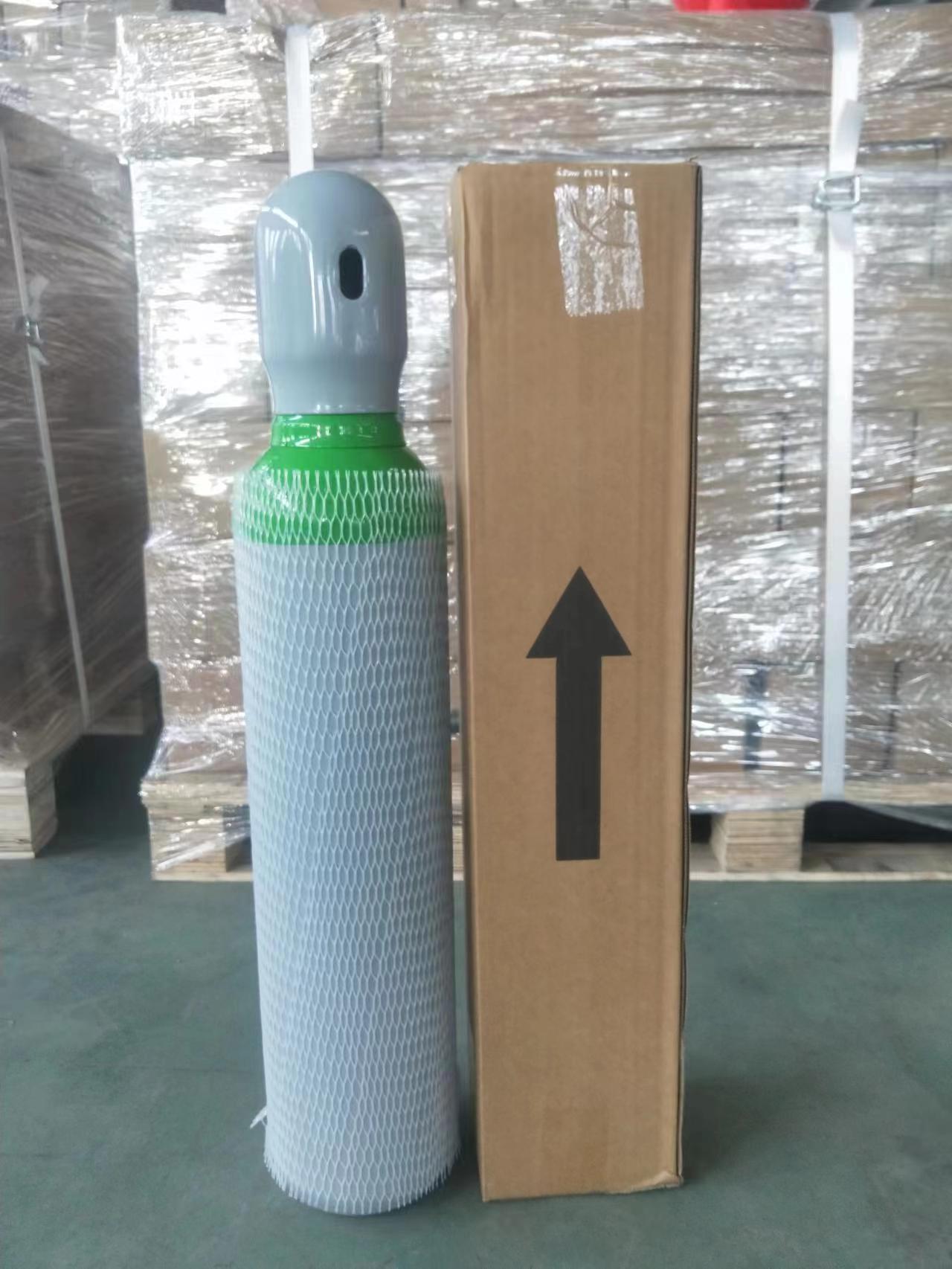

All the cylinders will be packed with plastic net for protection of painting. And the cylinders can be delivered with pallet, or loose in container.

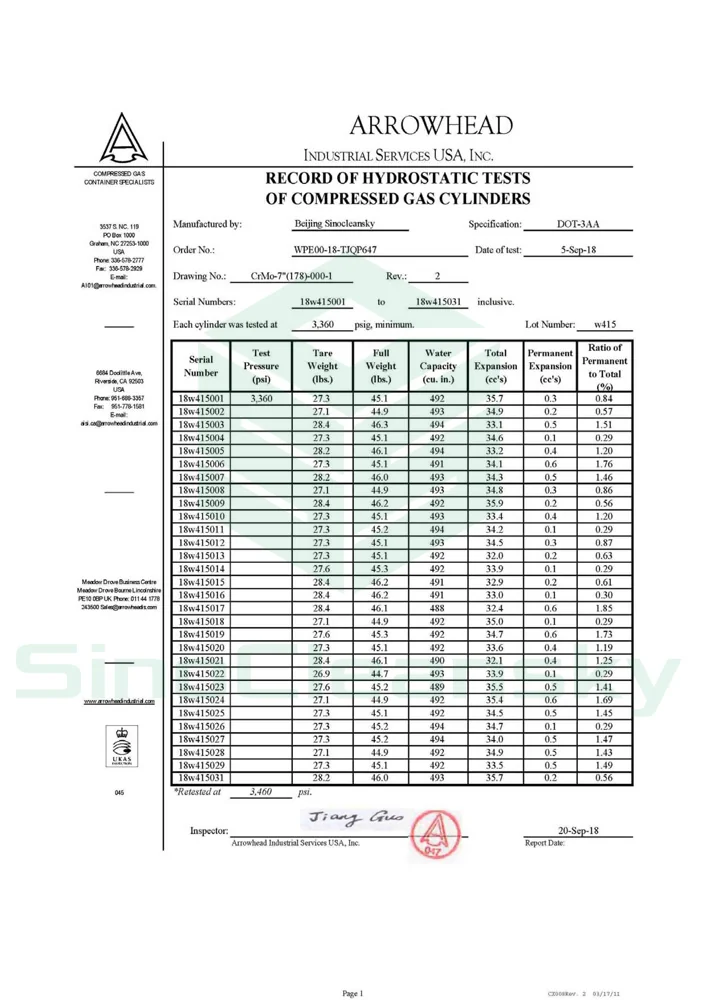

Report & Certifications

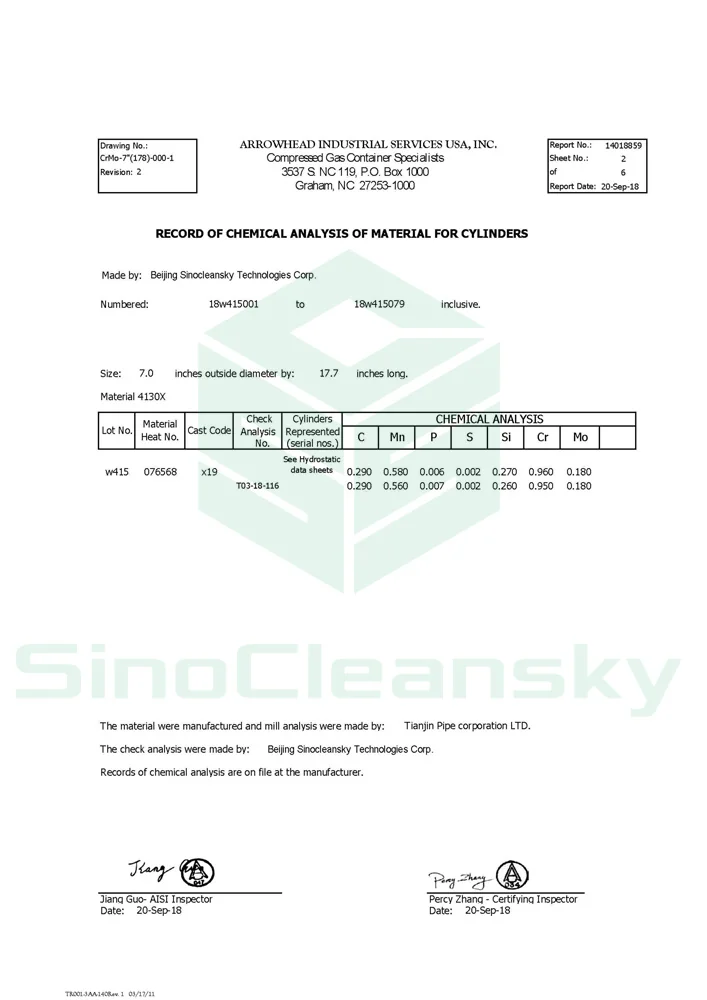

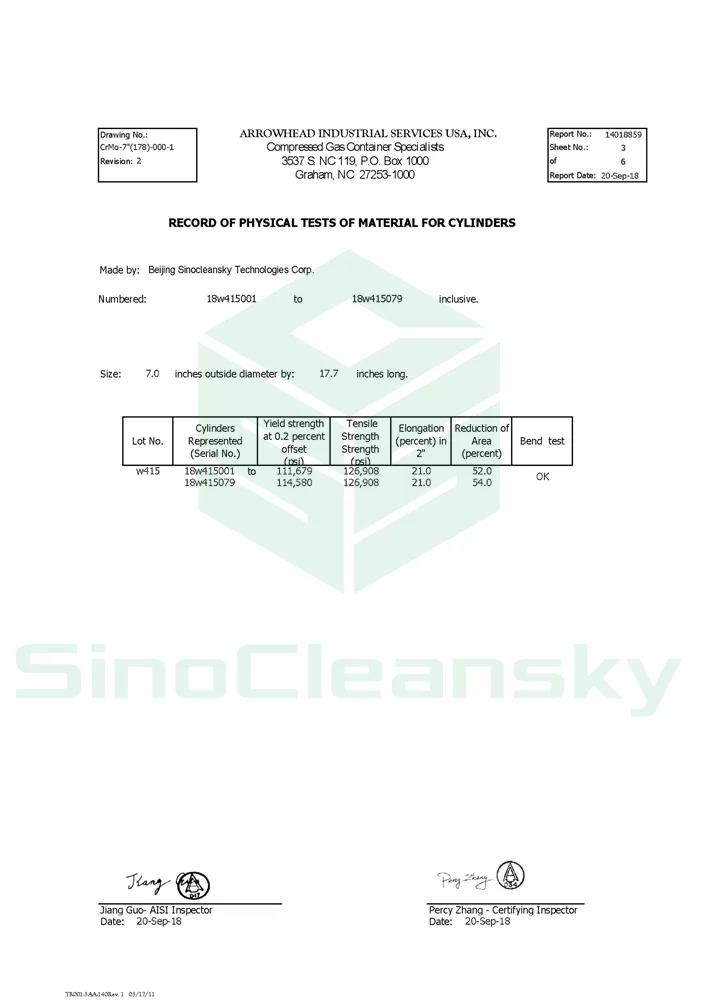

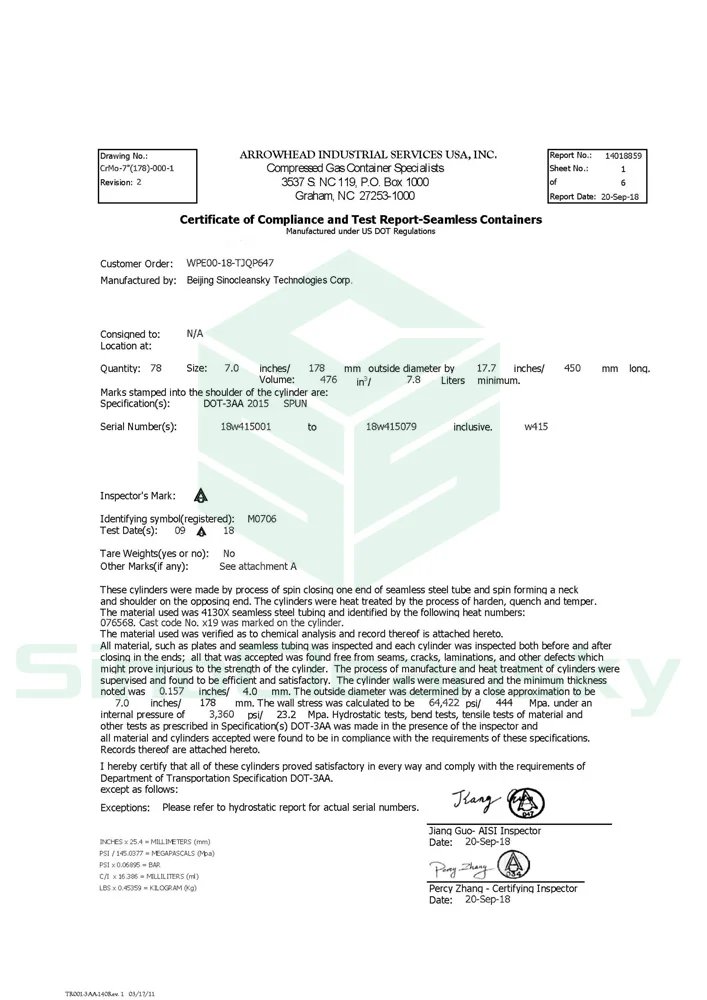

Cylinders are with detailed test report, including the factory test report, hydraulic test report and third-party test report, etc.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.
FAQs

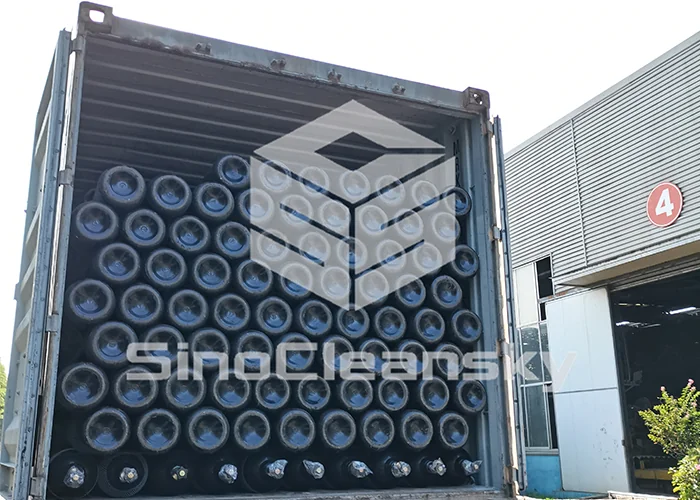

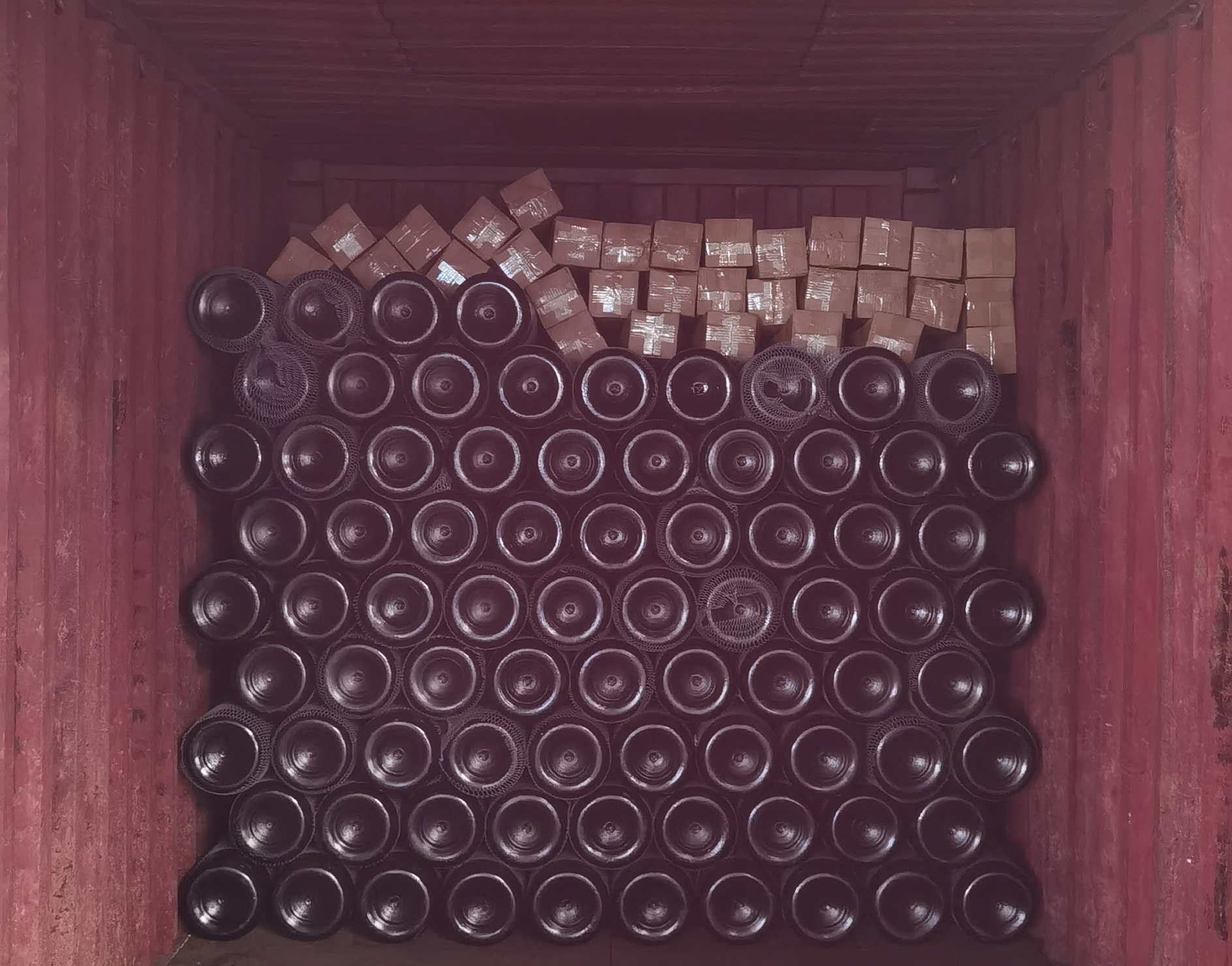

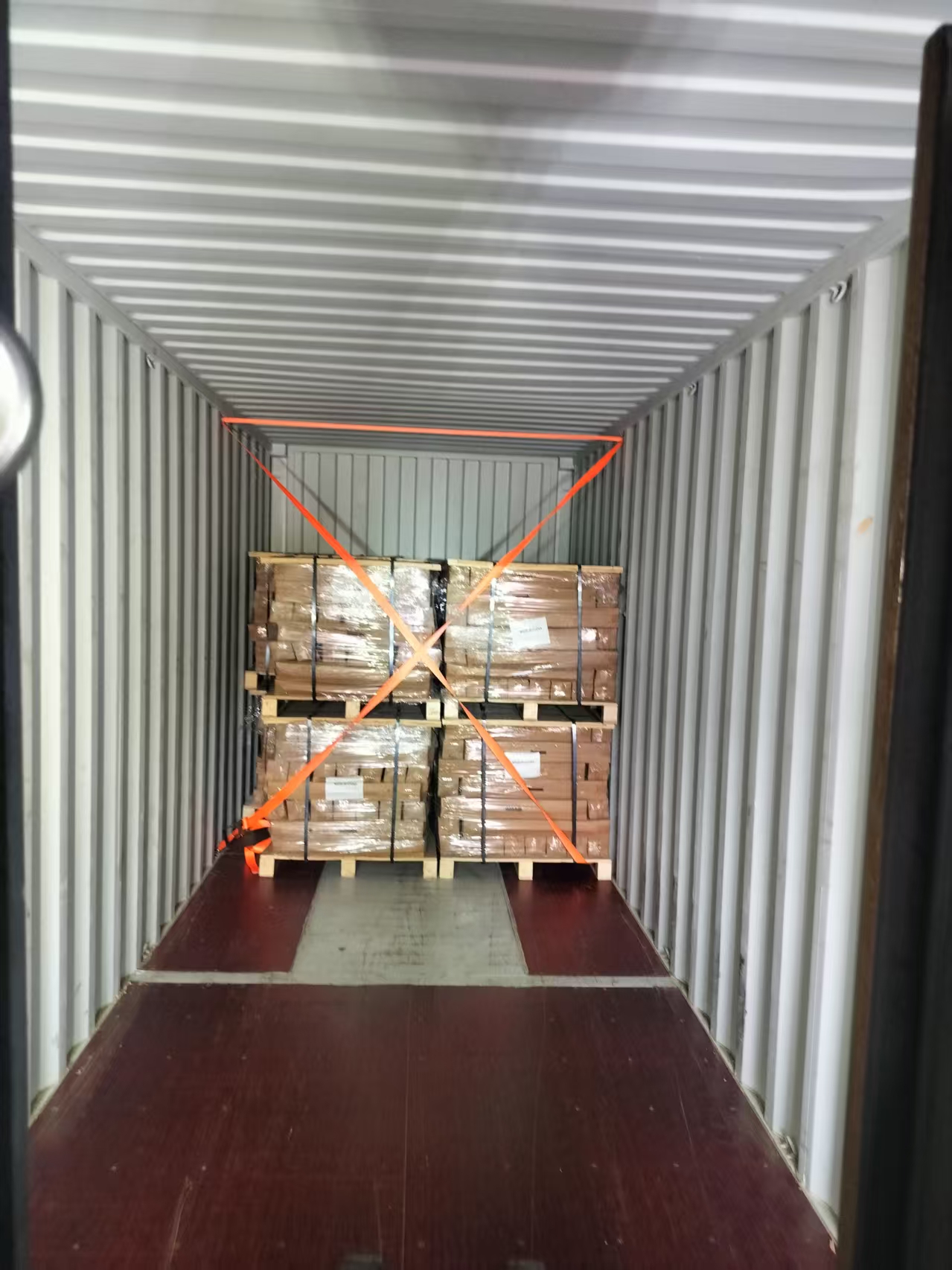

Generally, the cylinders will be shipped by 20ft container with pallets, especially for the small cylinders.
The 20CF oxygen cylinder matches with MC10 acetylene cylinder. nThe 40CF oxygen cylinder matches with B40 acetylene cylinder.

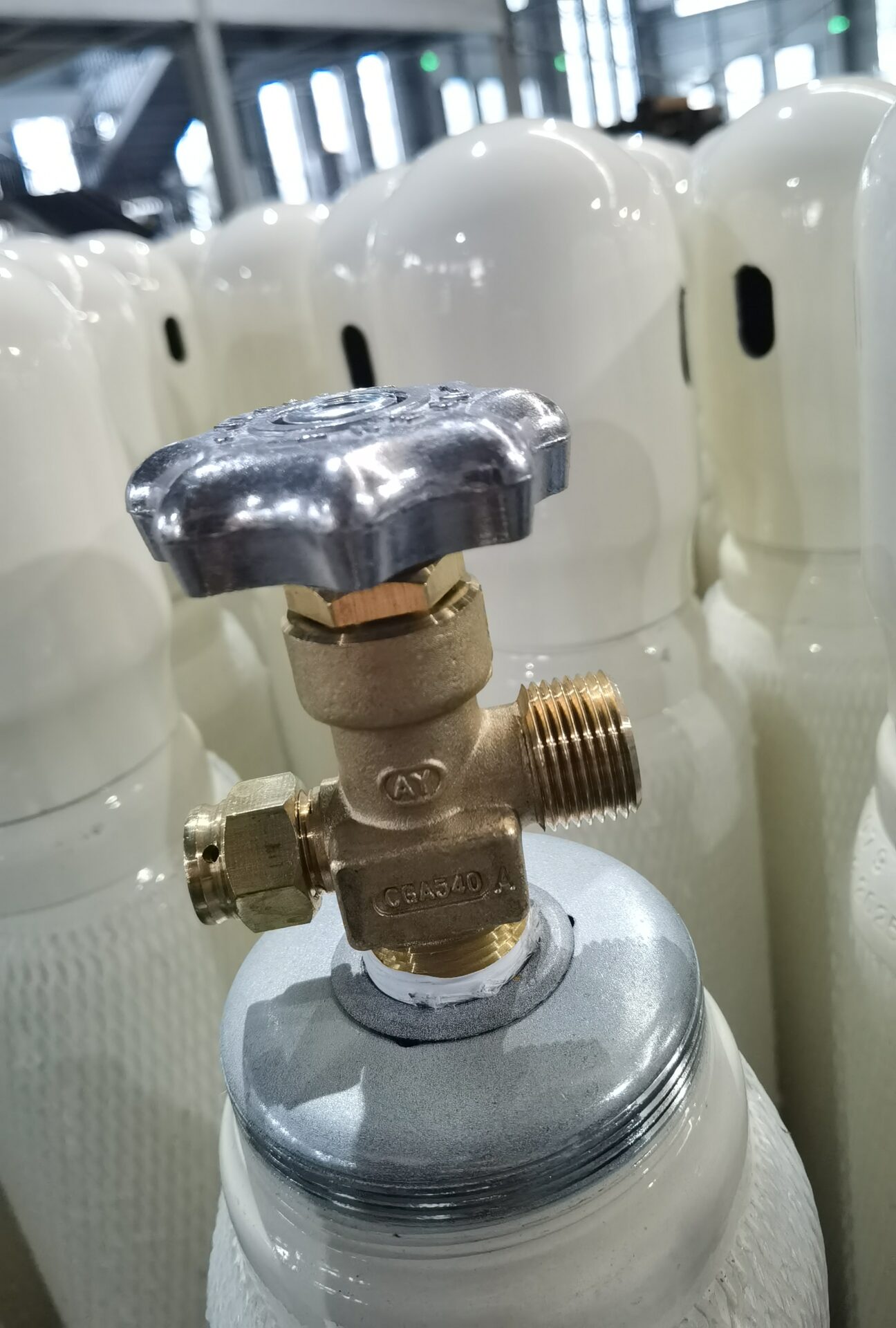

The cylinder valves can be provided based on customer request, such as the CGA series valves.
