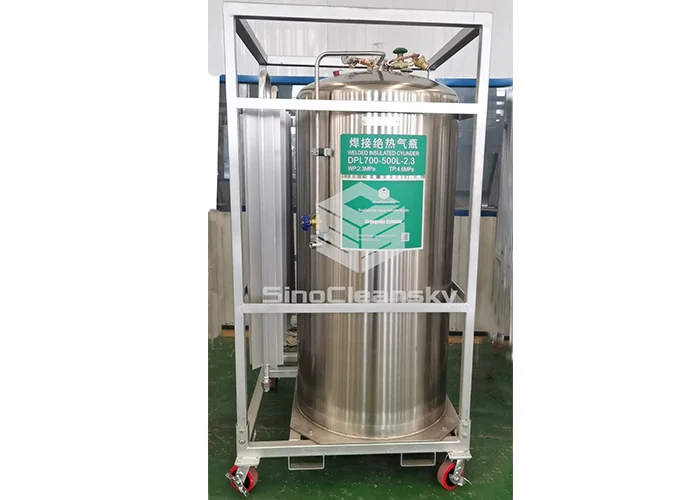

DOT standard Dewar Flask
• Manufacturing standards: DOT-4L, EN1251, GB (Chinese standard), etc.
• Water capacity: 175 L – 500L
• Working pressure: 1.38Mpa, 2.02Mpa, 2.3Mpa, 2.4Mpa, 2.84Mpa etc.
Description
SinoCleansky supply multiple types of high-quality DOT standard Dewar Flask.
It adopts high vacuum multi-layer winding insulation method and has passed DOT certification, so the quality of the cylinders can be effectively guaranteed with characteristics of safety, reliability, convenience in operation, high capacity of gas charging and refilling ability.
Technical Specifications
DOT standard Dewar Flask
|
Standard |
Type |
Outer diameter |
Water capacity |
Working pressure |
|
DOT-4L |
CT160HP(175L-2.02Mpa) |
508 mm |
175 L |
2.02Mpa |
|
DOT-4L |
CT180HP(195L-2.02Mpa) |
508 mm |
195 L |
2.02Mpa |
|
DOT-4L |
CT200HP(205L-2.02Mpa) |
508 mm |
205 L |
2.02Mpa |
|
DOT-4L |
CT240HP(250L-2.02Mpa) |
508 mm |
250 L |
2.02Mpa |
Packaging & Shipping

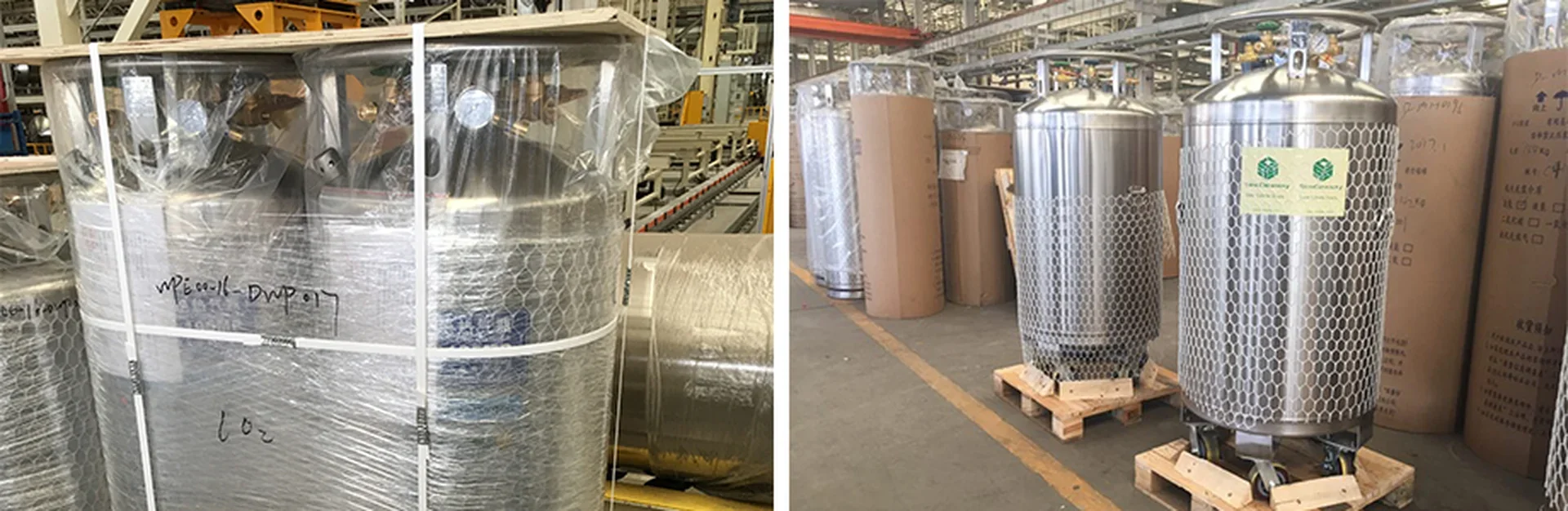

All the cylinders will be packed with plastic film or carton or wooden boxes for protection of surface. And the cylinders can be delivered with pallet, or loose in container.
Report & Certifications

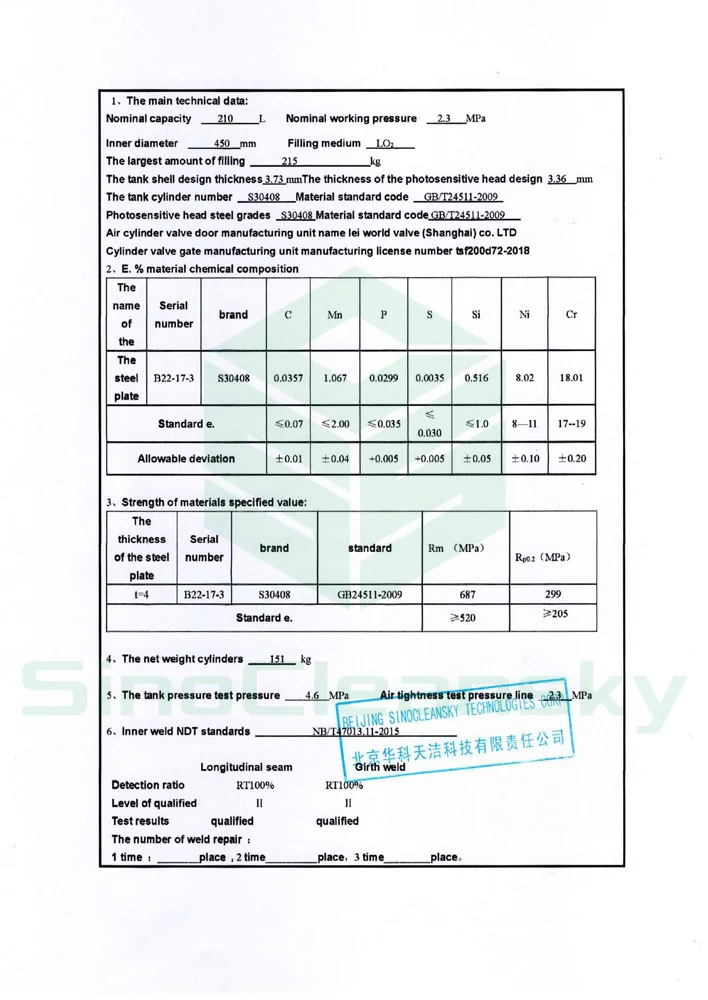

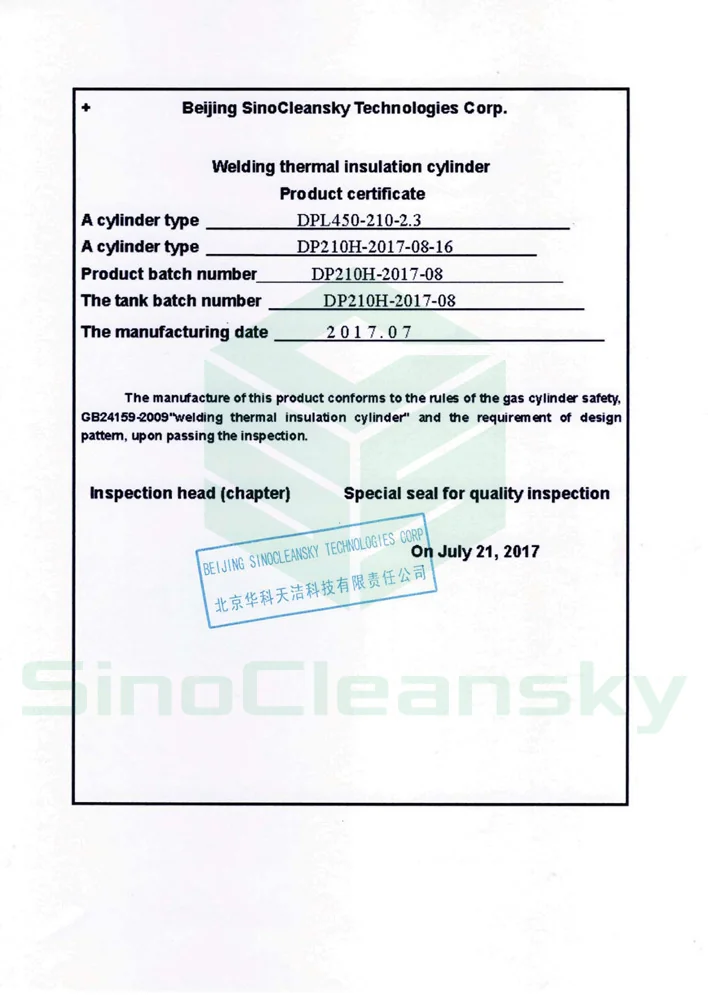

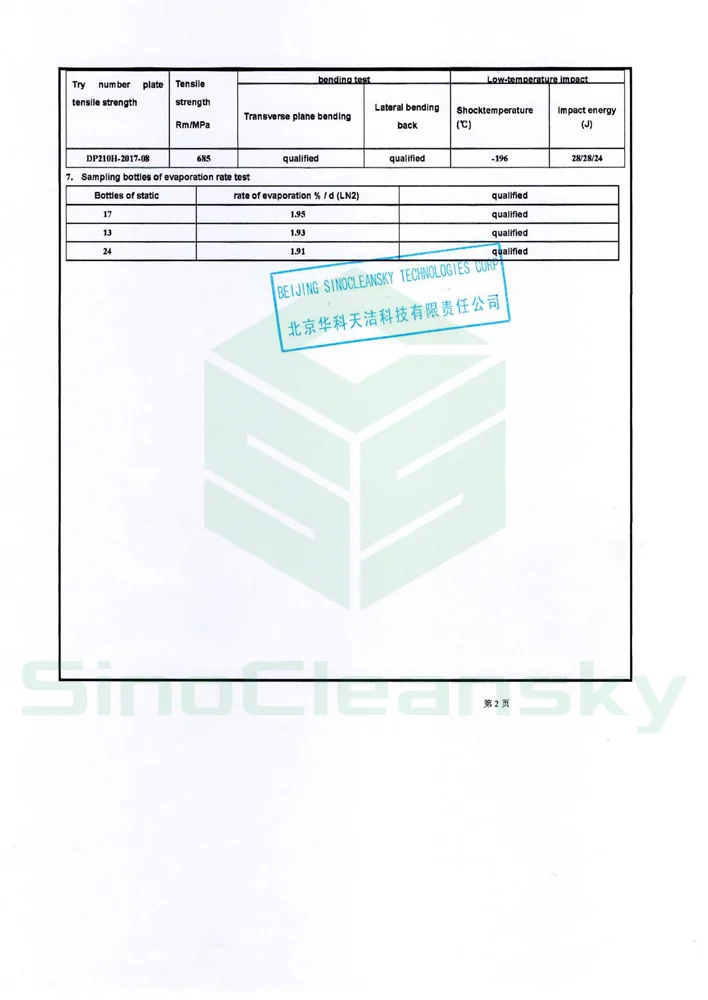

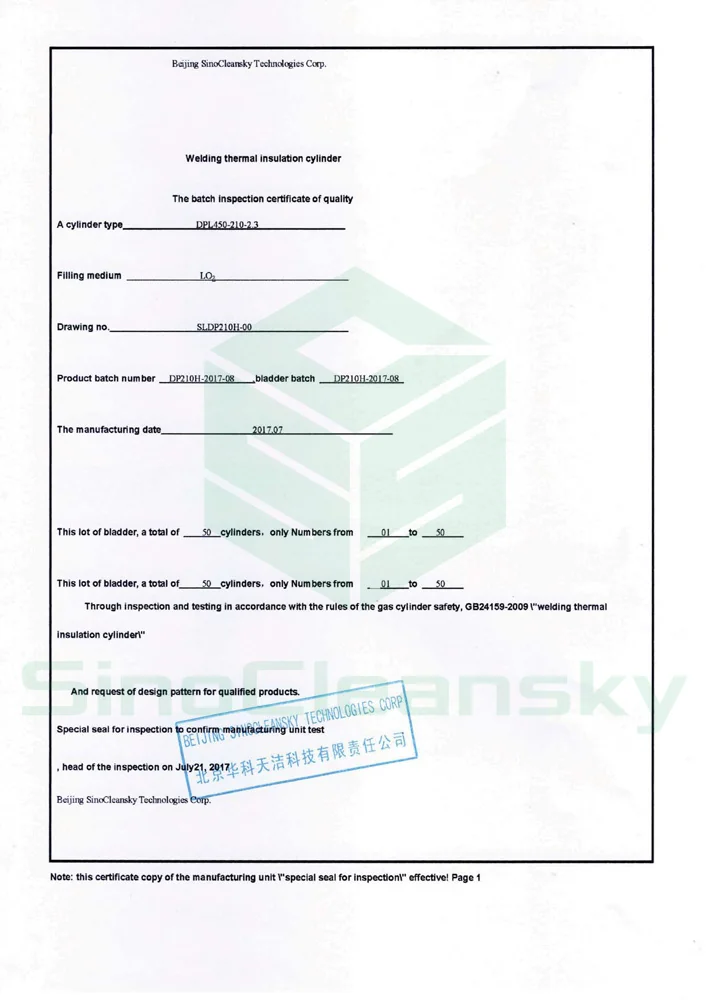

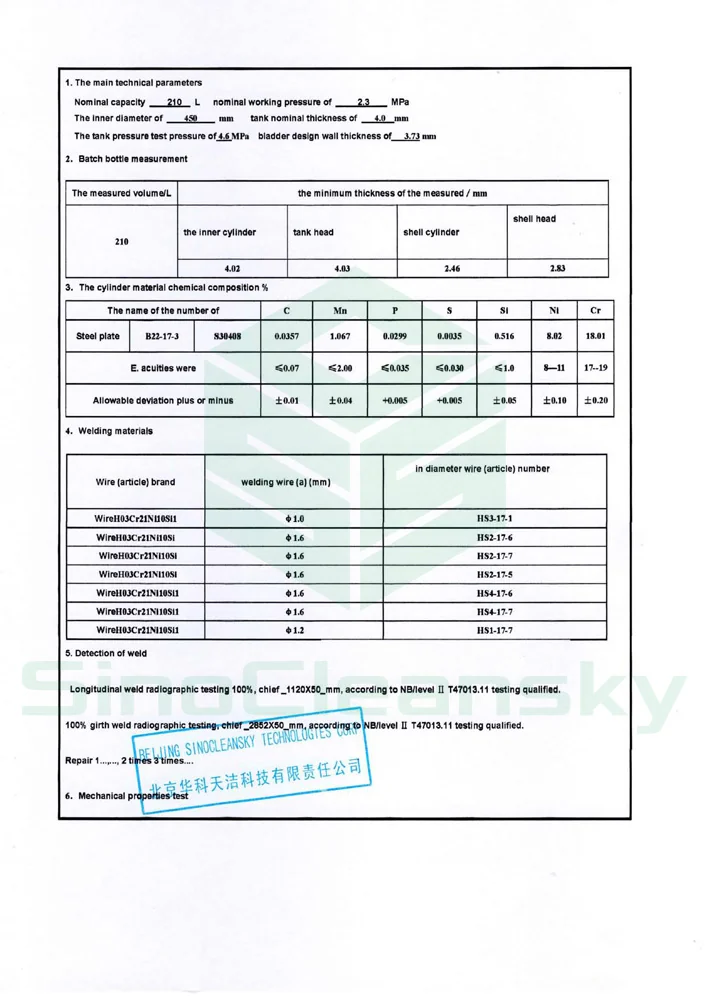

Cylinders are delivered with detailed factory test report. SinoCleansky Factory Report shows all the tests required by GB24159 std, which include: chemical composition test, radiographic inspection, etc. And also including the third-party test report.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.
FAQs
For popular types like DPL450-175L/195L/210L dewar flasks, usually they will be shipped by 20ft container, the loading quantity is around 40 to 50pcs.
The GB standard is mainly accepted by customers from Middle East, Southeast Asia, South Asia, Russia, Ukraine, etc., while the EN and DOT standard is usually applied to European market and South America market.
This product and the parts according to the invoice date of purchase can enjoy of 12 months (vacuum problems 36 months) warranty service
