FM200/NOVEC1230 Cylinder

• Manufacturing std: EN13322, DOT-4BW
• Outer diameter: 228mm – 462mm etc
• Water capacity: 16L – 240L

Description

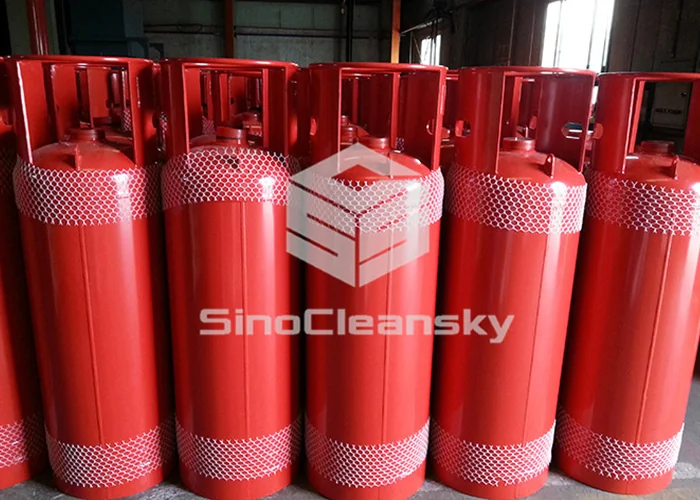

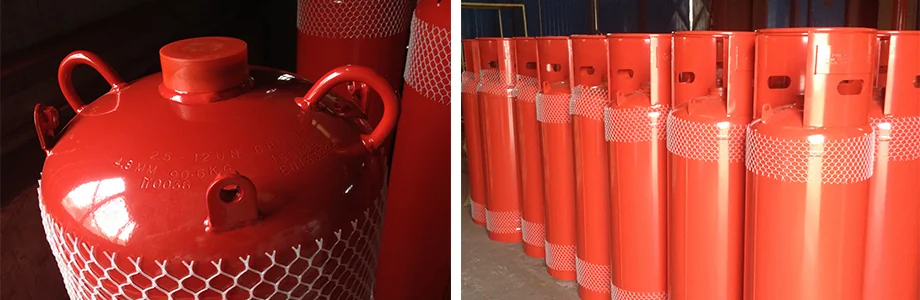

SinoCleansky welded FM200/NOVEC1230 Cylinders are produced as per DOT-4BW, EN and other international standard. They have the advantages of safety, lightweight, clear stamping, consistent height and elegant appearance.
The cylinders with a full range from 16.6L to 240L, and get certifications from LRS, SGS, BV, TUV and etc.

Technical Specifications

Typical types for FM200/NOVEC1230 cylinder

Standard	Type	Outer diameter	Water capacity	Working pressure
EN13322	EN228.6-16.6L-42bar	228.6 mm	16.6 L	42 bar
EN13322	EN324-52L-42bar	324 mm	52 L	42 bar
EN13322	EN450-240L-42 bar	450 mm	240 L	42 bar
DOT4BW	OD406-52L-500PSI	406 mm	52 L	500 psi
DOT4BW	OD406-106L-500PSI	406 mm	106 L	500 psi
DOT4BW	OD406-180L-500PSI	406 mm	180 L	500 psi

Packaging & Shipping

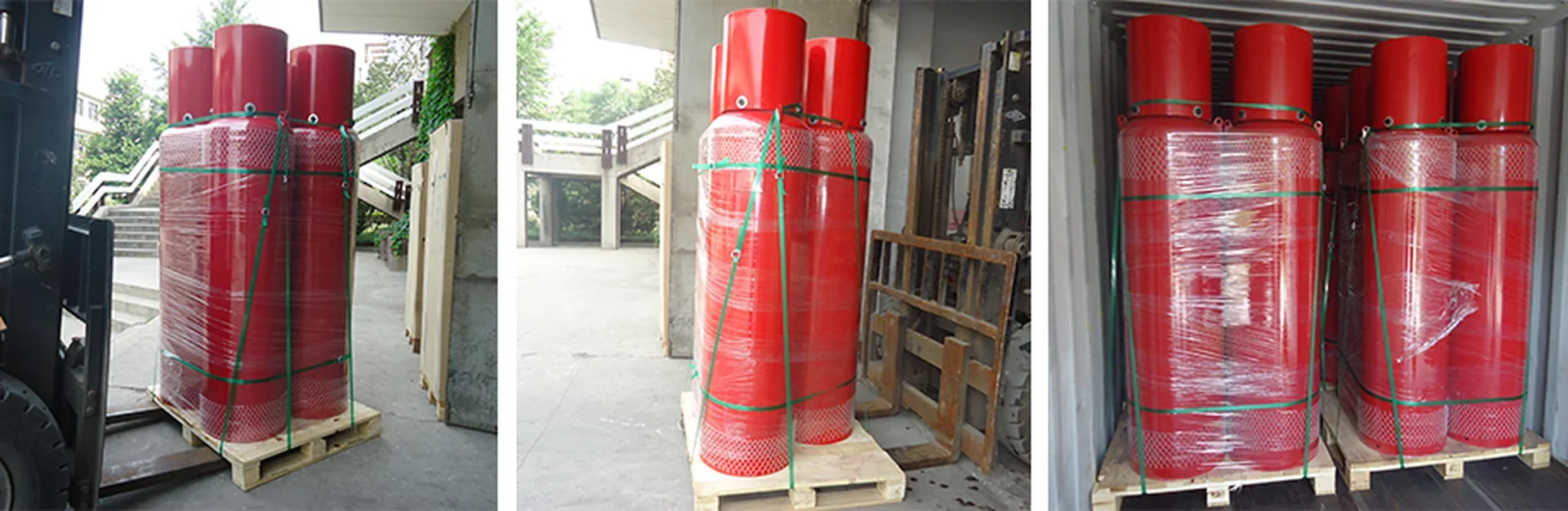

All the cylinders will be packed with plastic net for protection of painting. And the cylinders can be delivered with pallet, or loose in container.

Report & Certifications

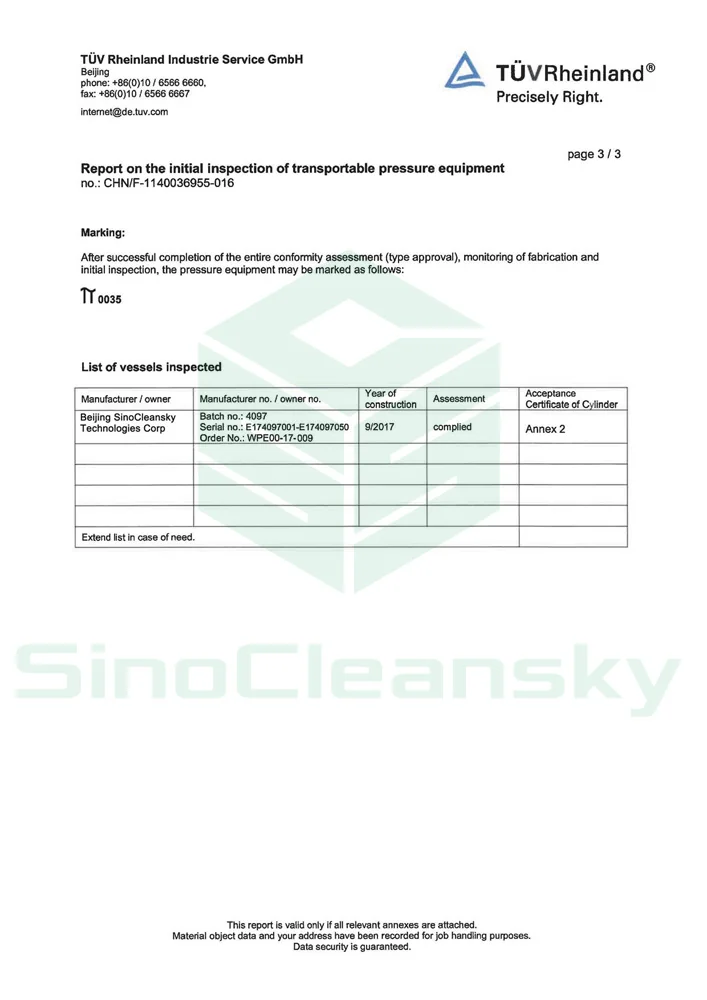

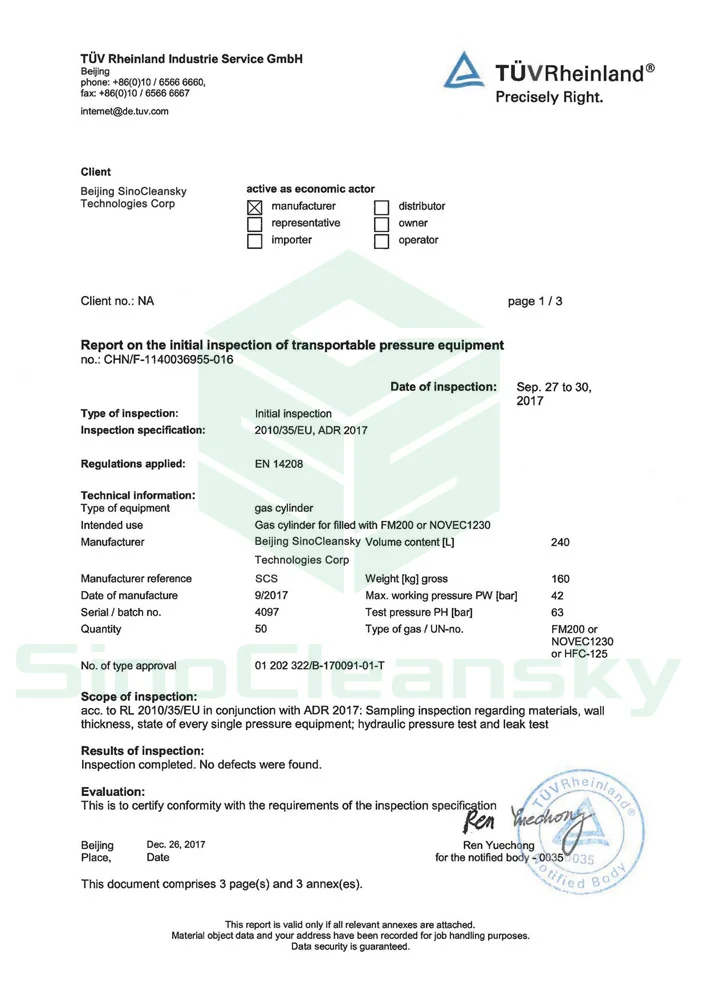

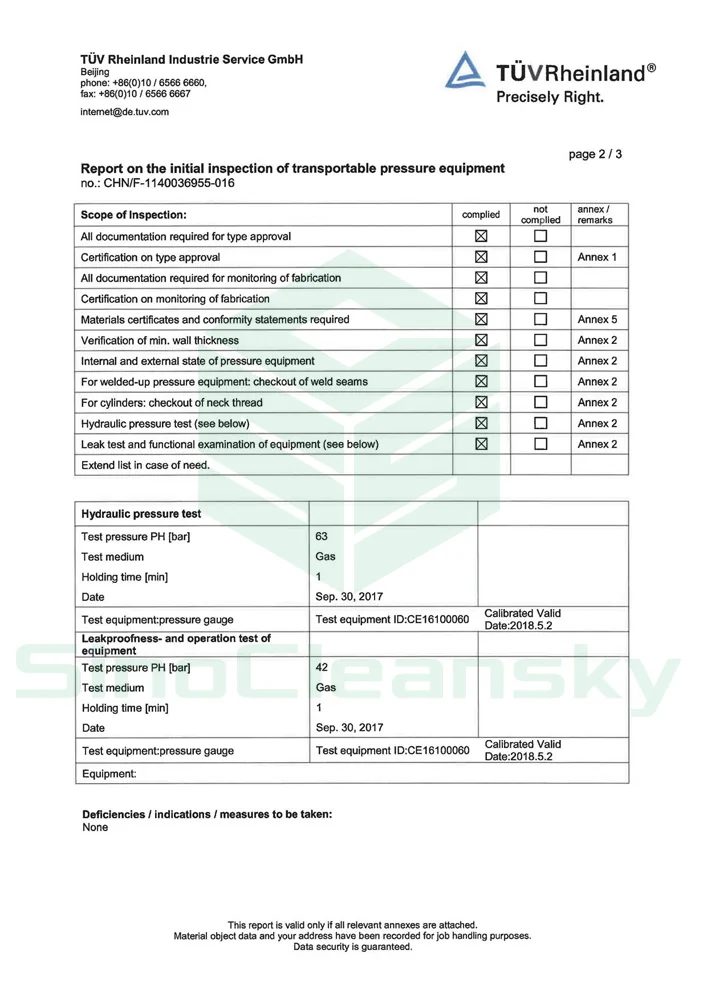

Cylinders are delivered with detailed test report, incl Factory Test Report and the Third-party LRS, SGS, BV and TUV Test Report.
And we can also cooperate with customers to do local register for the cylinders and firefighting system.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.
