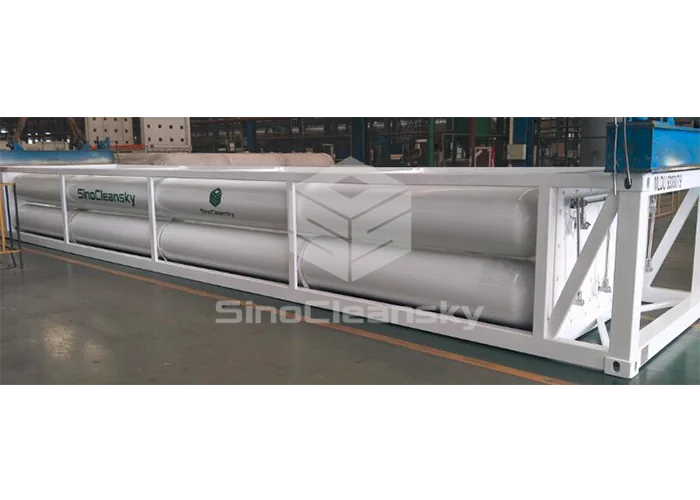

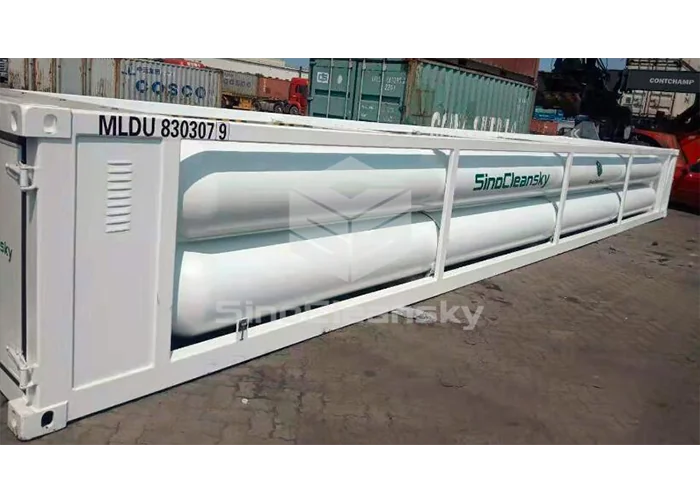

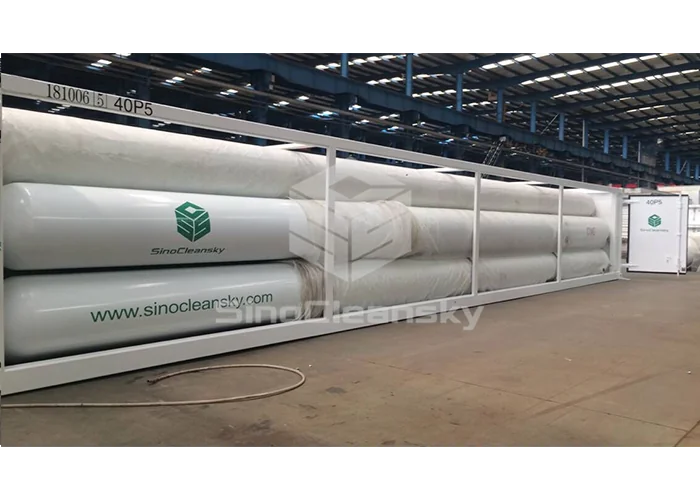

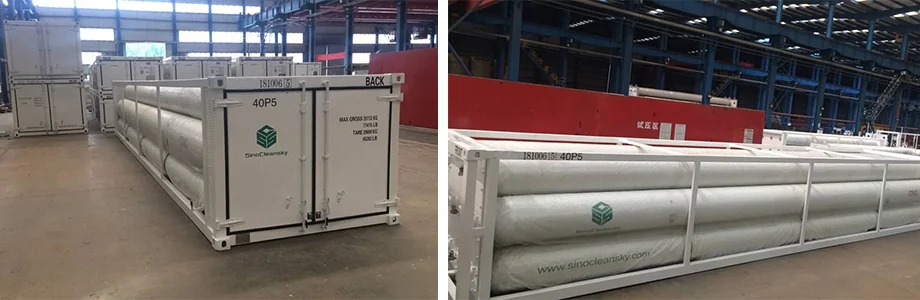

High Pressure Jumbo Tube Container
• Close-spinning technology applied, seamless structure, and reliable for safety operation.
• Large-size structure, fewer valves, tubes and joints, and less danger of gas leakage.
• Cleanness in design and structure, and les maintenance on site.
• Easily discharging of residue liquid.

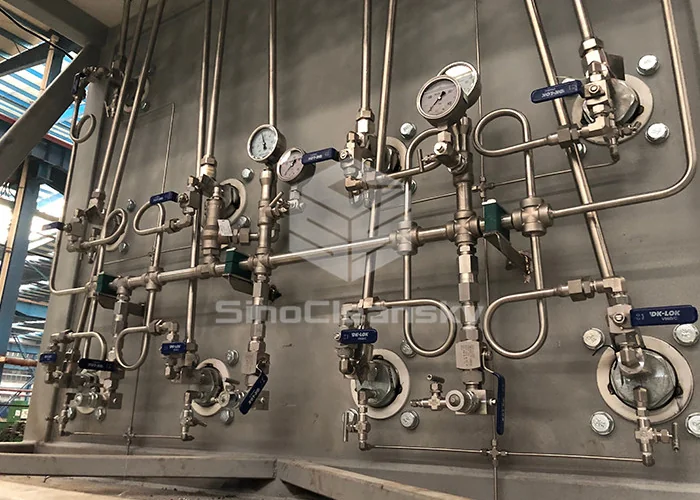

• Equipped with branch-tubes and accessories, easy for operation and maintenance.
• Lower weight of whole vehicle, reducing of tractor work and investment.
Description
SinoCleansky jumbo tube containers are produced as per ISO11120, DOT, or ASME, with inspection report (certificate) issued by BV, LRS, TUV or equivalent international third-party.
The products are widely used for ground stationary storage and intermodal transportation.
The filling medium including CNG and various industrial gases such as Argon, Nitrogen, Helium, Hydrogen, Purified Gas, Compressed Air, etc.
It has the following traits:
1. Import valves with high quality;
2. Advanced manufacture technology, fine manufacture equipment and feasible quality insurance system.
3. It can be compatible for various combinations with CNG or other gases storage cylinders groups and can satisfy different requirements of customers.
4. Standard corner fittings and framework for container, easy transportation
Technical Specifications
Popular Type for Industrial Gas and CNG, He, Ar, N2 and Air, the filling capacity will vary depending on the type of medium.
| Model No. | SCS08-2450-CNG | SCS09-2450-CNG | SCS10-2450-CNG | SCS11-2450-CNG | SCS12-2450-CNG | SCS16-2450-CNG |
| Cylinder quantity | 8 | 9 | 10 | 11 | 12 | 16 |
| Filling medium | CNG | CNG | CNG | CNG | CNG | CNG |
| Steel type | 4142 | 4142 | 4142 | 4142 | 4142 | 4142 |
| Working Pressure | 25Mpa | 25Mpa | 25Mpa | 25Mpa | 25Mpa | 25Mpa |
| Cylinder Water Capacity | 2450L | 2450L | 2450L | 2450L | 2450L | 2450L |
| Cylinder size/mm | φ559*11580 | φ559*11580 | φ559*11580 | φ559*11580 | φ559*11580 | φ559*11580 |
| Wall thickness/mm | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Working temperature | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ |
| Equipment weight/kg | 23,680 | 27,020 | 29,600 | 32,180 | 34,805 | 45,305 |
| Total weight/kg | 28,088 | 31,981 | 35,112 | 38,243 | 41,417 | 54,195 |
| Water volume/M³ | 19.6 | 22.1 | 24.5 | 27.0 | 29.4 | 39.2 |
| Filling gas volume/Nm³ | 6,174 | 6,945 | 7,717 | 8,489 | 9,261 | 12,348 |
| Overall Dimension/(L*W*H)mm |
12192*2438*1400 (skid) |
12192*2438*1890 (skid) |
12192*2438*1890 (skid) |
12192*2438*1890 (skid) |
12192*2438*2000 (skid) |
12192*2438*2595 (skid) |
Light Type suitable for hydrogen, working pressure can be designed at 25Mpa or 20Mpa, depending on customer’s requirements.
| Model No. | SCS08-2210-H2 | SCS08-2450-H2 | SCS09-2250-H2 | SCS10-2210-H2 | SCS10-2450-H2 | SCS11-2210-H2 | SCS12-2210-H2 | SCS12-2450-H2 | SCS16-2450-H2 |
| Cylinder quantity | 8 | 8 | 9 | 10 | 10 | 11 | 12 | 12 | 16 |
| Filling medium | H2 | H2 | H2 | H2 | H2 | H2 | H2 | H2 | H2 |
| Steel type | 4130X | 4130X | 4130X | 4130X | 4130X | 4130X | 4130X | 4130X | 4130X |
| Working Pressure | 25Mpa | 20Mpa | 25Mpa | 25Mpa | 20Mpa | 25Mpa | 25Mpa | 20Mpa | 20Mpa |
| Cylinder Water Capacity | 2210L | 2450L | 2210L | 2210L | 2450L | 2210L | 2210L | 2450L | 2450L |
| Cylinder size/mm | φ559*10975 | φ559*11580 | φ559*10985 | φ559*10985 | φ559*11580 | φ559*10985 | φ559*10985 | φ559*11580 | φ559*11570 |
| Wall thickness/mm | 18.4 | 14.8 | 18.4 | 18.4 | 14.8 | 18.4 | 18.4 | 14.8 | 14.8 |
| Working temperature | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ |
| Equipment weight/kg | 27,420 | 23,680 | 30,417 | 31,600 | 29,600 | 34,380 | 39,360 | 34,805 | 44,500 |
| Total weight/kg | 27,764 | 23,983 | 30,804 | 32,093 | 29,980 | 34,923 | 39,876 | 35,265 | 45,076 |
| Water volume/M³ | 17.7 | 19.6 | 19.9 | 22.1 | 24.5 | 24.3 | 26.5 | 29.4 | 39.2 |
| Filling gas volume/Nm³ | 4,018 | 3,565 | 4,520 | 5,023 | 4,455 | 5,523 | 6,027 | 5,345 | 7,127 |
| Overall Dimension/(L*W*H)mm |
12192*2438*1400 (skid) |
12192*2438*1400 (skid) |
12192*2438*1890 (skid) |
12192*2438*1890 (skid) |
12192*2438*1890 (skid) |
12192*2438*2591 (skid) |
6058*2438*2000 (skid) |
12192*2438*2000 (skid) |
12192*2438*2591 (skid) |
Remark: The above specifications are only for our typical types. The more accurate & detailed parameters and technical drawings are available upon request

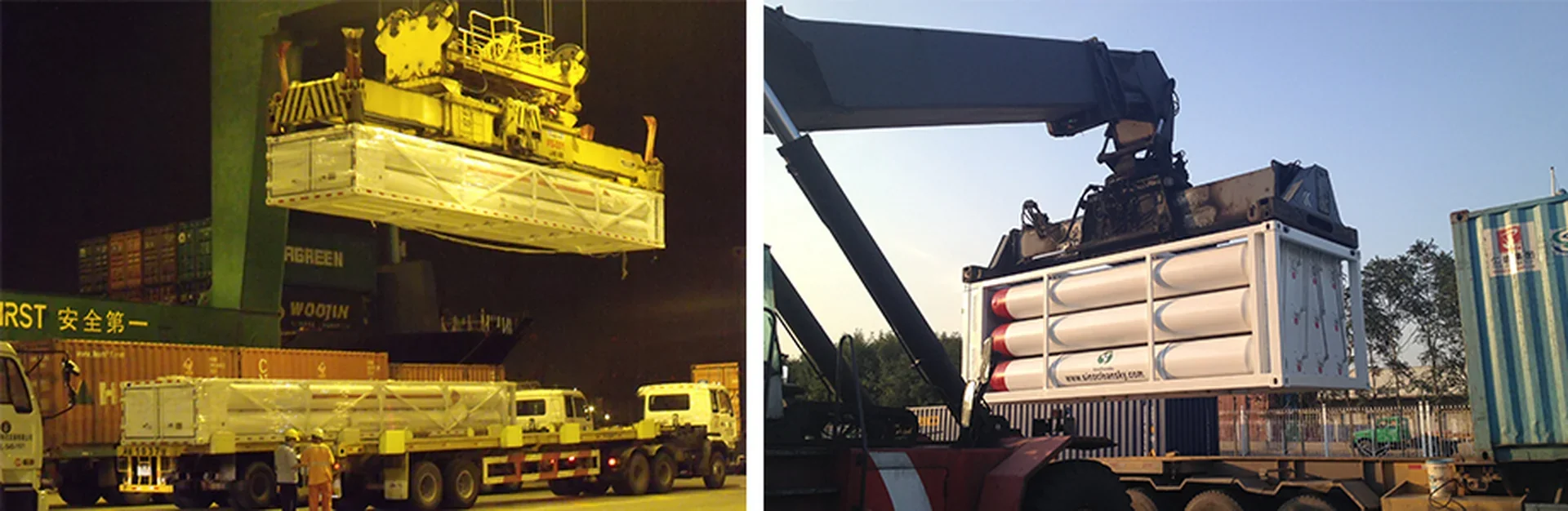

Packaging & Shipping
The jumbo tube skid can be shipped as container directly by container vessel. SinoCleansky produced jumbo engineered for harsh conditions, 100% Pre-Shipment Anti-Corrosion Treatment applied before dispatch — engineered for safe long-distance transit.

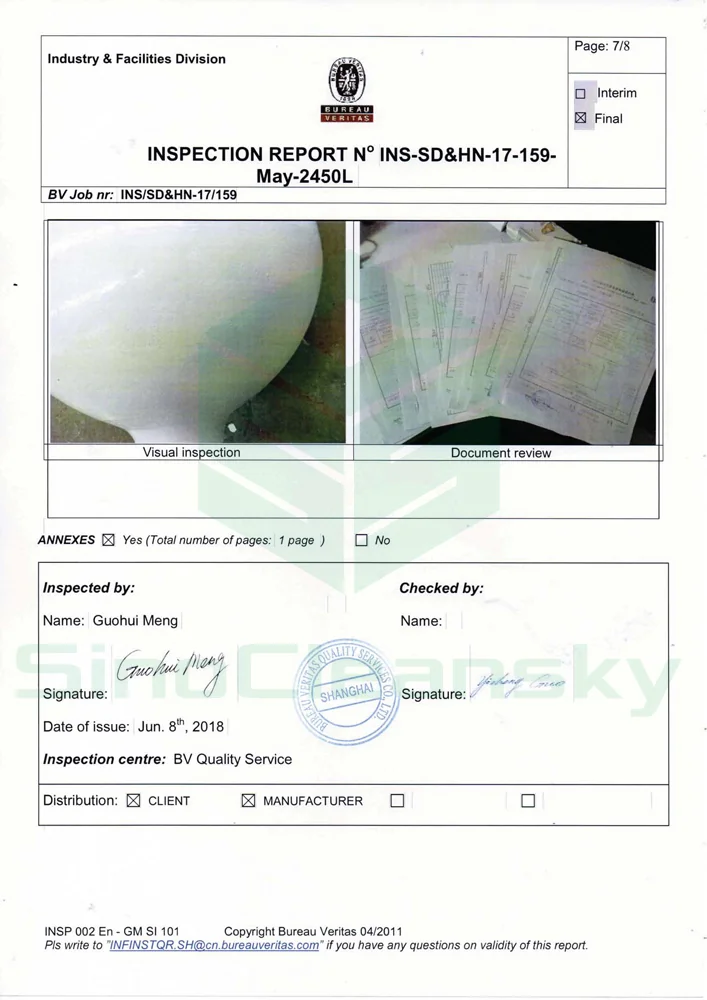

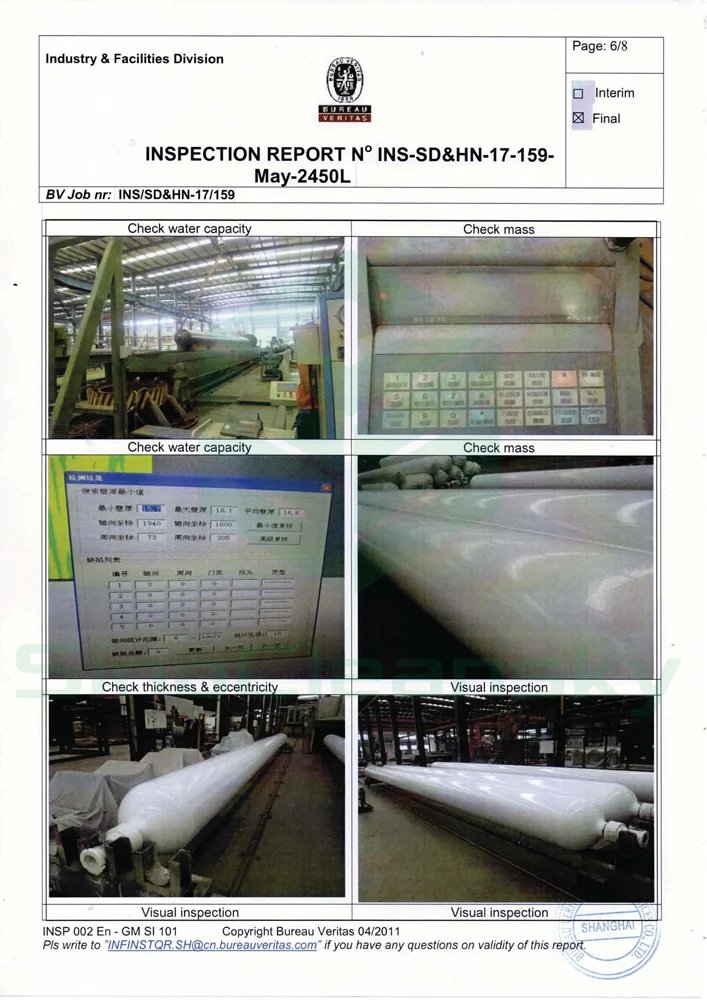

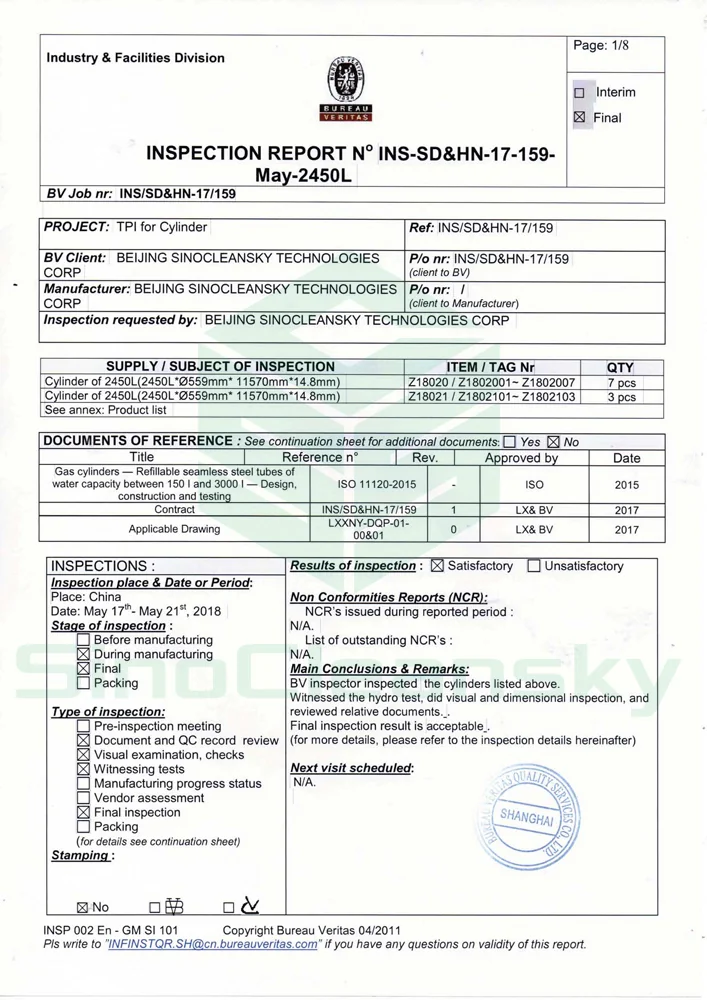

Report & Certifications

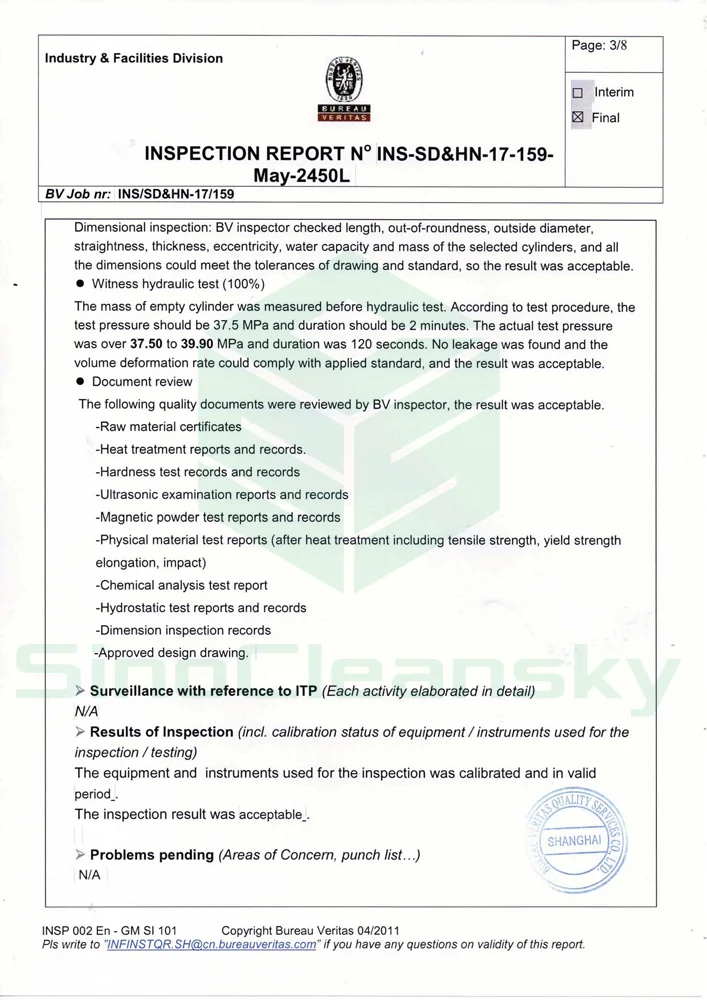

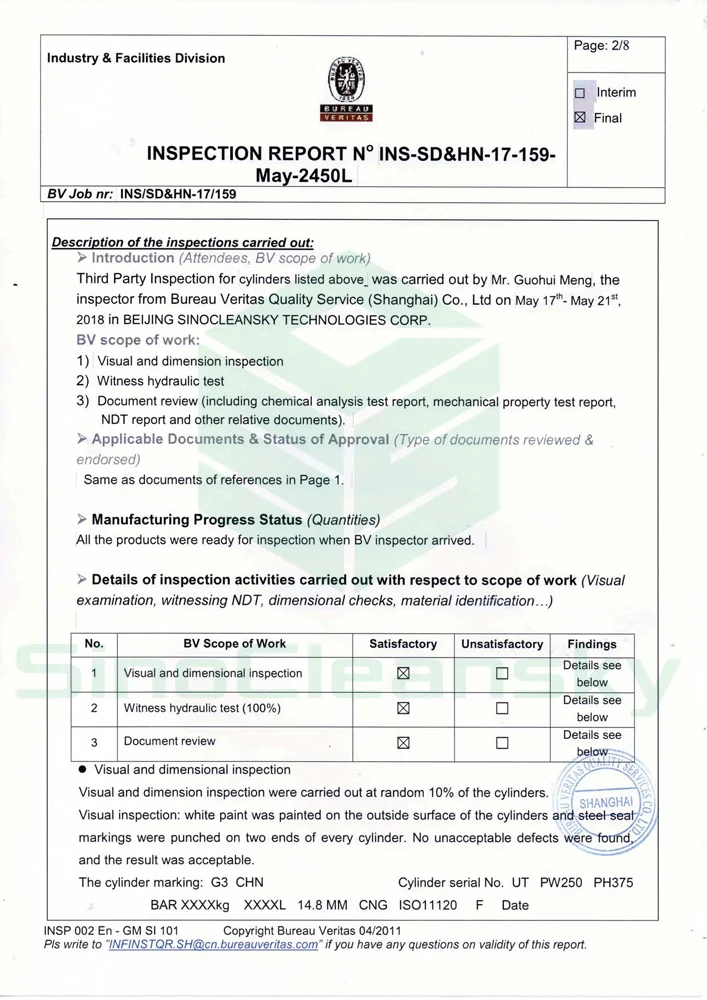

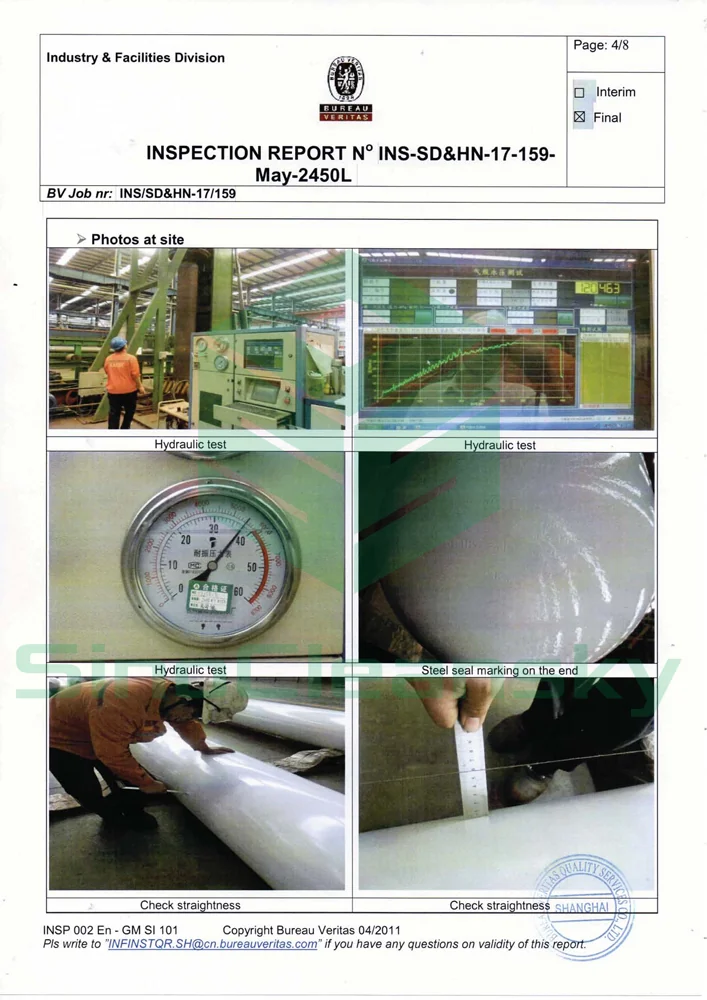

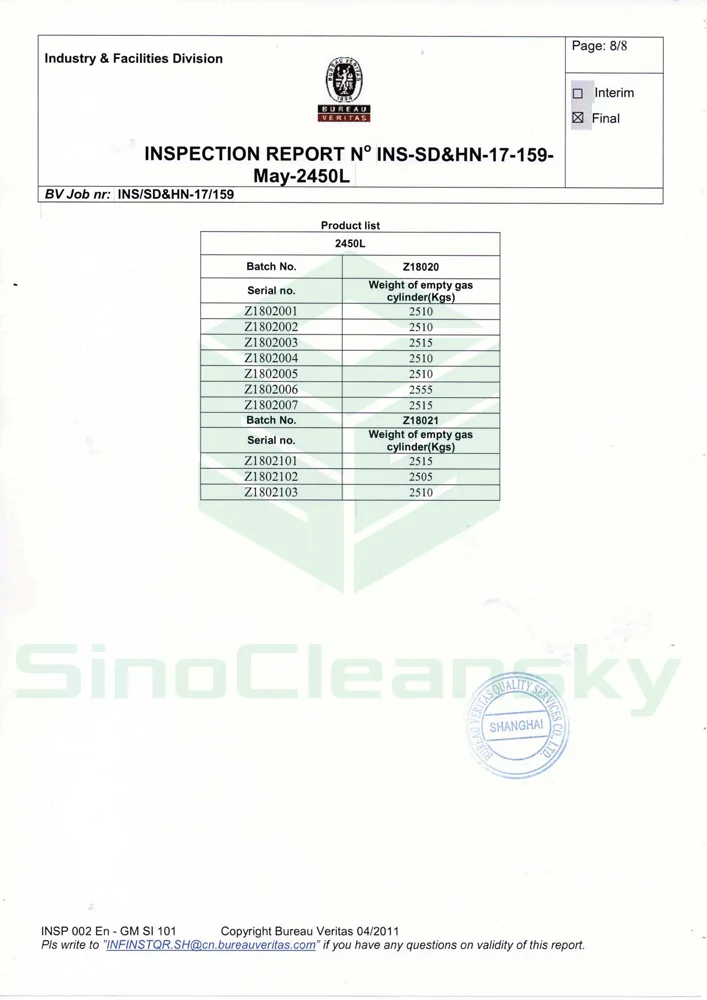

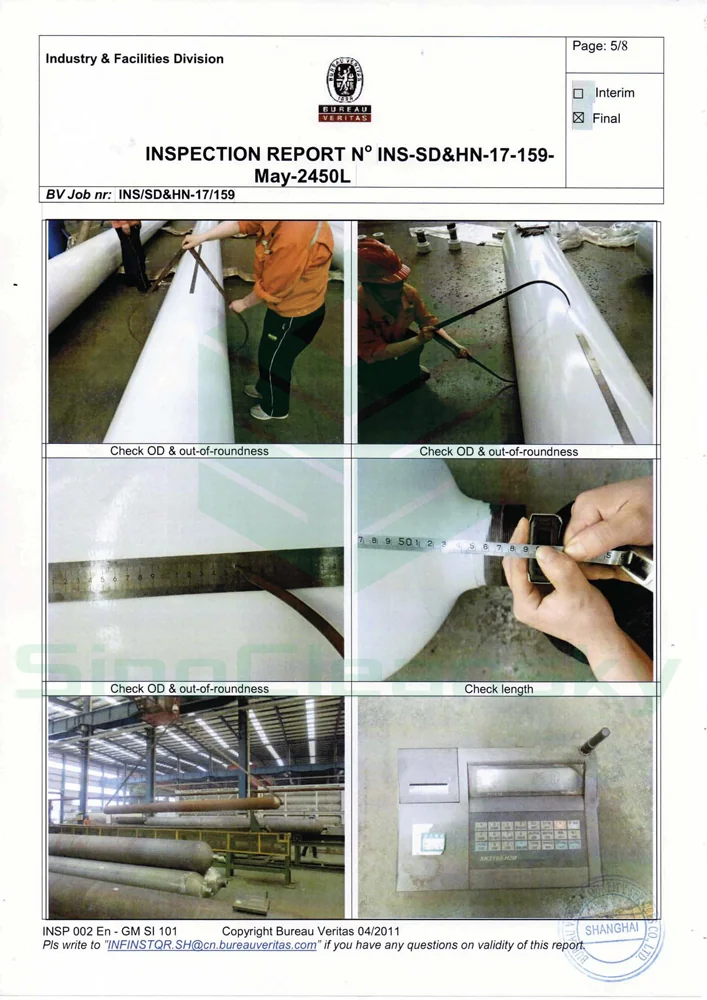

The jumbo tube skids are with third-party test report and detailed factory report. The third-party test report includes test for each cylinder, and the test for the skid air tightness. The factory report will include Quality Certificate, Instruction Manual, factory test report, etc.Reference BV Report :E-mail [email protected] to get more detailed test report specimen.
FAQs
We have an existing product list for you to check and choose; nOr you can tell us your required Filling medium / Working pressure / Water capacity / Application (Ground stationary storage or intermodal transportation), then we will recommend the suitable model for you;nBesides, the Jumbo Tube Skid can be customized, so we can discuss it if there are any special requirements.
The container can be used for CNG and various industrial gases such as Argon, Nitrogen, Helium, Hydrogen, Purified Gas etc.
Our jumbo cylinders are manufactured according to ISO11120 / DOT / ASME standard, and we can provide inspection report (certificate) issued by BV, LRS, TUV or equivalent international third-party.nIn addition, our jumbo cylinders can be certified by TPED with Π mark, some models of our Jumbo Tube Skid have been certified by ADR, and other models can be certified according to customer requirements.
Docs issued by factory: Quality certificate / Instruction manual / Factory test report etc.nDocs issued by third-party: Complete inspection report (Including physical properties, chemical properties, water pressure test reports, etc.)
