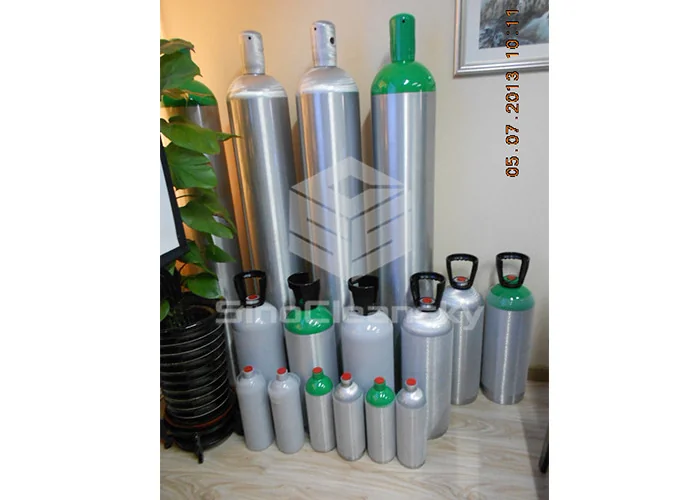

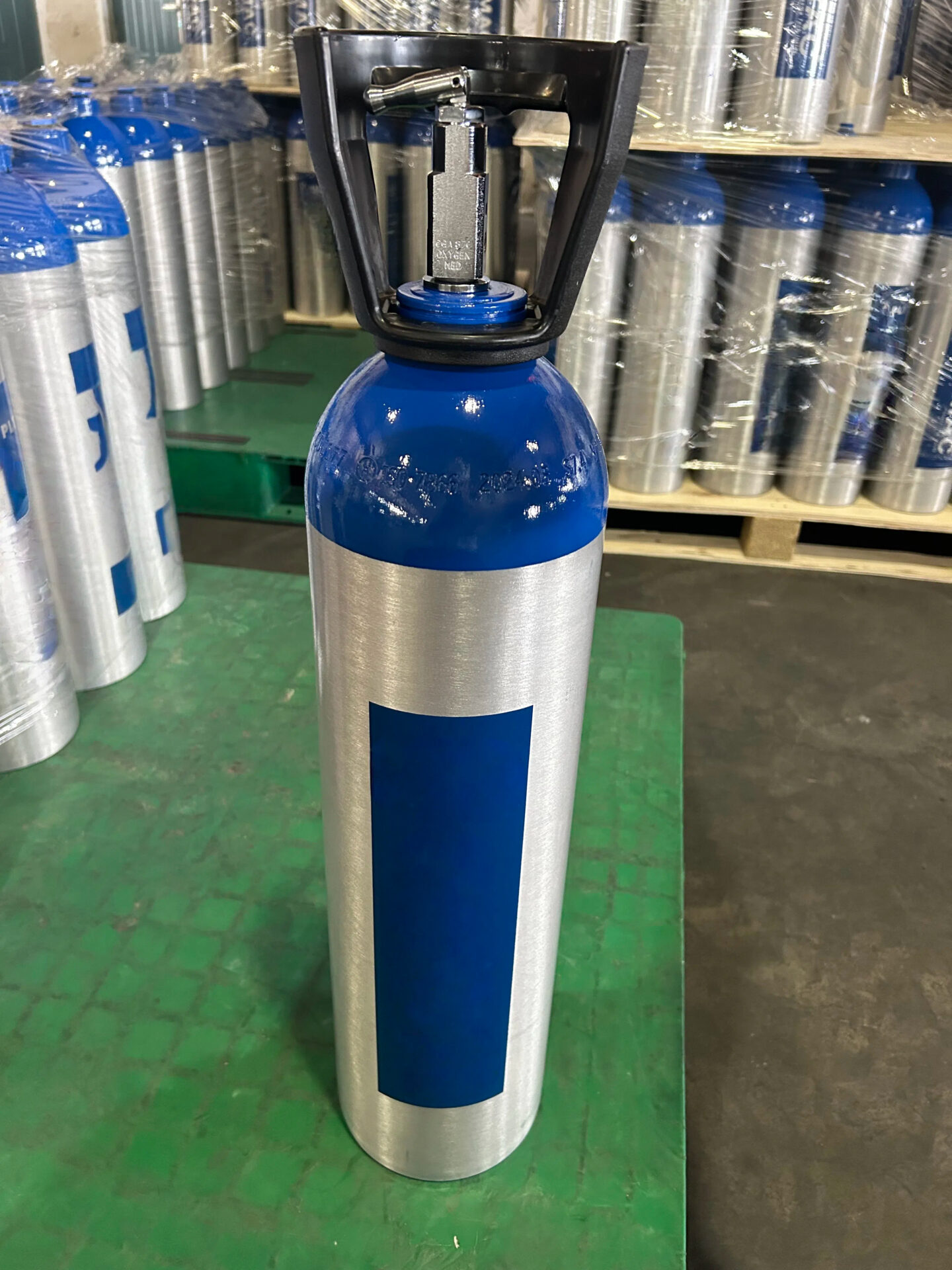

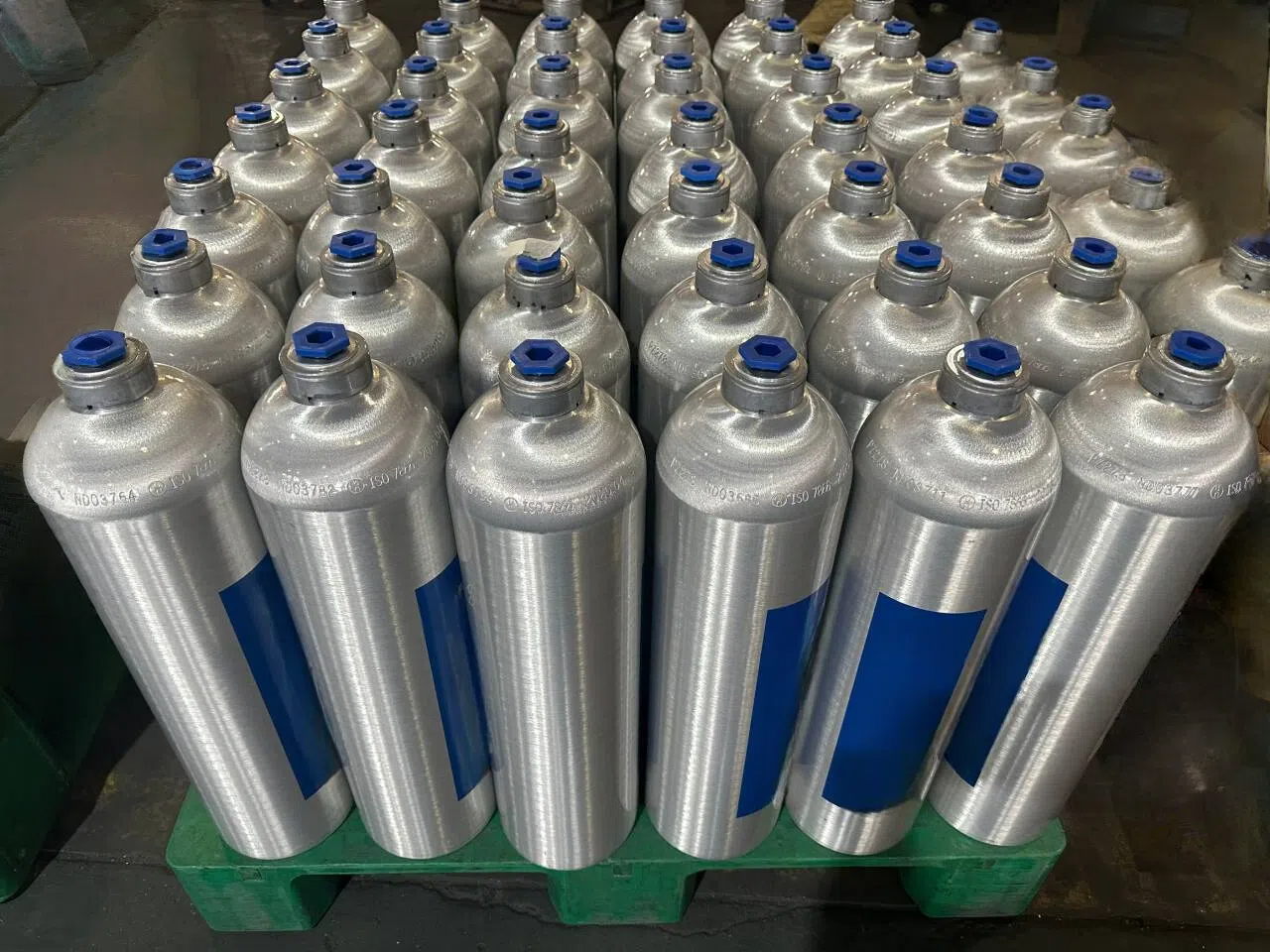

Industrial Gas Aluminum Cylinder

• Material: high strength aluminum alloy 6061.
• Internal treatments: corrosion resistance.
• Weight: 40% weight reduction than steel cylinders.
• Wide range line:
• Outside diameter: 89mm – 250mm
• Water capacity: 0.5L – 50L
• Working pressure: 12.4MPa, 13.9MPa, 15MPa, 15.4MPa, 20MPa, etc.

Quote Now

Description

SinoCleansky provide broadest range of high-performance Industrial Gas Aluminum gas cylinders that mainly manufactured under standard EN1975 and DOT-3AL, GB and ISO standard. The popular water capacity is from 10L to 50L, working pressure including 15MPa, 15.3MPa, 20MPa, etc.
It is ideal for a broad range of rare gas, specialty gas and high-purity gas mixture applications, including gases used in the manufacture of semiconductors and other electronic products, in which maintaining gas purity and stability is essential. Cylinders are also available for containment of welding and cutting gases, as well as a wide variety of other industrial applications.

Technical Specifications

Industrial Gas Aluminum Cylinder

Standard	Type	Outer diameter	Water capacity	Working pressure
EN1975 / ISO7866	159-10L-15MPa	159 mm	10 L	15 MPa
EN1975 / ISO7866	203-20L-15MPa	203 mm	20 L	15 MPa
EN1975 / ISO7866	232-30L-15MPa	232 mm	30 L	15 MPa
EN1975 / ISO7866	250-50L-15MPa	250 mm	50 L	15 MPa
EN1975 / ISO7866	204-20L-20MPa	204 mm	20 L	20 MPa
EN1975	250-50L-20MPa	250 mm	50 L	20 MPa
DOT-3AL	250-46.4L-2219Psi	250 mm	46.4 L	2219Psi

Packaging & Shipping

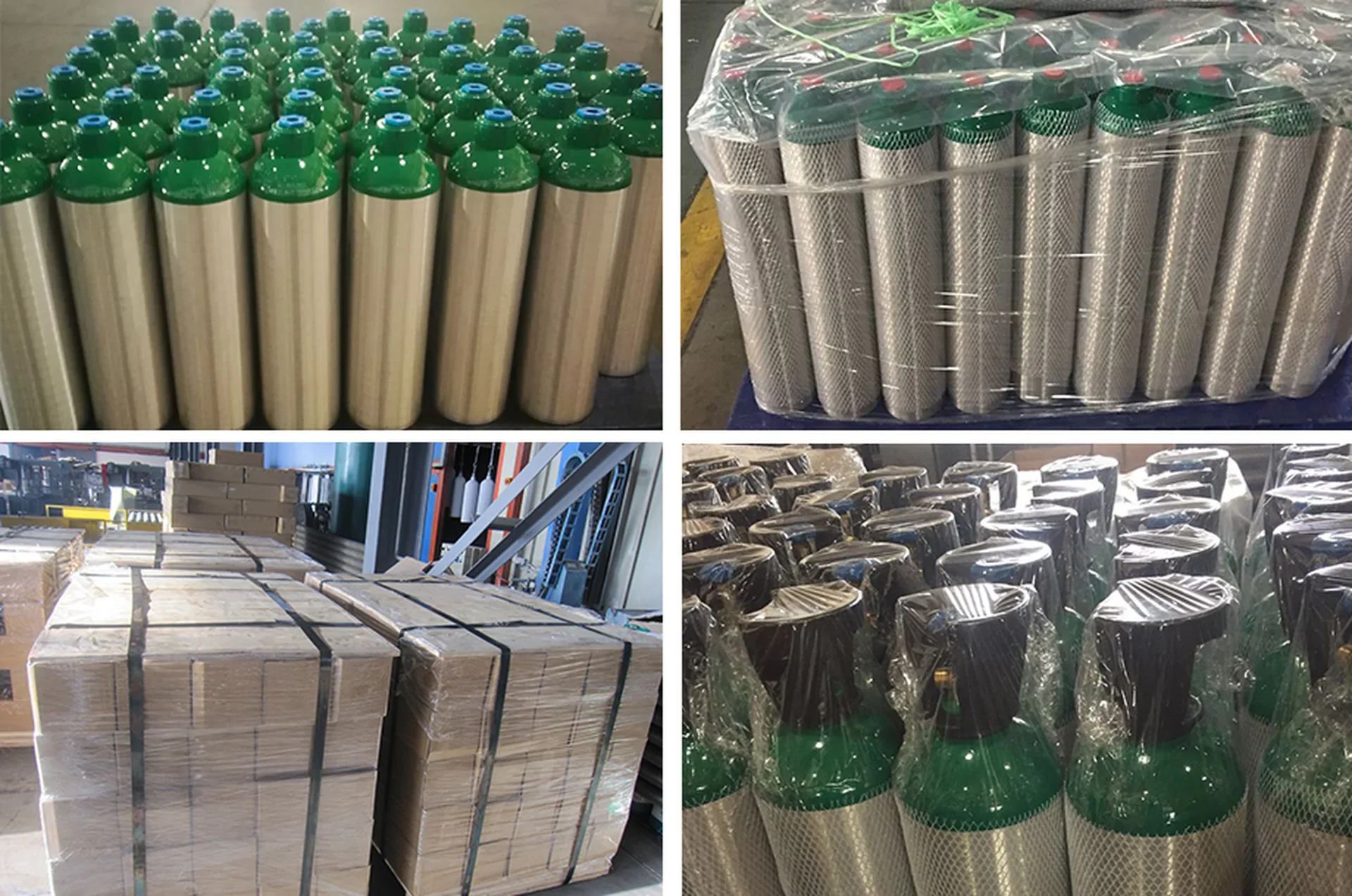

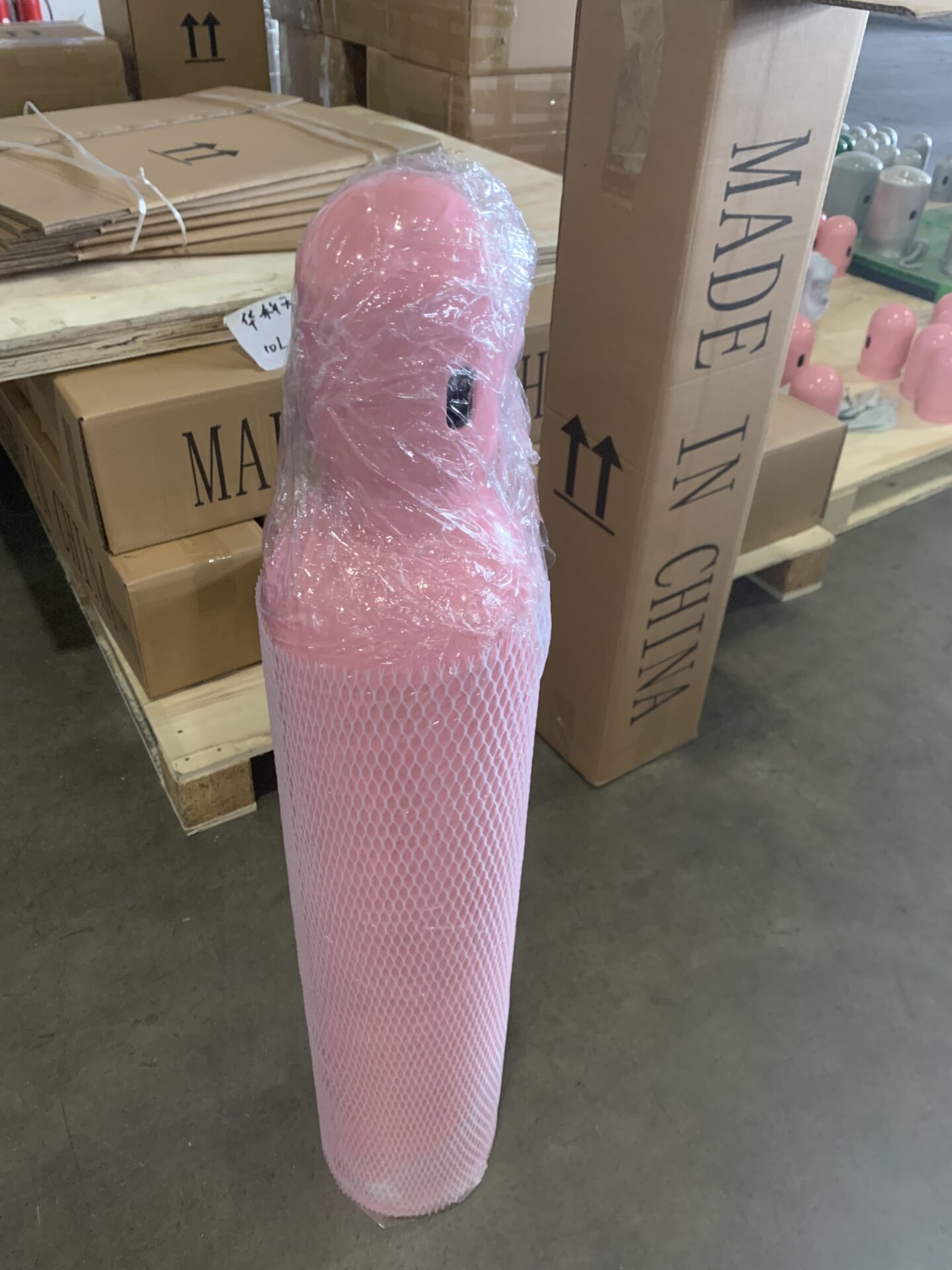

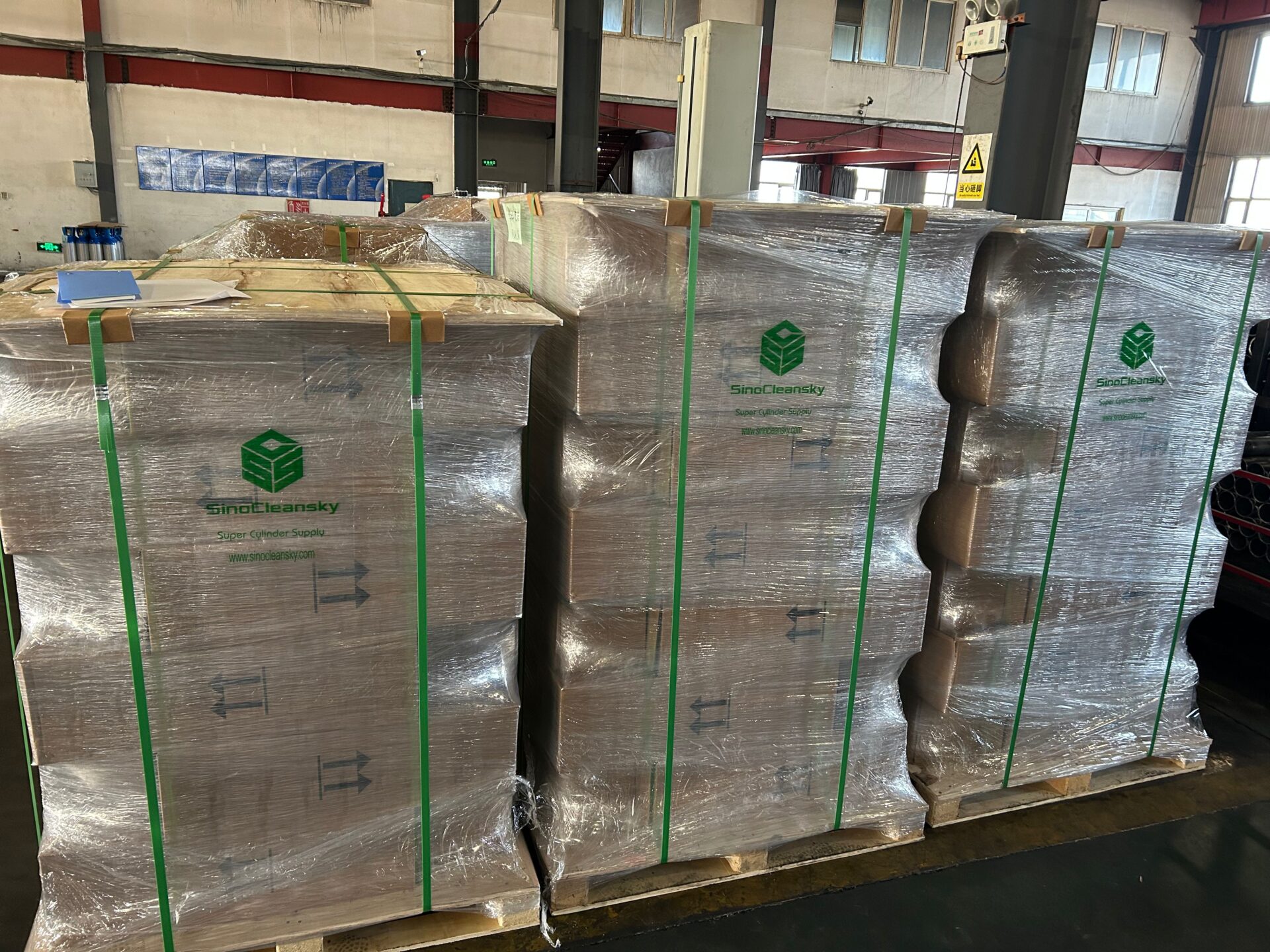

The cylinders can be packed with carton box each cylinder, with pallet or without pallet in container, 20ft or 40ft.

Report & Certifications

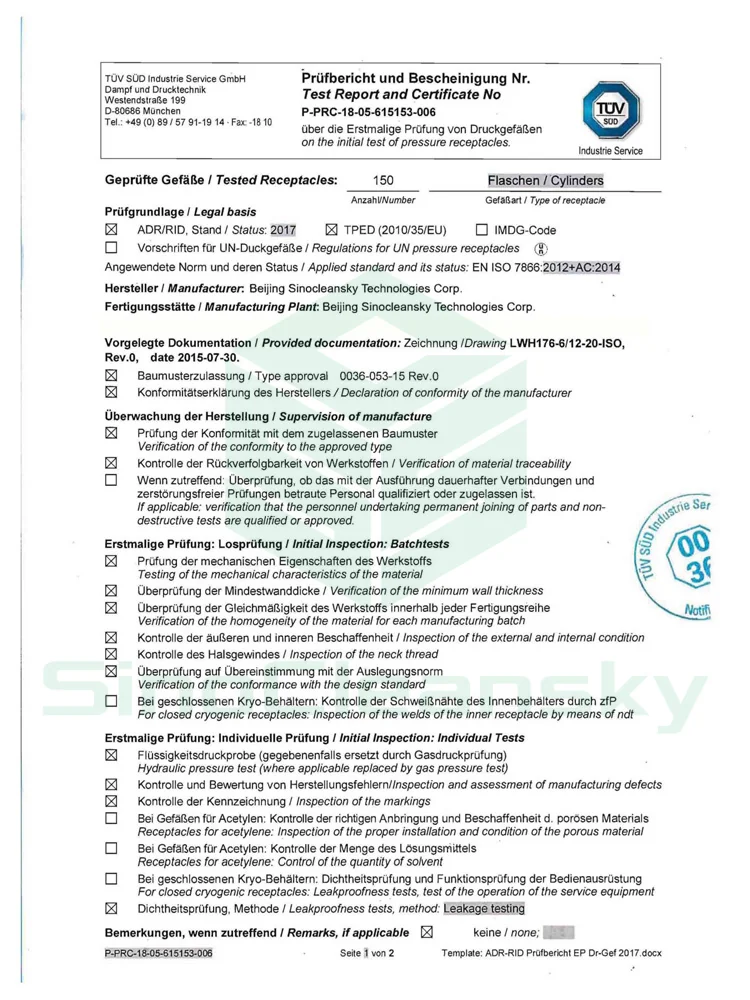

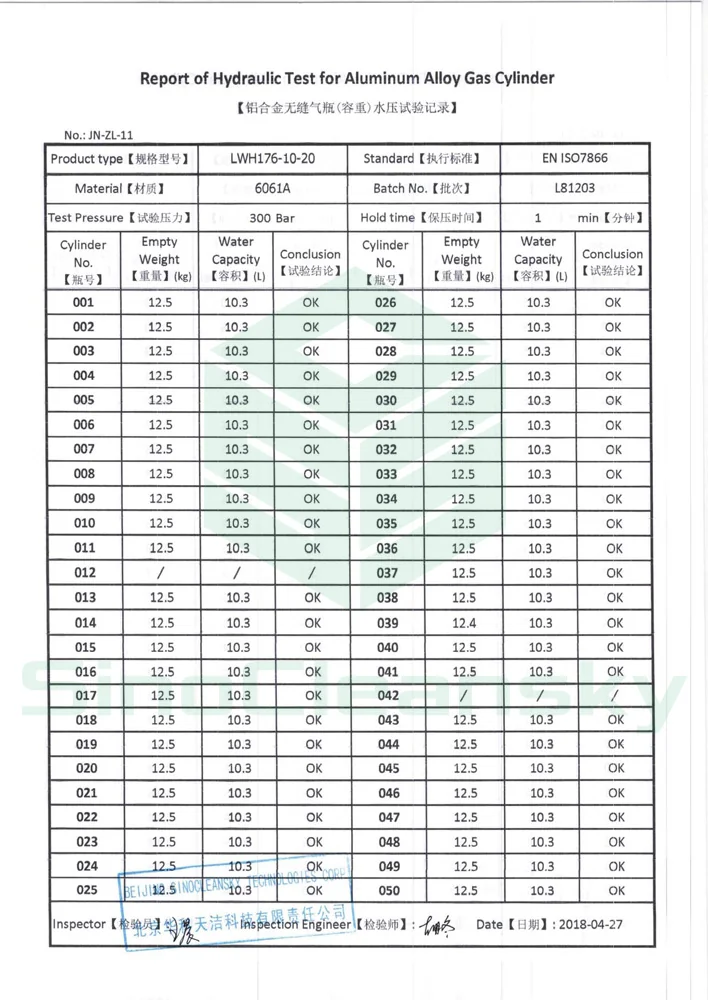

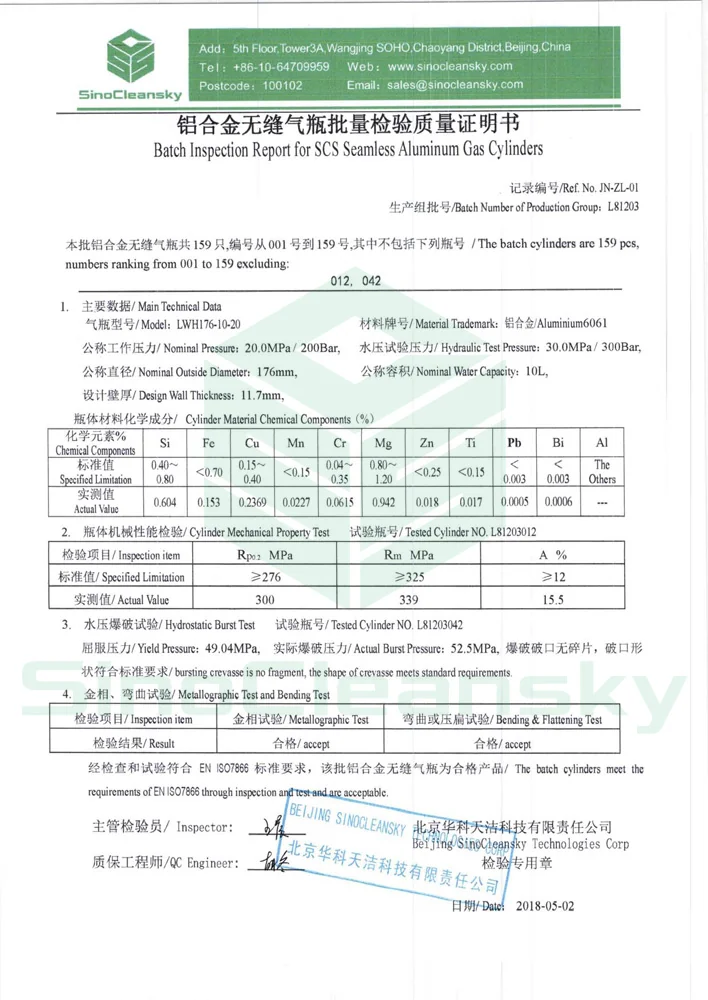

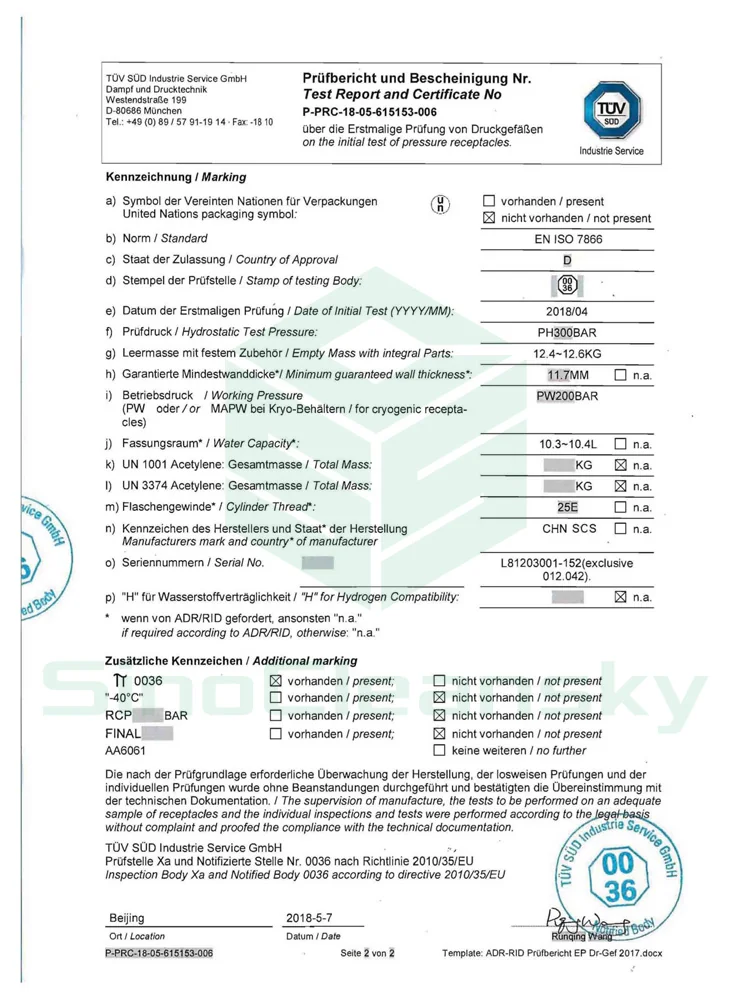

Cylinders are with detailed test report, including the factory test report, hydraulic test report， third-party test report etc.Reference Report:E-mail [email protected] to get more detailed test report specimen.
