ISO Tank Container For Medical Oxygen
• 1. Technology: high-vacuum multi-layer insulation
• 2. Application: LOX,medical oxygenstorage and transportation.
• 3. Standard: GB150, EN13530, ASME and other international standards
• 4. LIoyd’s Register CSC Certificate, BV Certificate and CCS Certificate
Description
Sinocleansky intermodal containers are produced as per GB150, EN13530, ASME and other international standards, with LIoyd’s Register CSC Certificate, BV Certificate and CCS Certificate, and offer a rugged, durable construction with a highly efficient insulation system for maximum hold times.
The goods are widely used to transport cryogenic bulk liquids – especially for medical oxygen LOX – worldwide by ship, rail or road. Our ISO Containers are available in a wide range of working pressures from 0.8-2.4MPa.
Technical Specifications
|
standard |
Type number |
Filling medium |
Working pressure |
Water capacity |
Material Inner / outer vessel |
|
ASME |
TCSCS-D22C (T75-20FT-8BAR) |
LOX / LIN / LAr |
0.8MPa |
21.7 M3 |
SA-240M 304/Q345R |
|
ASME |
TCSCS-D21DB (T75-20FT-16BAR) |
LOX / LIN / LAr |
1.6MPa |
21 M3 |
SA-240M 304/Q345R |
|
ASME |
TCSCS-D21D (T75-20FT-16BAR) |
LOX / LIN / LAr / LNG / LC2H4/ LC2H6 |
1.6MPa |
21 M3 |
SA-240M 304/Q345R |
|
ASME |
TCSCS-D21EB (T75-20FT-22BAR) |
LOX / LIN / LAr / LCO2/ LN2O |
2.2MPa |
21 M3 |
SA-240M 304/Q345R |
|
EN13530 |
TCSCS-D22D (T75-20FT-18BAR) |
LOX / LIN / LAr |
1.8MPa |
21.7 M3 |
1.4315/Q345R |
|
EN13530 |
TSCSC-D22B (T75-20FT-18BAR) |
LOX / LIN / LAr / LNG / LN2O / LC2H4/ LC2H6 |
1.8MPa |
21.7 M3 |
1.4315/Q345R |
|
EN13530 |
TCSCS-D22E(T75-20FT-18BAR) |
LOX / LIN / LAr / LN2O |
1.8MPa |
21.7 M3 |
1.4315/Q345R |
|
EN13530 |
TCSCS-A21A (T75-20FT-22BAR) |
LOX / LIN / LAr / LCO2/ LNG LN2O / LC2H4/ LC2H6 |
2.2MPa |
21.4 M3 |
1.4315/Q345R |

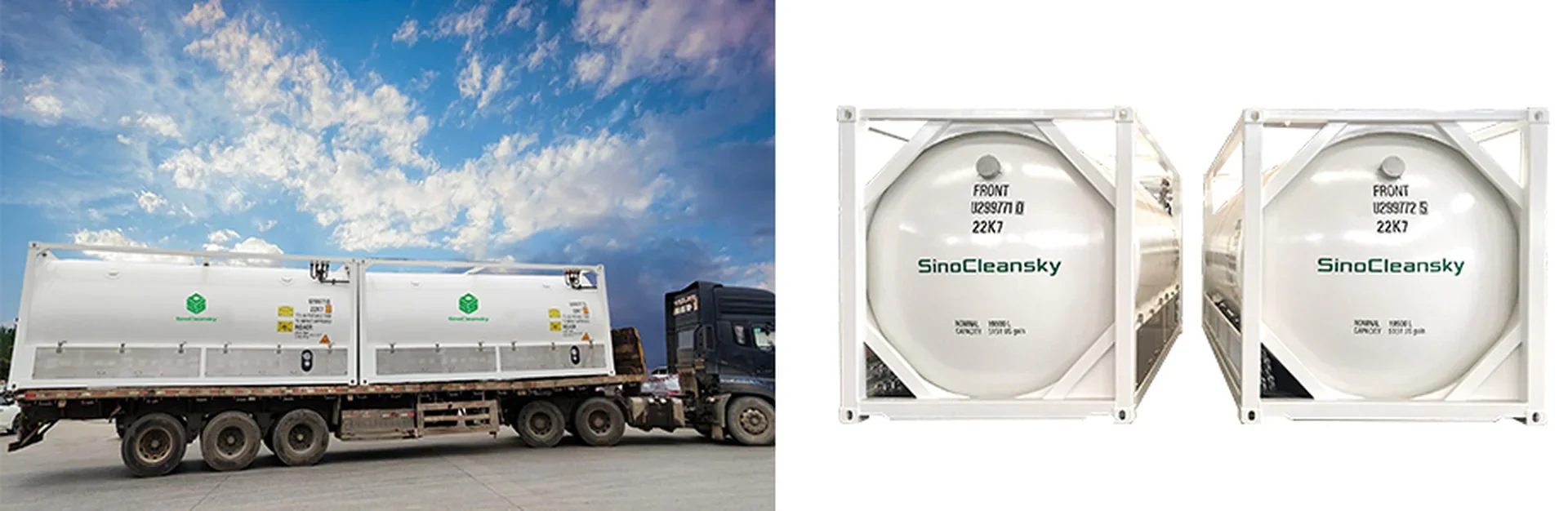

Packaging & Shipping
The container is with container number and ship directly.
Report & Certifications
The containers are with Product Inspection Certificate, General Assembly drawing, tank container Flow Chart Scheme, User manual, Strength calculation certificate and etc, the third-party LIoyd’s Register CSC Certificate or CCS Certificate.

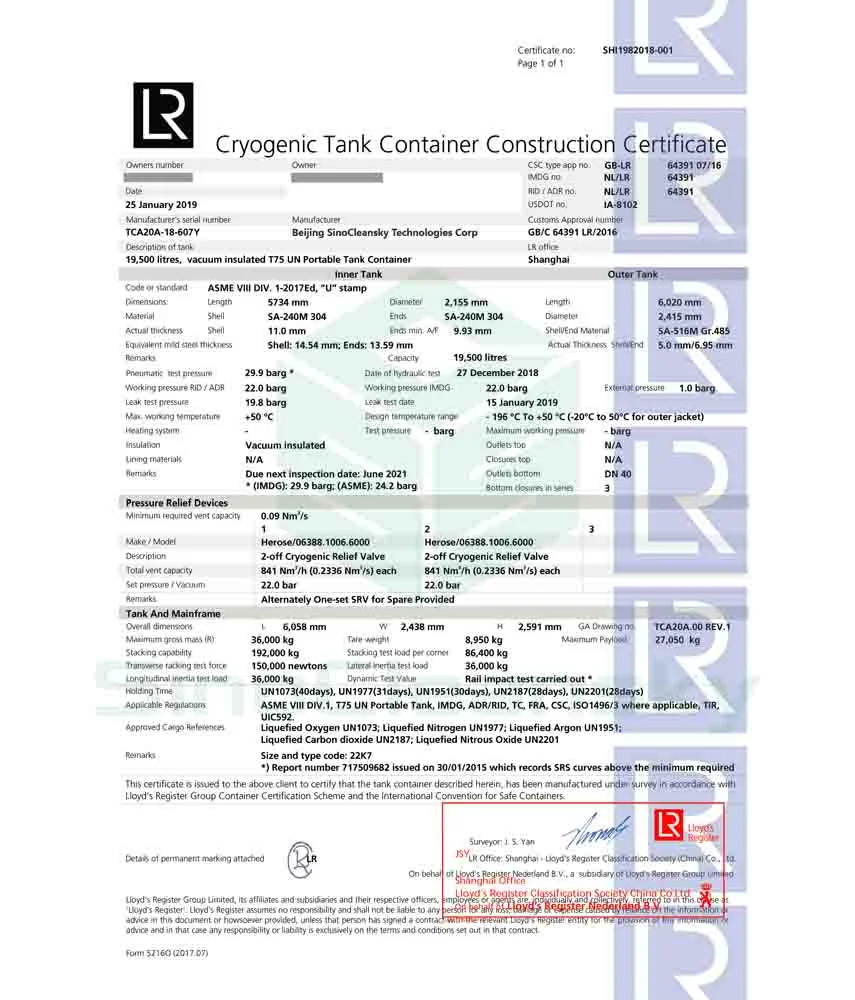

Reference LRS CSC Certificate:
E-mail [email protected] to get more detailed test report specimen.
FAQs
Pls indicate the parameters of the container you need, incl manufacture standard, working pressure, filling medium (only one kind of medium or various medium), pls also indicate the quantity you need.Usually we can provide 8-18bar working pressure for common liquid industrial gas, and 22bar for LCO2. The size incl 20ft and 40ft.
LOX, LIN, LAr, LNG, LCO2, LN2O
The manufacture standard incl EN, ASME, GB, and we also provide LIoyd’s Register CSC Certificate and CCS Certificate.

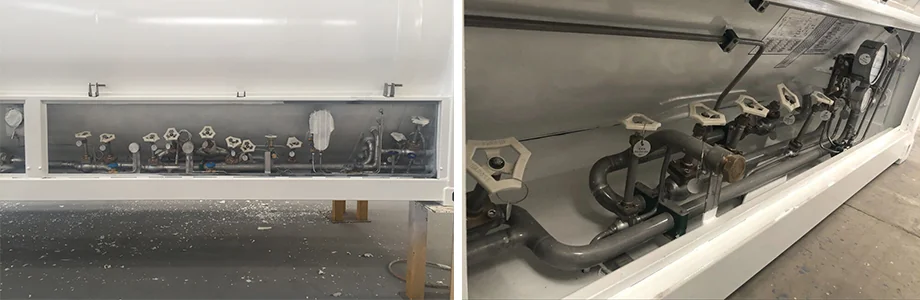

We can provide China valves and International valves. And we will provide valve list once confirmed.nMoreover, pump is optional. We can provide Smith pump, France Cryostar pump or without pump, the price is different.
