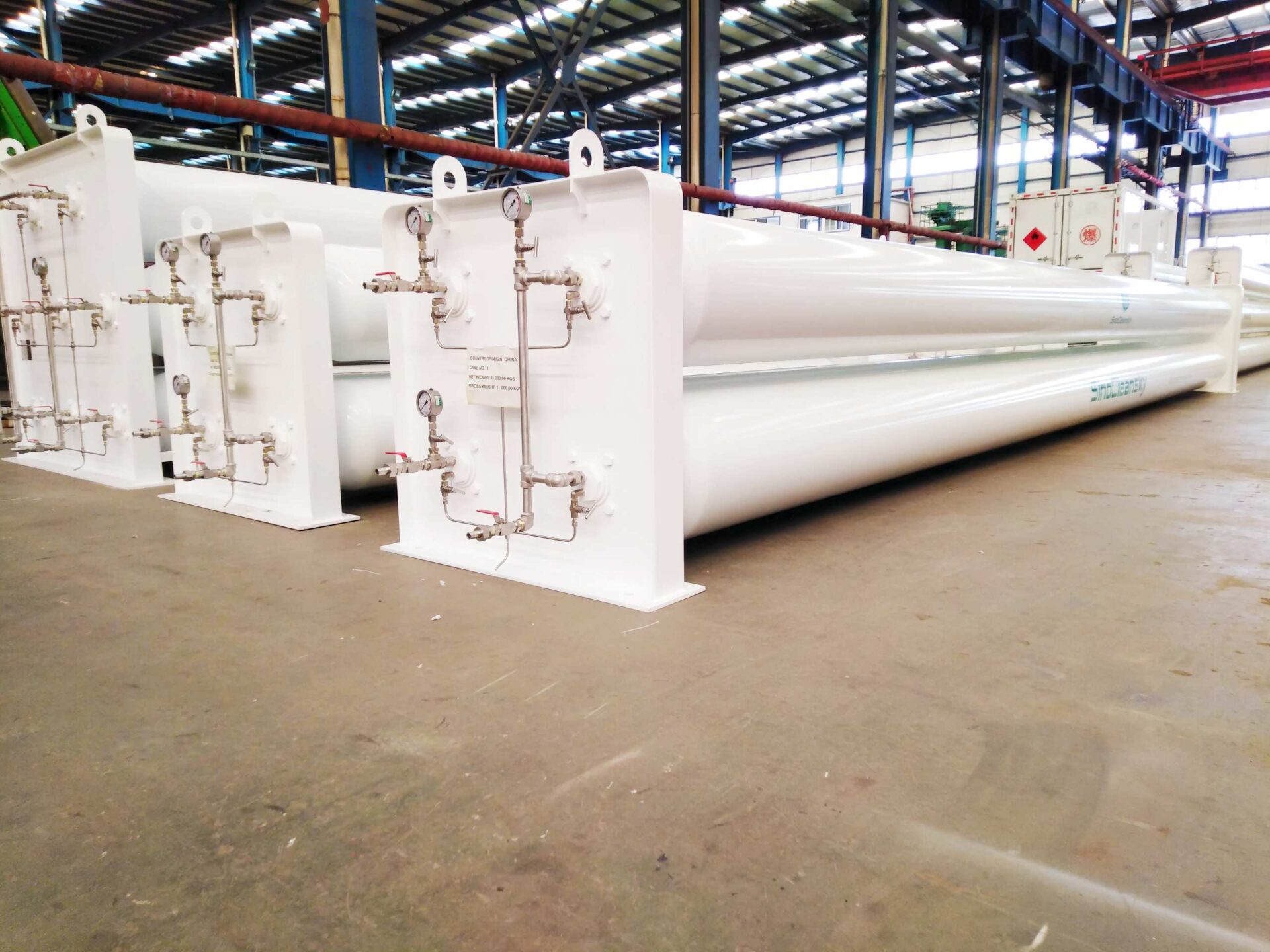

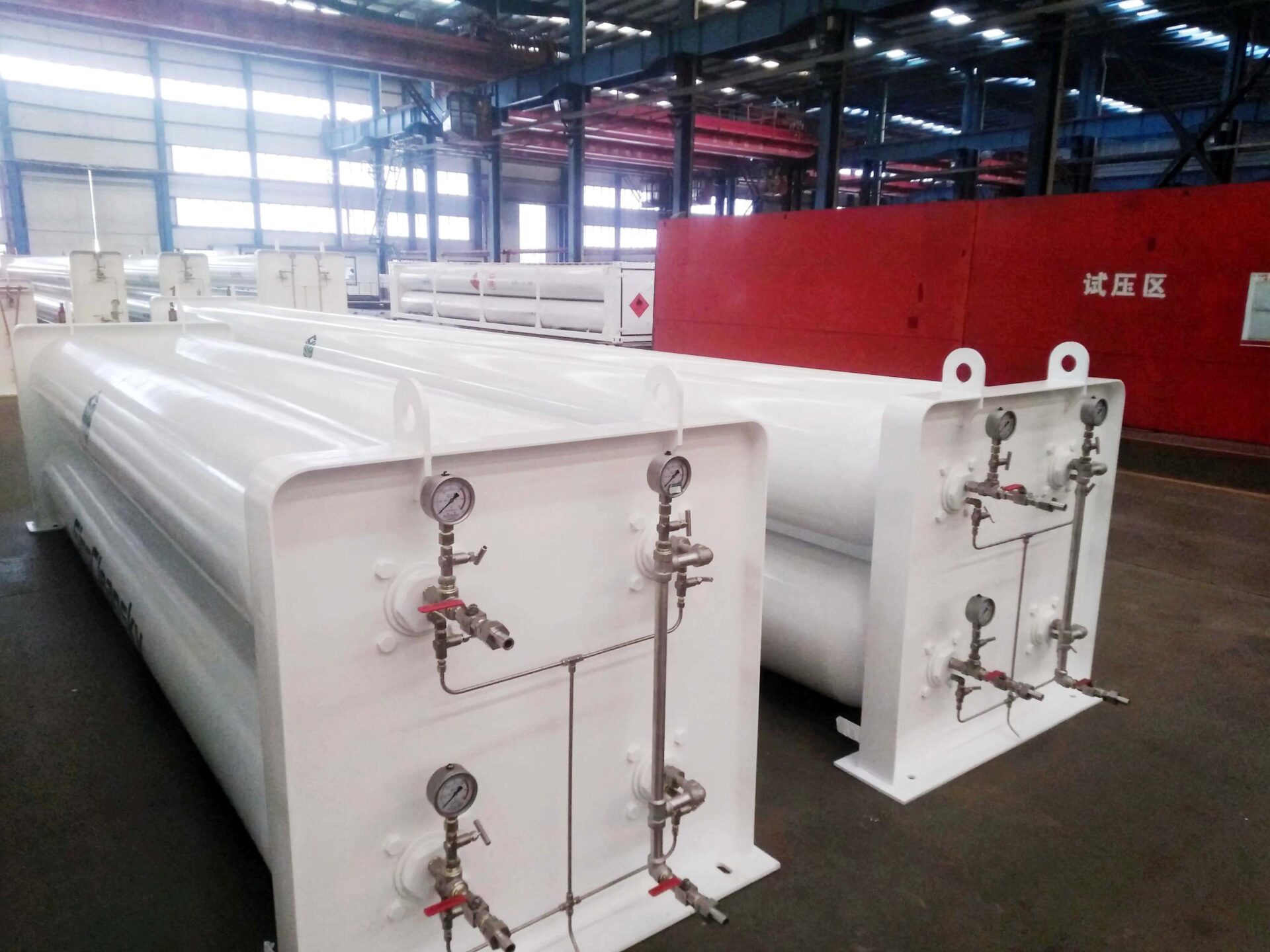

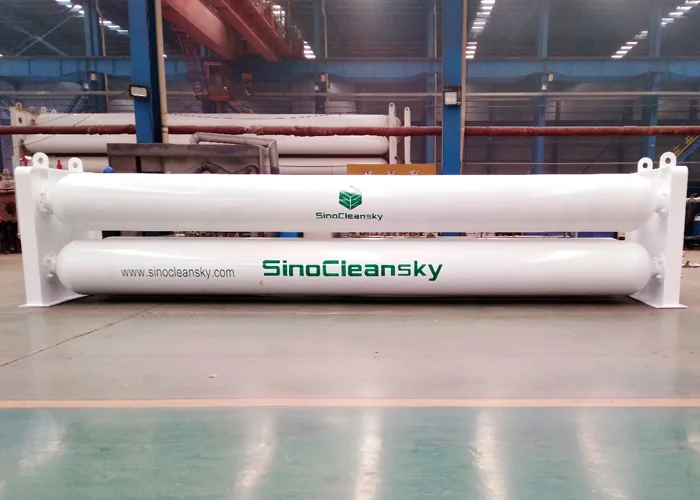

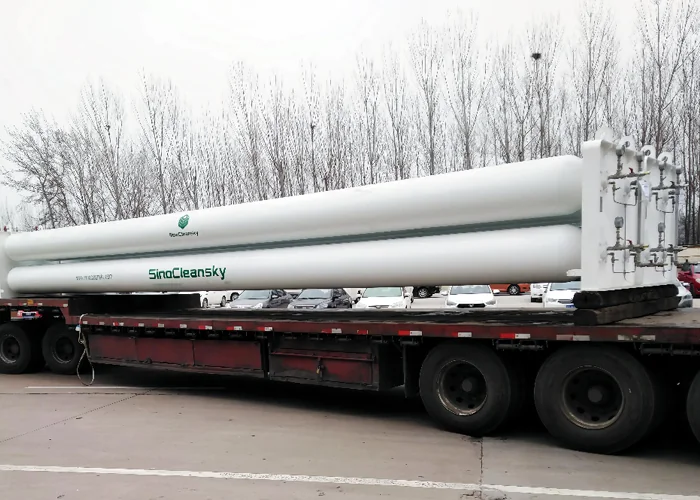

Jumbo Cylinder Cascade
- Heat-spinning technology applied, seamless structure, and reliable for safety operation
- Large-size structure, fewer valves, tubes and joints, and less danger of gas leakage
- Cleanliness in design and structure, and les maintenance on site
- Customized for 2,3,4,5 tubes, special “L” frame supported

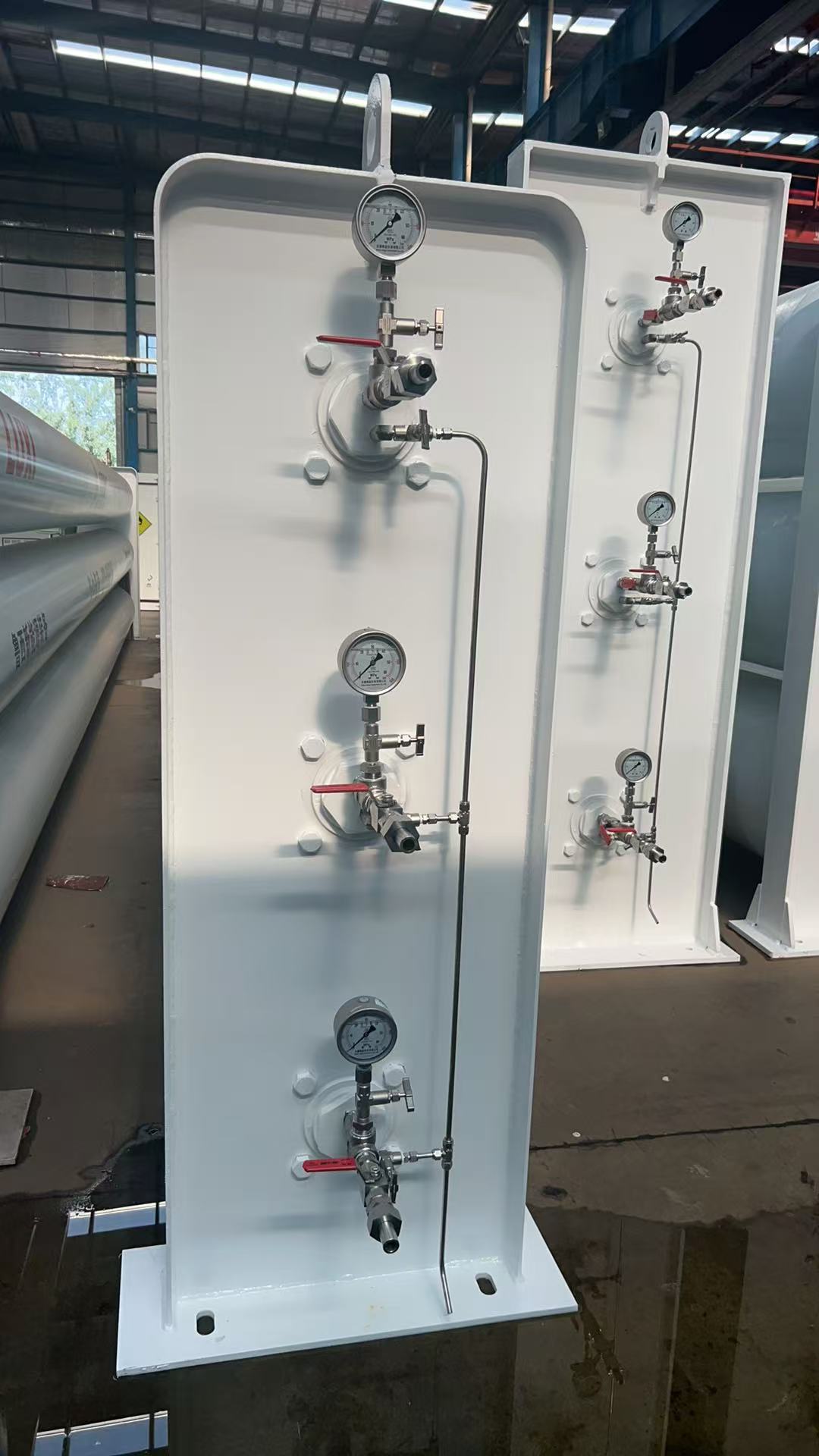

- Equipped with branch-tubes and accessories
- Produced standard: ISO11120, DOT, TPED, RID
- Medium for: CNG, Hydrogen, Compressed Air, Nitrogen, Argon, Helium, and others
Description
SinoCleansky jumbo cylinder Cascade are produced as per ISO11120, DOT, with inspection report (certificate) issued by BV, LRS, TUV or equivalent international third-party.
The products are widely used for ground stationary storage, and can be designed based on detailed request of clients, and broad range of filling medium include CNG and various industrial gases such as Argon, Nitrogen, Helium, Hydrogen, Purified Gas etc.

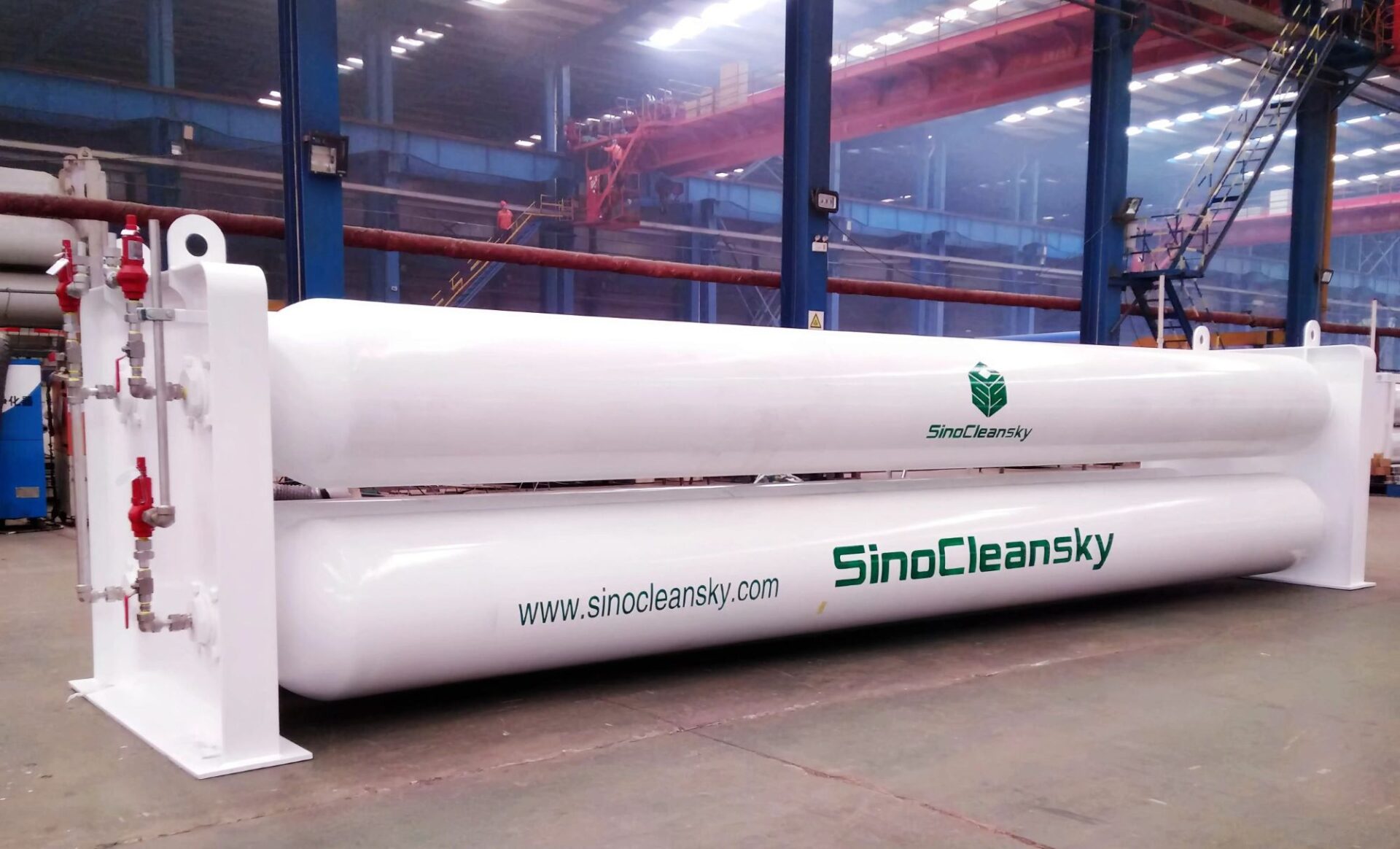

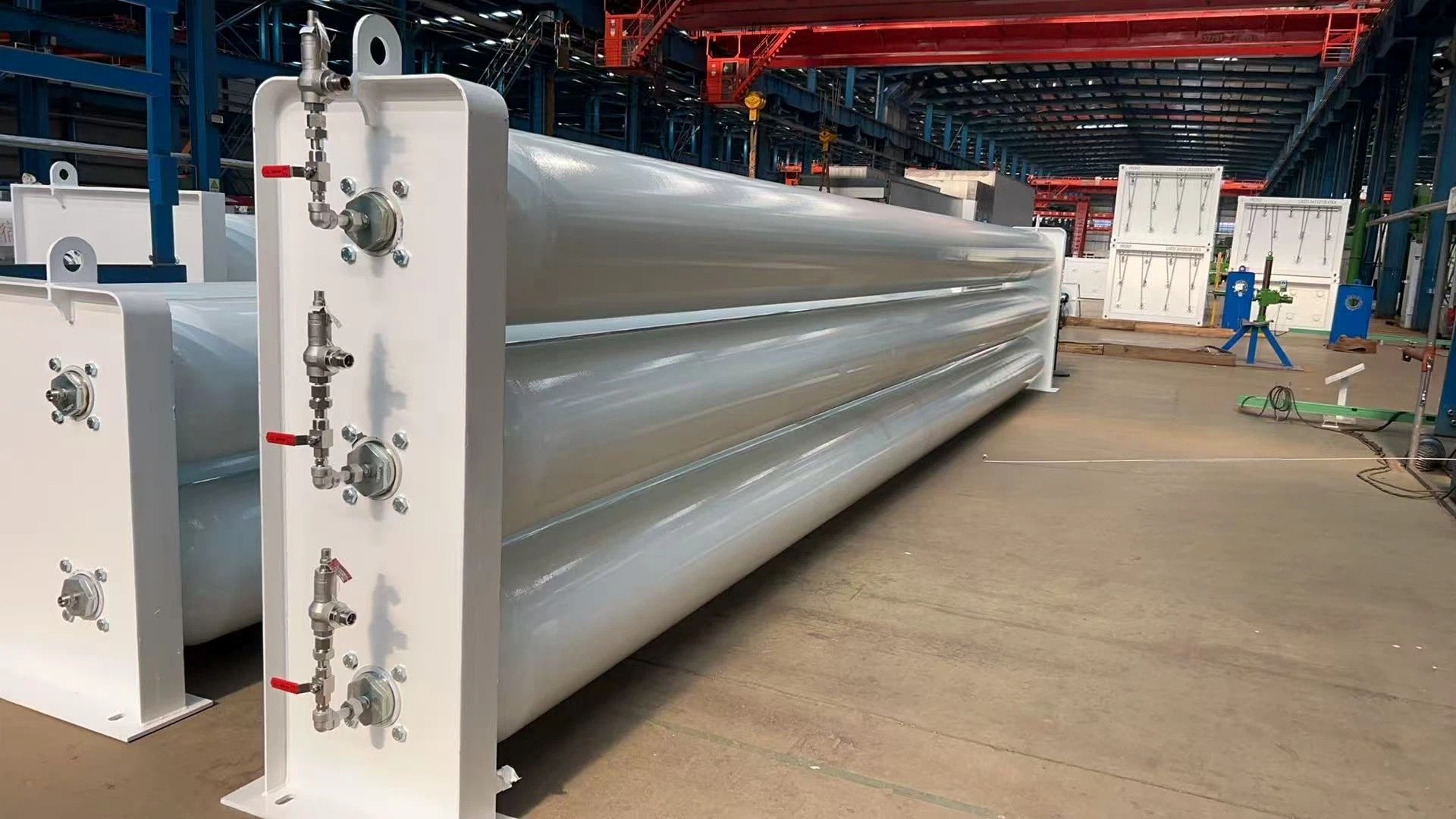

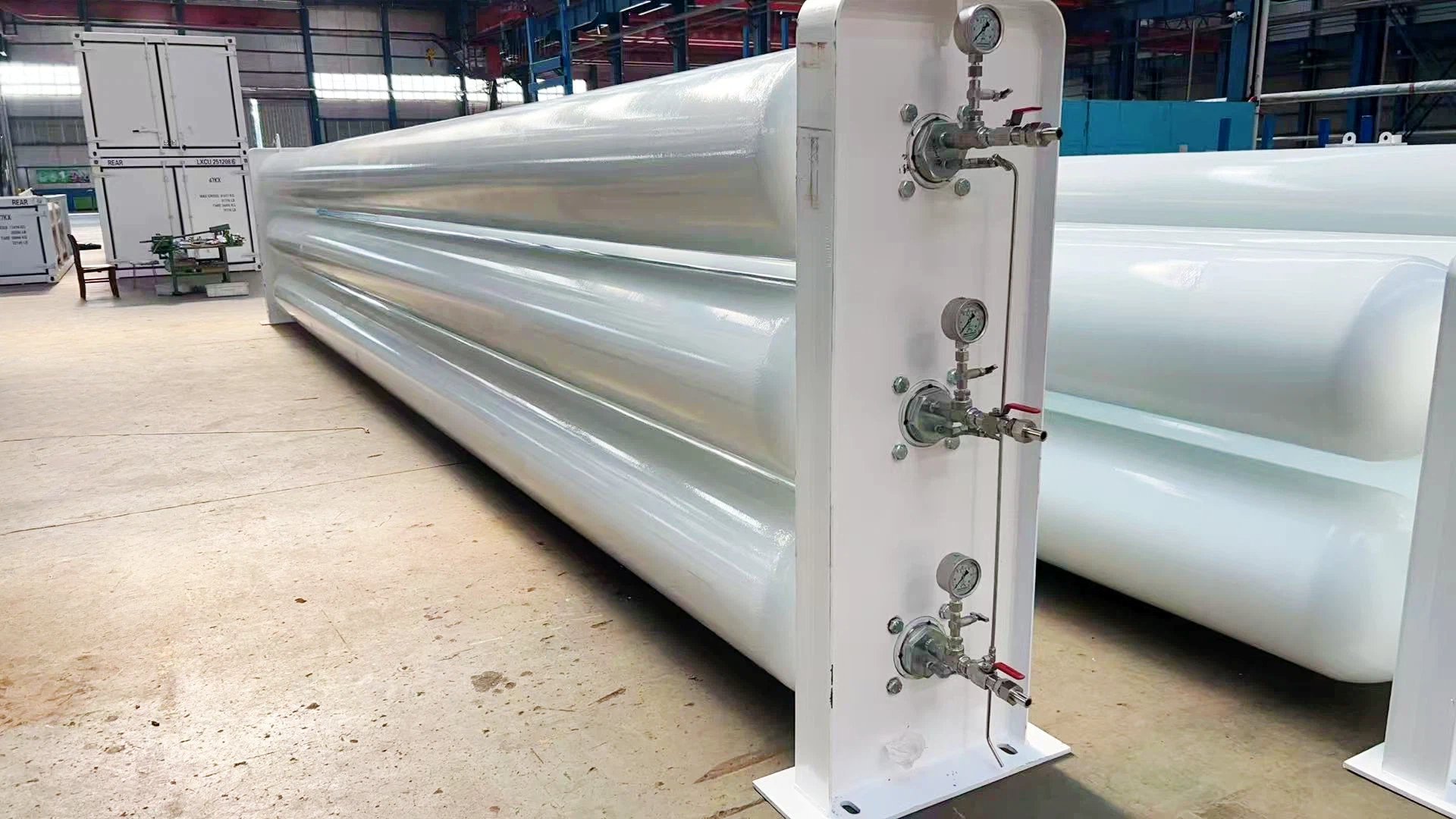

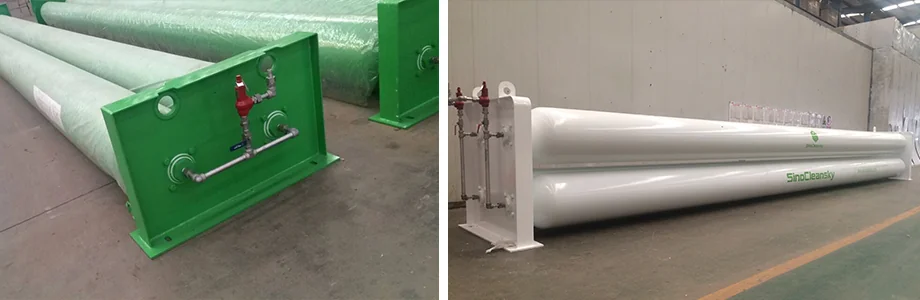

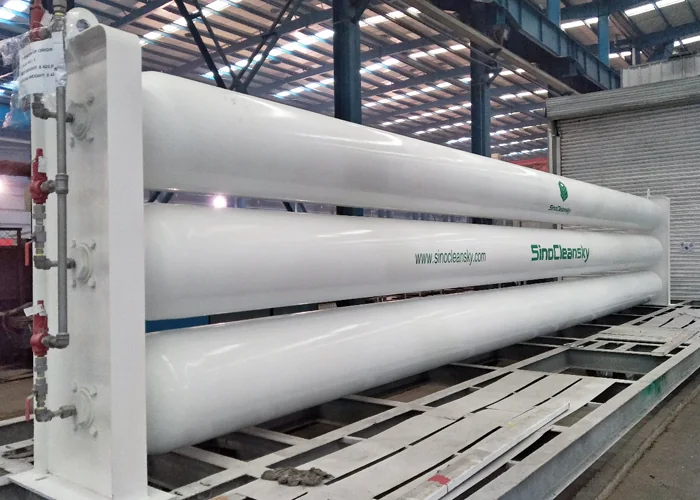

The cascade can be two cylinders, three cylinders, four cylinder, and five cylinders. If above six cylinders, generally, it can be designed as tube skid with container size frame.
Selection of Medium & Materials:
- CNG could use both material #4142 steel or #4130X steel, prefer #4142 steel cause more load less weight
- Compressed Air & industrial gases all suitable for material #4142 steel
- Hydrogen suggest to use material #4130X steel due to the property of “embrittlement”.
Technical Specifications
Medium for CNG, compressed air and other industrial gases:
| Model No. | SCS02-2450-40ft | SCS03-2450-40ft | SCS04-2450-40ft | SCS05-2450-40ft |
| Cylinder quantity | 2 | 3 | 4 | 5 |
| Filling medium | CNG/Air/Industrial Gas | CNG/Air/Industrial Gas | CNG/Air/Industrial Gas | CNG/Air/Industrial Gas |
| Steel type | 4142 | 4142 | 4142 | 4142 |
| Working Pressure | 25Mpa | 25Mpa | 25Mpa | 25Mpa |
| Cylinder Water Capacity | 2450L | 2450L | 2450L | 2450L |
| Cylinder size/mm | φ559*11580 | φ559*11580 | φ559*11580 | φ559*11580 |
| Wall thickness/mm | 14.8 | 14.8 | 14.8 | 14.8 |
| Working temperature | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ |
| Equipment weight/kg | 5,060 | 7,590 | 10,120 | 12,650 |
| Water volume/M³ | 4.90 | 7.35 | 9.80 | 12.25 |
| Overall Dimension/(L*W*H)mm |
11680*820*1500 | 11680*820*2135 | 12470*1400*1484 | 12470*1400*2135 |
Packaging & Shipping

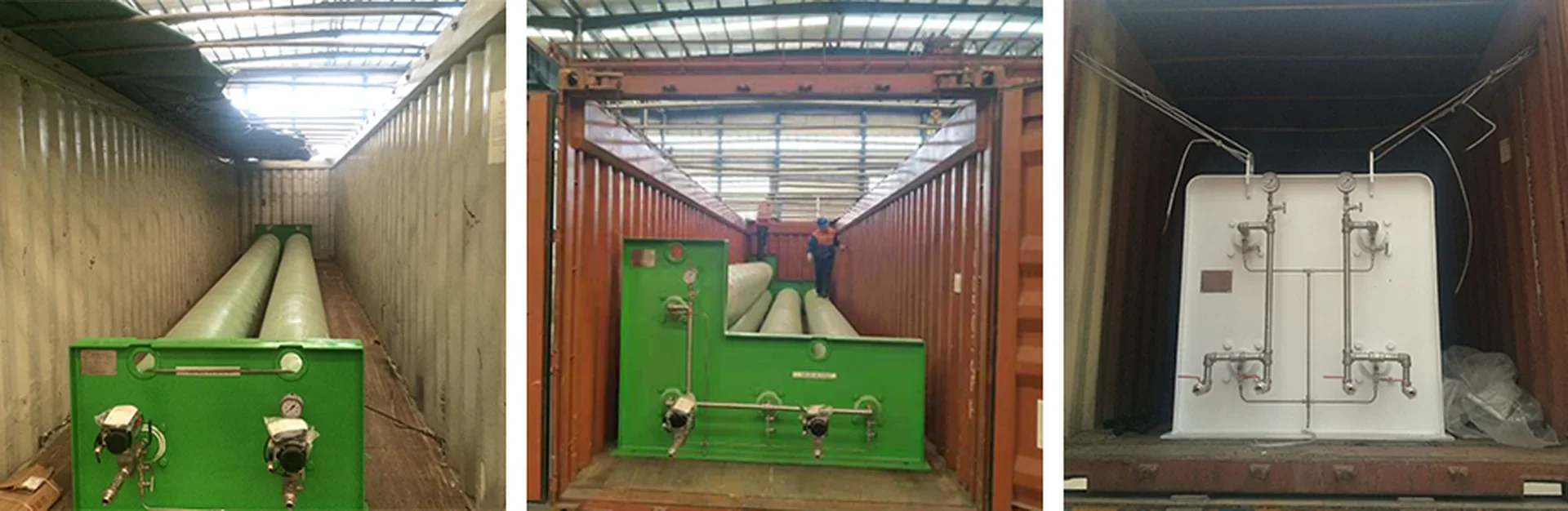

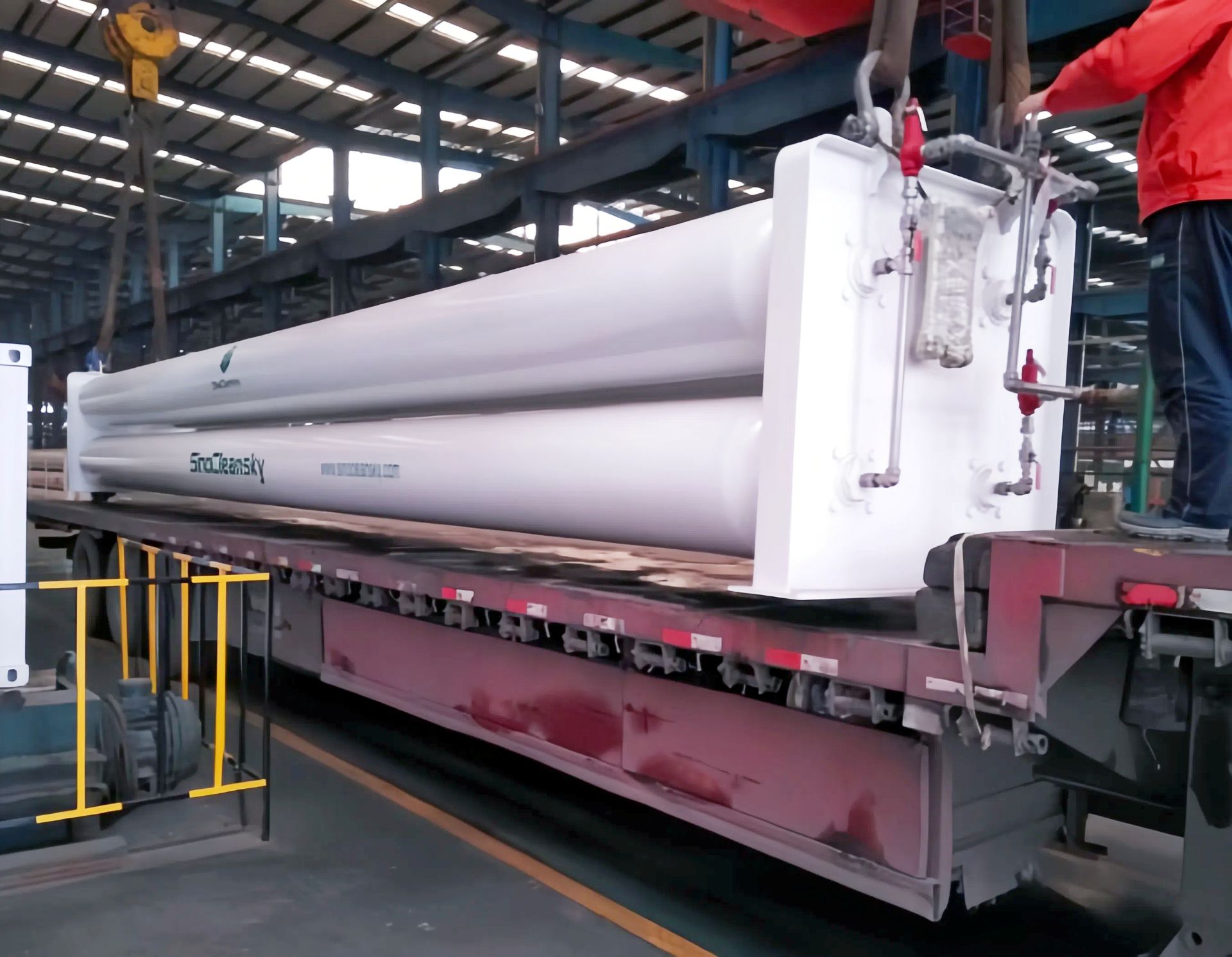

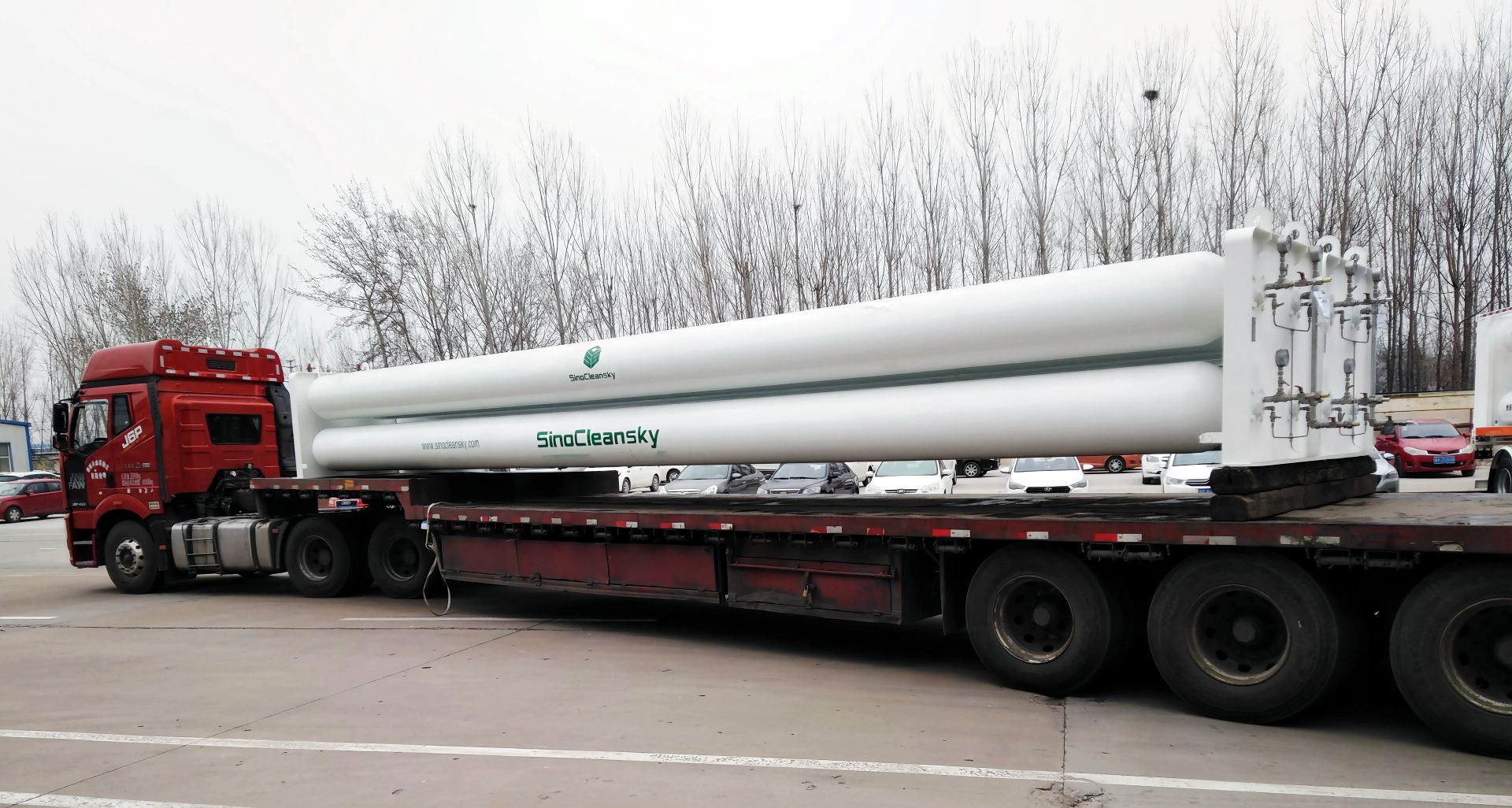

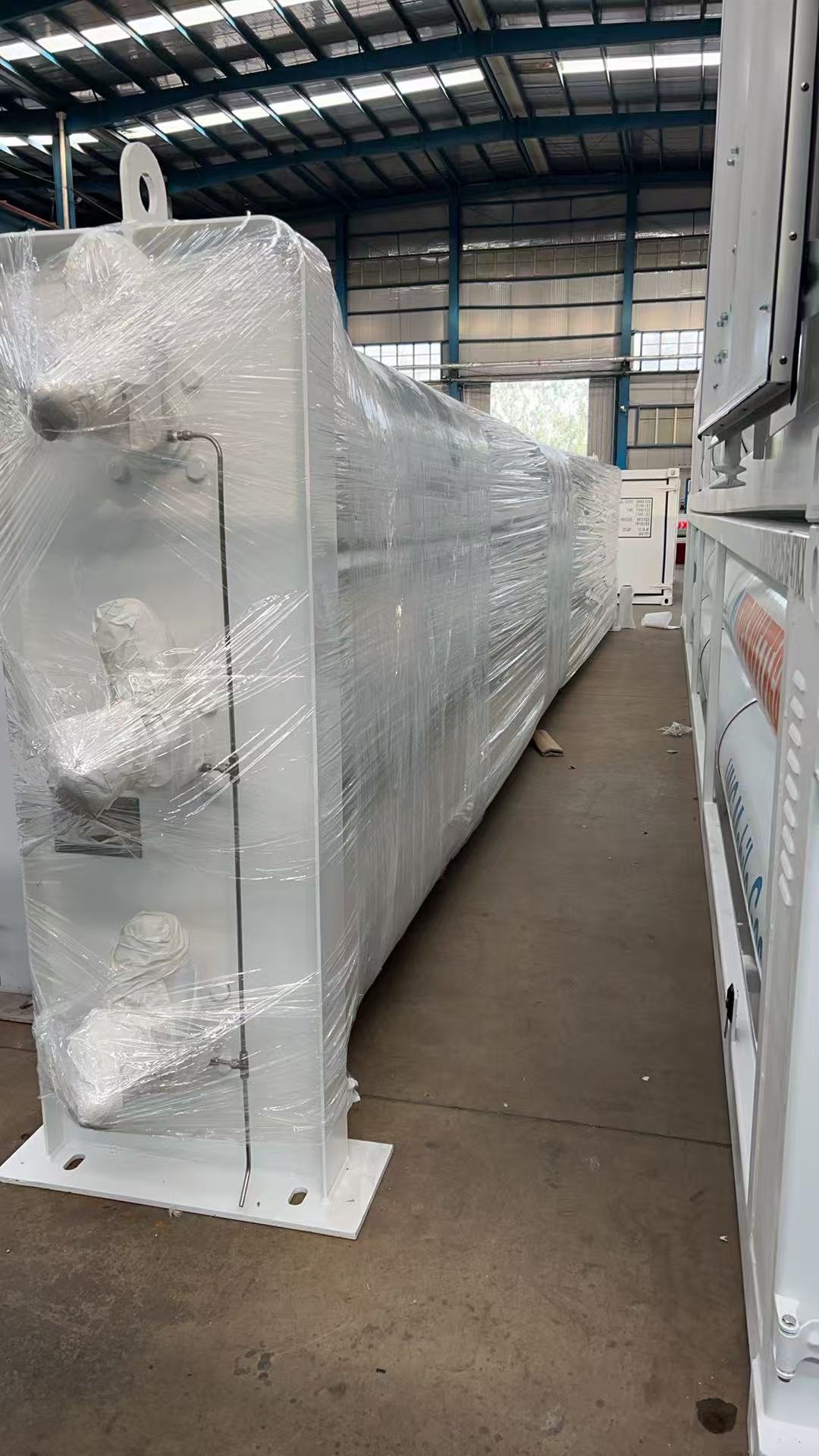

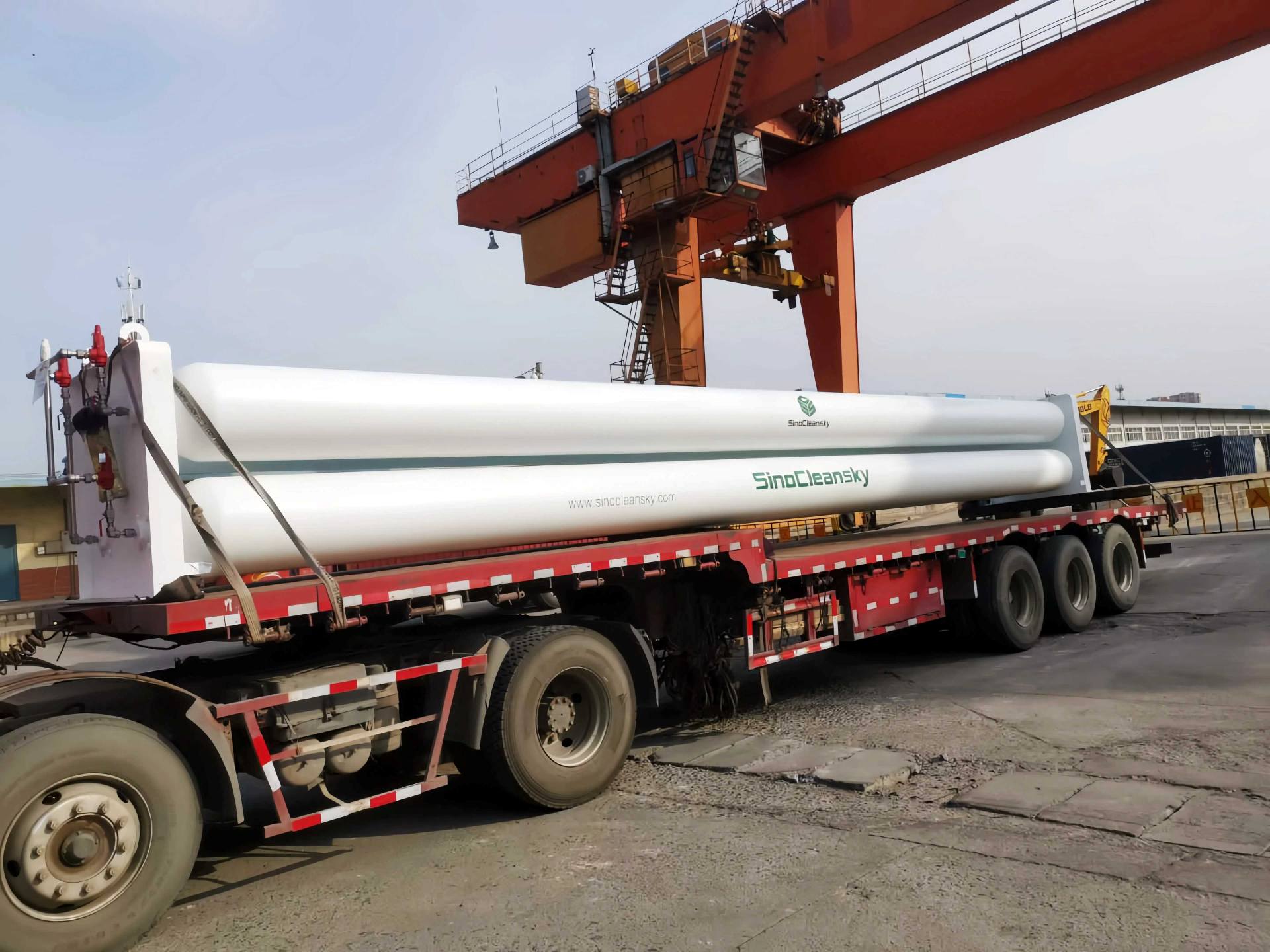

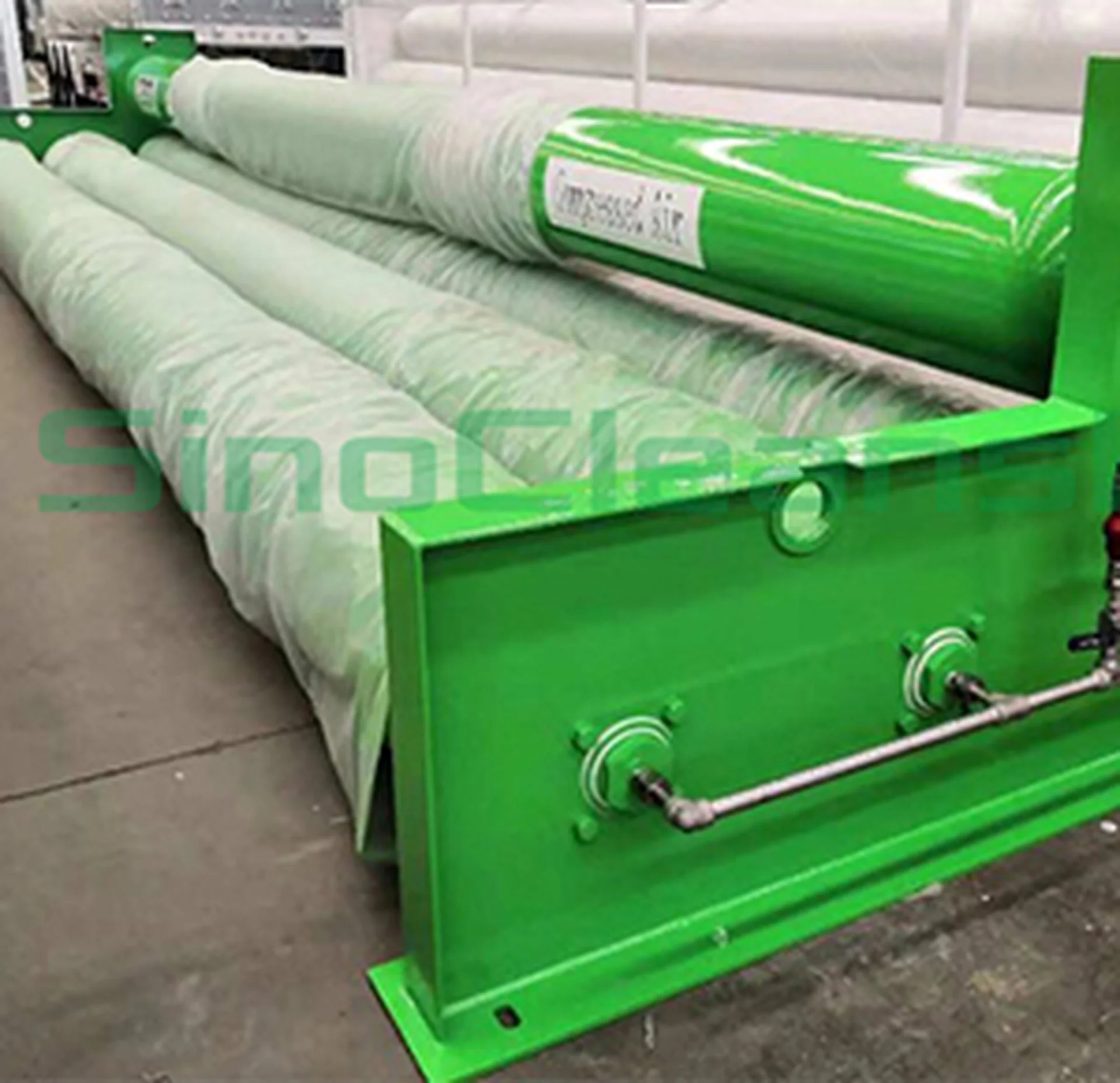

The jumbo cylinder cascade can be shipped by standard containers, open top containers, or bulk cargo based on sizes. The cylinder cascade will be delivered with special protection if in container.
Report & Certifications

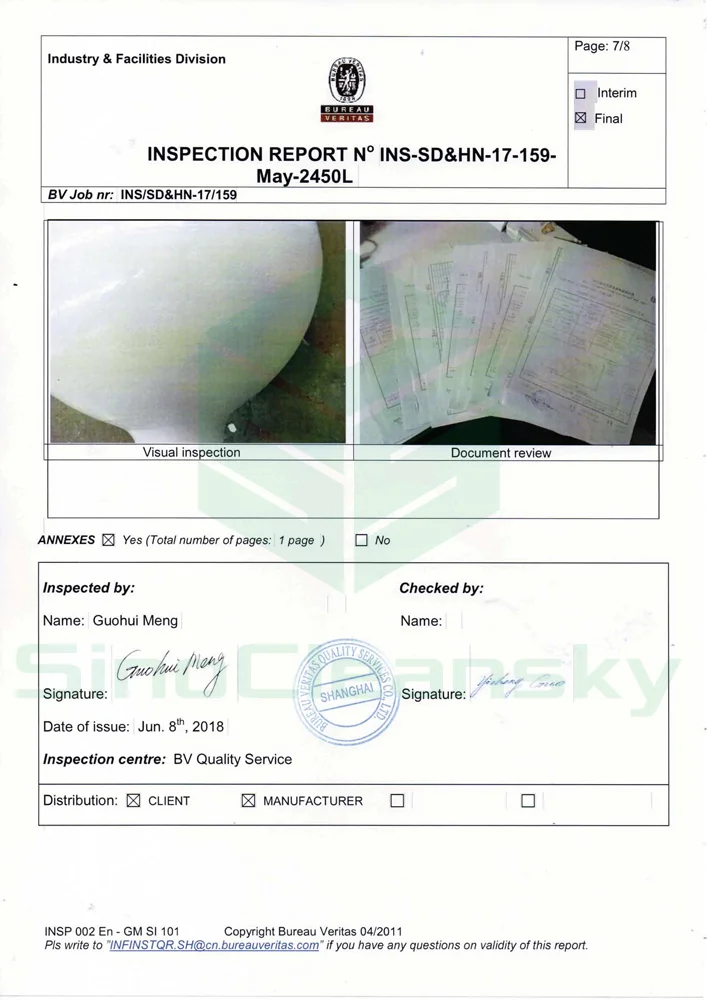

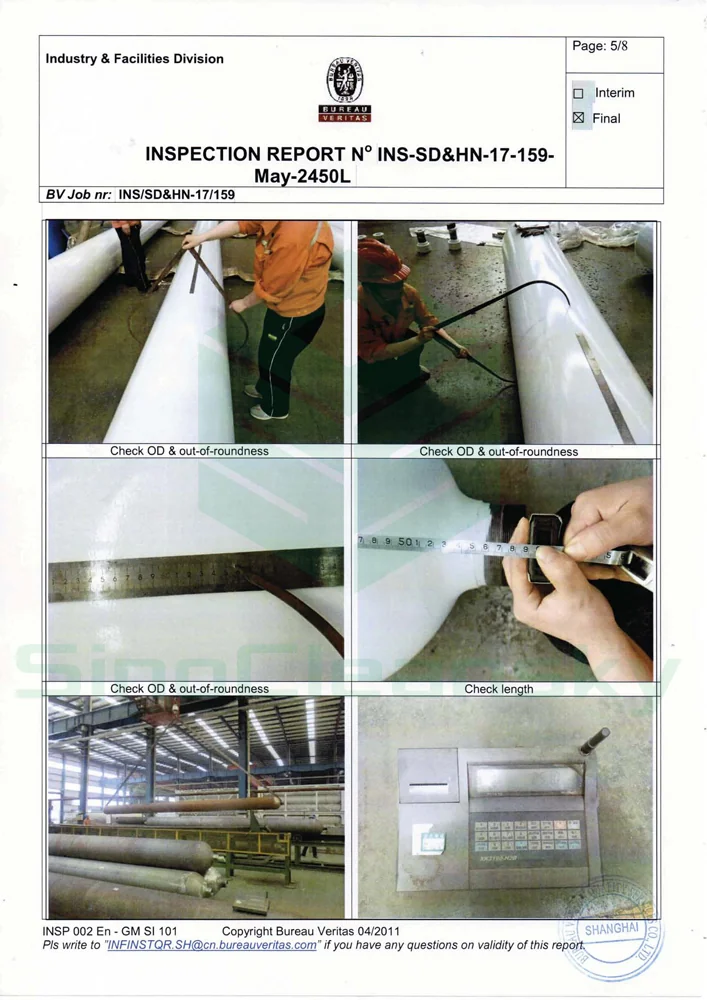

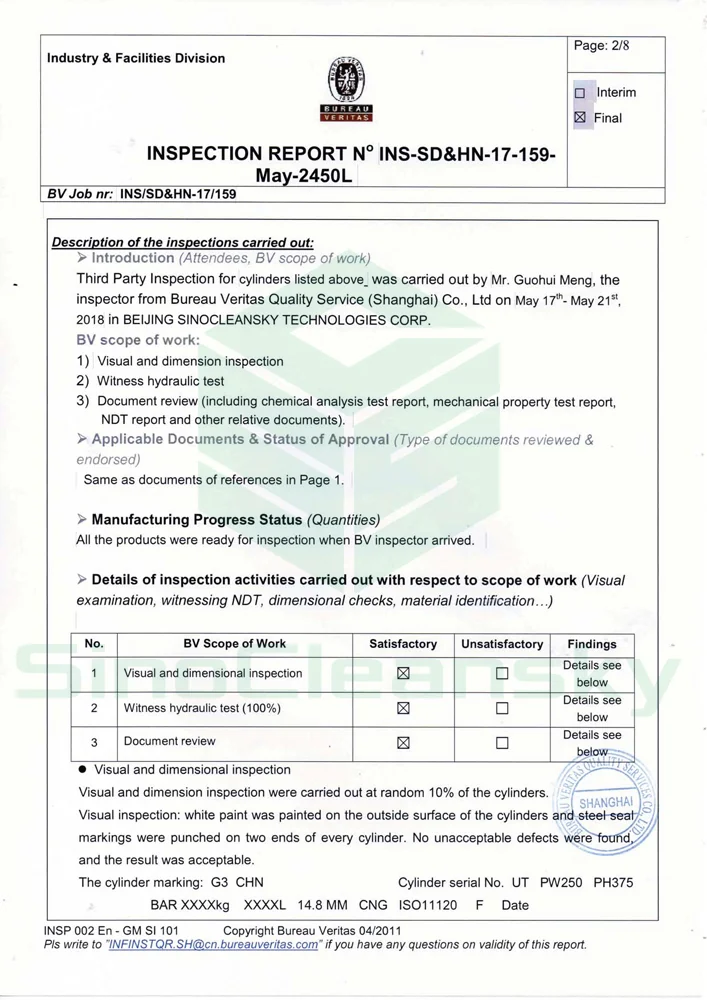

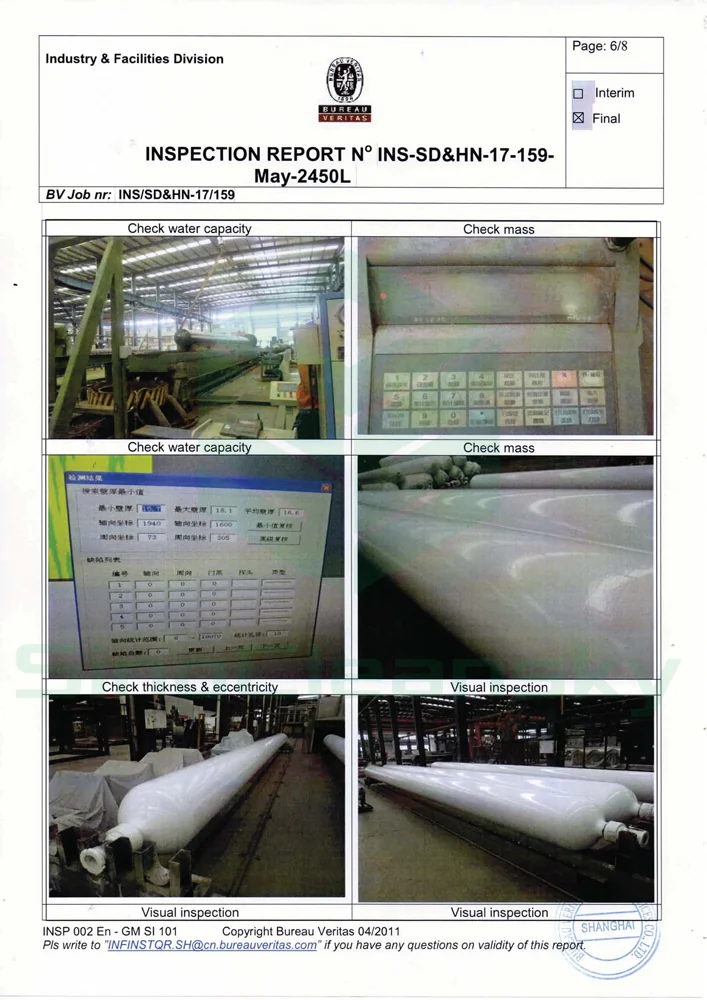

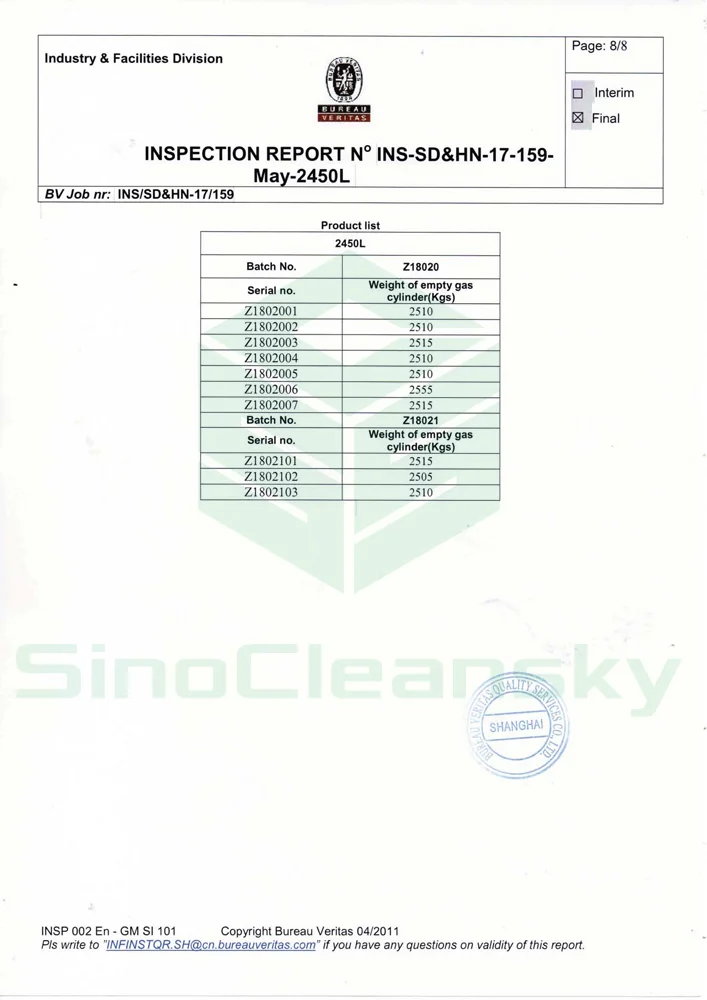

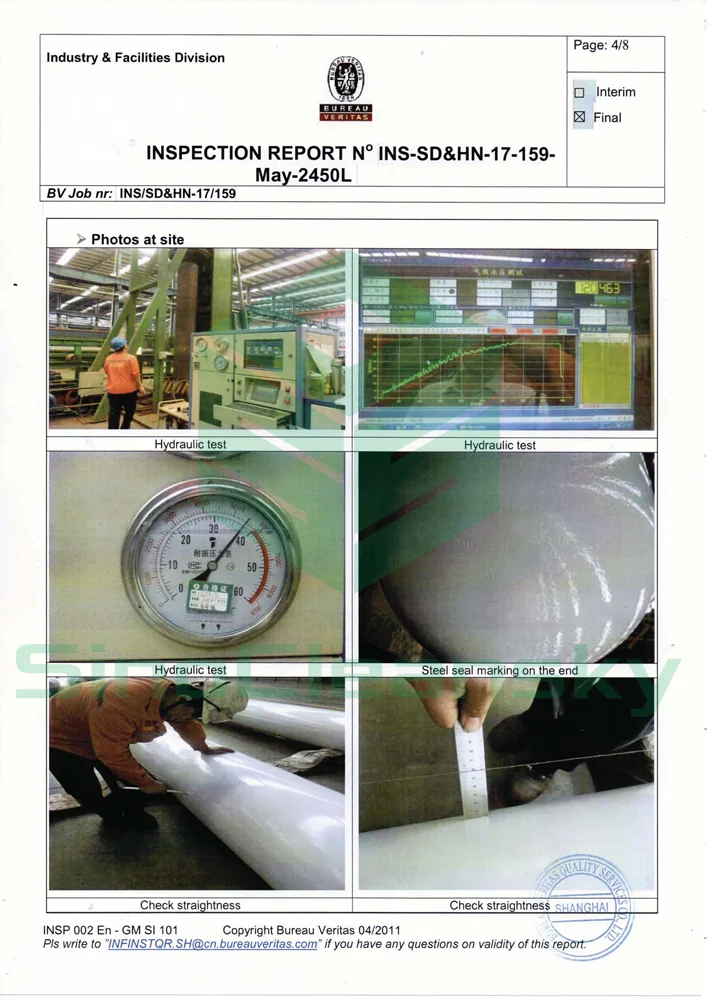

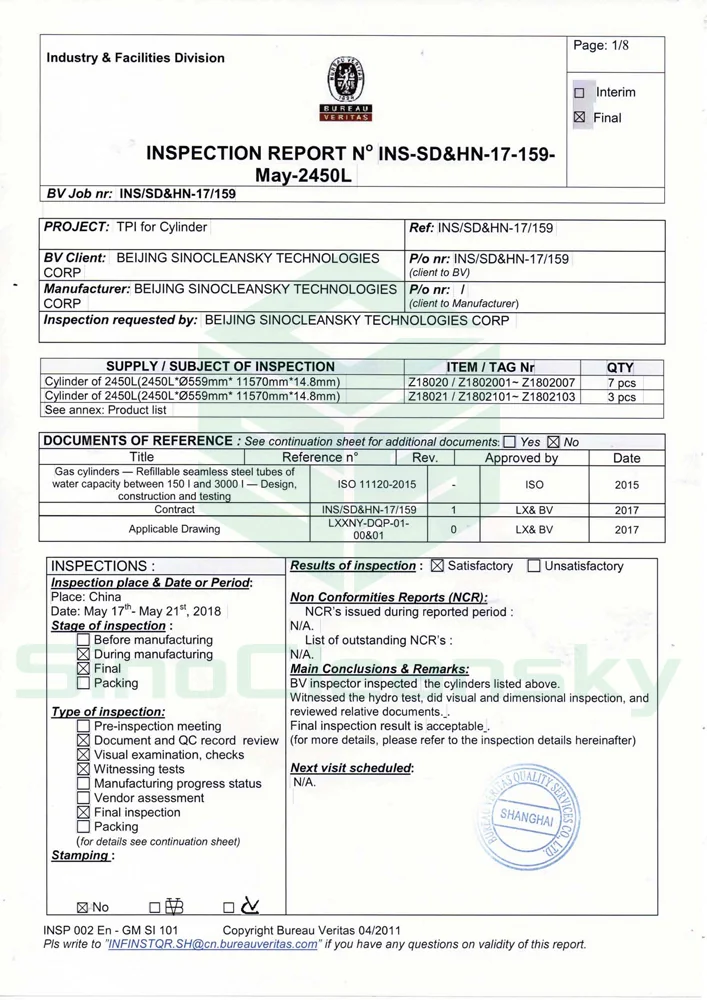

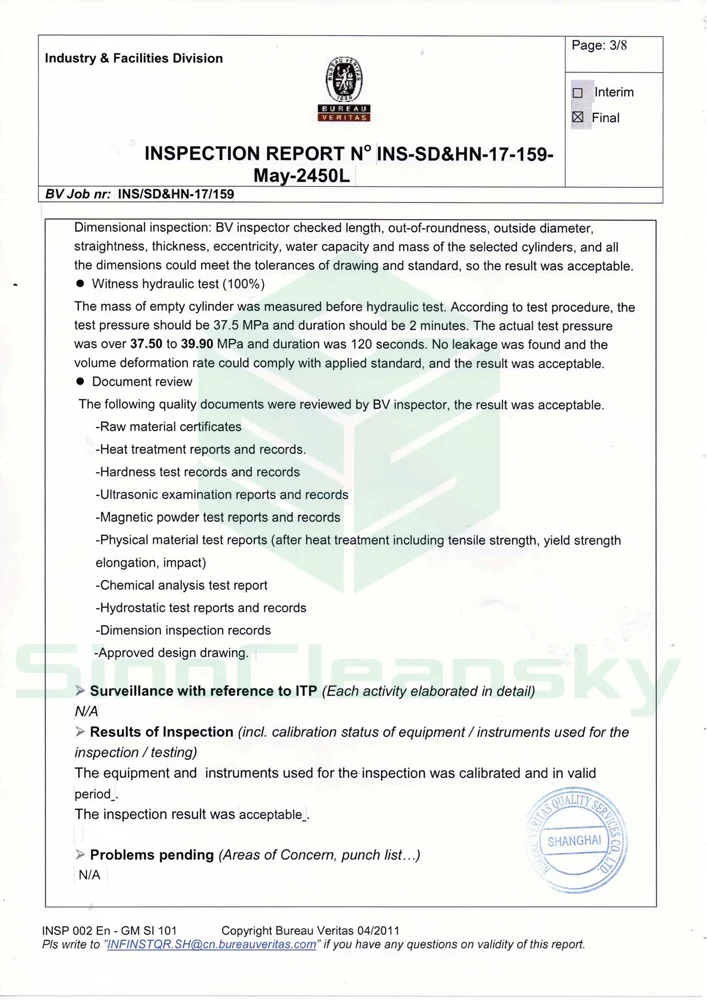

The cylinder cascade is with third-party test report and detailed factory report. The third-party test report includes test for each cylinder, and the test for the air tightness. The factory report will include Quality Certificate, Instruction Manual, Hydraulic test, etc.Reference BV Report :E-mail [email protected] to get more detailed test report specimen.
FAQs
We have an existing product list for you to check and choose; nOr you can tell us your required Filling medium / Working pressure / Water capacity, then we will recommend the suitable model for you;
The cylinder cascade can be used for CNG and various industrial gases such as Argon, Nitrogen, Helium, Hydrogen, Purified Gas etc.
For valve, we can provide Chinese brand or international brand (such as Parker, DK etc.).nFor other accessories, we can provide a list for you to check when you purchase from us.
Within 18 months from the date of shipment or within 12 months after installation (take the period that run out first as the deadline), under the premise of proper installation and use, we provide free repair service for product failures. nIf your order quantity is large, we can even send engineer to your premises.
