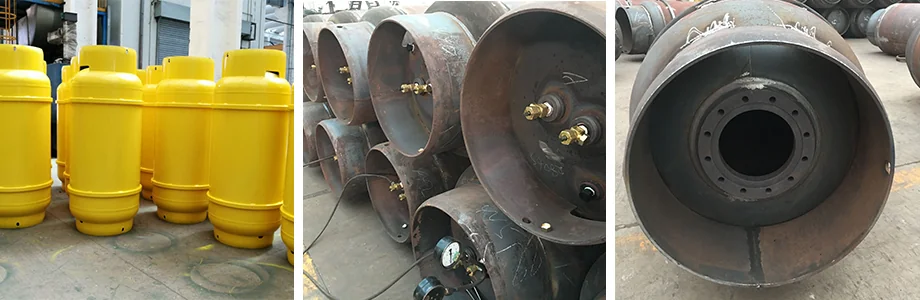

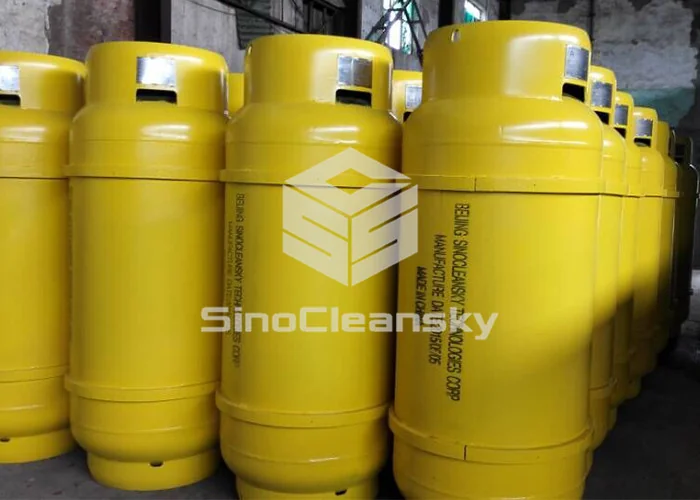

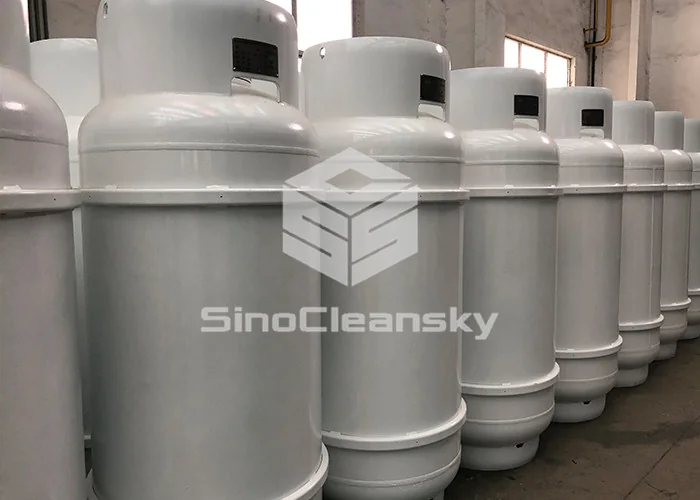

Liquid Ammonia Cylinder
• Manufacturing std: GB5100 / EN
• Outer diameter: 100mm – 800mm etc
• Water capacity: 40L – 840L
• Working pressure: 2Mpa, 3Mpa
• Optional: with or without flange design
Description
SinoCleansky provides a brand range of ammonia gas cylinder with GB5100, EN and other international standard, they are widely exported to worldwide, including Middle East, Southeast Asia, Africa, South America, South Asia, etc.
Technical Specifications
Liquid Ammonia Cylinder
|
Standard |
Water capacity |
Diameter |
Working pressure |
Media |
|
GB5100 / EN |
40L |
250 mm |
3 Mpa |
21kgs Liquid Ammonia |
|
GB5100 / EN |
100L |
350 mm |
3 Mpa |
53kgs Liquid Ammonia |
|
GB5100 / EN |
130L |
350 mm |
3 Mpa |
68.9kgs Liquid Ammonia |
|
GB5100 / EN |
400L |
600 mm |
3 Mpa |
212kgs Liquid Ammonia |
|
GB5100 / EN |
800L |
800 mm |
3 Mpa |
424kgs Liquid Ammonia |

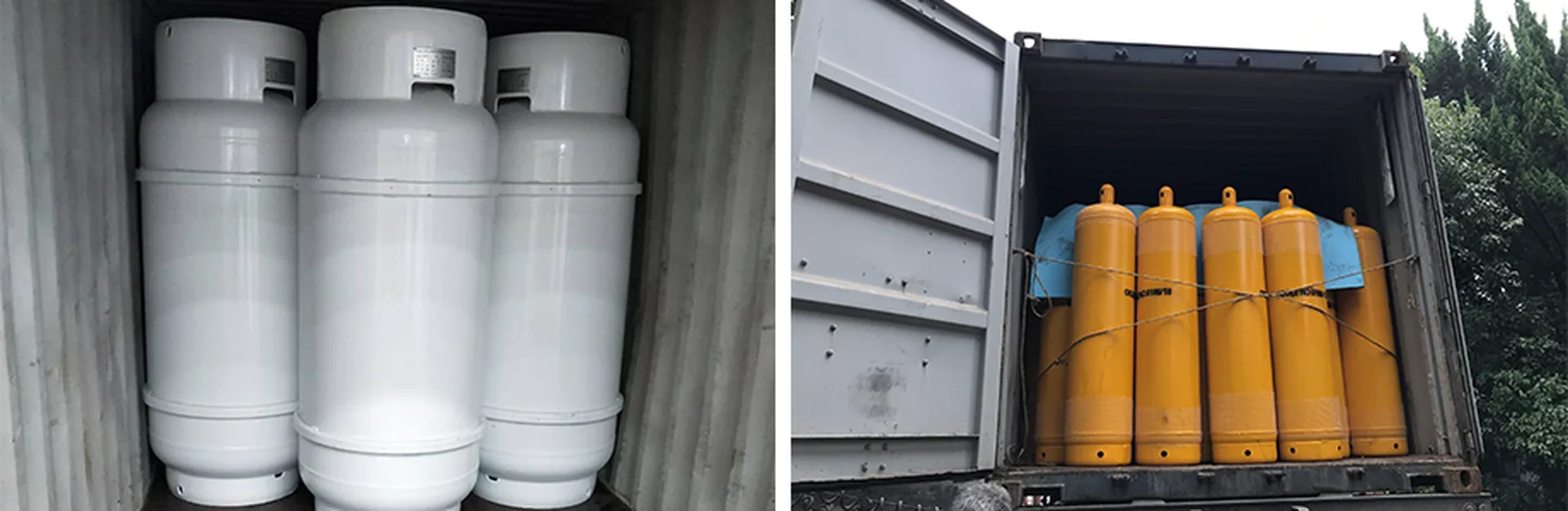

Packaging & Shipping
All the cylinders will be packed carefully for protection. And the cylinders can be delivered with pallet, or loose in container.
Report & Certifications
Cylinders are delivered with detailed test report, and as per the different standard, we provide LRS, or BV Test Report and Factory Test Report.

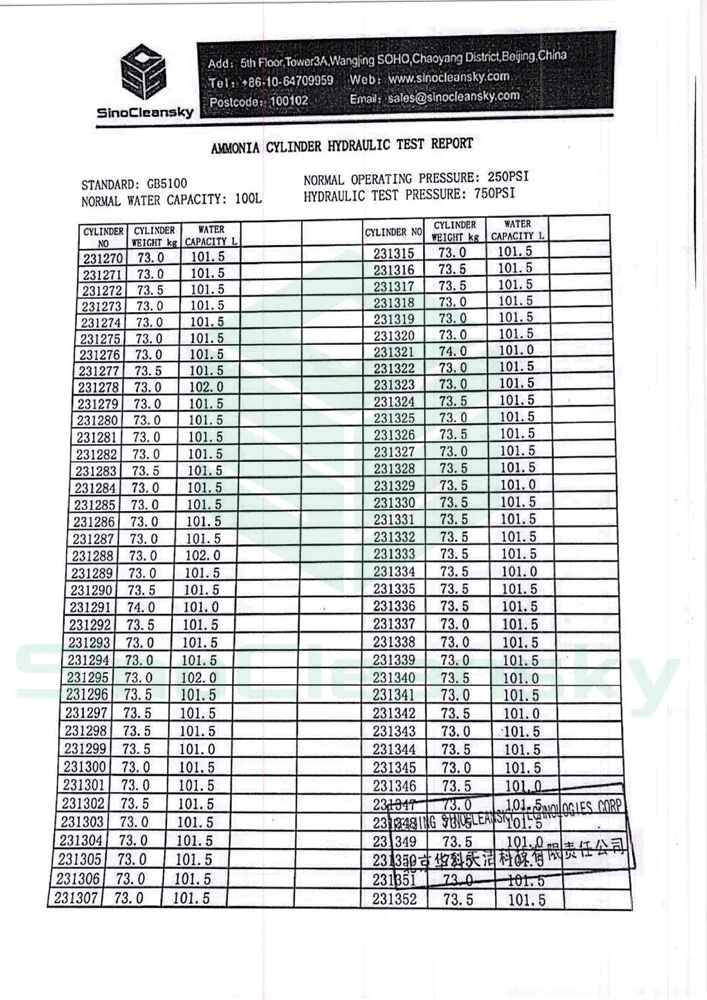

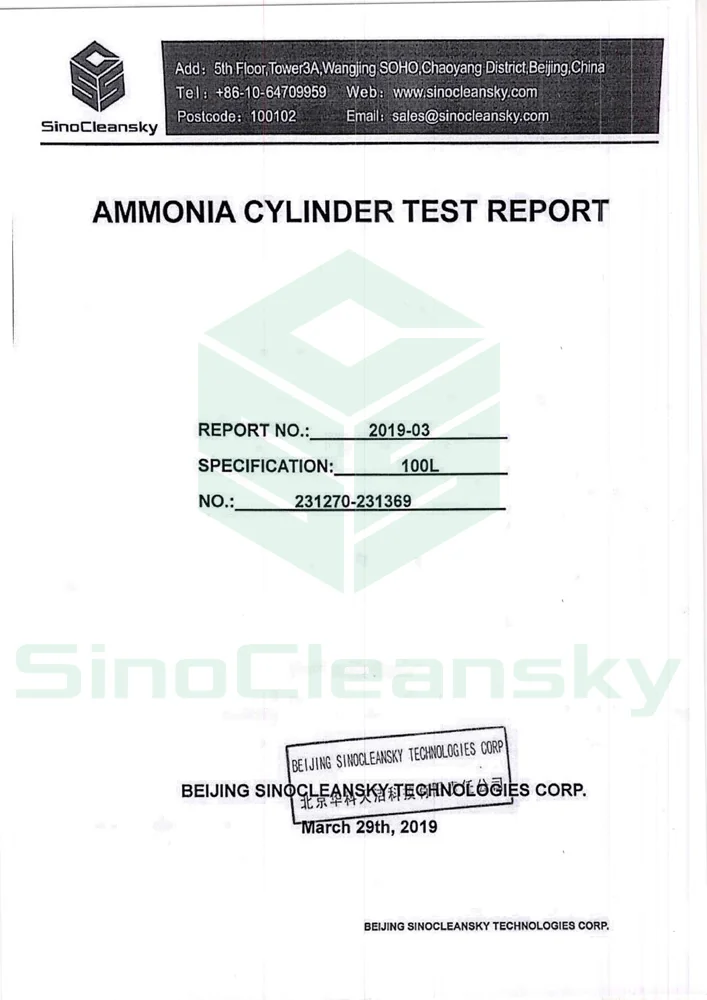

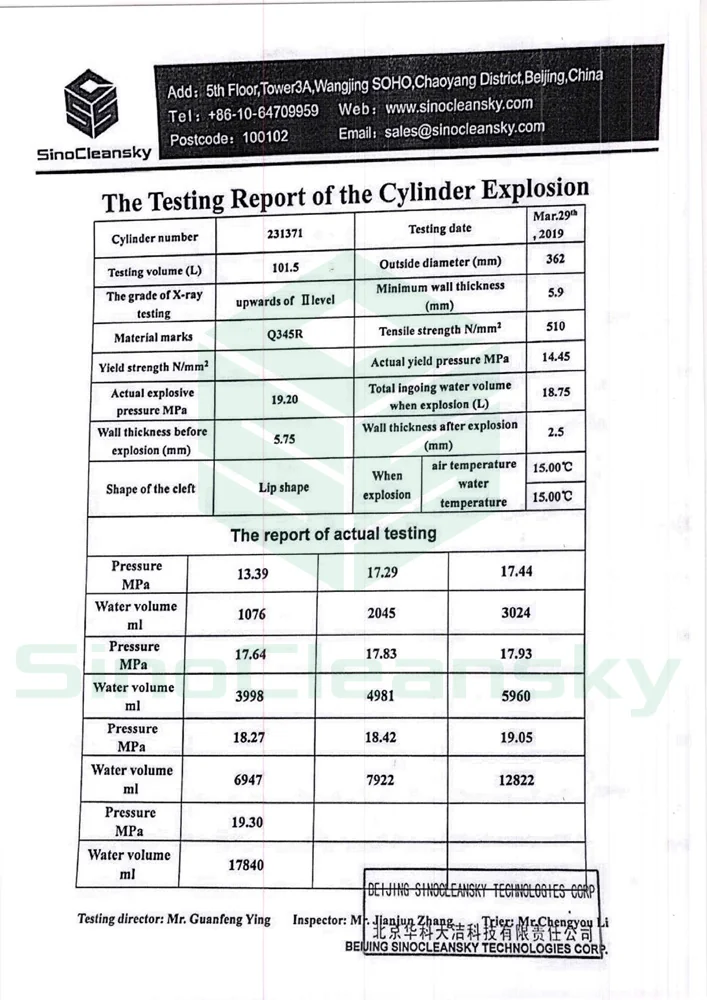

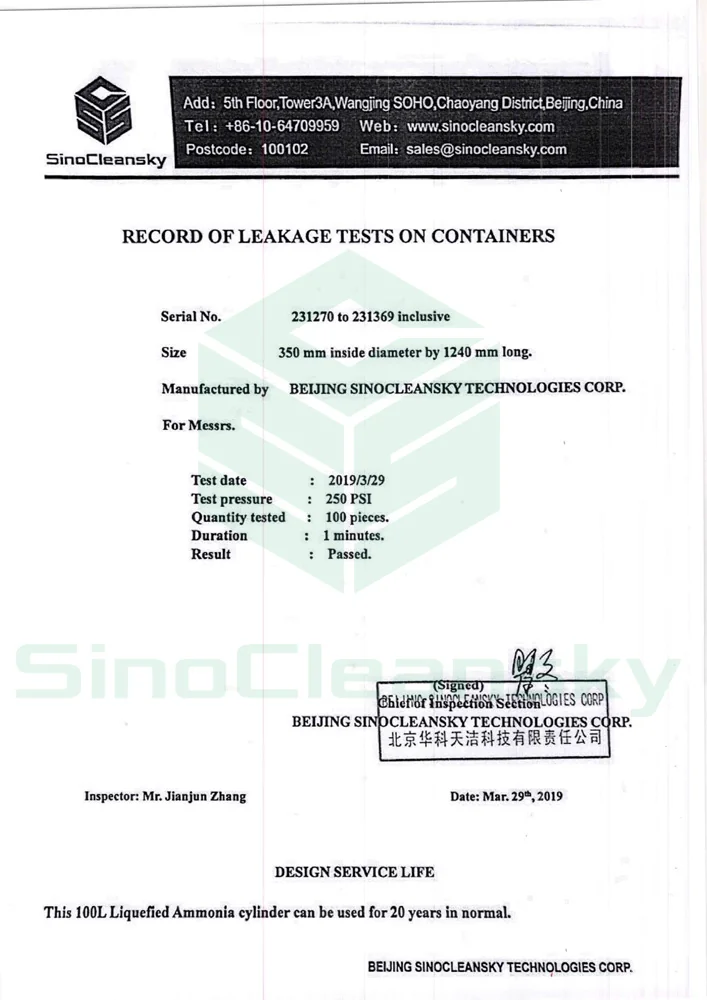

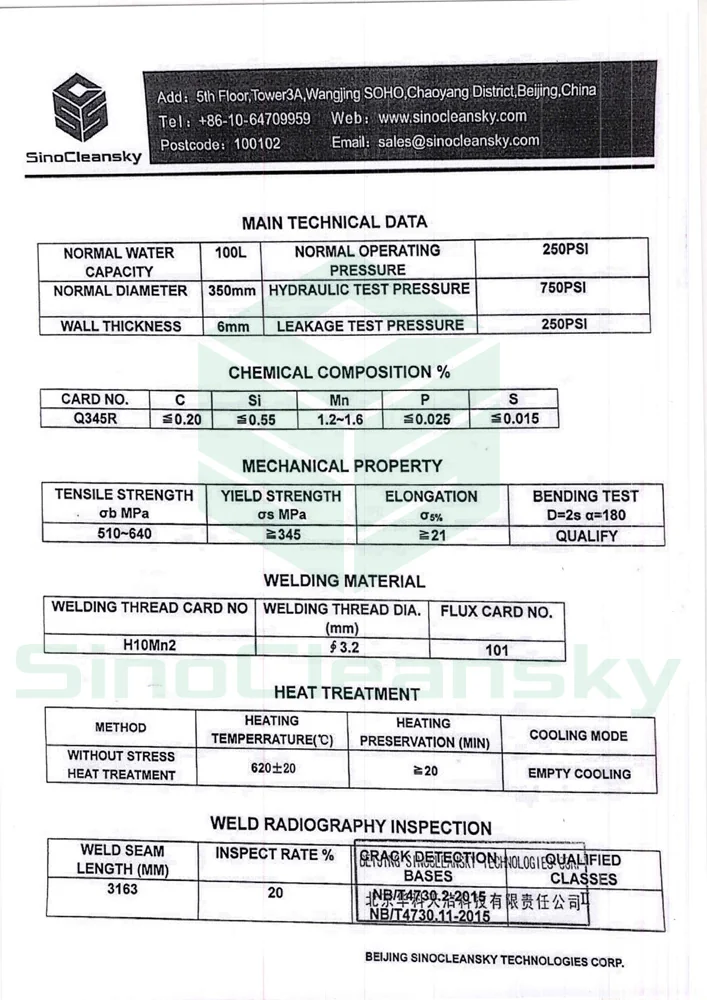

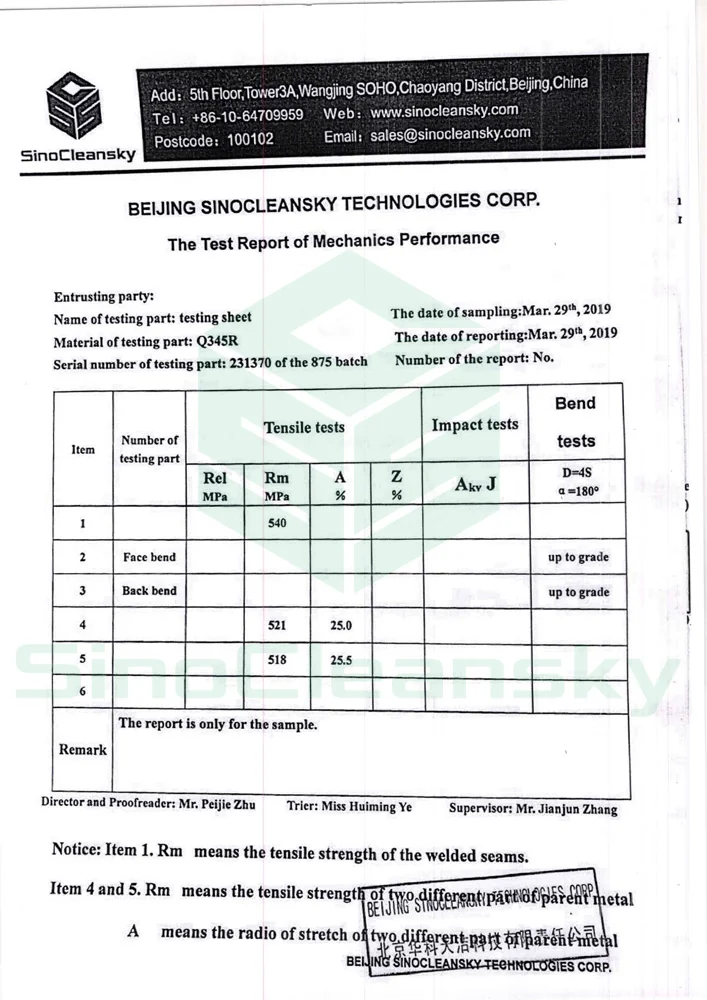

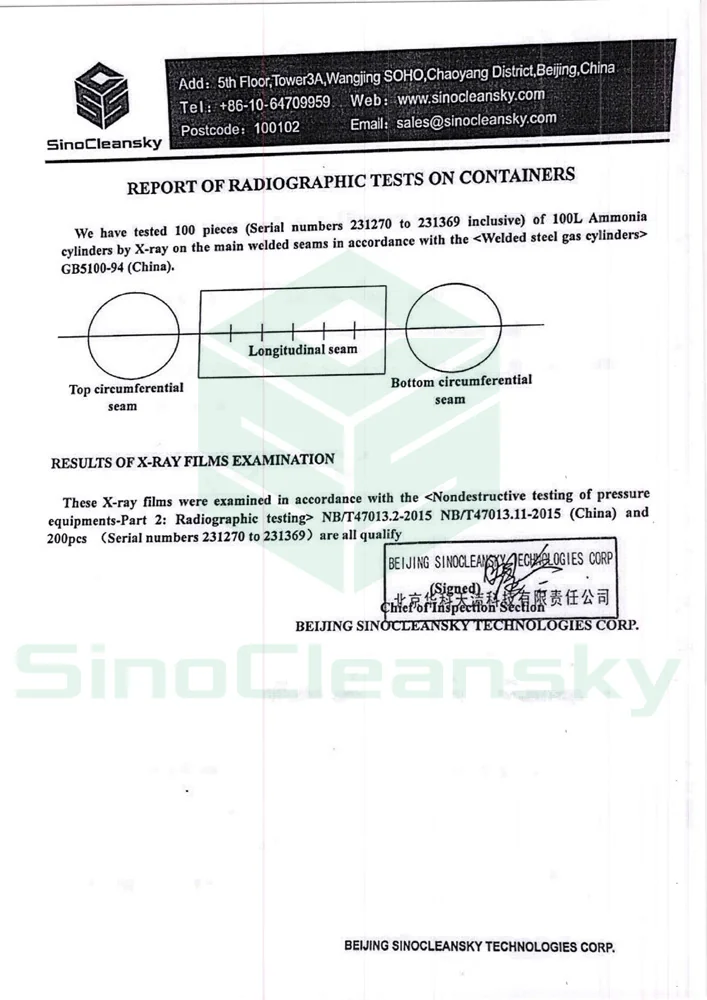

Reference factory test report:
E-mail [email protected] to get more detailed test report specimen.
FAQs
As customized service, with or without flange is optional. And Special design to meet customer’s request.
Generally, the cylinders will be shipped by container, the loading quantity is 17pcs in 20GP, and 38pcs in 40GP, all with 800L cylinder.
We provide the Third-part Lloyd’s Test Report (LRS), or BV test report.
