Liquid Chlorine Cylinder
• Manufacturing std: ISO9809 / GB5100 / EN
• Outer diameter: 100mm – 800mm etc
• Water capacity: 40L – 840L
• Working pressure: 2Mpa, 3Mpa, ect
• Optional: with or without flange design
Description
SinoCleansky provides a brand range of chlorine gas cylinder with GB5100, EN and other international standard, they are widely exported to worldwide, including Middle East, Southeast Asia, Africa, South America, South Asia, etc. From chlorine cylinder of 52L (65kgs) to 840L (1000kgs), to big tank for seawater filter, SinoCleansky customizes engineering solutions in water treatment.
Technical Specifications
Liquid Chlorine Cylinder
Typical Types
|
Standard |
Water capacity |
Diameter |
Working pressure |
Media |
|
GB5100 / EN |
52L |
232mm |
2 Mpa |
65kgs Liquid Chlorine |
|
GB5100 / EN |
128L |
350mm |
2 Mpa |
160kgs Liquid Chlorine |
|
GB5100 / EN |
400L |
600 mm |
2 Mpa |
500kgs Liquid Chlorine |
|
GB5100 / EN |
840L |
824 mm |
2 Mpa |
1000kgs Liquid Chlorine |
|
GB5100 |
840L |
824 mm |
3.3 Mpa |
1000kgs Liquid Chlorine |
Packaging & Shipping

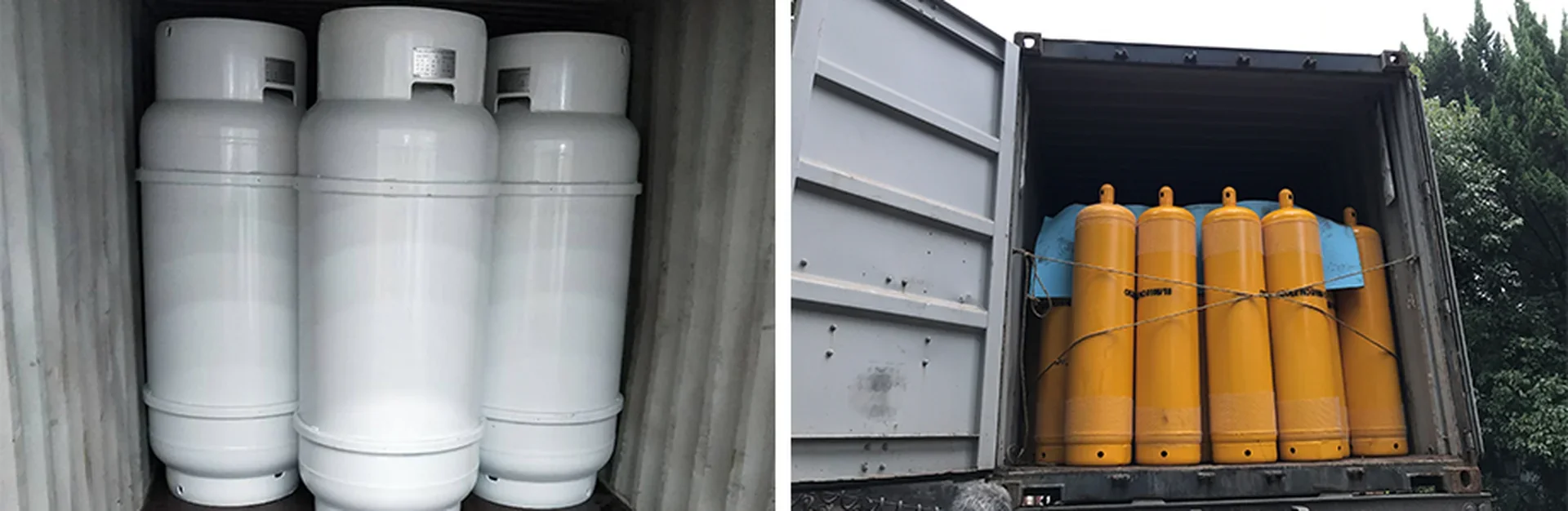

All the cylinders will be packed carefully for protection. And the cylinders can be delivered with pallet, or loose in container.
Report & Certifications
Cylinders are delivered with detailed test report, and as per the different standard, we provide LRS, or BV Test Report and Factory Test Report.

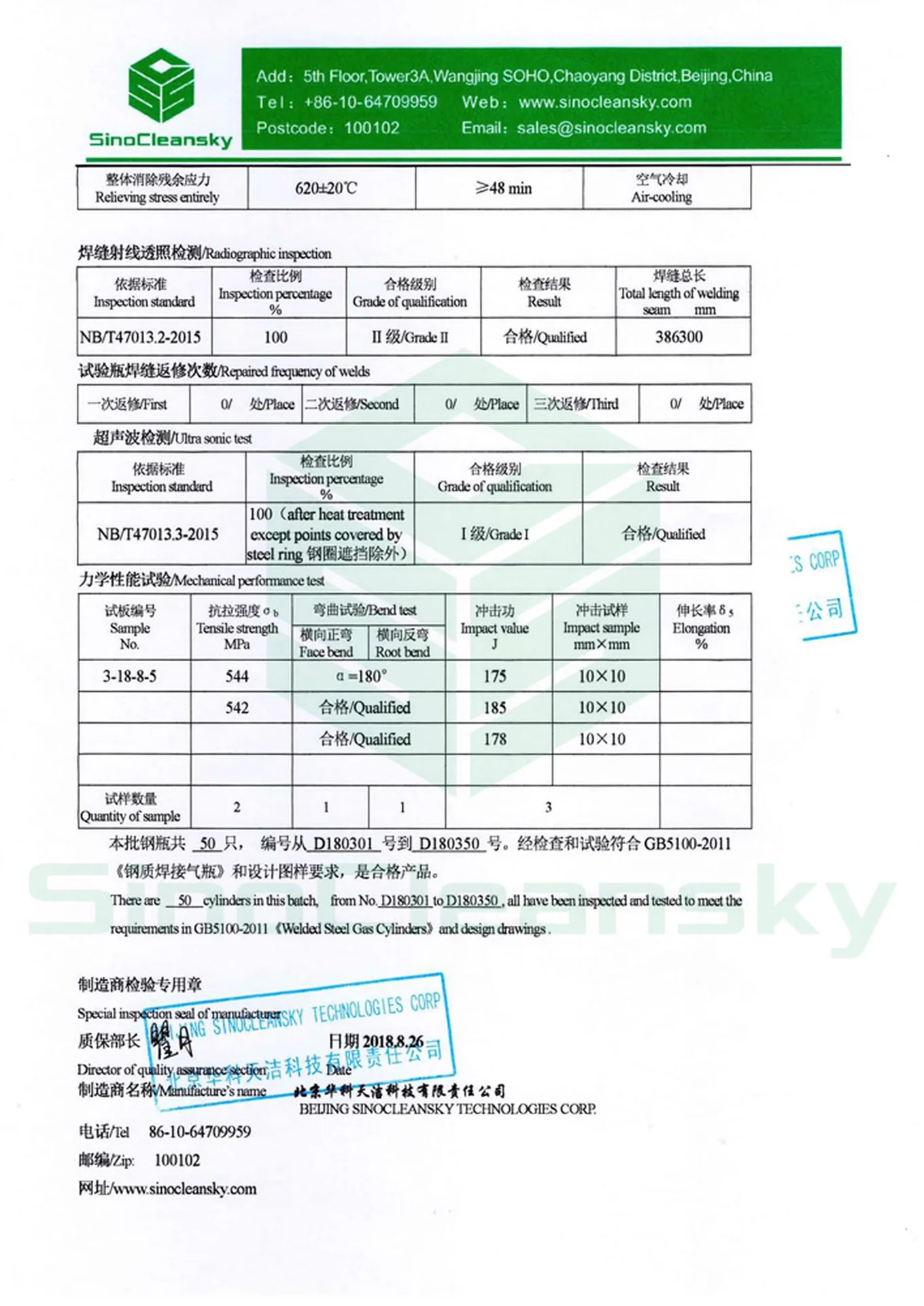

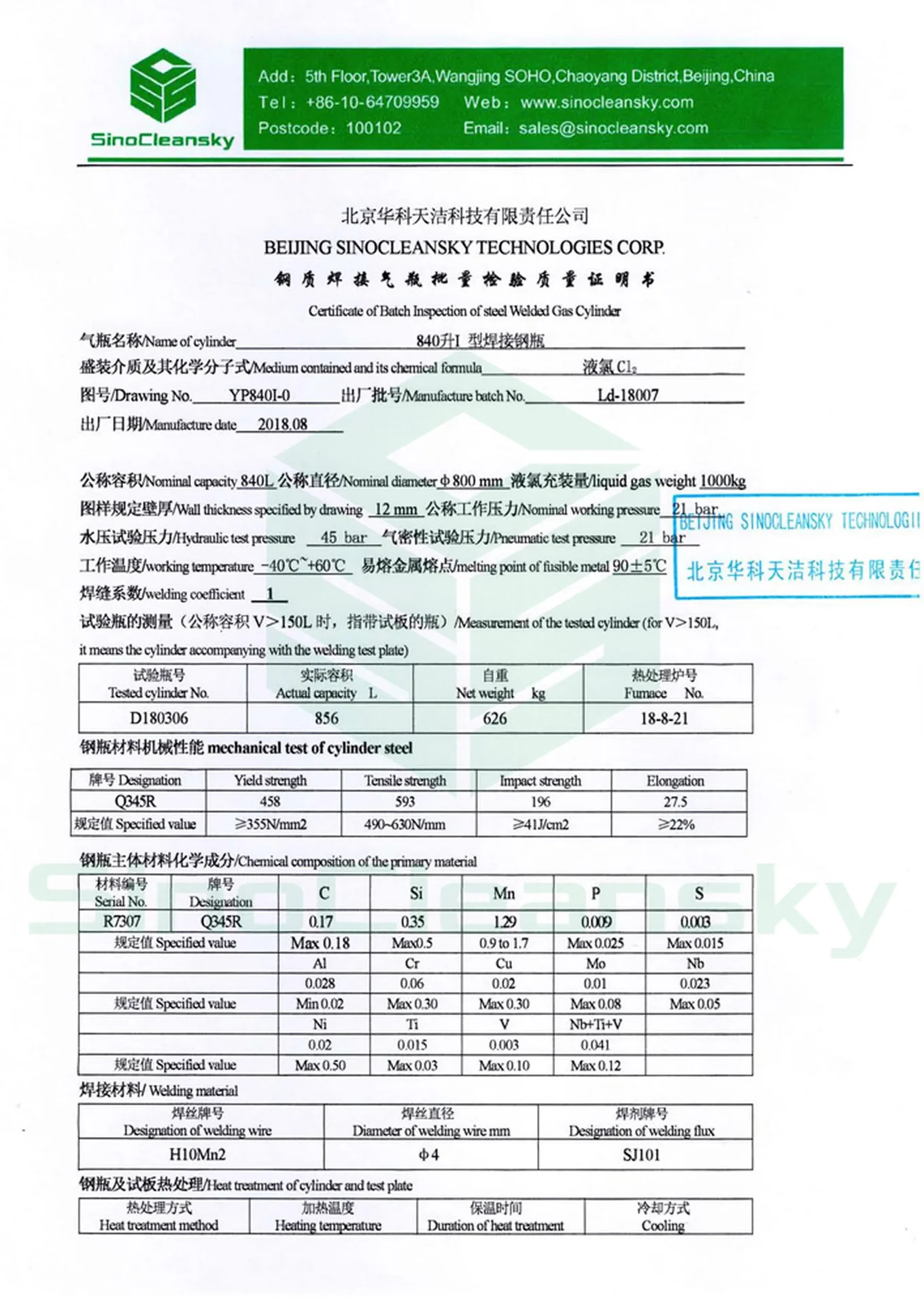

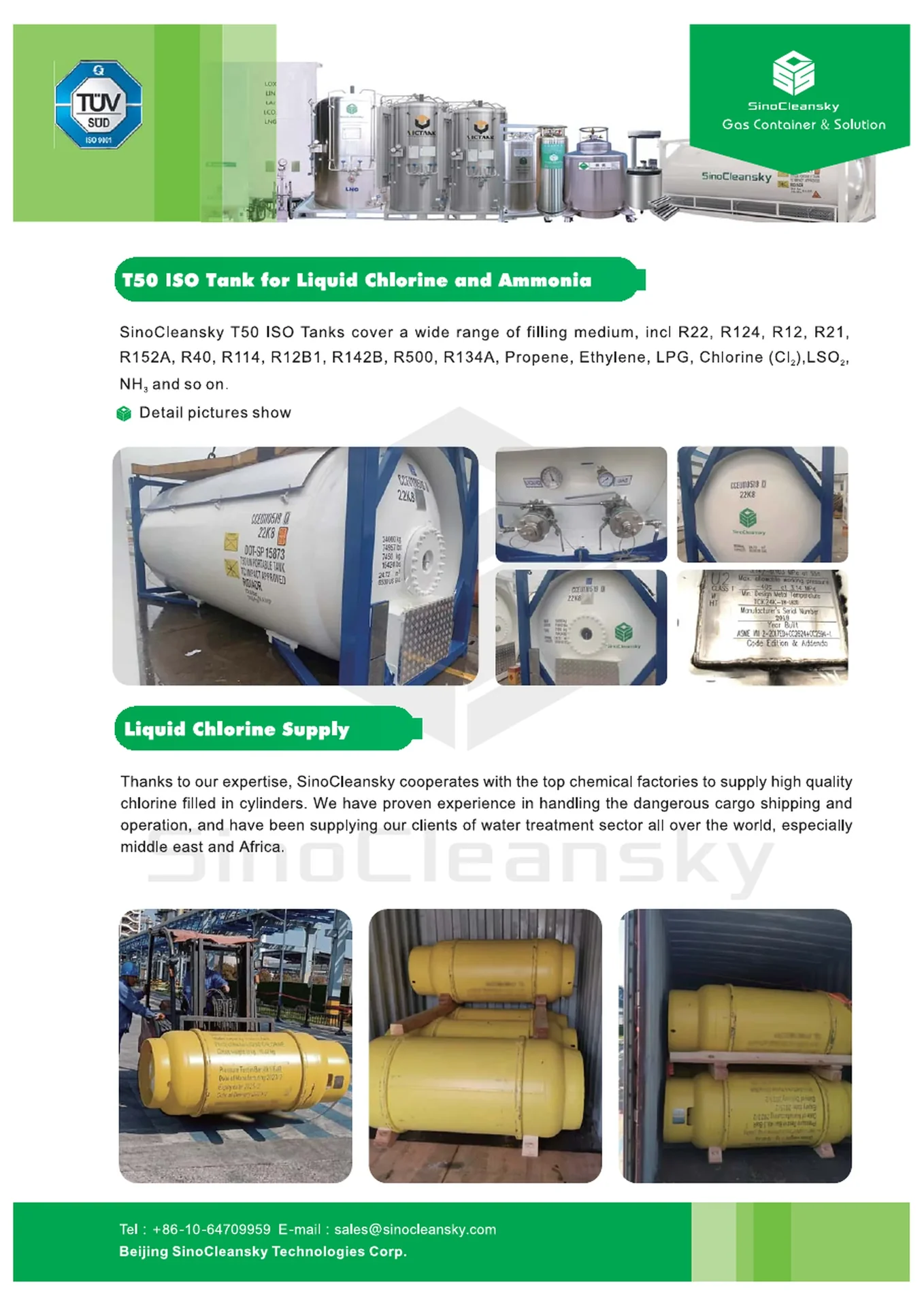

Reference factory test report:
E-mail [email protected] to get more detailed test report specimen.
FAQs
As customized service, with or without flange is optional. And Special design to meet customer’s request.
Generally, the cylinders will be shipped by container, the loading quantity is 17pcs in 20GP, and 38pcs in 40GP, all with 840L cylinder.
We provide the Third-part Lloyd’s Test Report (LRS), or BV test report.
