LNG T75 ISO Tank Container
• Technology: high-vacuum multi-layer insulation.
• Application: LNG storage and transportation.
• Standard: GB150, EN13530, ASME and other international standards.
• Lloyd’s Register CSC Certificate, BV Certificate and CCS Certificate.
Description
SinoCleansky intermodal containers are produced as per GB150, EN13530, ASME and other international standards, with Lloyd’s Register CSC Certificate, BV Certificate and CCS Certificate, and offer a rugged, durable construction with a highly efficient insulation system for maximum hold times.
The goods are widely used to transport cryogenic bulk LNG – worldwide by ship, railway or road. Our ISO Containers are available in a wide range of working pressures from 0.8-2.2MPa.
Technical Specifications
LNG T75 ISO Tank Container
|
standard |
Type number |
Filling medium |
Working pressure |
Water capacity |
Material Inner / outer vessel |
|
EN13530 |
TSCSC-D22B (T75-20FT-18BAR) |
LNG |
1.8MPa |
21.7M3 |
1.4315/Q345R |
|
EN13530 |
TCSCS-A21A (T75-20FT-22BAR) |
LNG |
2.2MPa |
21.4M3 |
1.4315/Q345R |
|
ASME |
TCSCS-FA-2019-13 ( T75-20FT-16BAR) |
LNG |
1.6MPa |
20.4M3 |
/ |
|
ASME |
TCSCS-U46F (T75-40FT-8BAR) |
LNG |
0.8MPa |
45.7M3 |
SA240M/Q345R |
Packaging & Shipping
The container is with container number and ship directly.
Report & Certifications

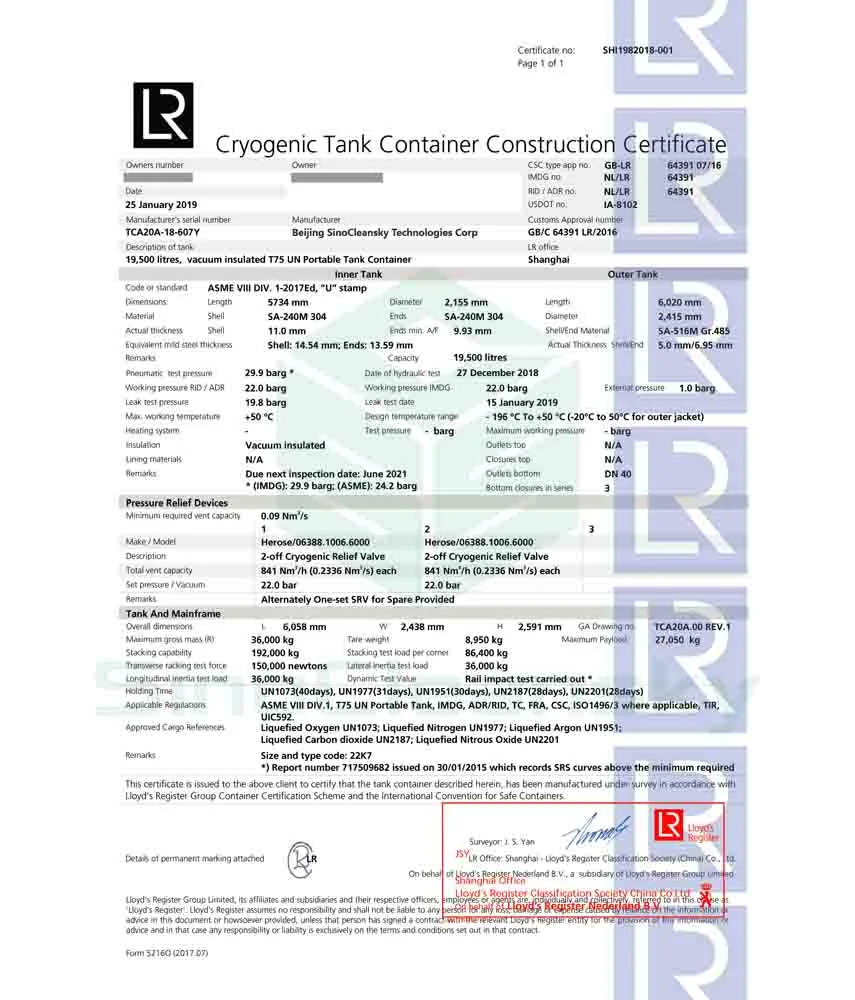

The containers are with Product Inspection Certificate, General Assembly drawing, tank container Flow Chart Scheme, User manual, Strength calculation certificate and etc, the third-party Lloyd’s RegisterCSC Certificate or CCS Certificate.Reference LRS CSC Certificate:E-mail [email protected] to get more detailed test report specimen.LRS CSC Certificate
FAQs
Pls indicate the parameters of the container you need, incl manufacture standard, working pressure, filling medium (only one kind of medium or various medium), pls also indicate the quantity you need.Usually we can provide 8-22bar working pressure for LNG. The sizes incl 20ft and 40ft.
The manufacture standards incl EN, ASME, GB, and we also provide Lloyd’s Register CSC Certificate, BV certificate or CCS Certificate.
We can provide China valves and International valves. And we will provide valve list once confirmed.
