Microbulk Delivery
• Standard: ASME
• Water capacity: 1m3 to 36 m3
• Working pressure: 3bar to 25bar
• Gas Medium: LIN (liquid nitrogen), LOX (liquid oxygen), LAR (liquid argon), LCO2, LNG
• For delivery and transport of the industrial gases and natural gas
Description

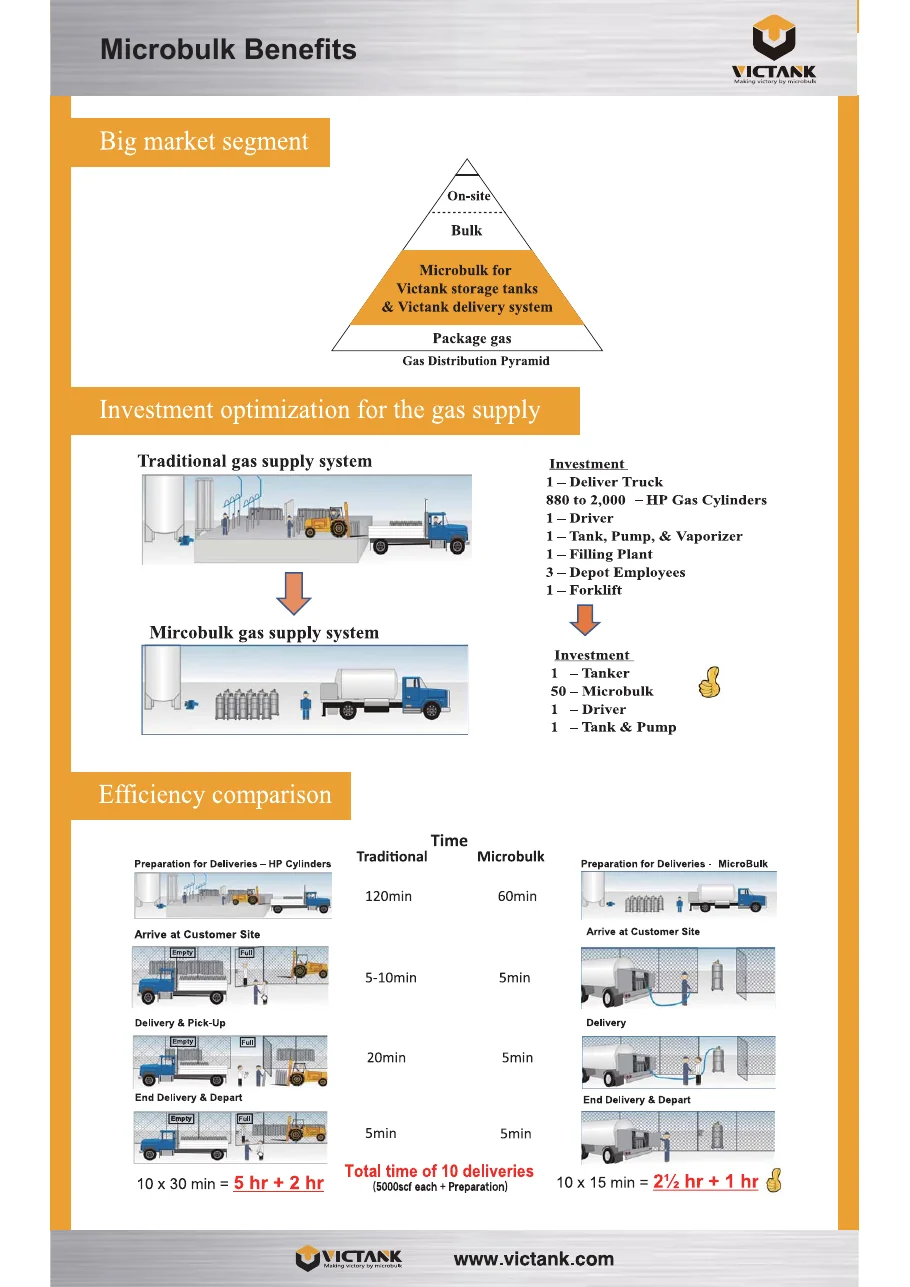

Instead of operating numbers of high pressure gas cylinders or dewar cylinders, microbulk provides solution for filling gas on-site. Microbulk delivery system is more reliable, safe, efficient and economical.
SinoCleansky Microbulk delivery system has many different types design to meet the clients request. The clients can handle gas distribution business with efficiency, economy and effectiveness.
Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG.

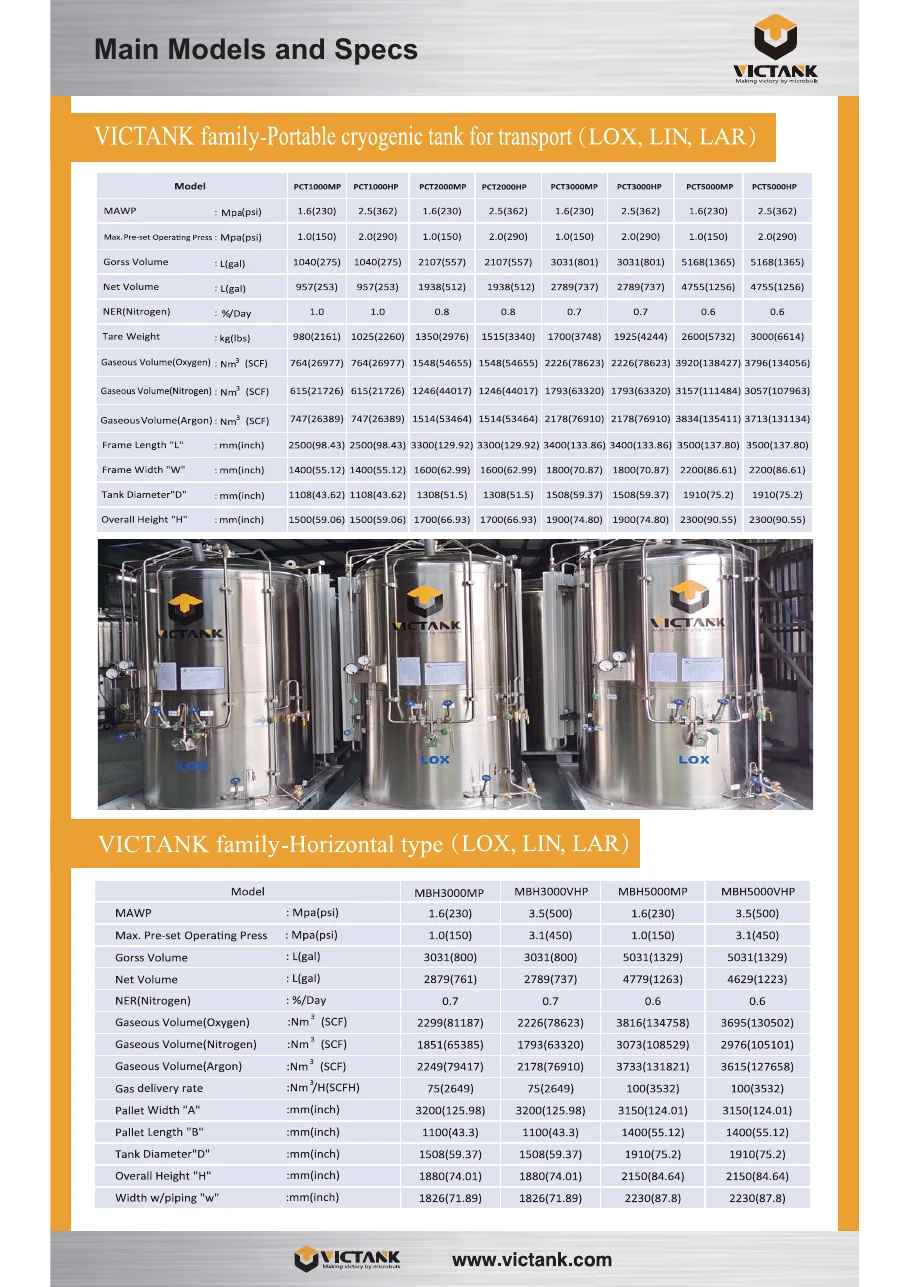

Technical Specifications
Portable cryogenic tanker
| Model | PCT1000MP | PCT1000HP | PCT2000MP | PCT2000HP | PCT3000MP | PCT3000HP | PCT5000MP | PCT5000HP |
| MAWP (MPa) | 1.6 | 2.5 | 1.6 | 2.5 | 1.6 | 2.5 | 1.6 | 2.5 |
| Gorss Volume (L) | 1040 | 1040 | 2107 | 2107 | 3031 | 3031 | 5168 | 5168 |
| Net Volume (L) | 957 | 957 | 1938 | 1938 | 2789 | 2789 | 4755 | 4755 |
| NER (N2) %/day | 1 | 1,0 | 0.8 | 0.8 | 0.7 | 0.7 | 0.6 | 0.6 |
| Tare Weight (kg) | 980 | 1025 | 1350 | 1515 | 1700 | 1925 | 2600 | 3000 |
| Frame Length (mm) | 2500 | 2500 | 3300 | 3300 | 3400 | 3400 | 3500 | 3500 |
| Frame Width (mm) | 1400 | 1400 | 1600 | 1600 | 1800 | 1800 | 2200 | 2200 |
| Overall Height (mm) | 1500 | 1500 | 1700 | 1700 | 1900 | 1900 | 2300 | 2300 |
Remark: customized service available

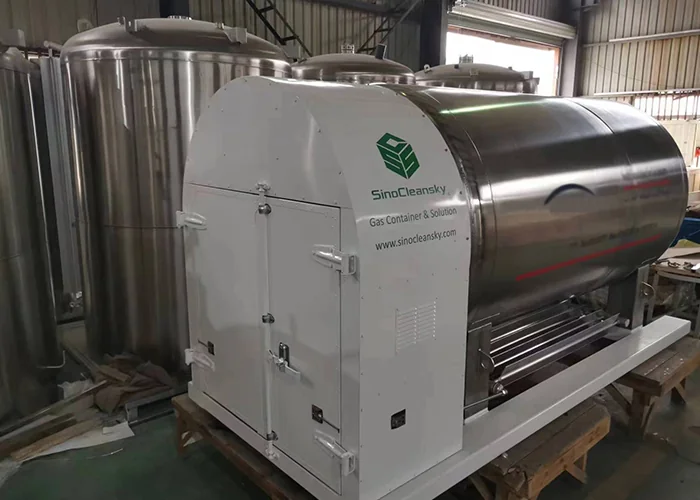

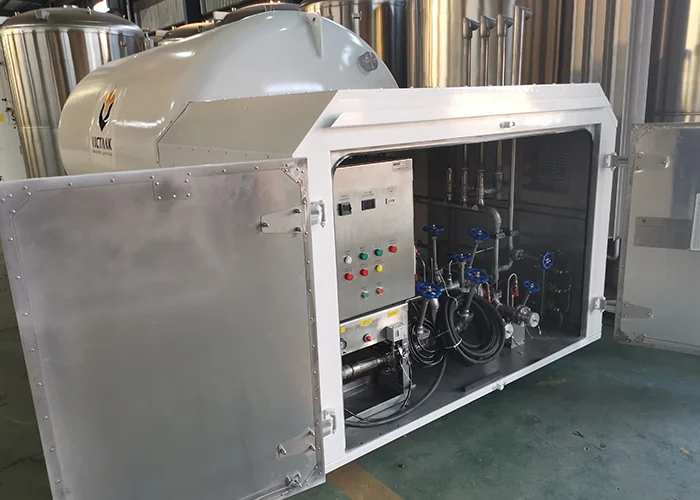

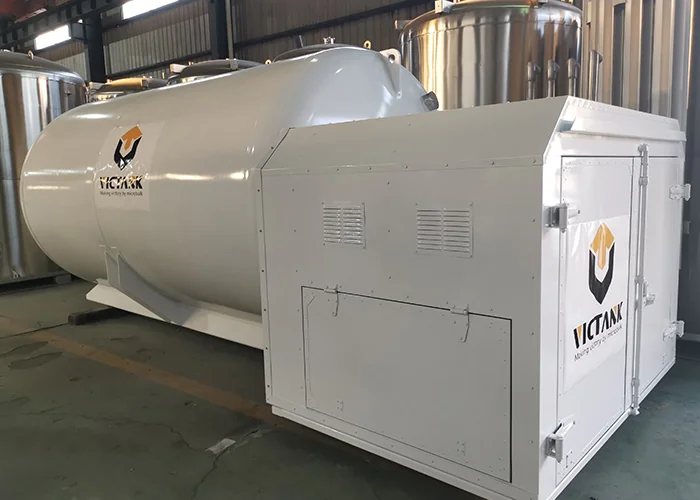

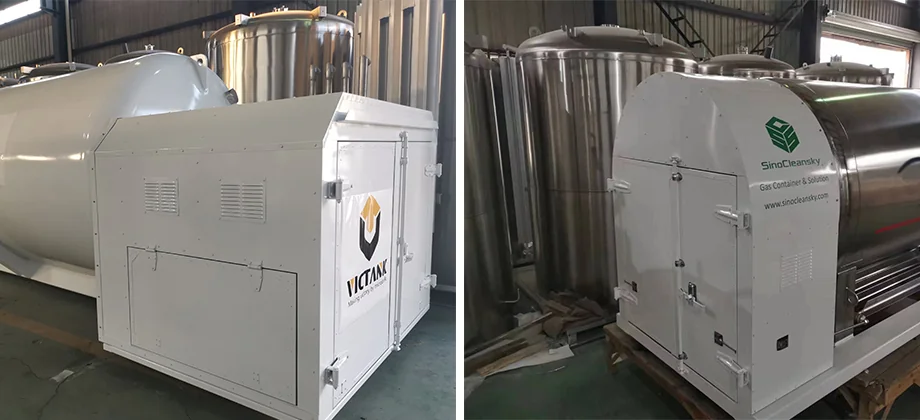

Cryogenic tanker with pump
| Model | LT6/0.4 | LT8/0.8 | LT11.7/0.4 | LT13/0.8 | LT24/0.3 | LT36/0.4 |
| MAWP (MPa) | 0.4 | 0.8 | 0.4 | 0.8 | 0.3 | 0.4 |
| Gorss Volume (L) | 6100 | 8350 | 11680 | 13000 | 24000 | 36000 |
| Tare Weight (kg) | 2925 | 3800 | 4300 | 5400 | 6500 | 9000 |
| Frame Length (mm) | 5186 | 6288 | 6462 | 7042 | 10593 | 12356 |
| Frame Width (mm) | 2008 | 2220 | 2220 | 2220 | 2220 | 2308 |
| Overall Height (mm) | 1986 | 1986 | 2179 | 2179 | 2267 | 2447 |
| Pump | Cryostar | Cryostar | Cryostar | Cryostar | Cryostar | Cryostar |
Remark: customized service available
Packaging & Shipping

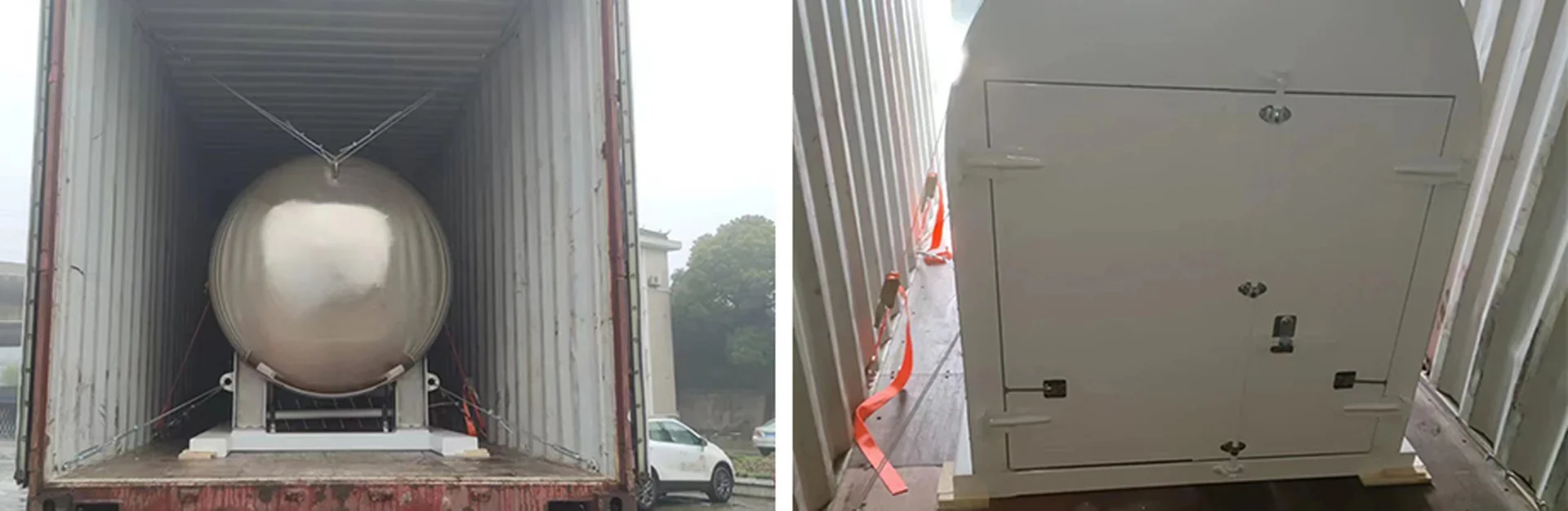

The equipment can be shipped by different type of container such as GP, OT, FR, and if bigger size, it needs to be delivered by bulk vessel.

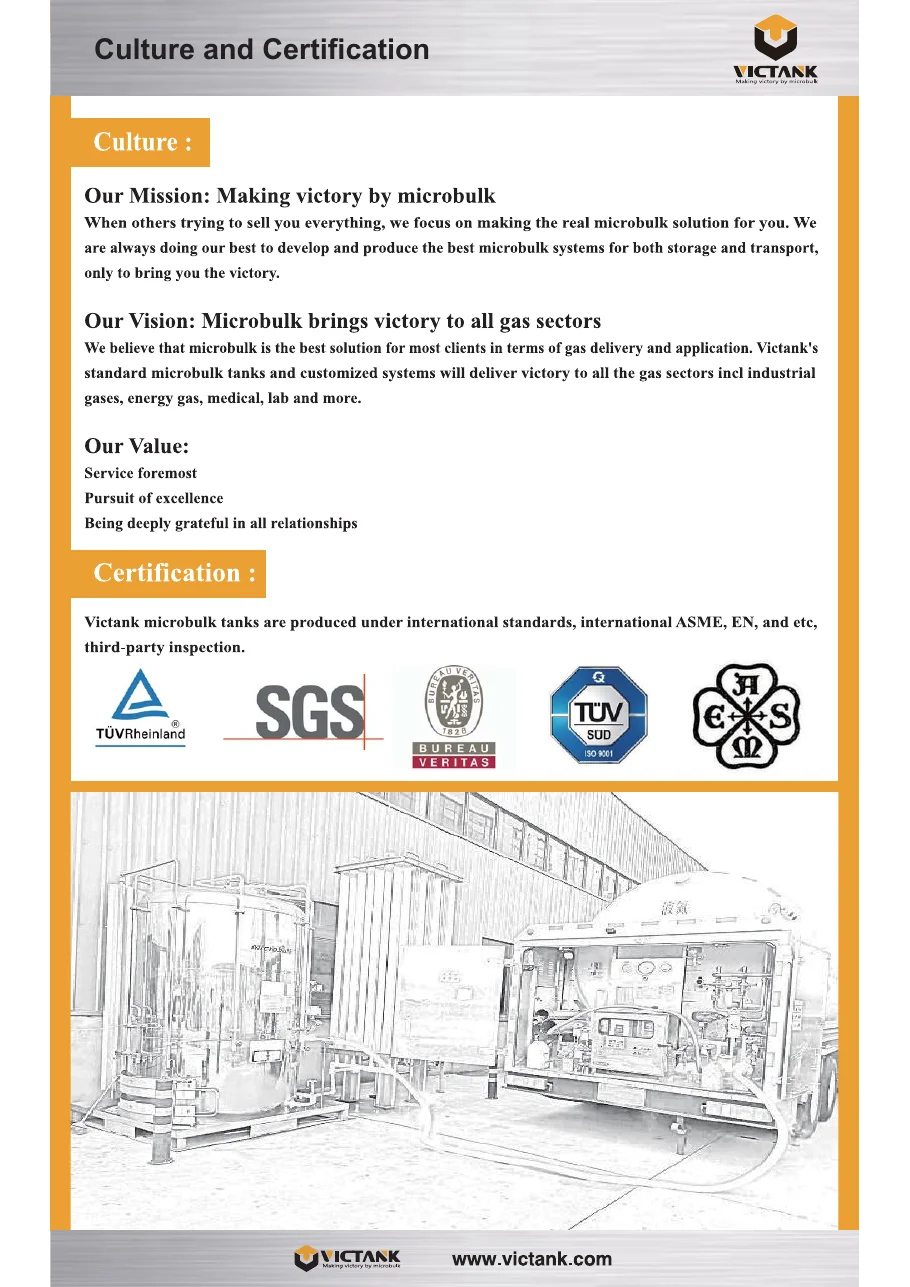

Report & Certifications
FAQs
Our cryogenic tanker with Cryostar pump for LOX, LIN, LAR.
We can design the cryogenic lorry tanker body based on the clients’ chassis dimension, and especially for the special request on pipelines.
Our product is produced based on ASME standard, and third party test report is available if need.
