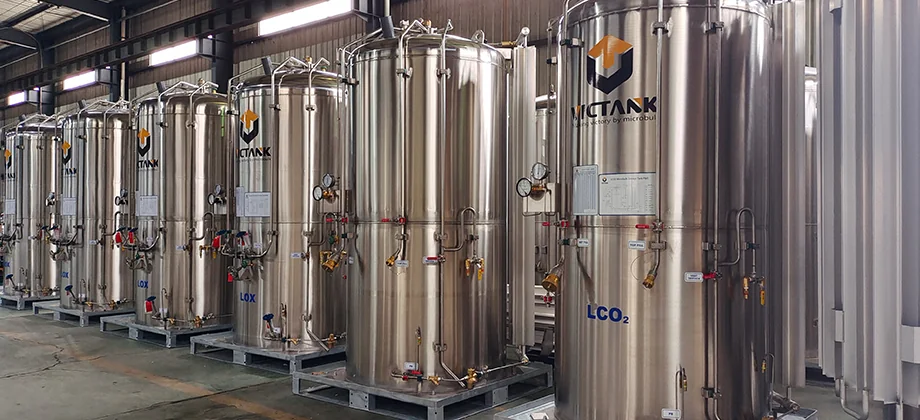

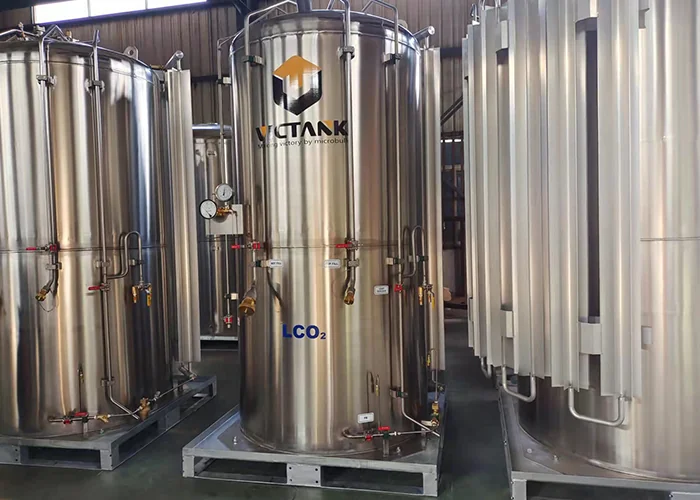

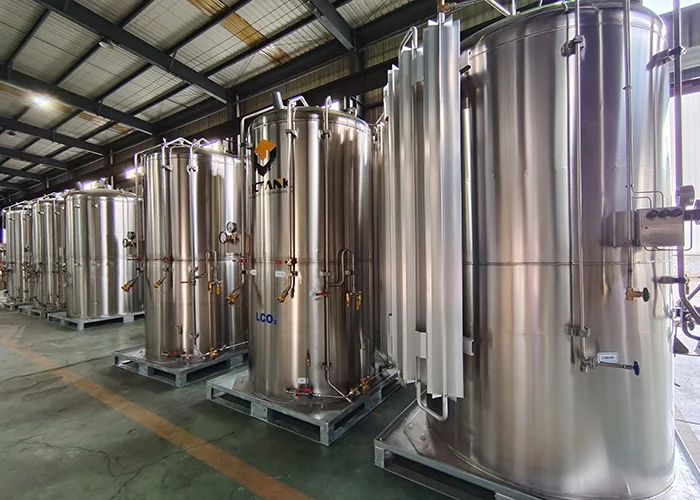

Microbulk HP series 24bar
• Microbulk tank sizes from 1,000 to 10,000 liters
• ASME standard
• Suitable for LCO2, LO2, LN2, LAr, LNG
• Pallet to loaded and unloaded by forklift
Description

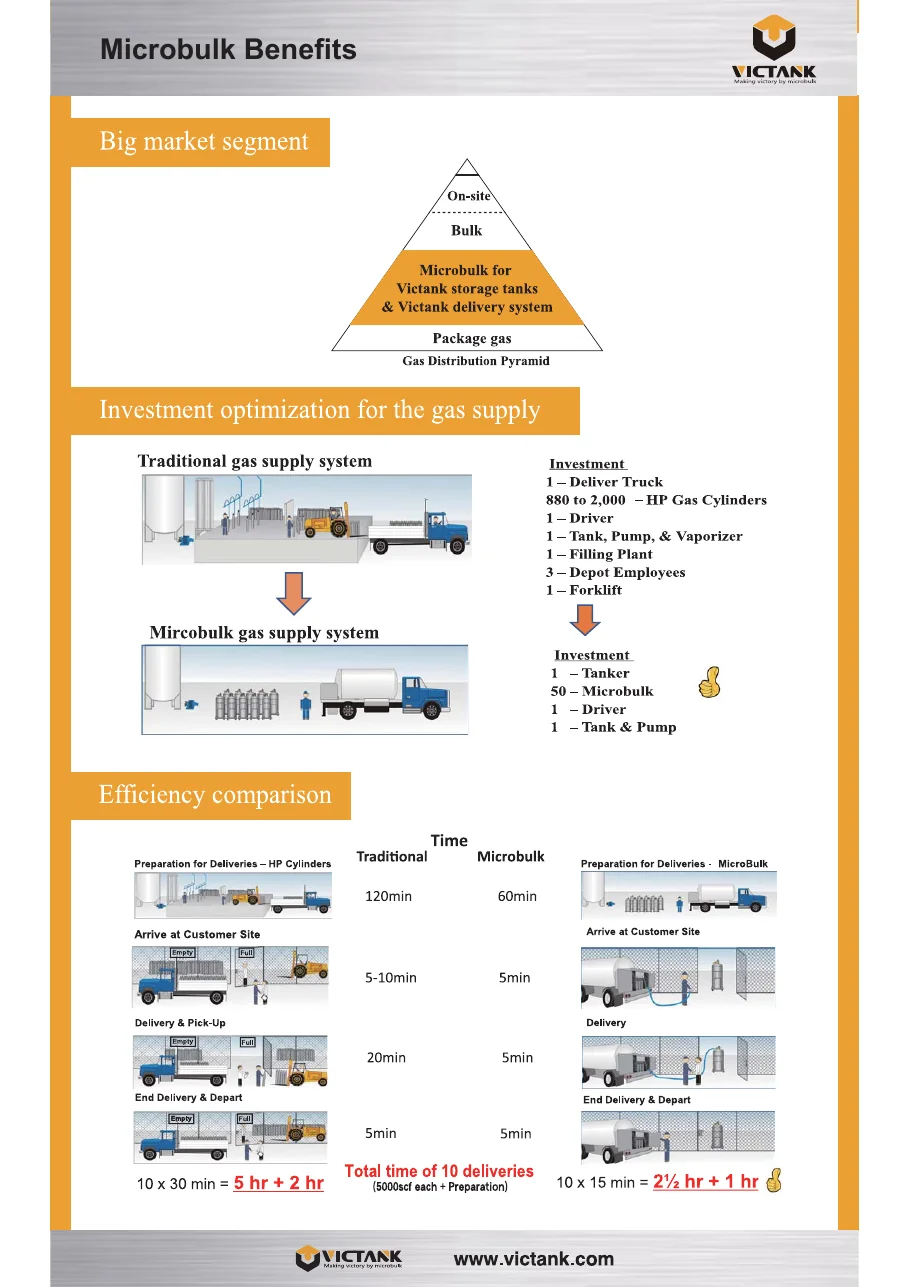

SinoCleansky microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing your costly gas cylinders.
All models for your selection:nWater capacity 1000L, 2000L, 3000L, 5000L 10000L etc.
Stainless steel material，make it more endurable for rust, not need paint.
More reliable, safe, efficient and economical, compared with high pressure gas cylinders and dewar flasks.
Superior performance: bigger capacity, longer storage period, higher flow rate, fast pressure build-up.

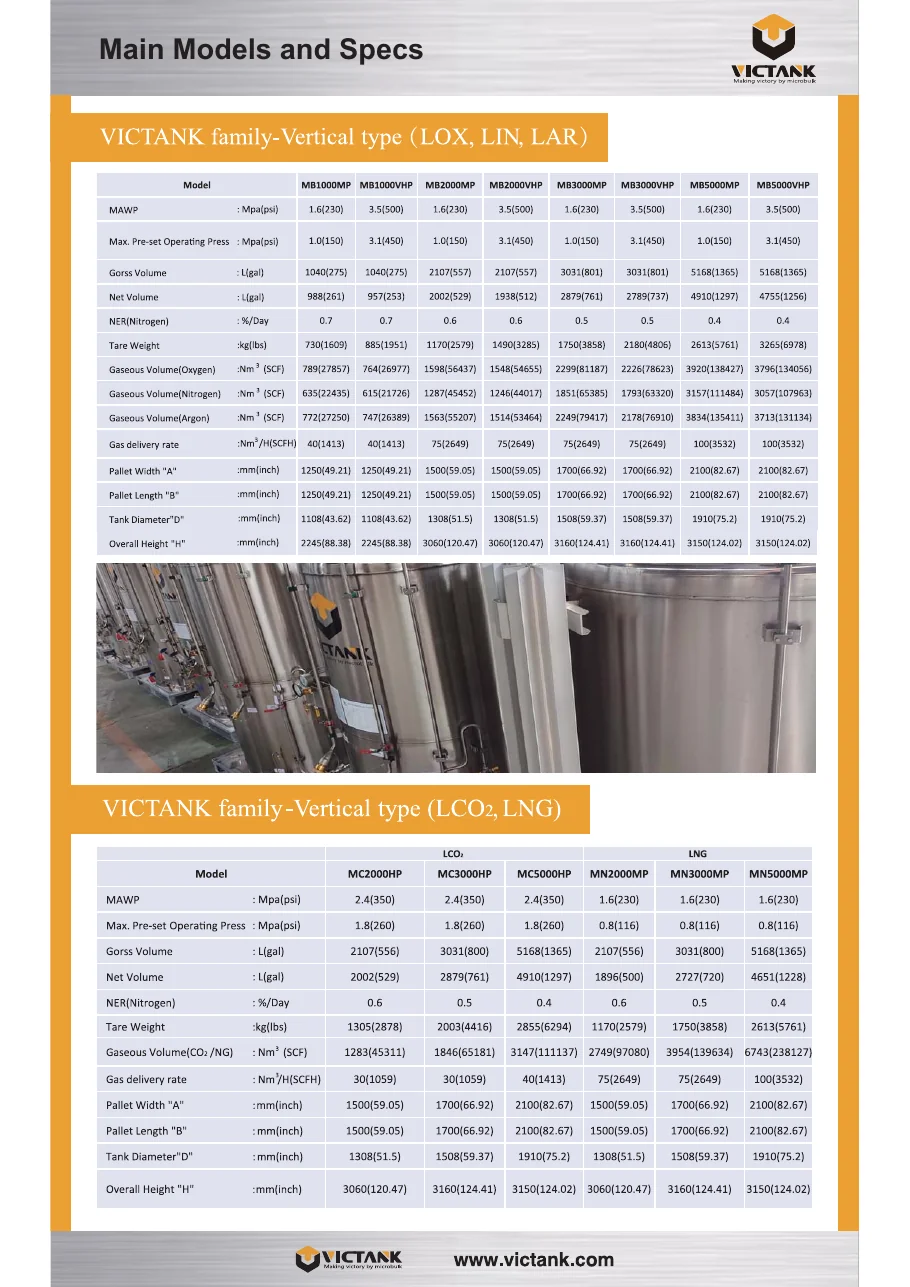

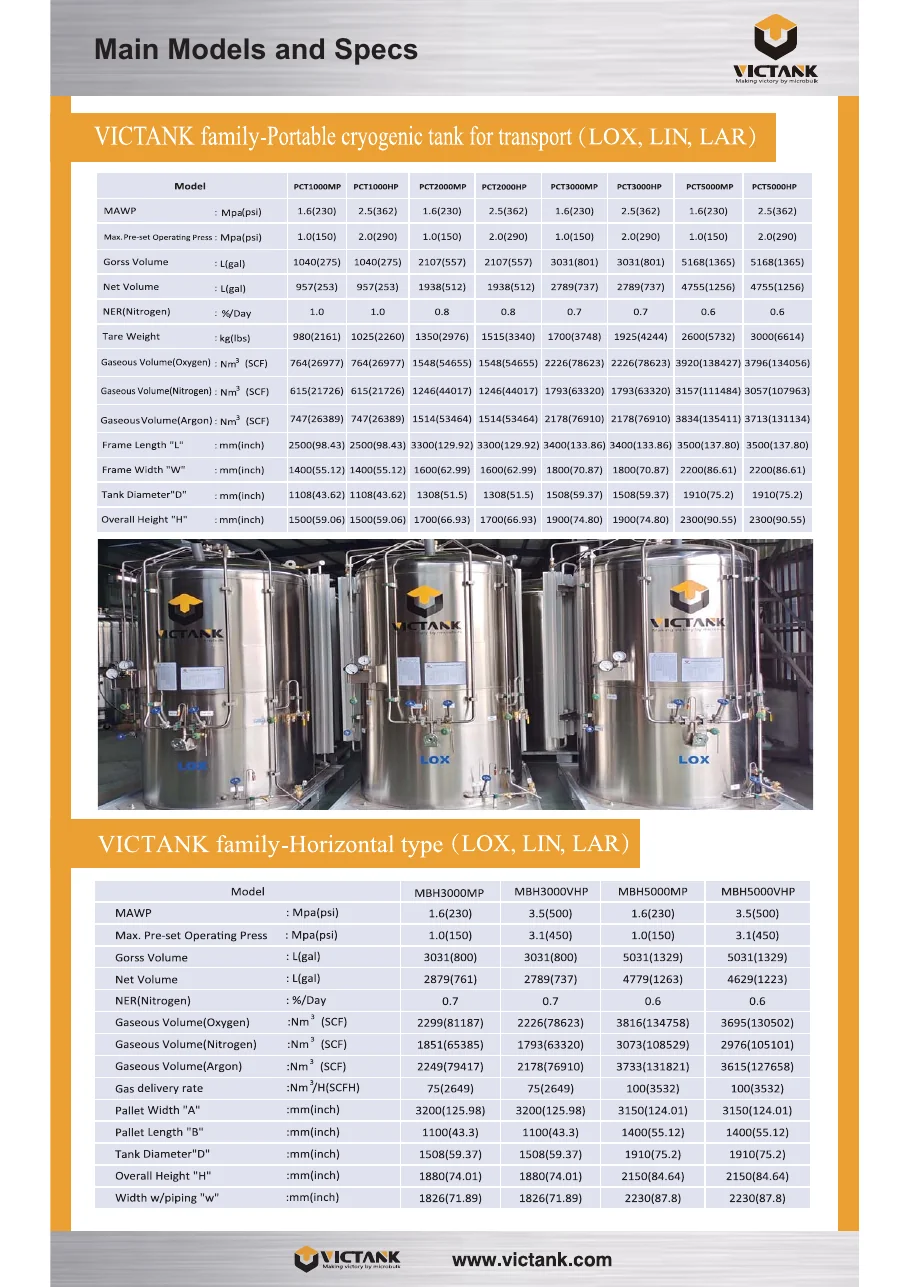

Technical Specifications
| NO | NAME | PARAMETERS | ||||
| 1 | Model No. | MB1000HP | MC2000HP | MC3000HP | MC5000HP | |
| PB COIL | ||||||
| 2 | Gross Volume | 1030L | 2107L | 3031L | 5168L | |
| 3 | Net Volume | 979L | 2002L | 2879L | 4910L | |
| 4 | Max Working Pressure | 2.4 MPa | 2.4 MPa | 2.4 MPa | 2.4 MPa | |
| 5 | Vaporizer | 25Nm3/H | 30Nm3/H | 30Nm3/H | 40Nm3/H | |
| 6 | Loading Medium | LCO2 | ||||
| 7 | Design Code | ASME | ||||
| 8 | Main Material | Inner Vessel | SA-240M 304 | |||
| Outer Vessel | SA-240M 304 | |||||
| 9 | Design Temperature | ‐196/+50℃ | ||||
| 10 | Isolating Type | High vacuum multi-layer | ||||

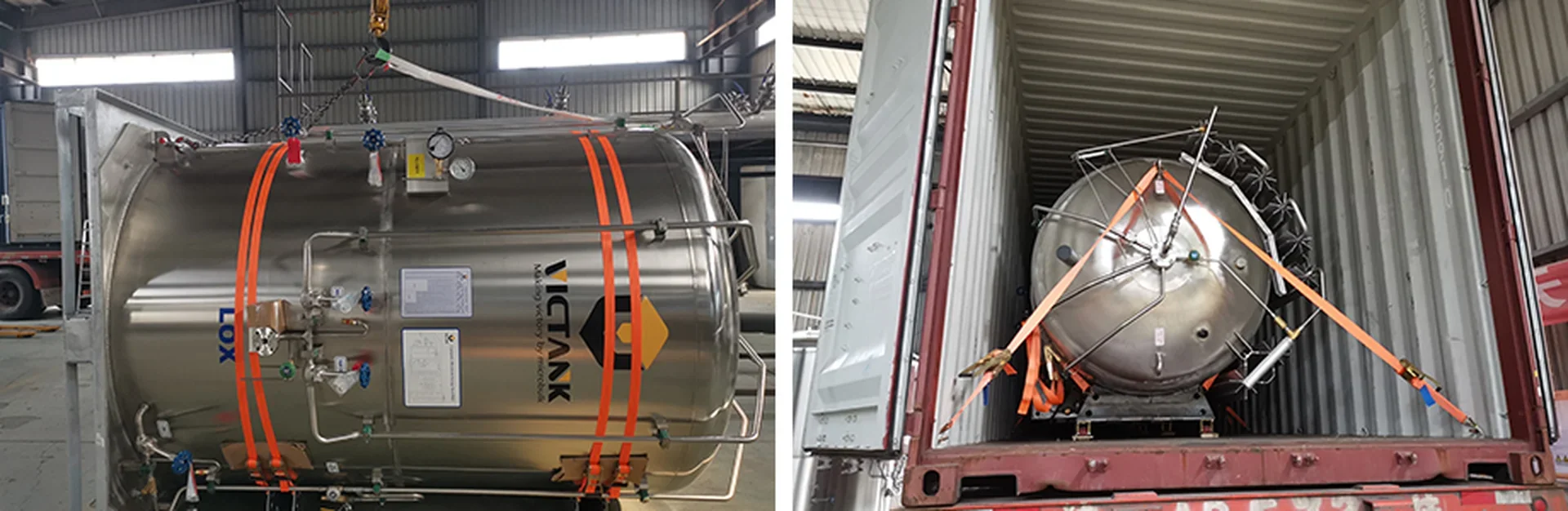

Packaging & Shipping
4units 1m3 microbulk tank shipped by one 20ft container.
3units 2m3 microbulk tank shipped by one 20OT container or one 40ft container.
3units 3m3 microbulk tank shipped by one 20OT container or one 40ft container.
2units 5m3 microbulk tank shipped by one 20OT container or 3 units by one 40ft container.

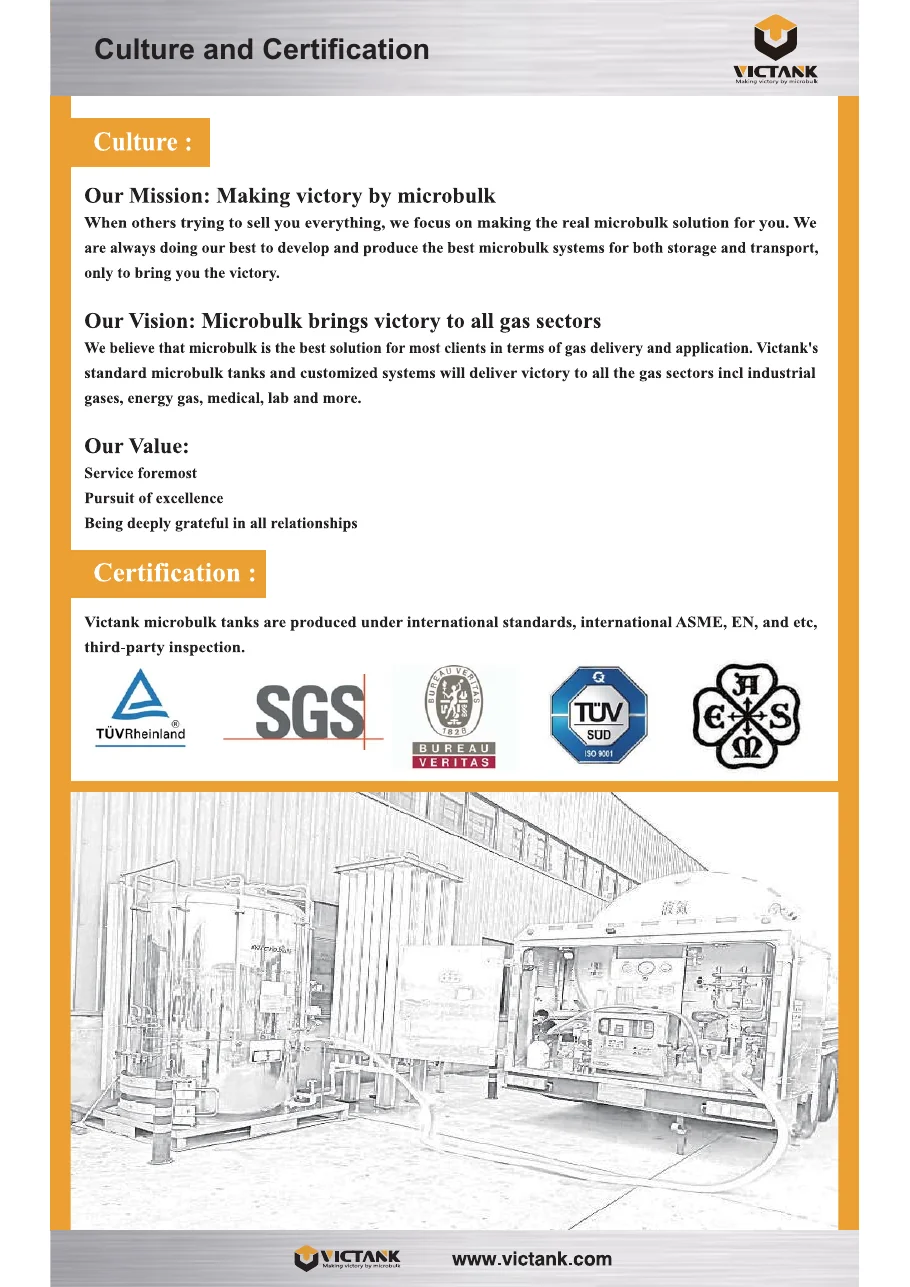

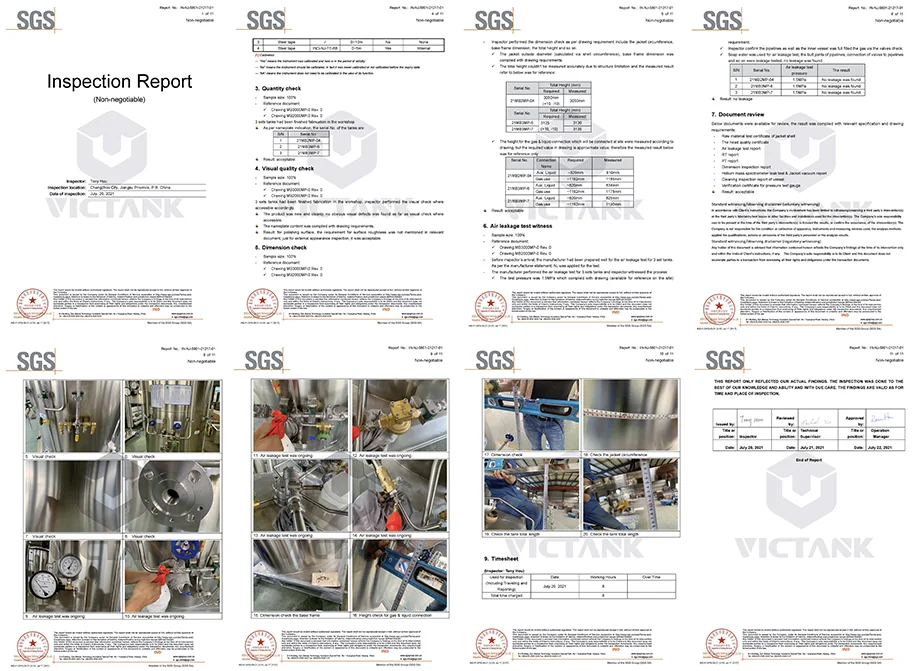

Report & Certifications
The Microbulk Tank are delivered with detailed factory test report. The international third-party test report are also available based on client request, such as TUV, BV, SGS, etc.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.
