Microbulk Storage

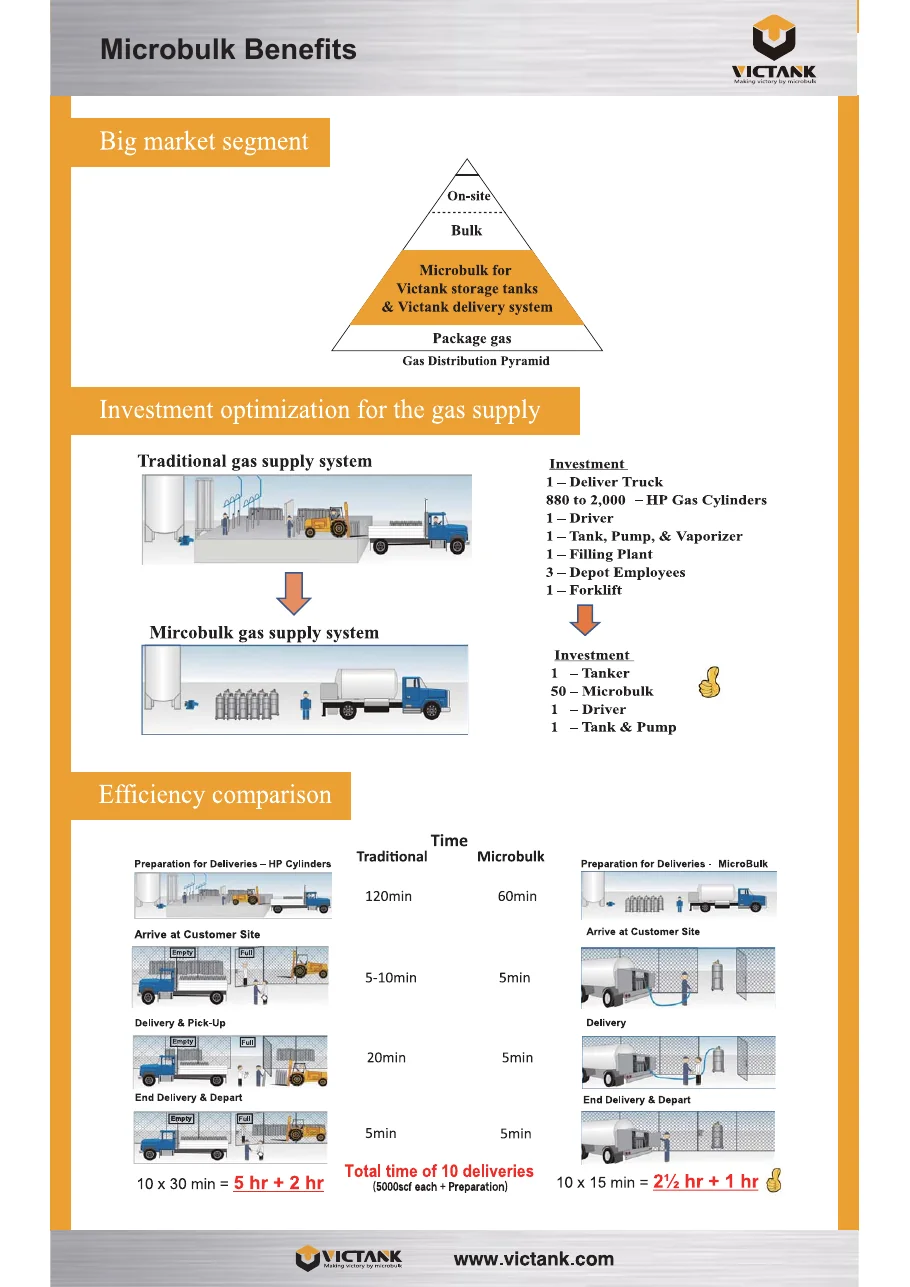

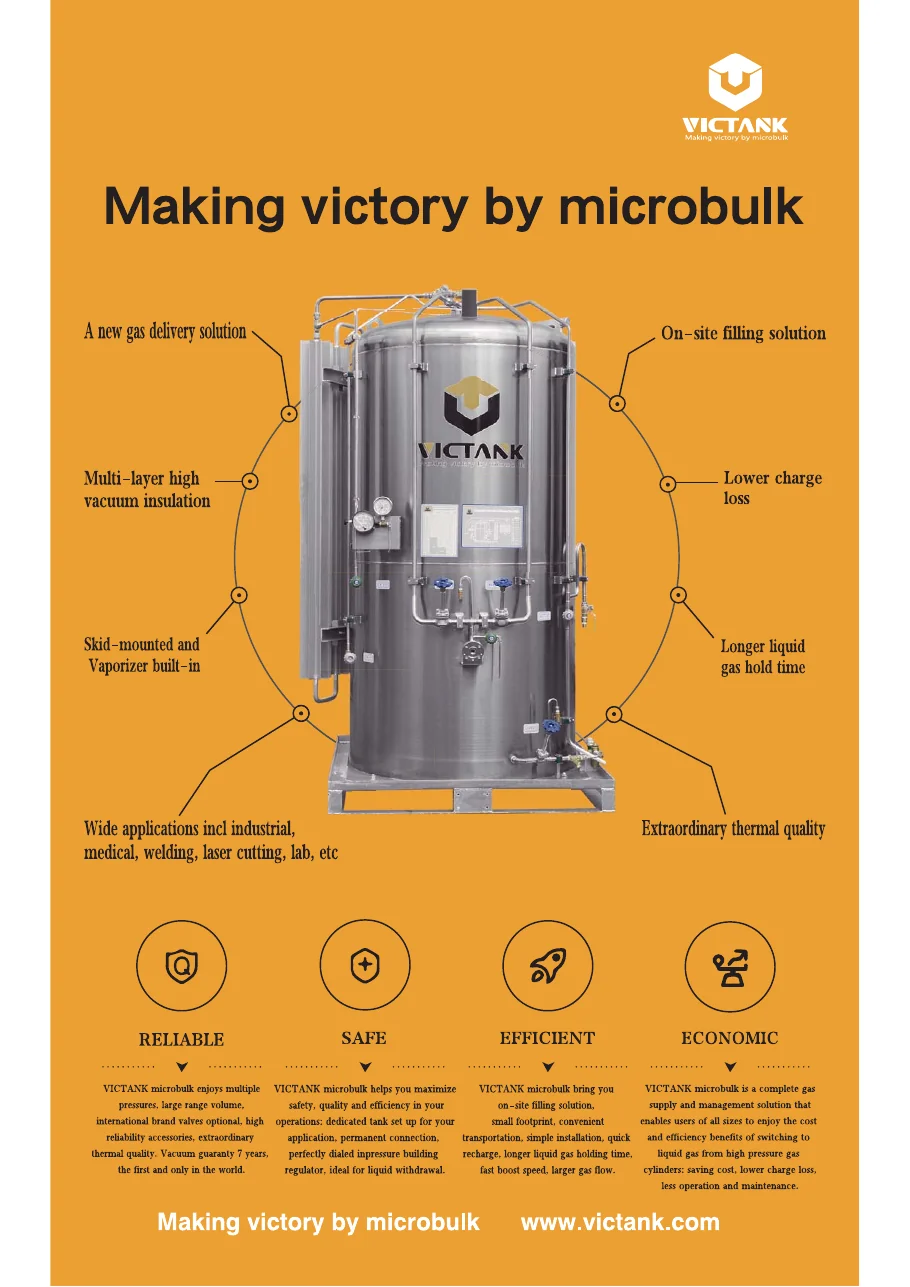

Microbulk is a modern concept where the gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars.
Microbulk enjoys outstanding features mean exceptional performance. Various tank sizes, pressures and configurations are available to meet.
Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG and in high pressure, high flow applications including laser assist gases.
VICTANK microbulk enjoys large capacity range from 1,000L to 10,000L, high vacuum multi-layer insulation with 7-year vacuum warranty.

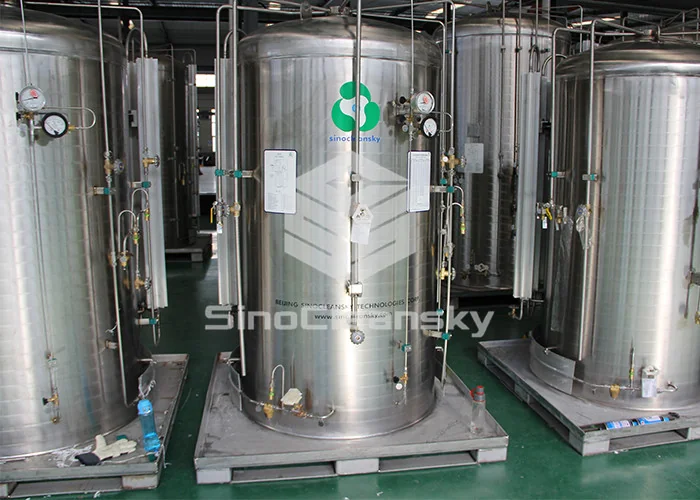

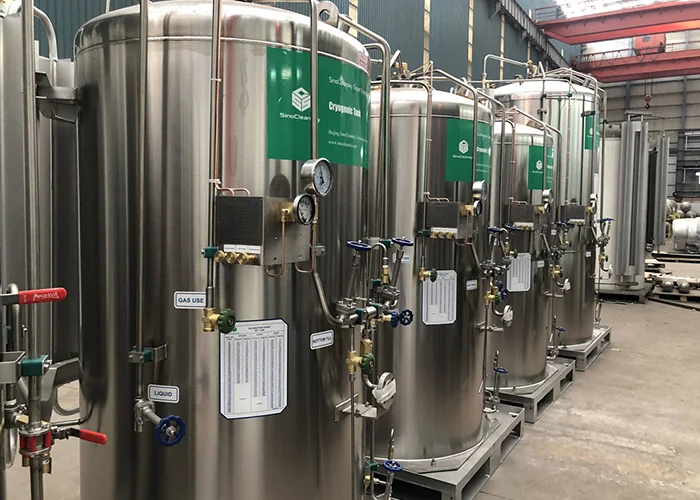

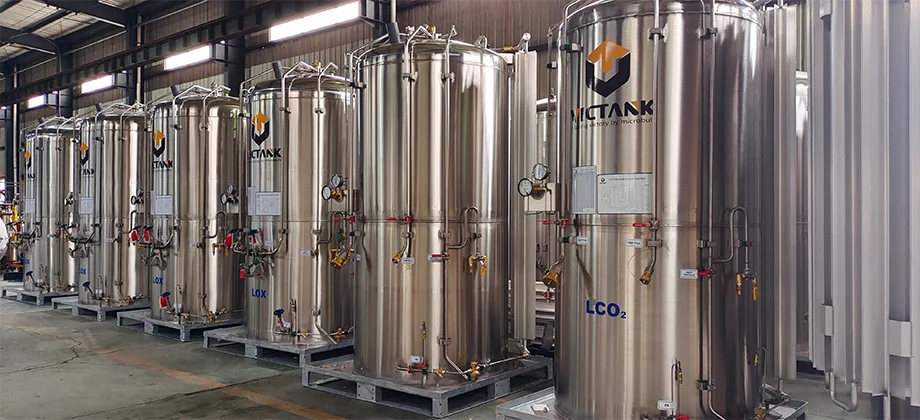

Microbulk Tank

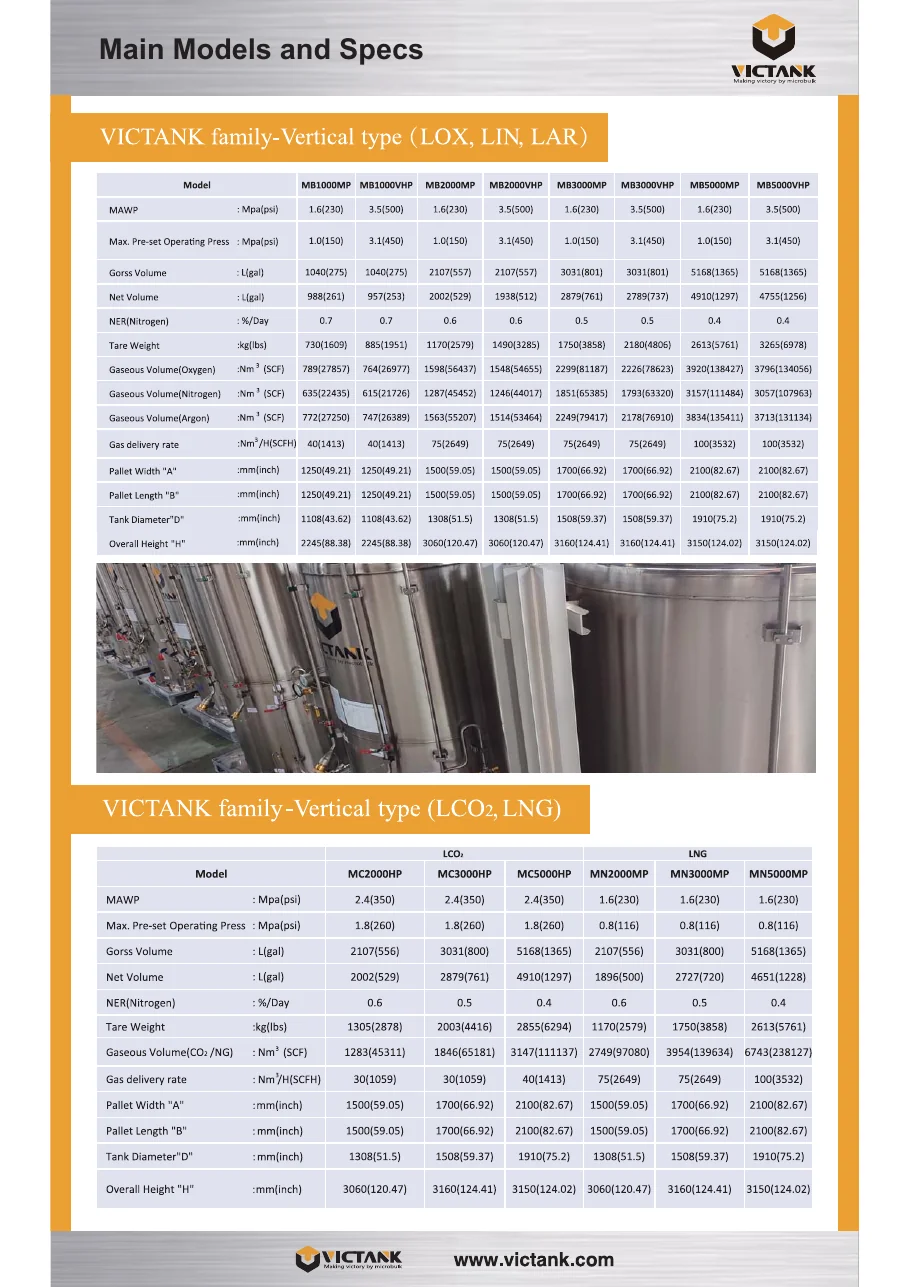

Standard	Model	Specification	Medium
ASME	MP Series	1,000L-16BAR	LOX, LIN, LAr, LCO2, LNG
ASME		2,000L-16BAR	LOX, LIN, LAr, LCO2, LNG
ASME		3,000L-16BAR	LOX, LIN, LAr, LCO2, LNG
ASME		5,000L-16BAR	LOX, LIN, LAr, LCO2, LNG
ASME		10,000L-16BAR	LOX, LIN, LAr, LCO2, LNG
ASME	HP Series	1,000L-24BAR	LOX, LIN, LAr, LCO2, LNG
ASME		2,000L-24BAR	LOX, LIN, LAr, LCO2, LNG
ASME		3,000L-24BAR	LOX, LIN, LAr, LCO2, LNG
ASME		5,000L-24BAR	LOX, LIN, LAr, LCO2, LNG
ASME		10,000L-24BAR	LOX, LIN, LAr, LCO2, LNG
ASME	VHP Series	1,000L-35BAR	LOX, LIN, LAr, LCO2, LNG
ASME		2,000L-35BAR	LOX, LIN, LAr, LCO2, LNG
ASME		3,000L-35BAR	LOX, LIN, LAr, LCO2, LNG
ASME		5,000L-35BAR	LOX, LIN, LAr, LCO2, LNG
ASME		10,000L-35BAR	LOX, LIN, LAr, LCO2, LNG

Remark: customized service available

① Centralized gas supply system—integrated with small-size storage tank, PBC, vaporizer and pipelines;

② High vacuum multi-layer insulation & well designed structure—ZERO even BARELY ZERO liquid loss;

③ Setting up a regeneration warehouse in the interlayer, and keeping long time vacuum strength;

④ Low requirements on the working site condition;

⑤ Lifting lug and forklift movable base support—Easy for changing working place (Avoid moving when with liquid);

⑥ Short transmission distance, and stable gas supply pressure, which can be directly set up nearby the equipment, customers can use depending on actual situation of gas pressure regulation;

⑦ Connection gas pipeline with international joint, which is convenient to assemble and disassemble, and which can directly supply gas after connecting;

⑧ Adopting capacitance liquid level gauge, which is more accurate to display the data;

⑨ Automatically cut off lorry tank refueling procedure;

⑩ Applying to store LOX、LN2、LAr、LCO2、LNG and etc.

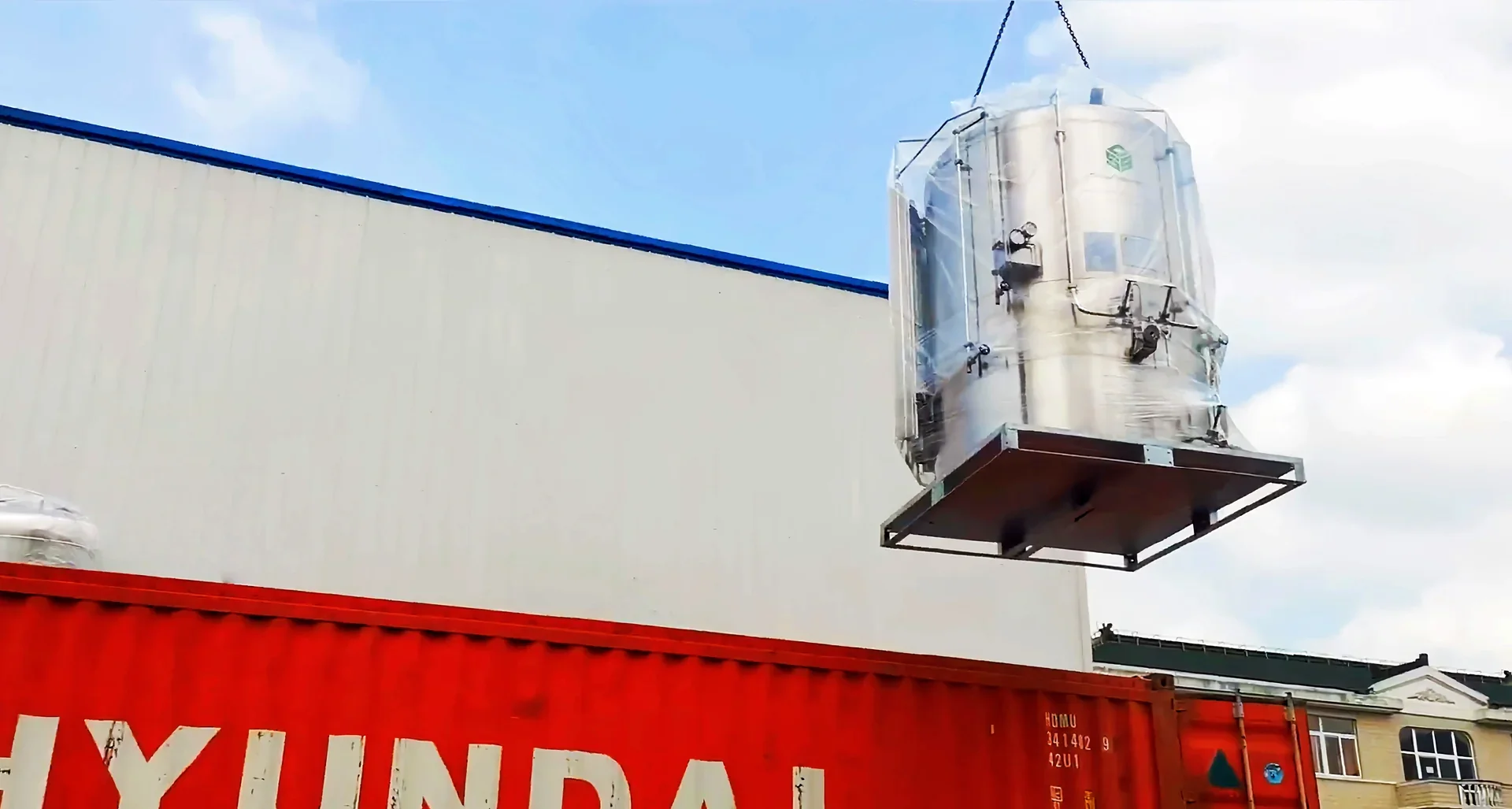

To ensure safe delivery of LNG Microbulk Tanks (regardless of size), SinoCleansky uses tailored packaging and shipping solutions:
Container options : Smaller models (1M⊃3;~5M⊃3;) fit in 20GP containers; larger models (7M⊃3;~14.4M⊃3;) use 40GP/40HQ or open-top containers (20OT, 40OT) for easy loading.
Securement: Tanks are fixed to skids with steel brackets and anti-vibration pads to prevent movement during transit (sea, land, rail).
Protective measures: Outer shells are wrapped in waterproof, scratch-resistant film; valves and fittings are covered with dust caps to avoid damage.
Global logistics: Coordinates with trusted freight forwarders to deliver to clients worldwide, including remote regions. For Central Asian clients, railway transportation is available for cost efficiency.
Documentation: Includes all necessary paperwork (certifications, inspection reports, packing lists) to streamline customs clearance.
The LNG Microbulk can be shipped by various types of container, such as standard container 20GP, 40GP, 40HQ; open top container, such as 20OT, 40OT and etc.
