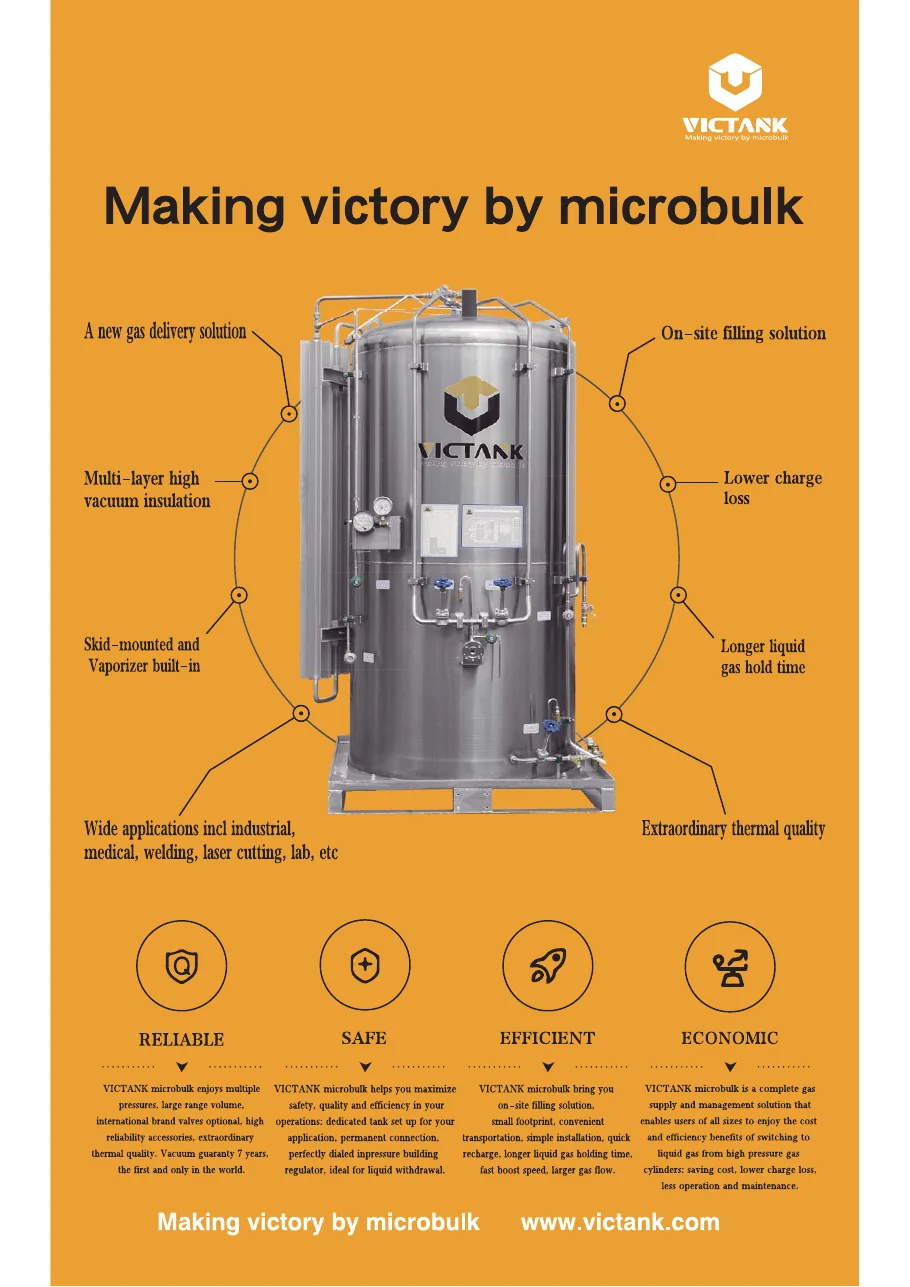

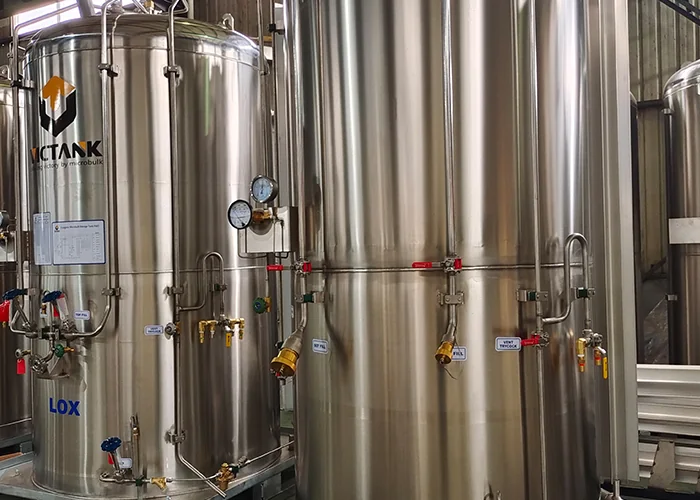

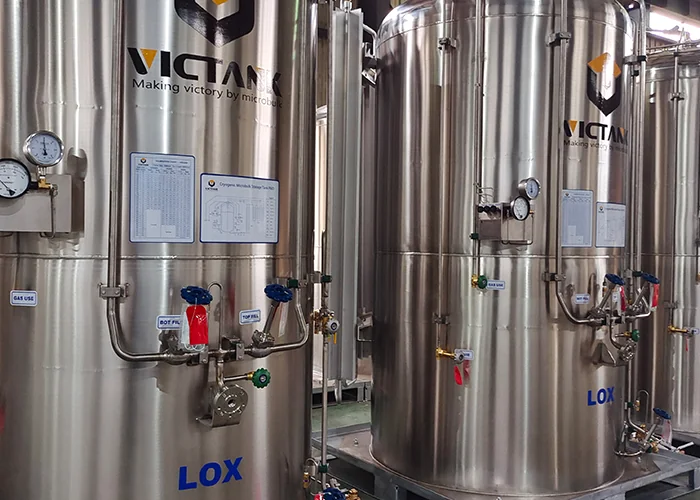

Microbulk VHP series 35bar
• Microbulk tank sizes from 1,000 to 10,000 liters
• ASME standard
• Suitable for LCO2, LO2, LN2, LAr, LNG
• Longer vacuum retention time
• More flexible filling method to reduce losses
Description
SinoCleansky makes a wide range of microbulk tank, compliance with ASME standard, which is suitable for cryogenic industrial gases transportation.
Our microbulk tank pressure build fast ，and working pressure can be 35bar.nMeeting the needs of end users.
All models for your selection:nWater capacity 1000L, 2000L, 3000L, 5000L 10000L etc.
Superior performance: bigger capacity, longer storage period, higher flow rate, fast pressure build-up.nIt is the bes solution for your laser cutting of thick metal!

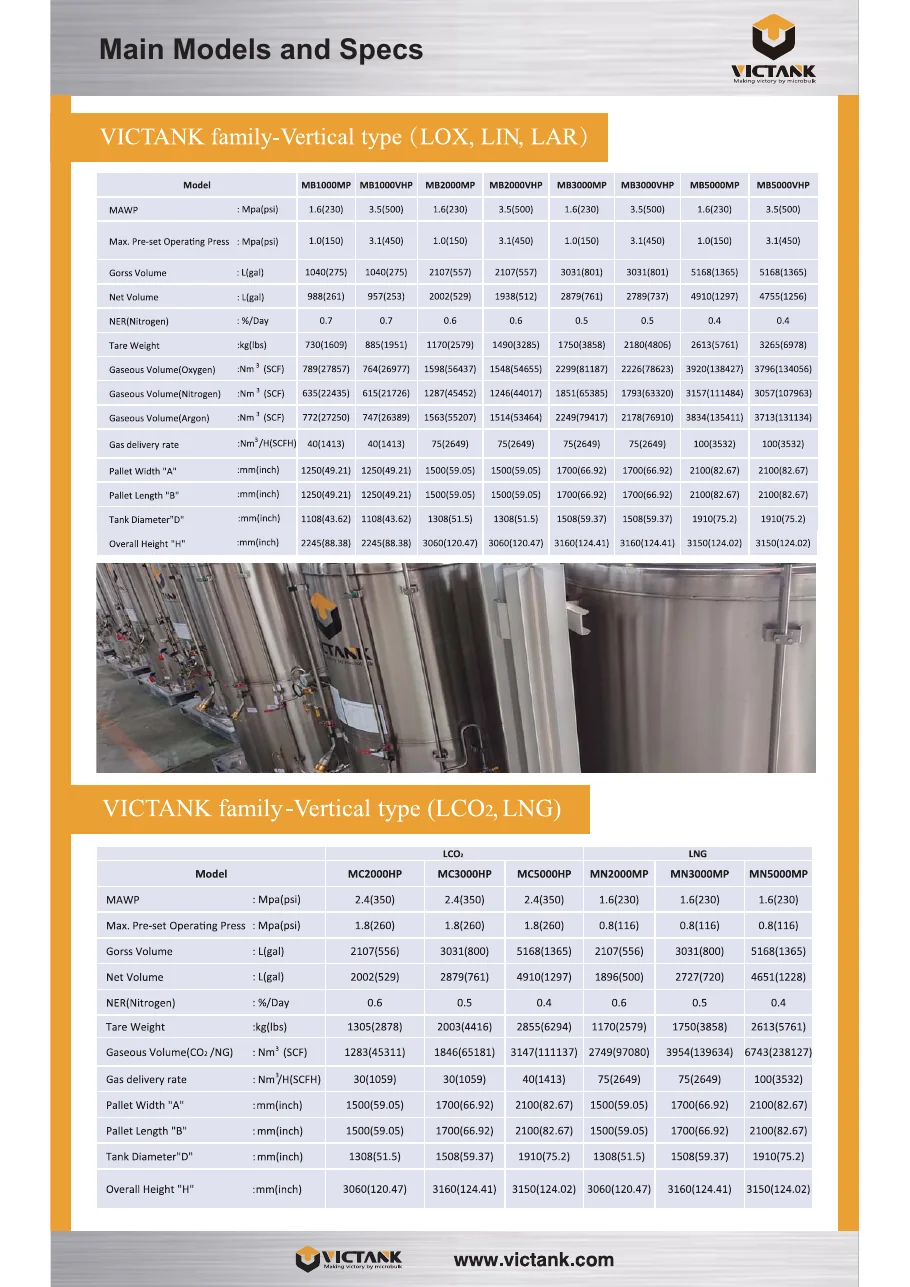

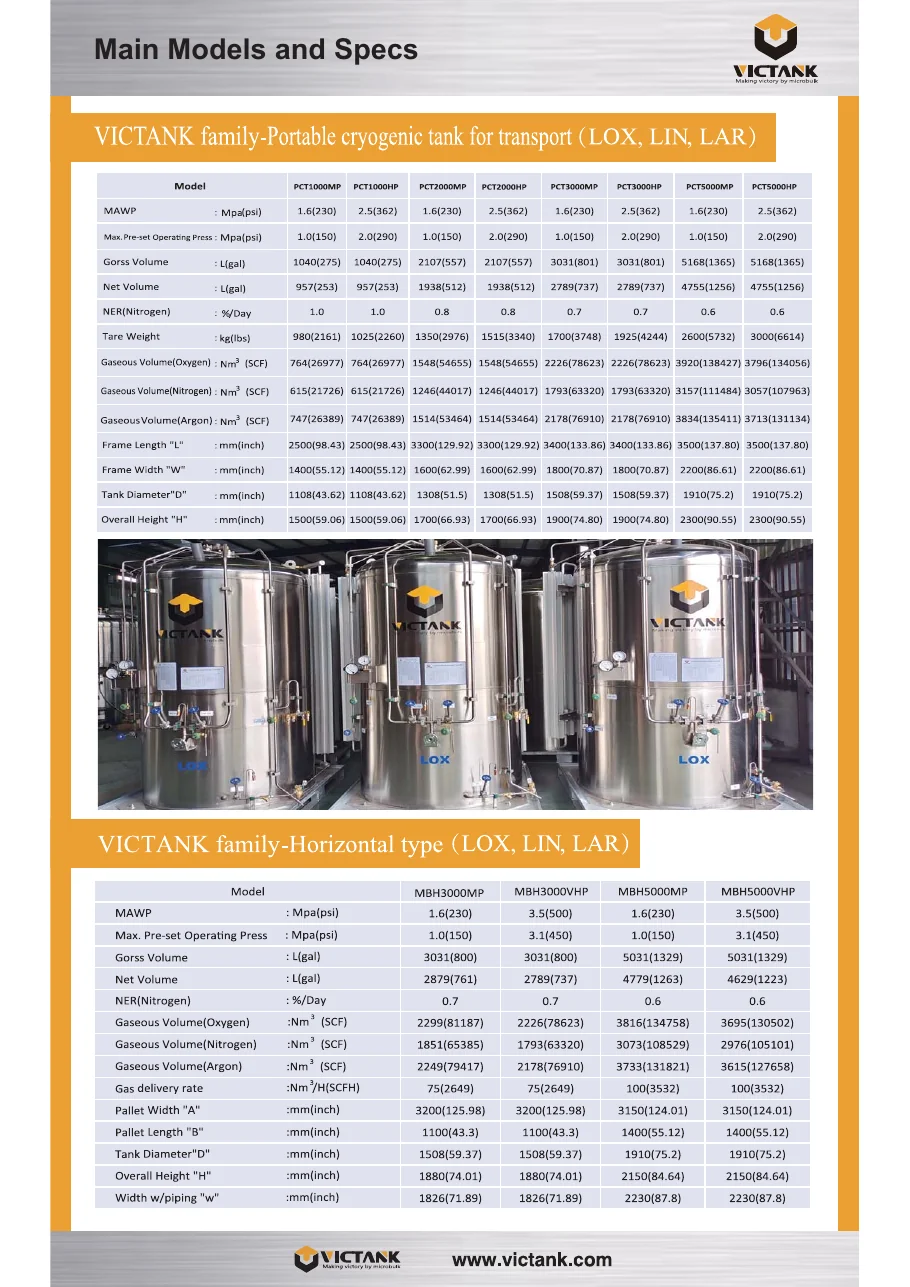

Technical Specifications
| NO | NAME | PARAMETERS | ||||
| 1 | Model No. | MB1000VHP | MB2000VHP | MB3000VHP | MB5000VHP | |
| 2 | Gross Volume | 1040L | 2107L | 3031L | 5168L | |
| 3 | Net Volume | 957L | 1938L | 2789L | 4755L | |
| 4 | Max Working Pressure | 3.5 MPa | 3.5 MPa | 3.5 MPa | 3.5 MPa | |
| 5 | Vaporizer | 40Nm3/H | 75Nm3/H | 75Nm3/H | 100Nm3/H | |
| 6 | Loading Medium | LIN, LOX, LAR | ||||
| 7 | Design Code | ASME | ||||
| 8 | Main Material | Inner Vessel | SA-240M 304 | |||
| Outer Vessel | SA-240M 304 | |||||
| 9 | Design Temperature | ‐196/+50℃ | ||||
| 10 | Isolating Type | High vacuum multi-layer | ||||

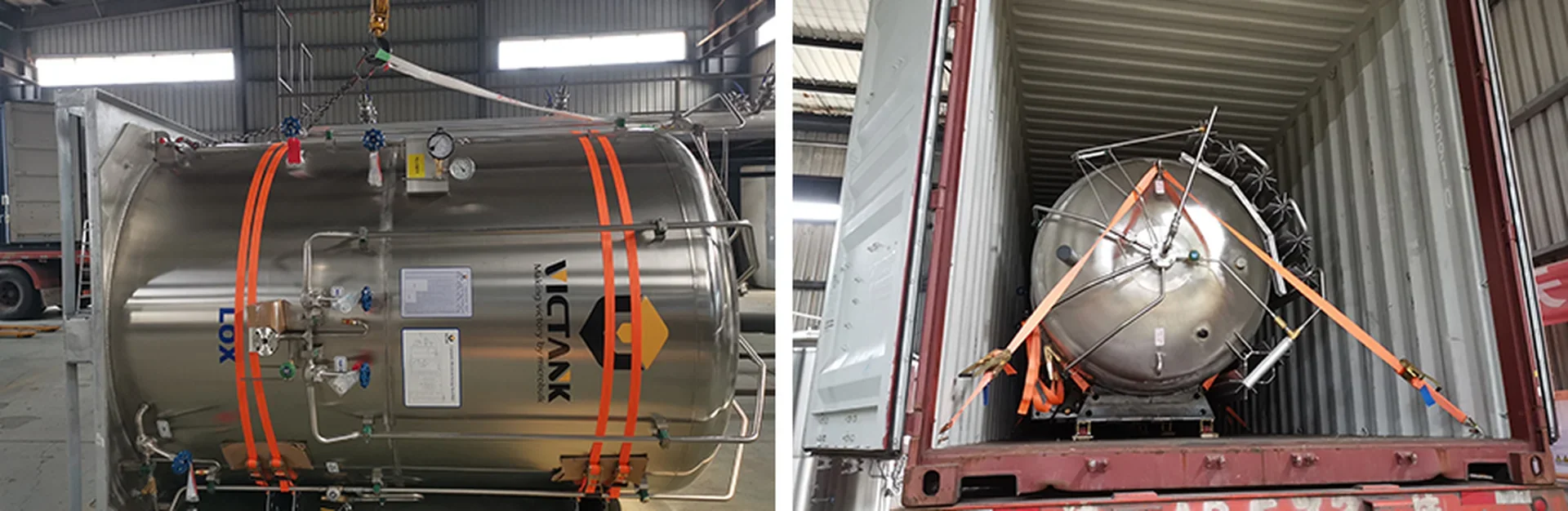

Packaging & Shipping
4units 1m3 microbulk tank shipped by one 20ft container.
3units 2m3 microbulk tank shipped by one 20OT container or one 40ft container.
3units 3m3 microbulk tank shipped by one 20OT container or one 40ft container.
2units 5m3 microbulk tank shipped by one 20OT container or 3 units by one 40ft container.

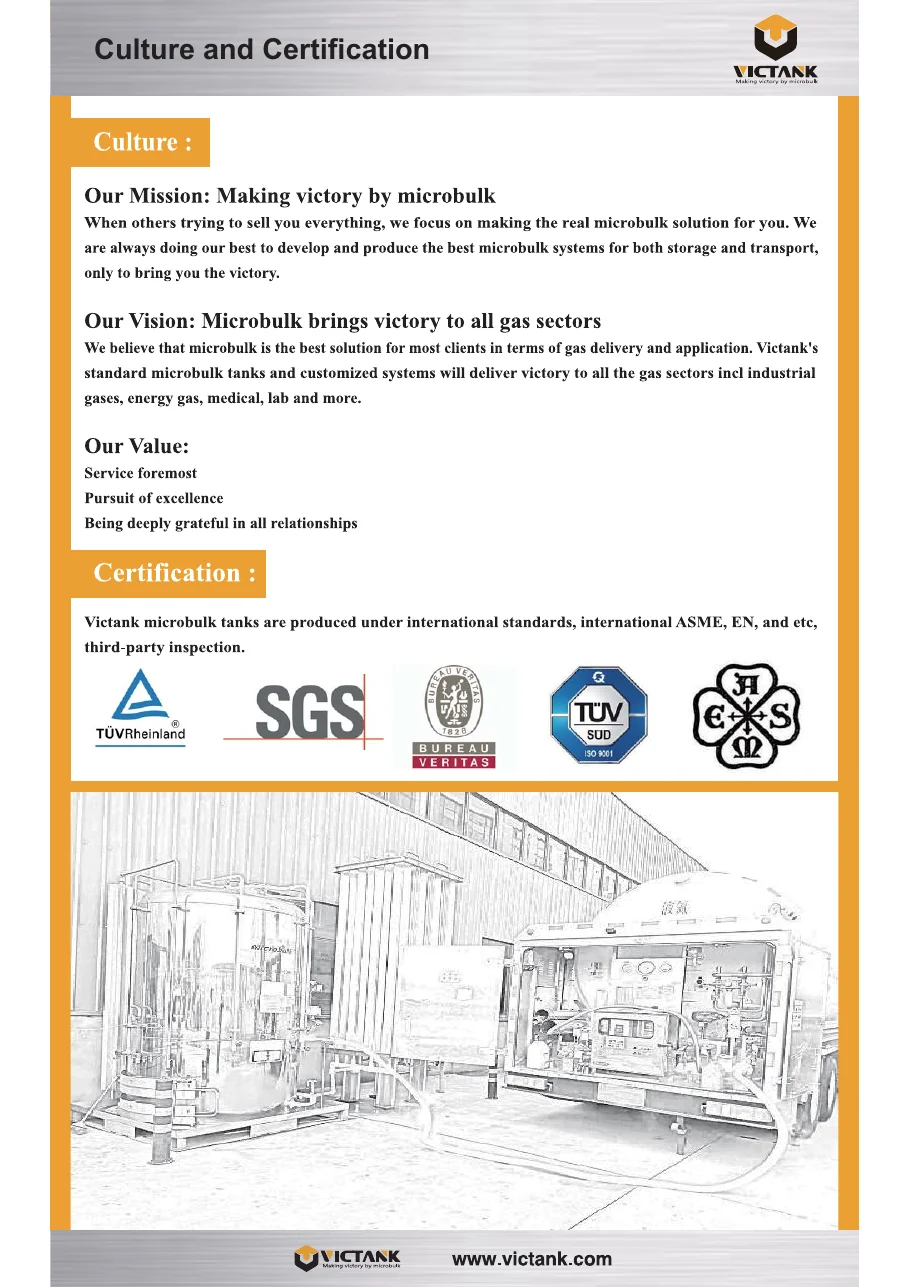

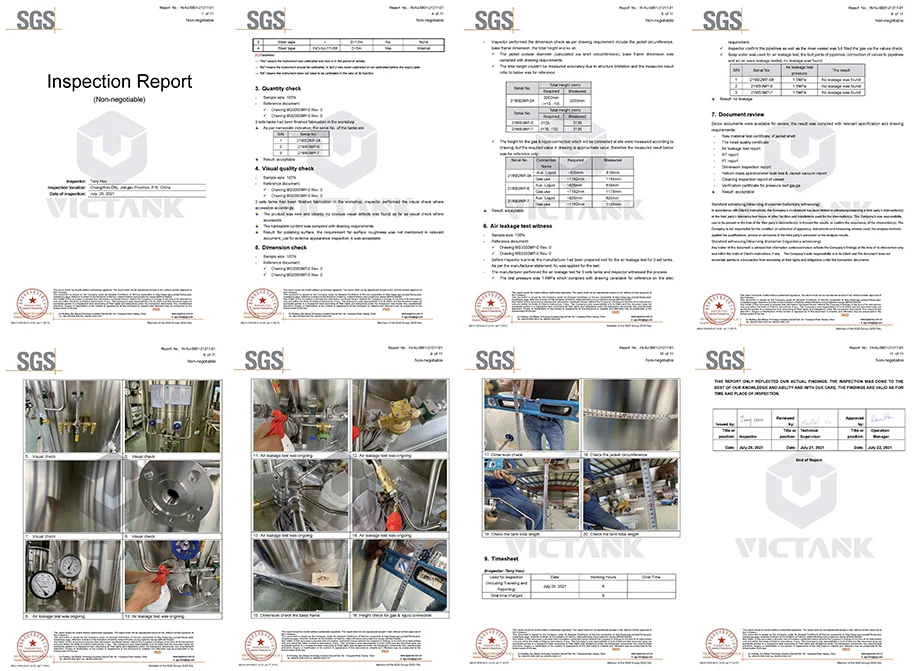

Report & Certifications
The Microbulk Tank are delivered with detailed factory test report. The international third-party test report are also available based on client request, such as TUV, BV, SGS, etc.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.
