Portable Cryogenic Tanker
• Standard: ASME
• Water capacity: 1m3 to 7 m3
• Working pressure: 16bar to 25bar
• Gas Medium: LIN (liquid nitrogen), LOX (liquid oxygen), LAR (liquid argon), LCO2, LNG
• Easy for delivery
Description
SinoCleansky portable cryogenic tanker is designed for small gas consumption delivery. The tanker water capacity mainly from 1m3 to 5m3. It can be delivered by truck, pickup, even van.nThe easy delivery design is convenient for the client to delivery gas even to some very small site without good road condition.
Technical Specifications
Portable Cryogenic Tanker
| Model | PCT1000MP | PCT1000HP | PCT2000MP | PCT2000HP | PCT3000MP | PCT3000HP | PCT5000MP | PCT5000HP |
| MAWP (MPa) | 1.6 | 2.5 | 1.6 | 2.5 | 1.6 | 2.5 | 1.6 | 2.5 |
| Gorss Volume (L) | 1040 | 1040 | 2107 | 2107 | 3031 | 3031 | 5168 | 5168 |
| Net Volume (L) | 957 | 957 | 1938 | 1938 | 2789 | 2789 | 4755 | 4755 |
| NER (N2) %/day | 1 | 1,0 | 0.8 | 0.8 | 0.7 | 0.7 | 0.6 | 0.6 |
| Tare Weight (kg) | 980 | 1025 | 1350 | 1515 | 1700 | 1925 | 2600 | 3000 |
| Frame Length (mm) | 2500 | 2500 | 3300 | 3300 | 3400 | 3400 | 3500 | 3500 |
| Frame Width (mm) | 1400 | 1400 | 1600 | 1600 | 1800 | 1800 | 2200 | 2200 |
| Overall Height (mm) | 1500 | 1500 | 1700 | 1700 | 1900 | 1900 | 2300 | 2300 |
Remark: customized service available
Packaging & Shipping

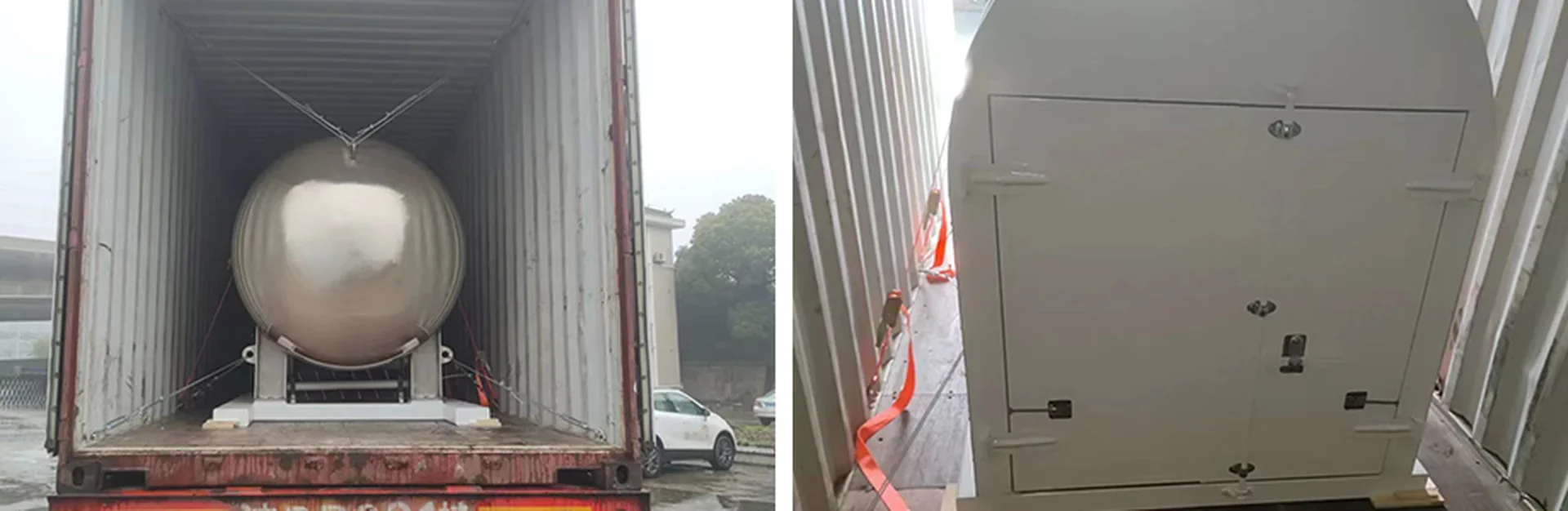

The equipment can be shipped by different type of container such as GP, OT, FR, and if bigger size, it needs to be delivered by bulk vessel.
Report & Certifications
The lorry tanker will be delivered with detailed test report, including the factory test report and hydraulic test report, etc.
Reference Report:
E-mail [email protected] to get more detailed test report specimen.
FAQs
Normally the portable cryogenic tanker is designed without operation cabinet. But if the client need, we can add the operation cabinet.
Our product is produced based on ASME standard, and third party test report is available if need.
