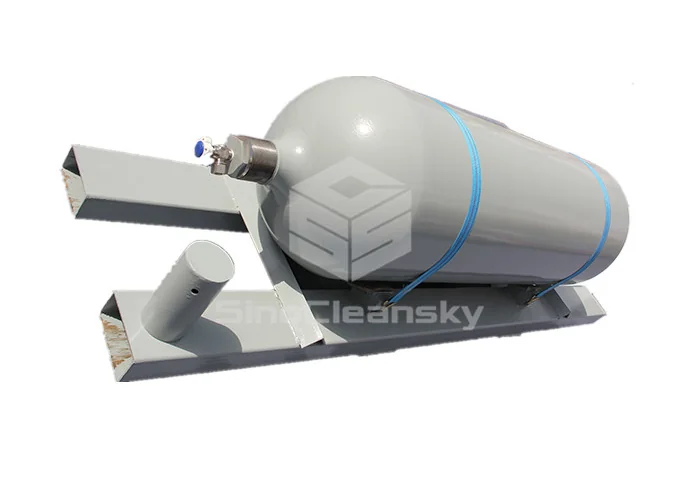

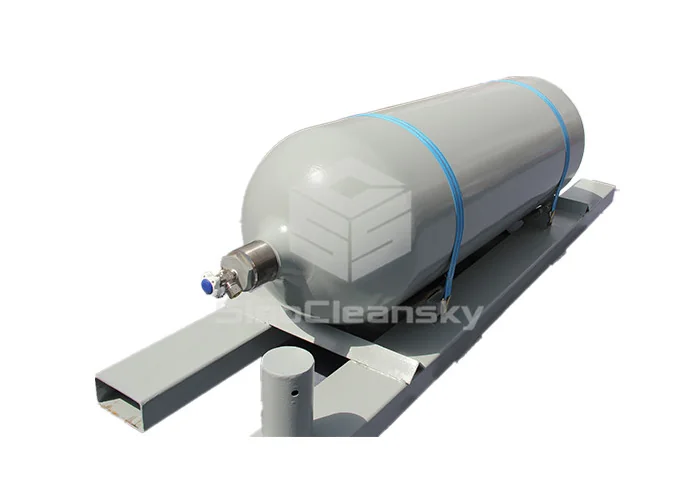

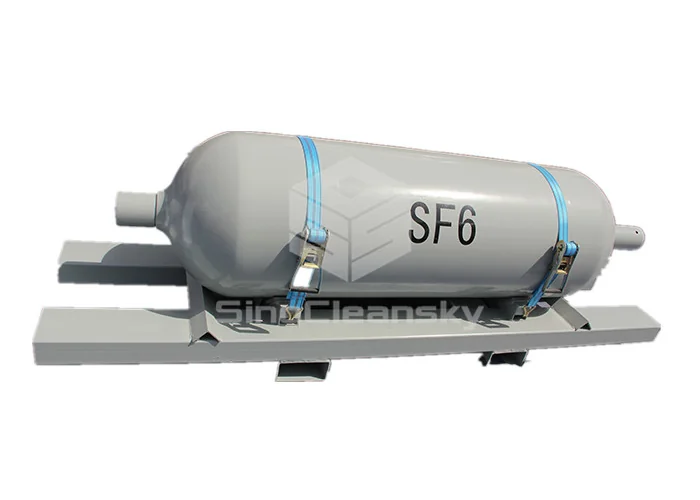

Sulfur Hexafluoride Cylinder

SF6 is an inorganic, colorless, odorless, non-flammable, extremely potent greenhouse gas, which is an excellent electrical insulator. It has an octahedral geometry, consisting of six fluorine atoms attached to a central sulfuratom. It is a hypervalent molecule. Typical for a nonpolar gas, it is poorly soluble in water but quite soluble in nonpolar organic solvents. It is generally transported as a liquefied compressed gas. We provide 500kg Y-ton for SF6 storage and transport.



Type	Water capacity	Service Pressure	Outside Diameter	Filling Medium	Gas Purity
Industrial grade SF6	450L	16.6MPa	610mm	500kg SF6	99.9% or 99.96%

Outside diameter 610mm, with ISO11120, TPED, GB certificate



Item	Data	Item	Data
Working Pressure	16.6 Mpa	Filling Medium	N2、He、SiH4、SF6、NF3、N2O、CL2、HCL、group1、group2、group5、group7（ISO11114-1：2012）
Water Capacity			440L	470L	520L
Cylinder Length			2120 mm	2235 mm	2428 mm

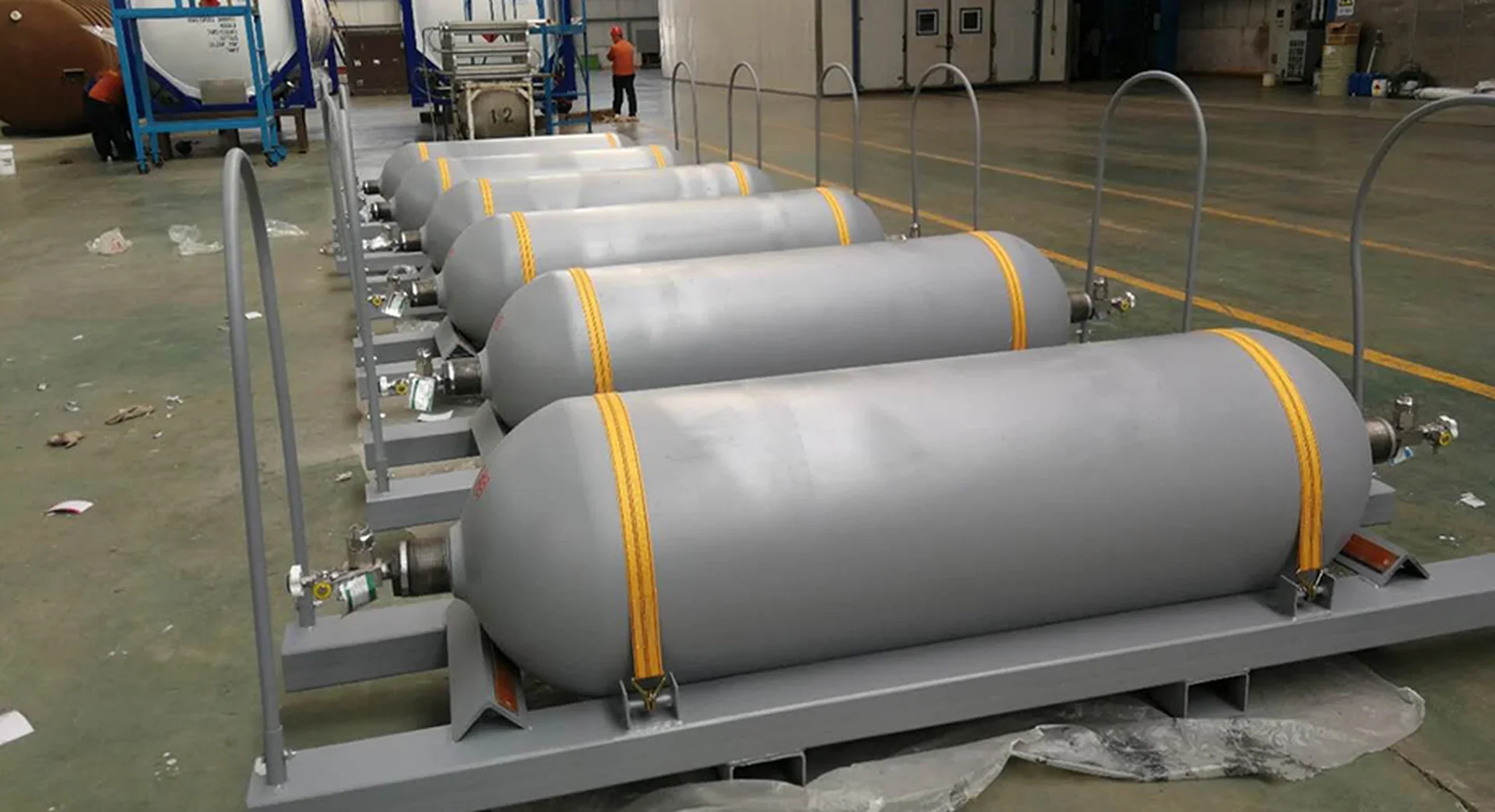

The Y-ton can be delivered with pallet, or loose in container.
