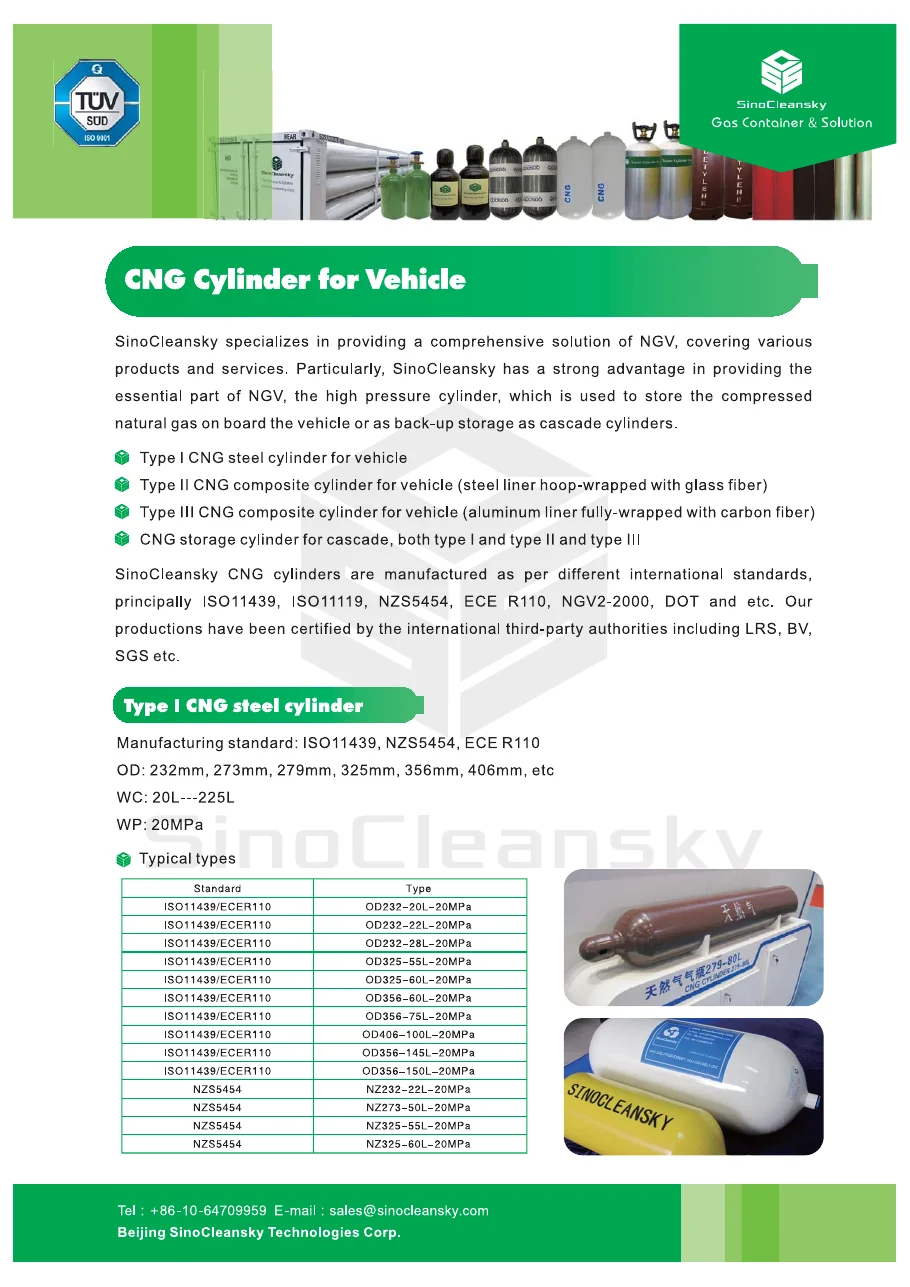

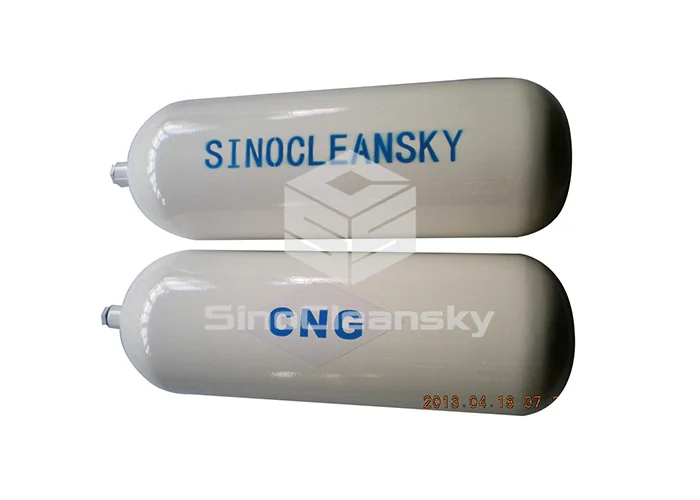

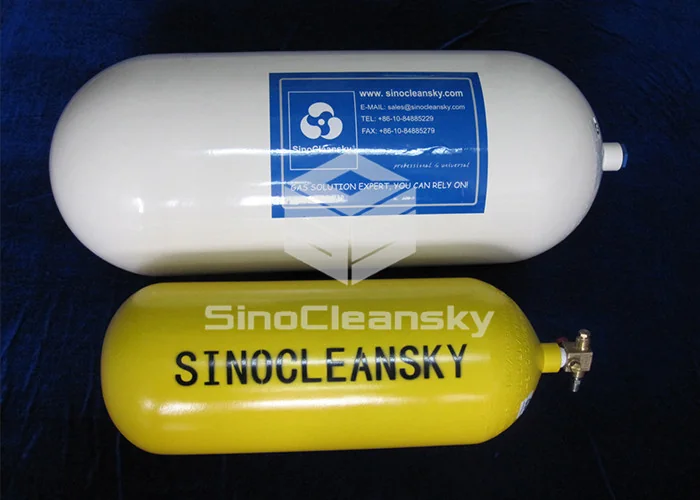

Type I CNG Steel Cylinder

• Manufacturing standard: ISO11439, NZS5454, ECE R110.
• OD: 232mm, 273mm, 279mm, 325mm, 356mm, 406mm, etc.
• WC: 20L—225L.
• WP: 20MPA.

Quote Now

Description

Compressed natural gas (CNG) is a fuel which can be used in place of gasoline, diesel fuel and propane/LPG in vehicles. CNG combustion produces fewer undesirable gases than the fuels mentioned above. World over authorities is promoting its use because it helps reduces pollution on overcrowded city streets.
SinoCleansky provides a wide range CNG steel cylinder from 20L to 225L with ISO11439, ECE R110, NZS5454 and etc.
Our company has advanced manufacturing equipment, inspective examination and testing method, strong technical resources, and a qualified management system. All of the manufacturing and testing are carried out under the supervision of a third party, with high quality and reasonable prices.

Technical Specifications

Type I CNG Steel Cylinder

Standard	Type
ISO11439/ECER110	OD232-20L-20MPA
ISO11439/ECER110	OD232-22L-20MPA
ISO11439/ECER110	OD232-28L-20MPA
ISO11439/ECER110	OD325-55L-20MPA
ISO11439/ECER110	OD325-60L-20MPA
ISO11439/ECER110	OD356-60L-20MPA
ISO11439/ECER110	OD356-75L-20MPA
ISO11439/ECER110	OD406-100L-20MPA
ISO11439/ECER110	OD356-145L-20MPA
ISO11439/ECER110	OD356-150L-20MPA
NZS5454	NZ232-22L-20MPA
NZS5454	NZ273-50L-20MPA
NZS5454	NZ325-55L-20MPA
NZS5454	NZ325-60L-20MPA

Packaging & Shipping

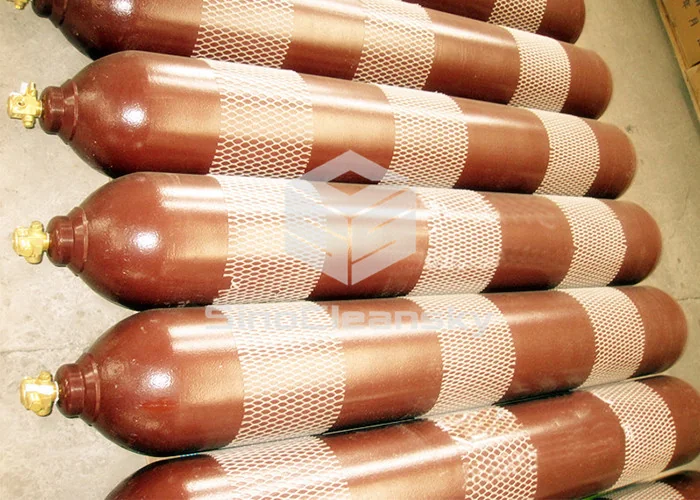

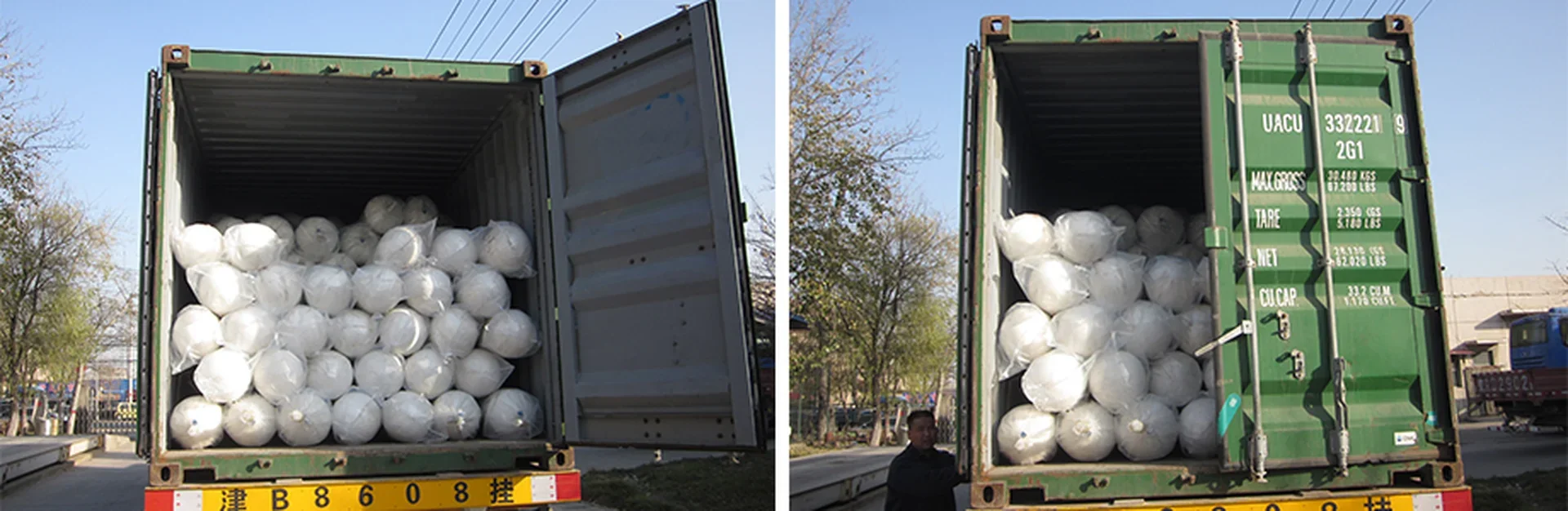

All the cylinders will be packed with plastic net for protection of painting. And the cylinders can be delivered with pallet, or loose in container based on quantity.

Report & Certifications

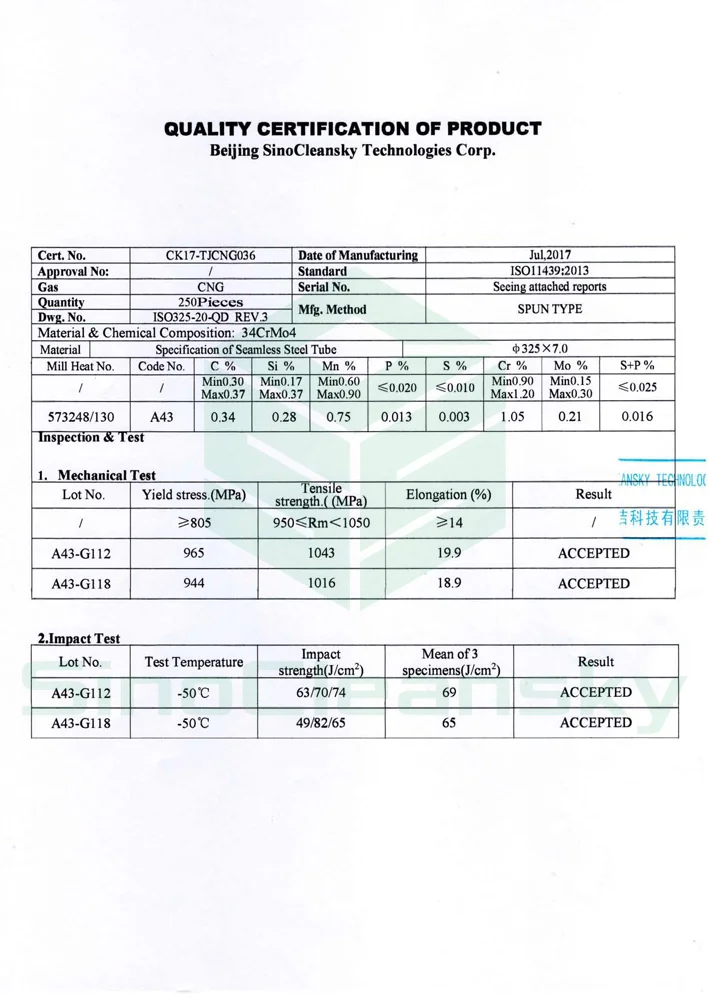

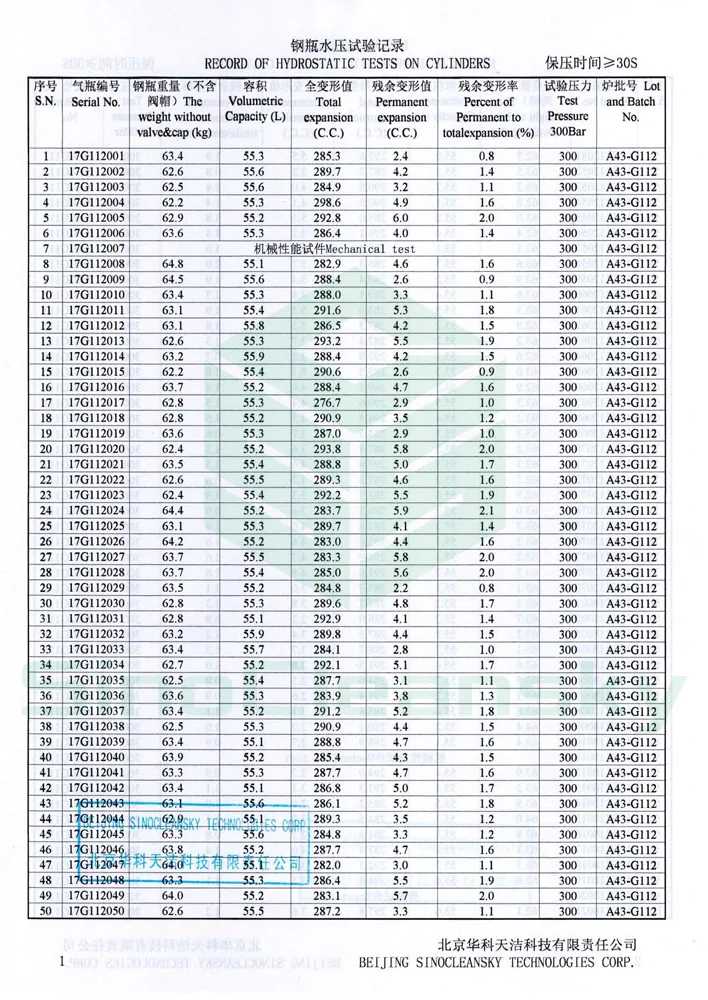

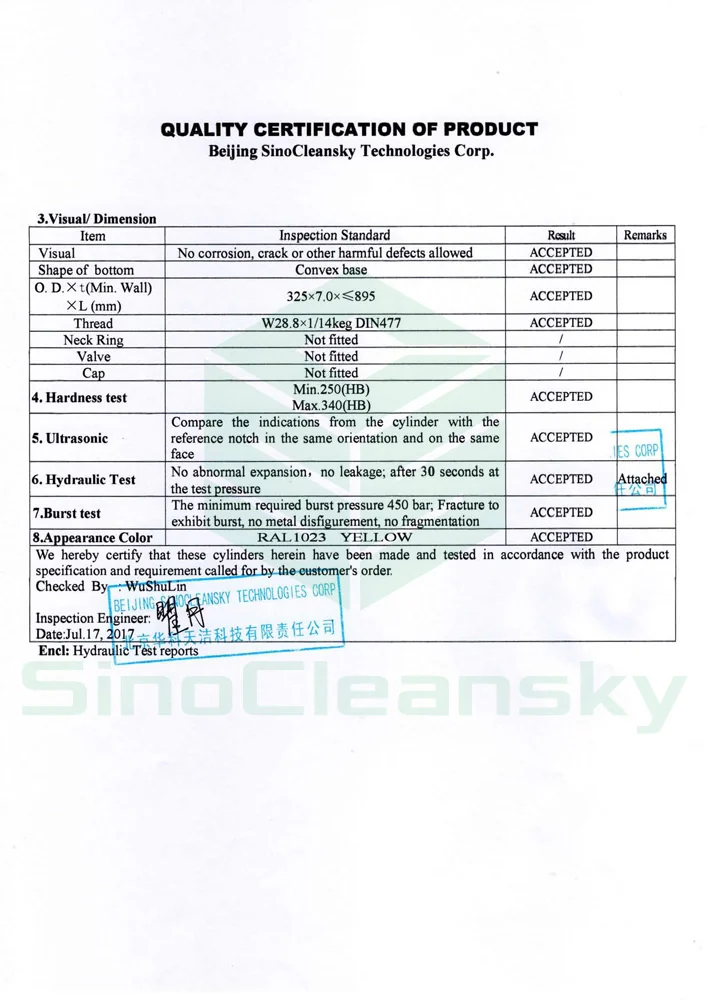

Cylinders are delivered with detailed test report, including the third-party Certificate such as BV, SGS and etc, and factory test report which include: Quality Certification, Hydrostatic Test and etc.

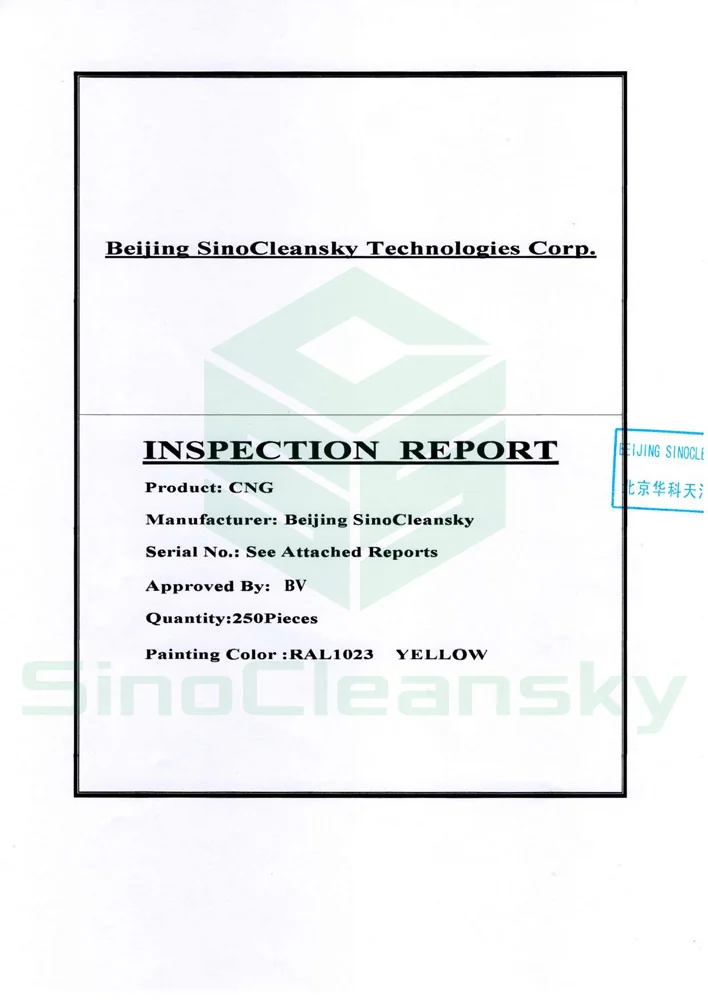

Reference Report:
E-mail [email protected] to get more detailed test report specimen.

FAQs

What is the raw material for this type of cylinder?

The cylinder is manufactured by steel pipe. Material such as 30CrMo, 34CrMo4, etc.

What about the shipment for these cylinders?

Generally, the cylinders will be shipped by 20ft container, if without pallet, the loading quantity is 276pcs for 325-60L, 165pcs for 356-75L.

What certificate can you provide?

We can provide the third-party Certificate issued by BV, SGS and etc, and factory test report which include Quality Certification, Hydrostatic Test and etc.

What’s your product accessories?

We can provide China valves and International valves. And we will provide valve list once confirmed.nMoreover, pump is optional. We can provide Smith pump, France Cryostar pump or without pump, the price is different.
