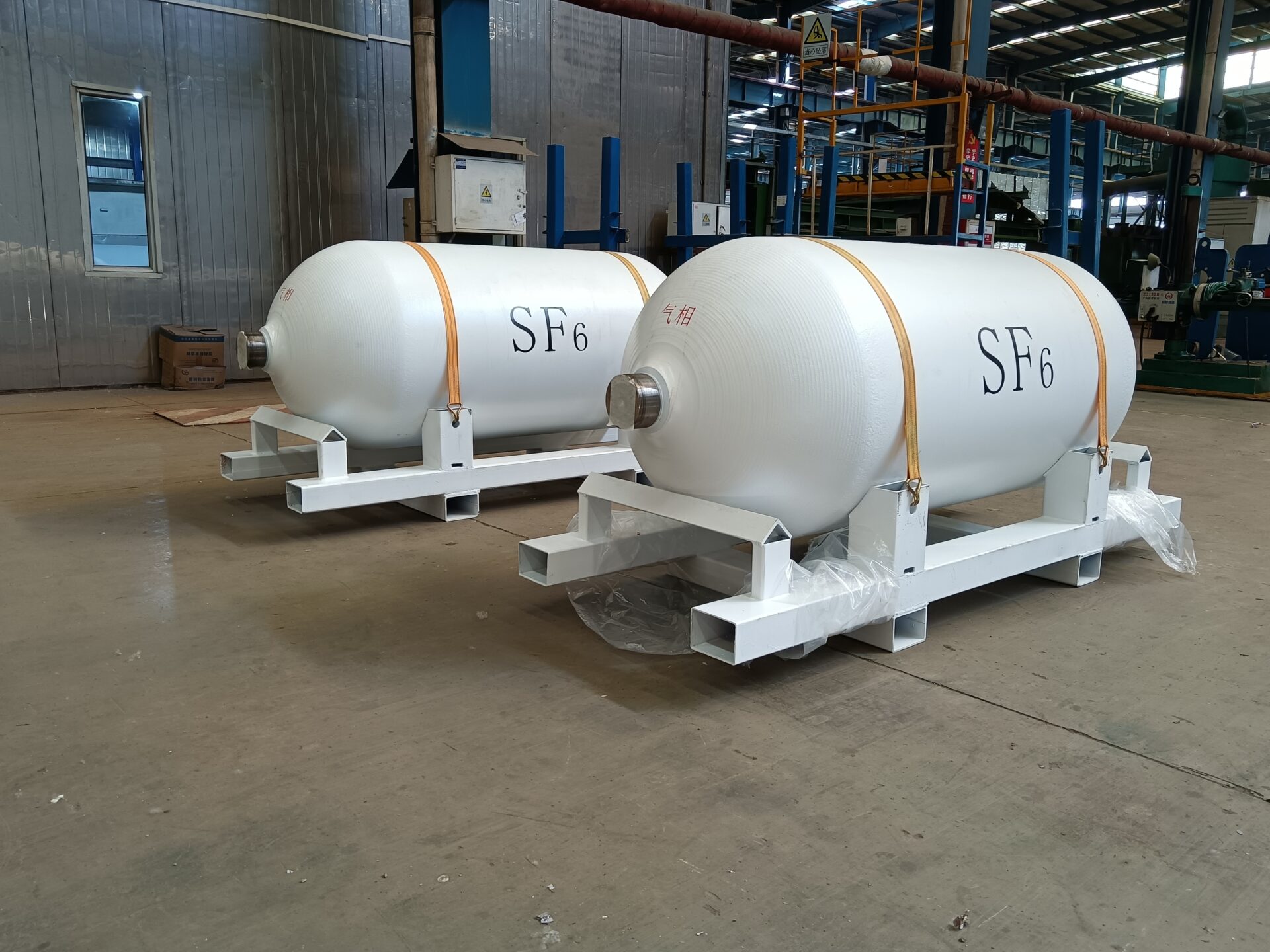

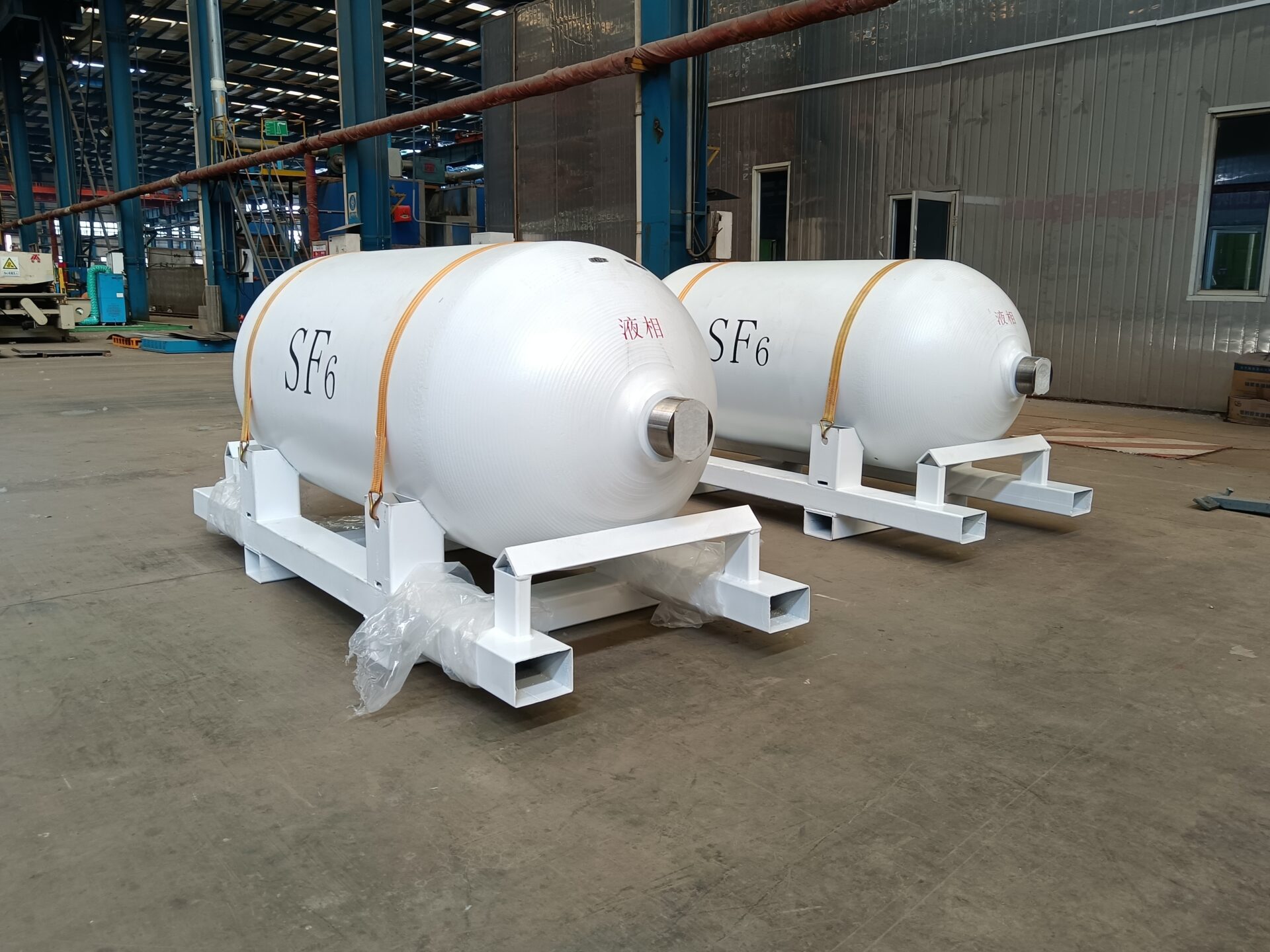

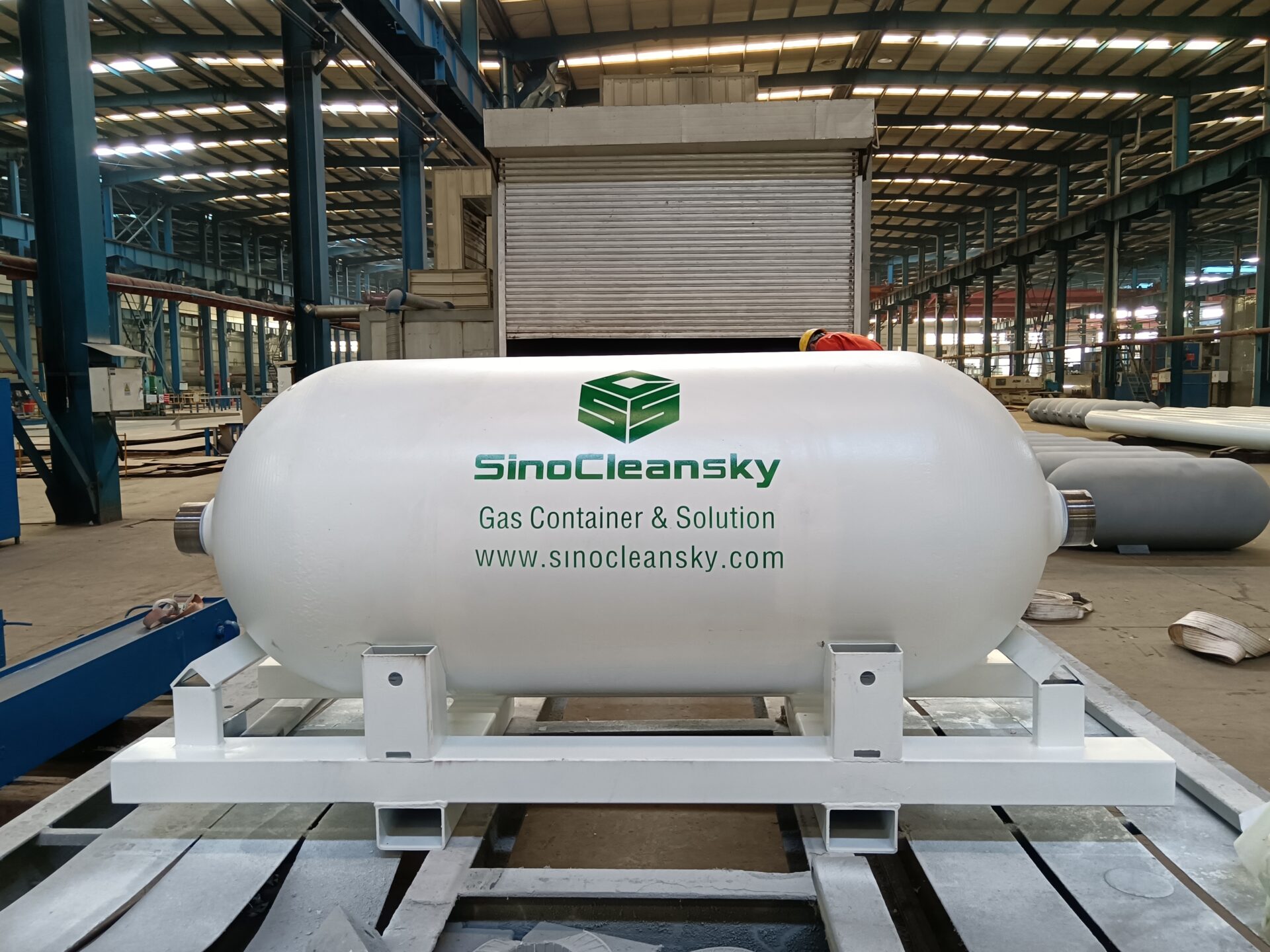

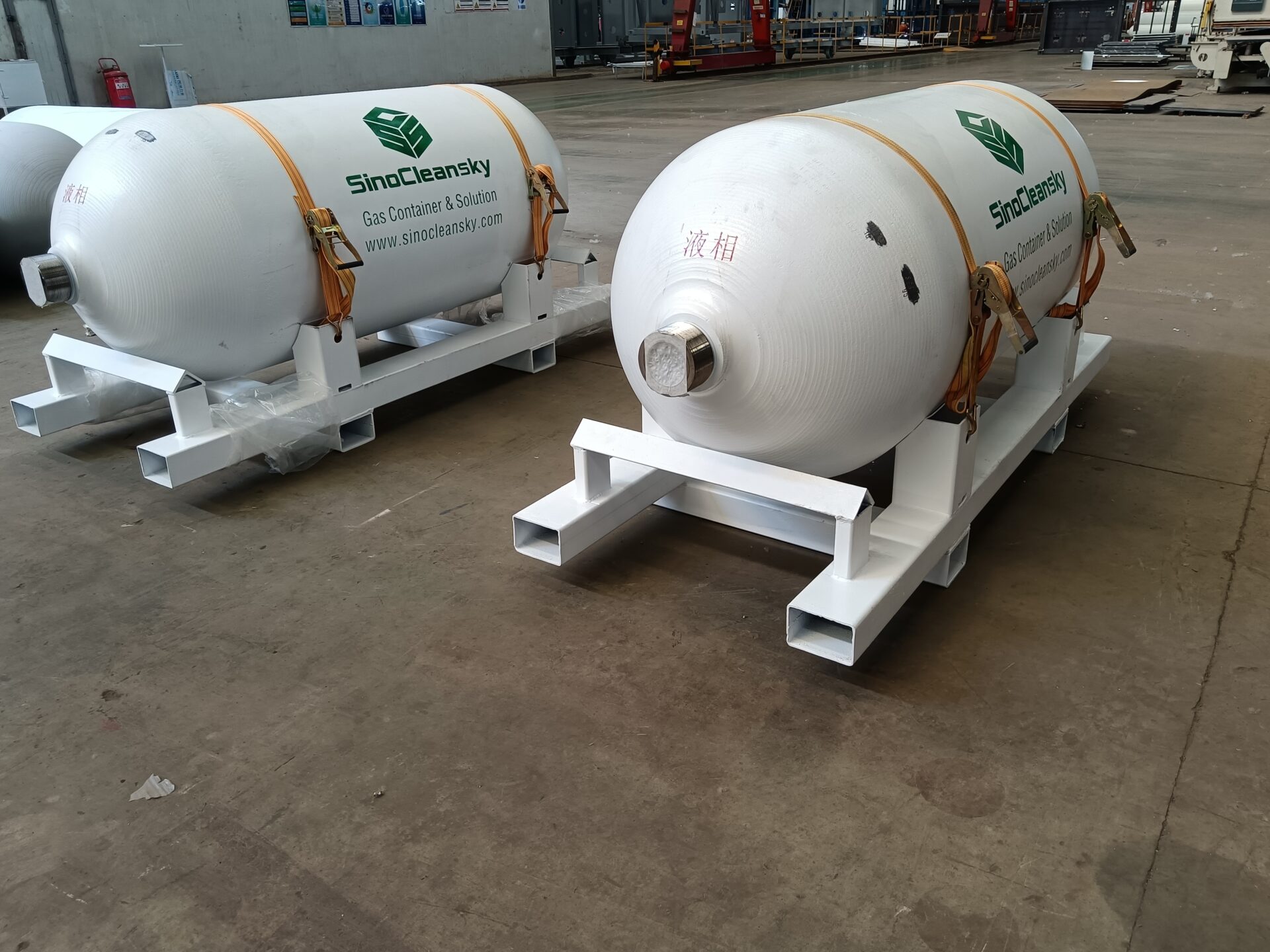

Y-Ton

Sinocleansky provides the Y-ton (Y-Cylinder) for High Purity Gases, such as SF6, N2, NF3, etc. The cylinders are also widely used for Electronic Gases. With high technology, Sinocleansky Y-ton has got the TPED approval, and manufactured under ISO1120, DOT and GB standard.

Outside diameter 610mm, with ISO11120, TPED, GB certificate





Item	Data	Item	Data
Working Pressure	16.6 Mpa	Filling Medium	N2、He、SiH4、SF6、NF3、N2O、CL2、HCL、group1、group2、group5、group7（ISO11114-1：2012）
Water Capacity			440L	470L	520L
Cylinder Length			2120 mm	2235 mm	2428 mm

Outside diameter 850mm, with DOT TPED, GB certificate



Item	Data	Item	Data
Working Pressure	16.6 Mpa	Filling Medium	HCL, CL2, etc.
Water Capacity			880 L
Cylinder Length			2270 mm

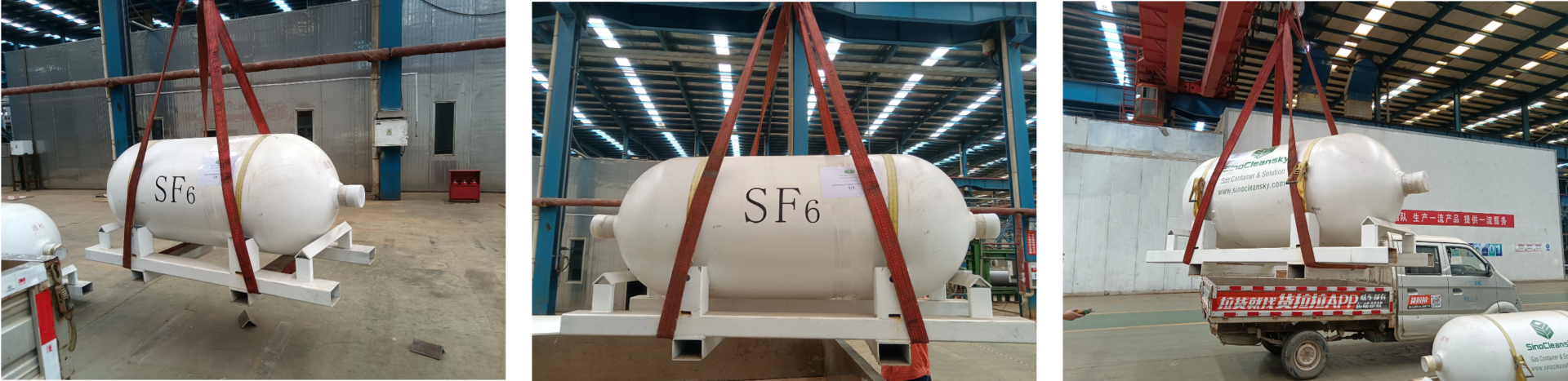

The Y-ton can be delivered with pallet, or loose in container.
