EN ISO9809 Cylinder (TPED)
- EN ISO 9809 standard — manufactured to the European high-pressure cylinder standard (Part 1: quenched & tempered; Part 3: normalized).
- TPED approved, with π (pi) mark — compliant for the EU market.
- TÜV certified — verified by TÜV or other international inspection authority.
- High working pressure up to 30 MPa (300 bar) — super-high pressure options available.
- Broad gas compatibility — oxygen, nitrogen, argon, CO₂, hydrogen, and more.
- Dual manufacturing processes — both pipe-spun and billet-pierced cylinders available.
Description

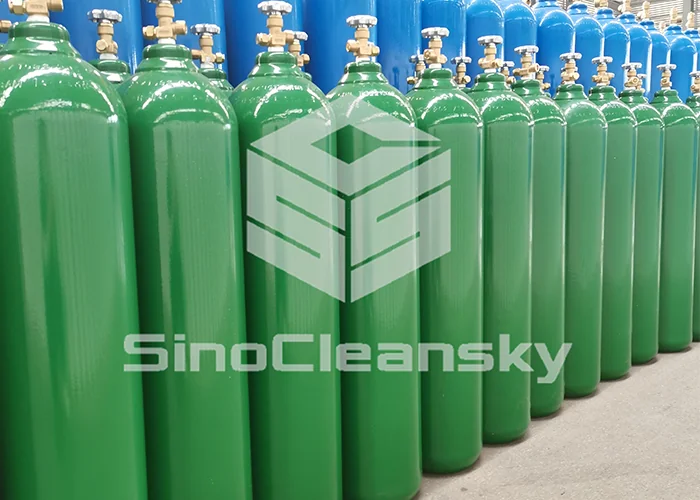

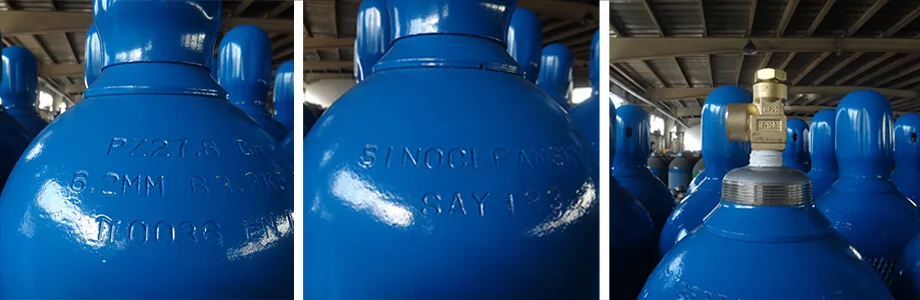

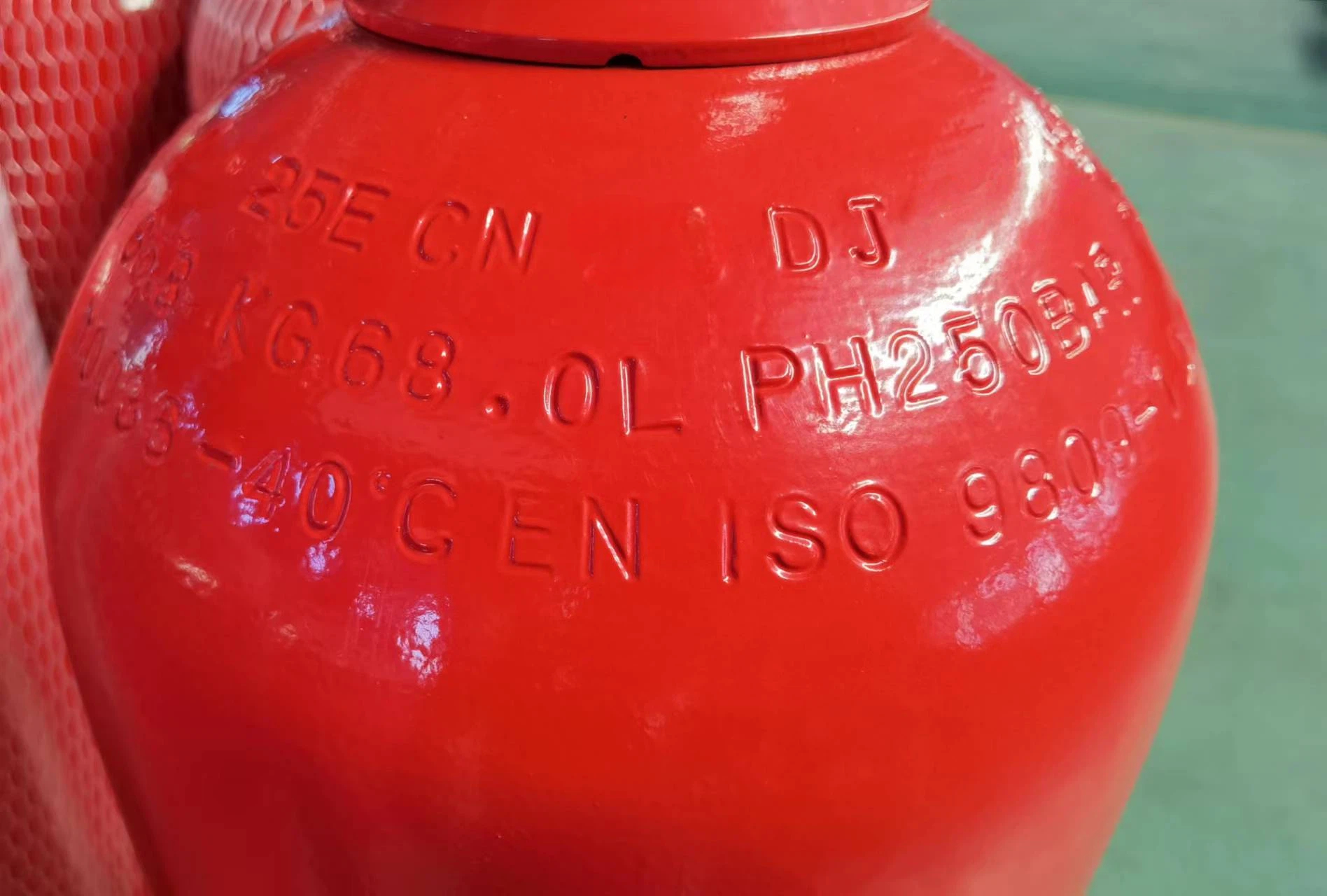

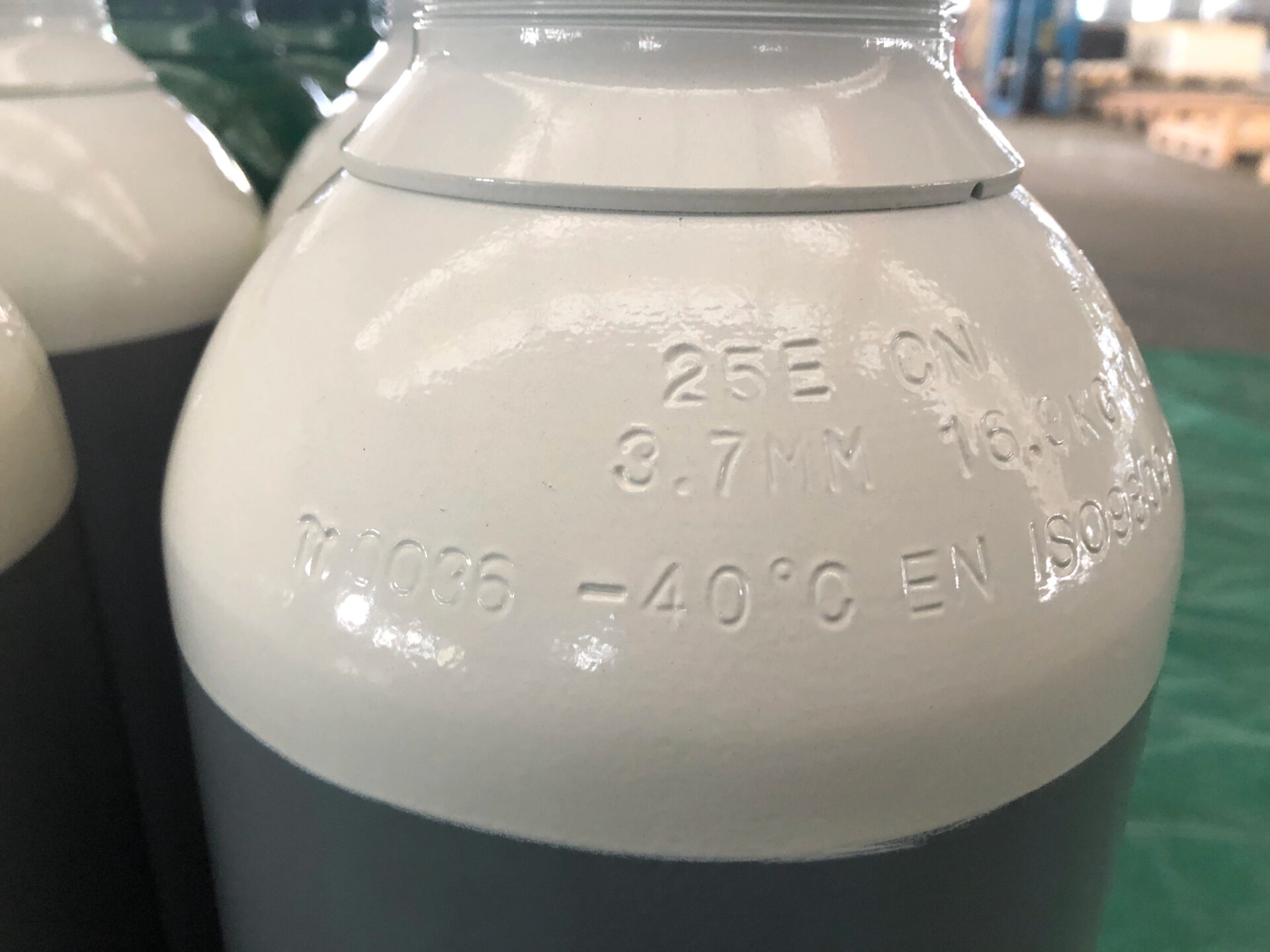

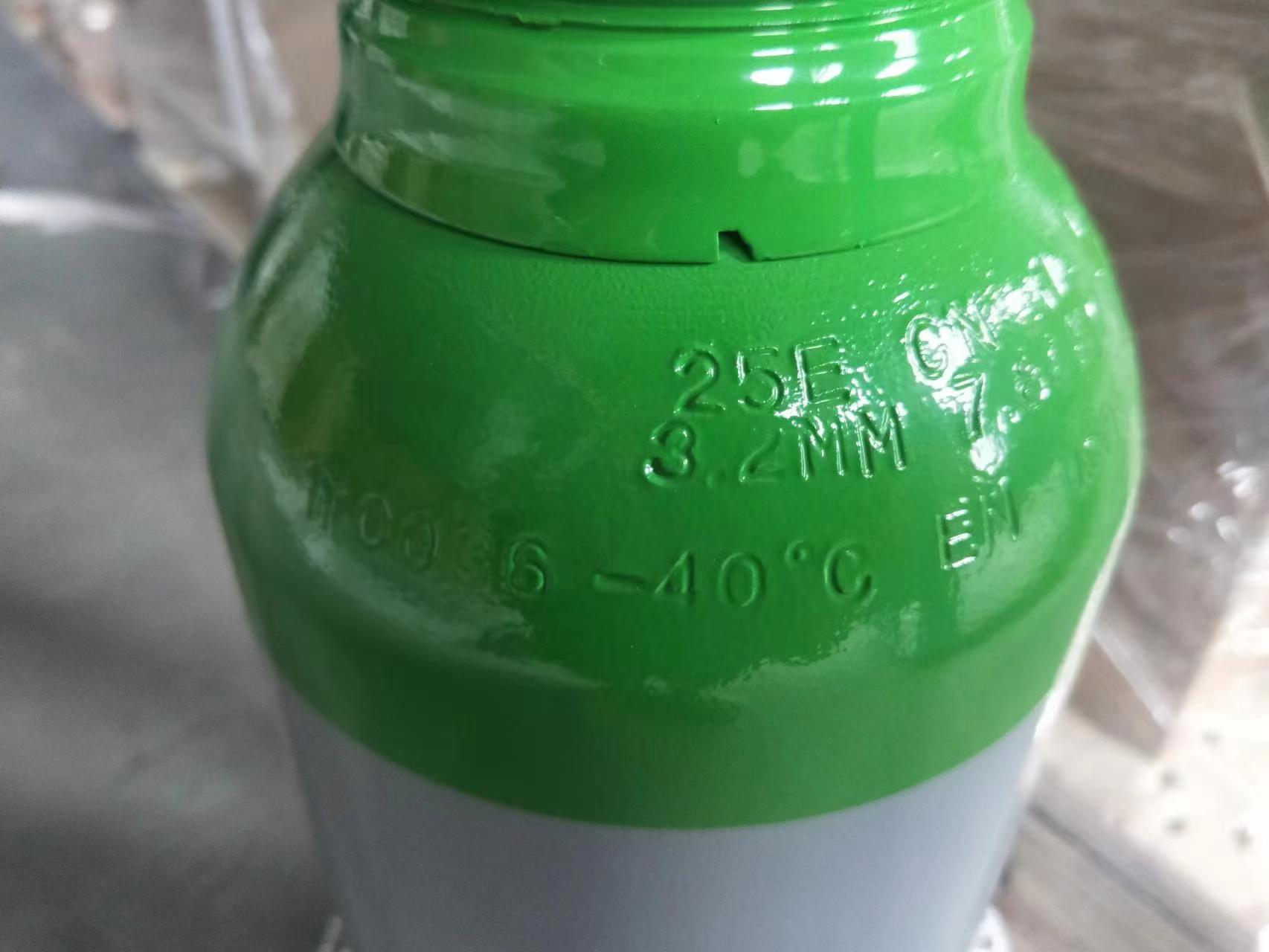

- SinoCleansky EN ISO 9809 gas cylinders are manufactured strictly in accordance with the EN ISO 9809 standard series — including both Part 1 (quenched & tempered steel) and Part 3 (normalized steel) — with TPED approval and the π (pi) mark on every cylinder.
- Each cylinder comes with LRS or other international third-party inspection reports.
- As a high-end product line, these cylinders are widely used in the European market and meet higher performance requirements.
- Our EN ISO 9809 cylinders are available as both pipe-spun and billet-pierced types, serving a broad range of gases including Oxygen (O₂), Nitrogen (N₂), Argon (Ar), Carbon Dioxide (CO₂), Helium (He), Nitrous Oxide (N₂O), and Hydrogen (H₂), across industrial, fire-fighting, energy, medical, urban infrastructure, and other sectors.
Technical Specifications
Popular EN ISO9809-1 Cylinder (TPED)
| Model | Standard | Out Diameter (mm) | Water Capacity (L) | Working Pressure (bar) |
| OD140-20-5L | EN ISO 9809-1 | 140 | 5 | 200 |
| OD140-20-7L | EN ISO 9809-1 | 140 | 7 | 200 |
| OD140-20-10L | EN ISO 9809-1 | 140 | 10 | 200 |
| OD159-20-14L | EN ISO 9809-1 | 159 | 14 | 200 |
| OD165-20-14L | EN ISO 9809-1 | 165 | 14 | 200 |
| OD203-20-20L | EN ISO 9809-1 | 203 | 20 | 200 |
| OD232-20-40L | EN ISO 9809-1 | 232 | 40 | 200 |
| OD232-H2-20-40L | EN ISO 9809-1 | 232-H2 | 40 | 200 |
| OD232-20-43.7L | EN ISO 9809-1 | 232 | 43.7 | 200 |
| OD232-15-47L | EN ISO 9809-1 | 232 | 47 | 150 |
| OD232-20-47L | EN ISO 9809-1 | 232 | 47 | 200 |
| OD232-15-50L | EN ISO 9809-1 | 232 | 50 | 150 |
| OD232-20-50L | EN ISO 9809-1 | 232 | 50 | 200 |
| OD267-15-68L | EN ISO 9809-1 | 267 | 68 | 150 |
| OD267-20-68L | EN ISO 9809-1 | 267 | 68 | 200 |
| OD267-30-80L | EN ISO 9809-1 | 267 | 80 | 300 |
| OD356-20-140L | EN ISO 9809-1 | 356 | 140 | 200 |
| OD356-20-150L | EN ISO 9809-1 | 356 | 150 | 200 |
| OD406-25-190L | EN ISO 9809-1 | 406 | 190 | 250 |
Popular EN ISO9809-3 Cylinder (TPED)
| Model | Standard | Out Diameter (mm) | Water Capacity (L) | Working Pressure (bar) |
| OD-108-15-2L | EN ISO 9809-3 | 108 | 2 | 150 |
| OD-108-15-3L | EN ISO 9809-3 | 108 | 3 | 150 |
| OD-140-15-5L | EN ISO 9809-3 | 140 | 5 | 150 |
| OD-140-15-10L | EN ISO 9809-3 | 140 | 10 | 150 |
| OD-159-15-14L | EN ISO 9809-3 | 159 | 14 | 150 |
| OD-180-15-20L | EN ISO 9809-3 | 180 | 20 | 150 |
| OD-219-15-20L | EN ISO 9809-3 | 219 | 20 | 150 |
| OD-219-15-40L | EN ISO 9809-3 | 219 | 40 | 150 |
Packaging & Shipping

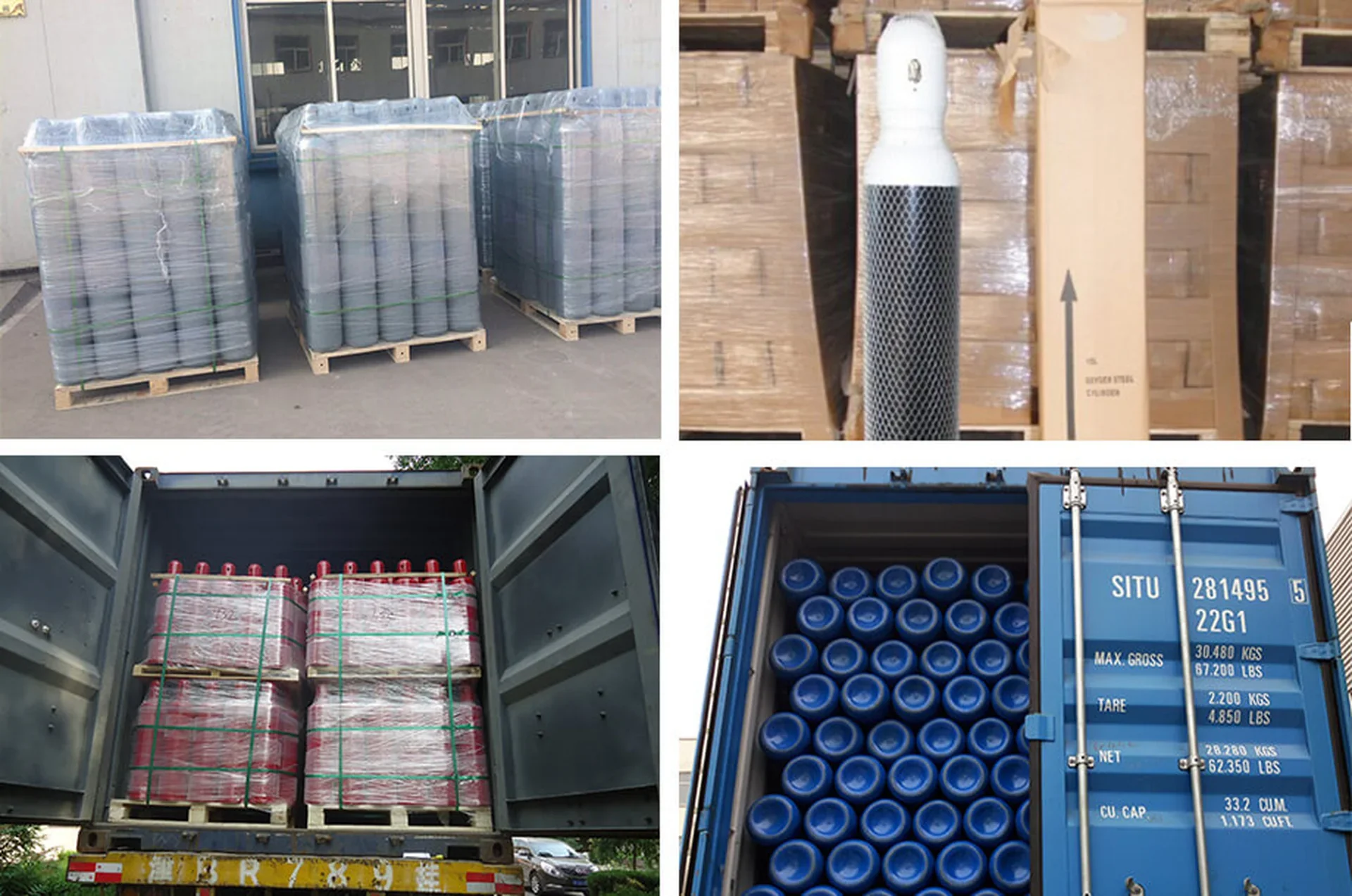

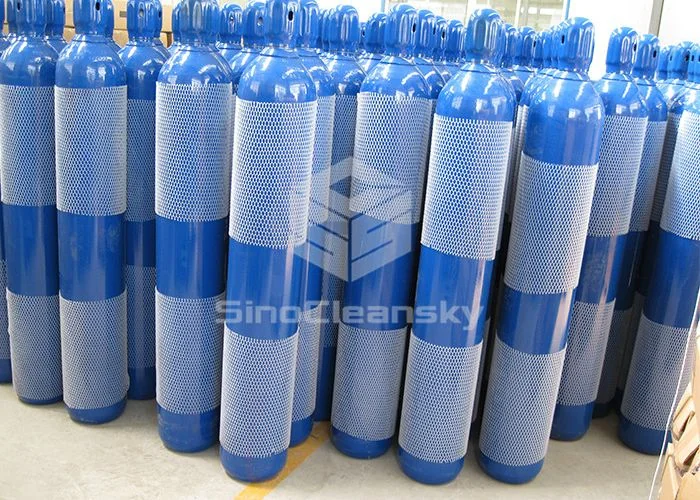

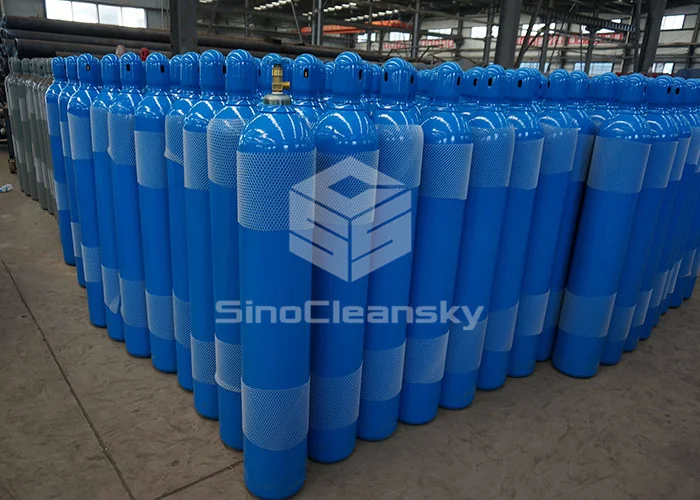

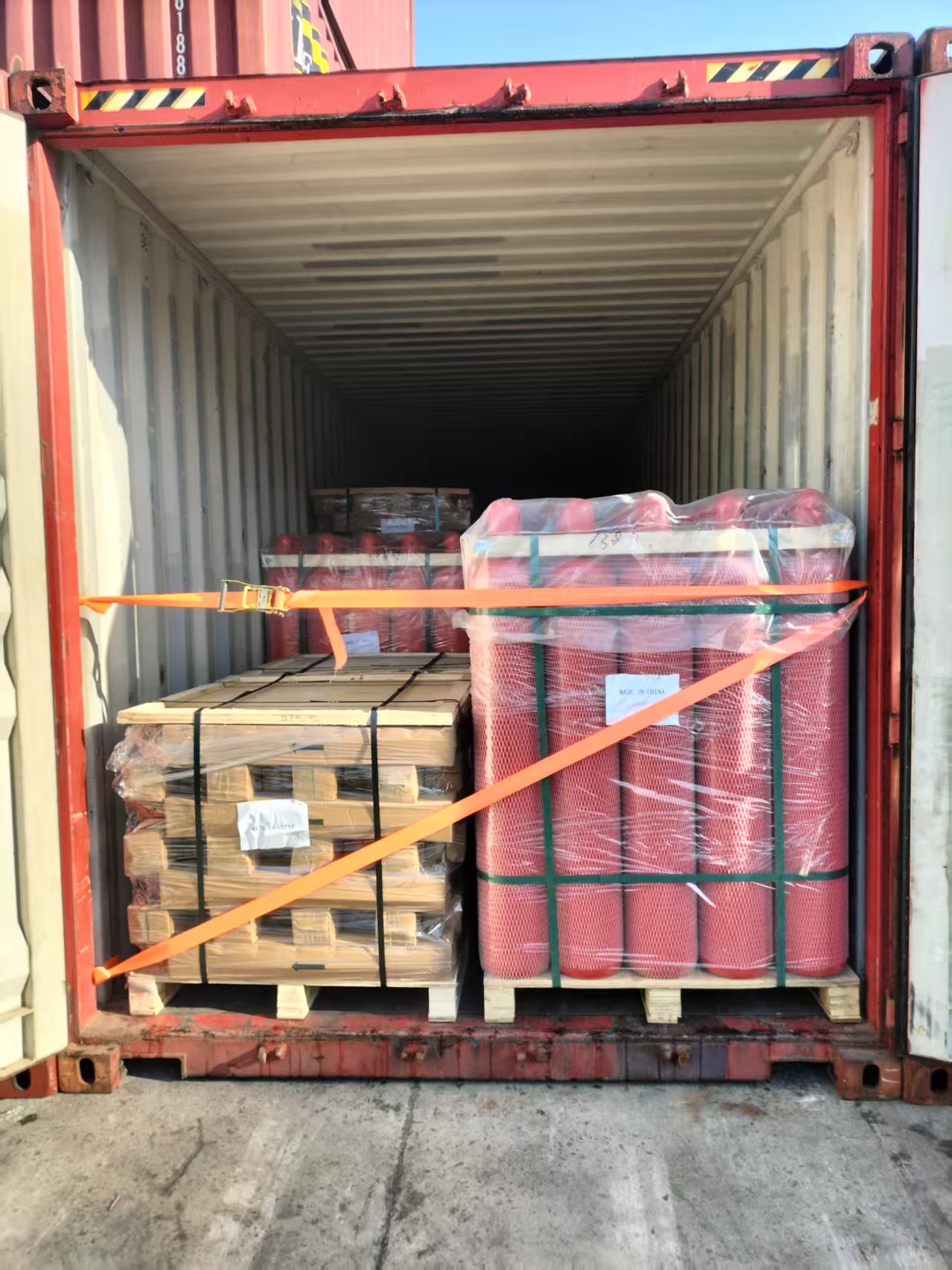

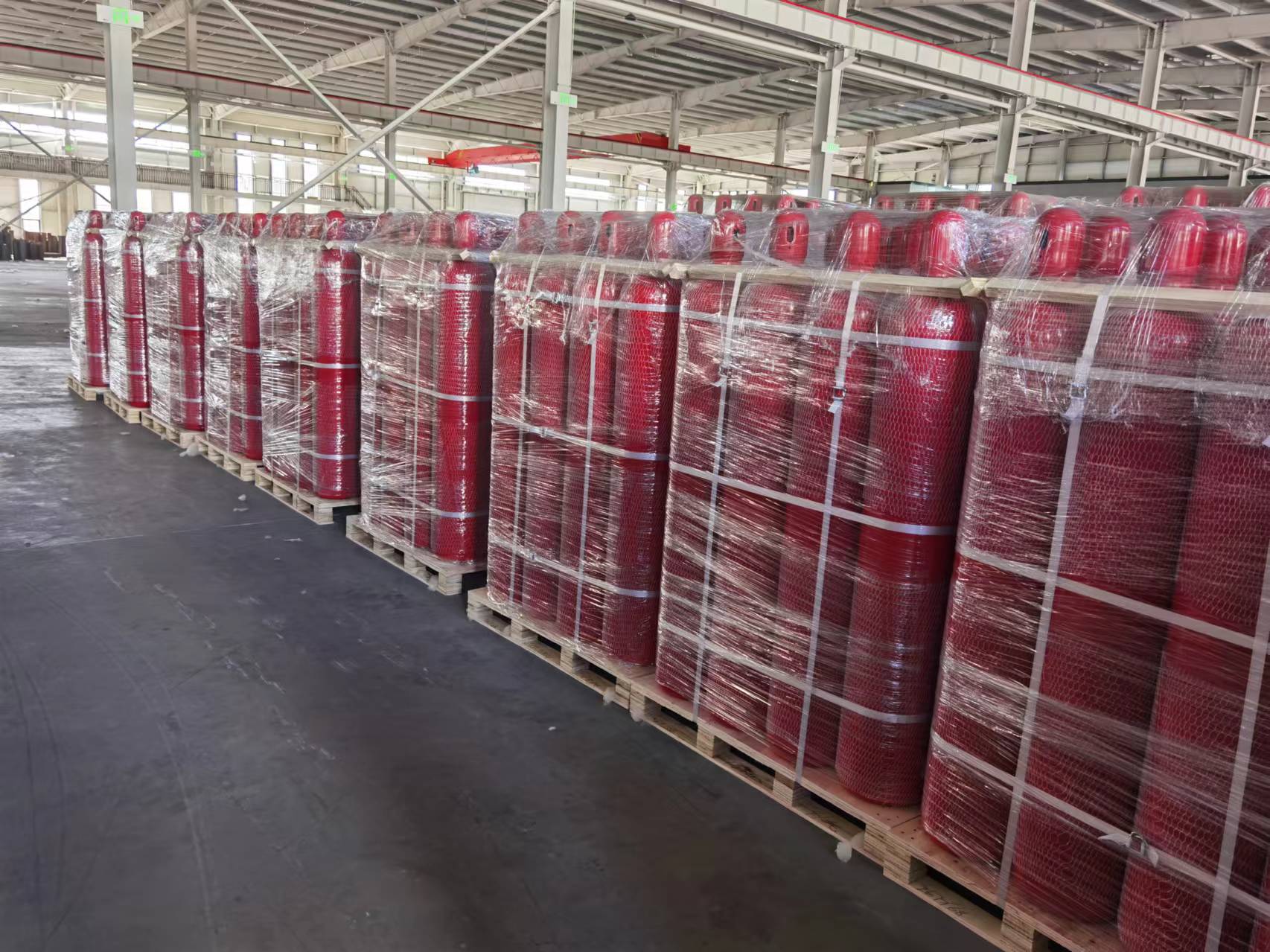

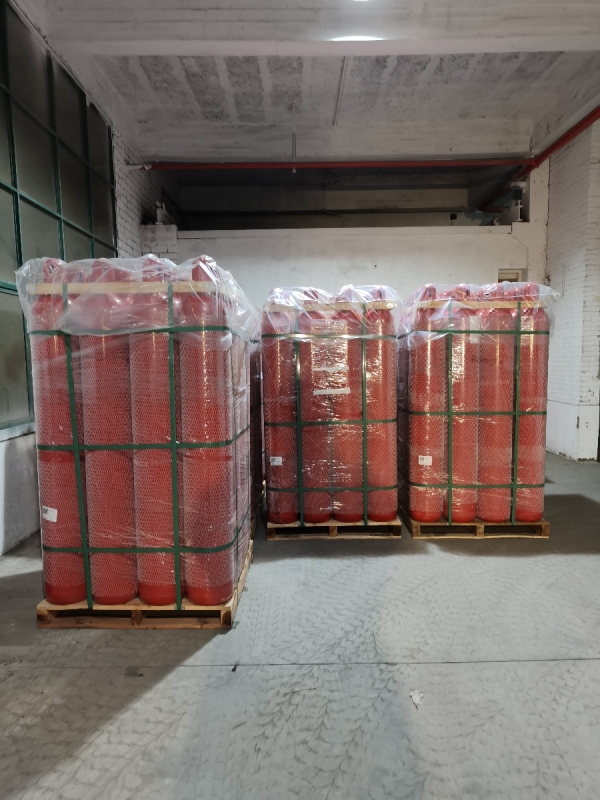

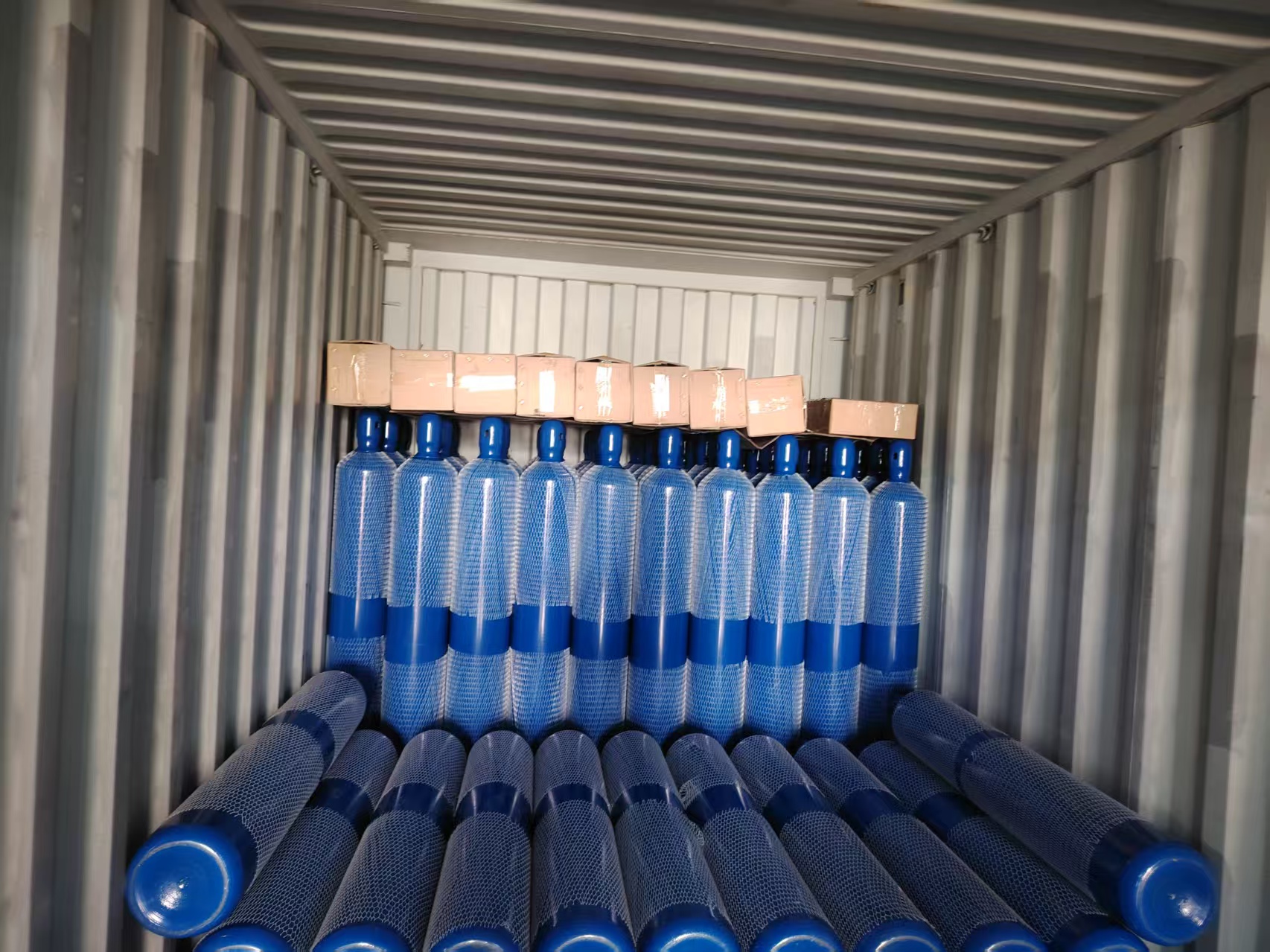

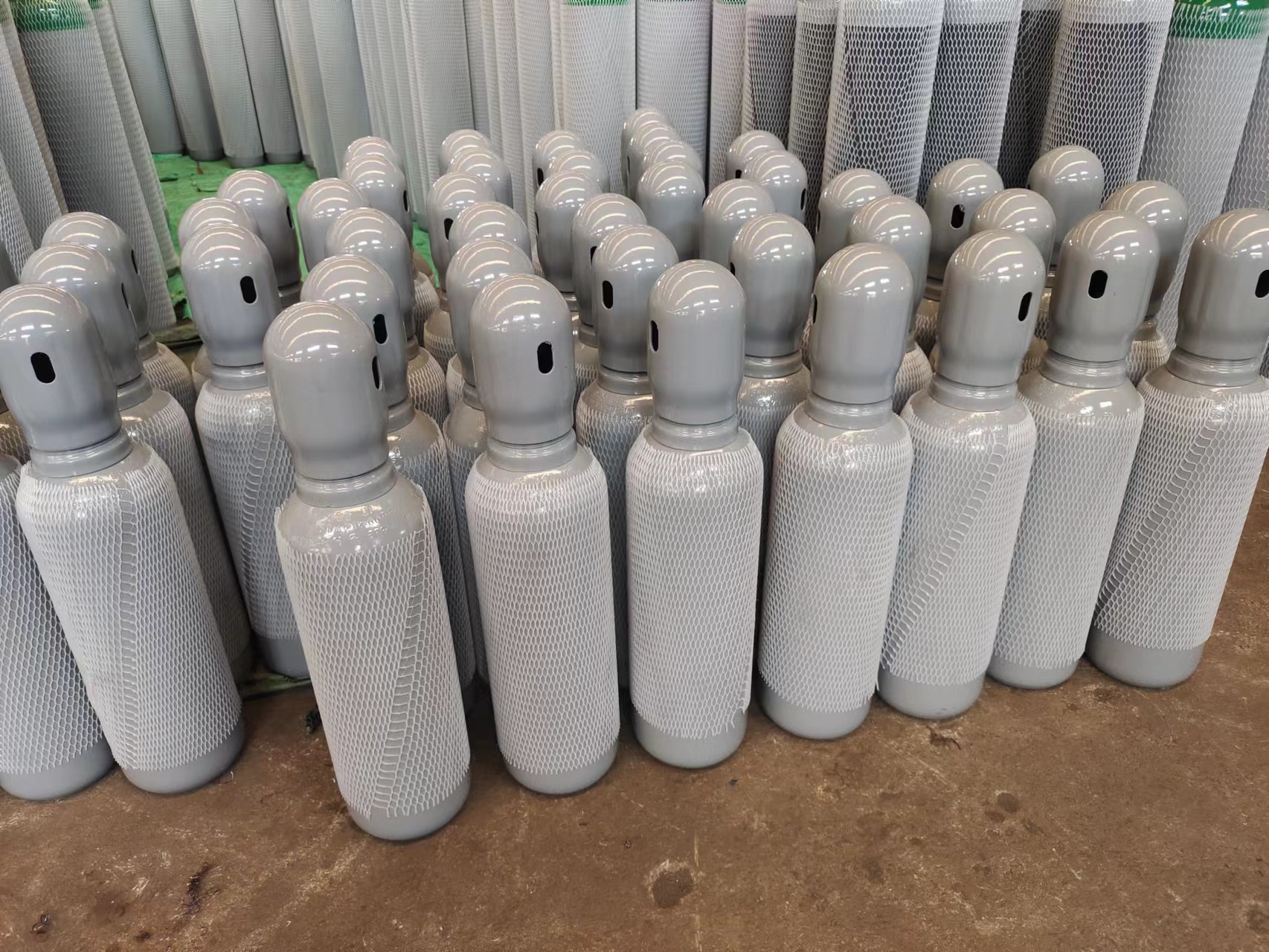

All cylinders are wrapped in protective plastic netting to safeguard the painted finish. For small steel cylinders, we typically recommend individual carton boxing; the cylinders can then be shipped on pallets or loose-loaded in the container.
Report & Certifications
Cylinders are with detailed test report, including the factory test report, hydraulic test report and TUV test report for TPED approval, etc.Reference Report:E-mail [email protected] to get more detailed test report specimen.
FAQs
ISO 9809-1 uses quenched & tempered steel with a tensile strength up to 1100 MPa, supporting working pressures up to 200 bar (20 MPa) or higher. ISO 9809-3 uses normalized steel with a tensile strength up to 800 MPa, typically rated at 150 bar (15 MPa). Part 1 is for high-pressure industrial applications; Part 3 offers a cost-effective option for standard-pressure use.
Every cylinder is manufactured to EN ISO 9809-1 or 9809-3, TPED-approved with the π mark, and backed by LRS or other international third-party inspection reports.
Yes. We supply dedicated hydrogen cylinders (e.g., 232-40L at 200 bar with 5.8 mm wall thickness) designed specifically for H₂ service.
