Helium Dewar
• Technology: High-vacuum multi-layer insulation plus cold shield design
• Manufacturing Standard: ASME
• Water Capacity: 36L, 66L,110L, 275L, 550L,1074L, etc
• Valve and Meters: Apollo, Generant, Wika, etc

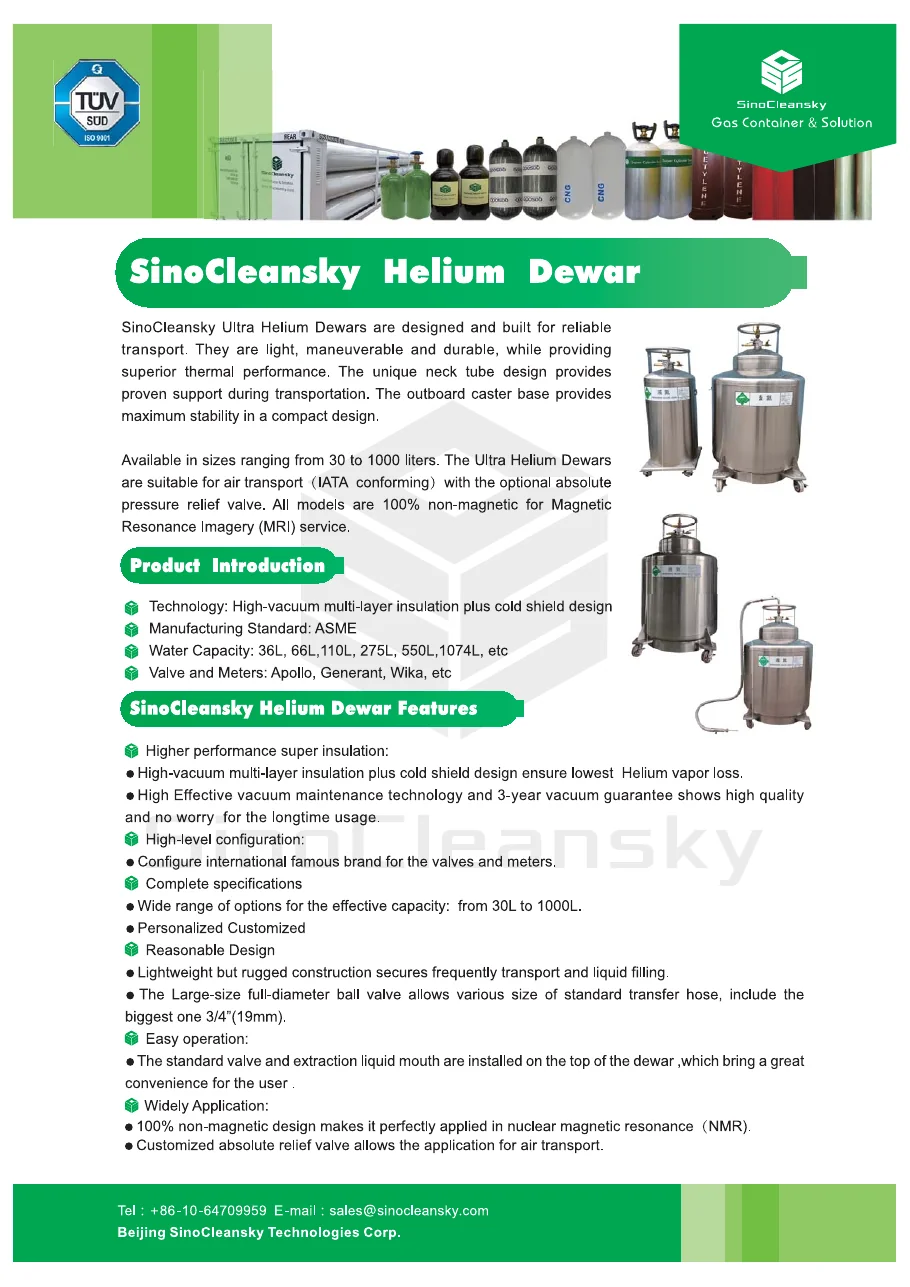

Description

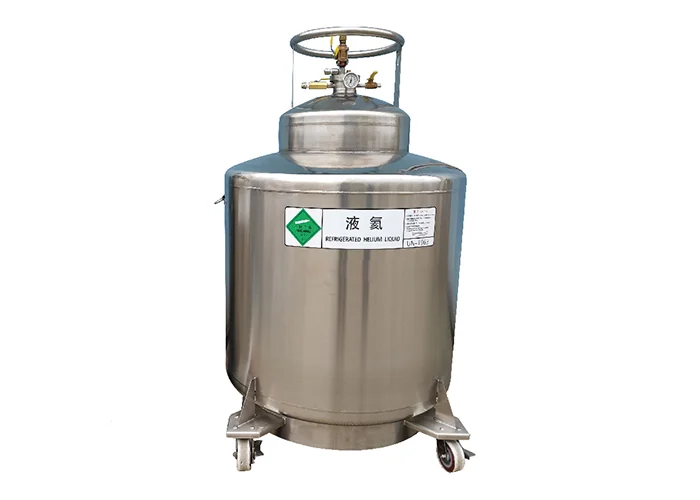

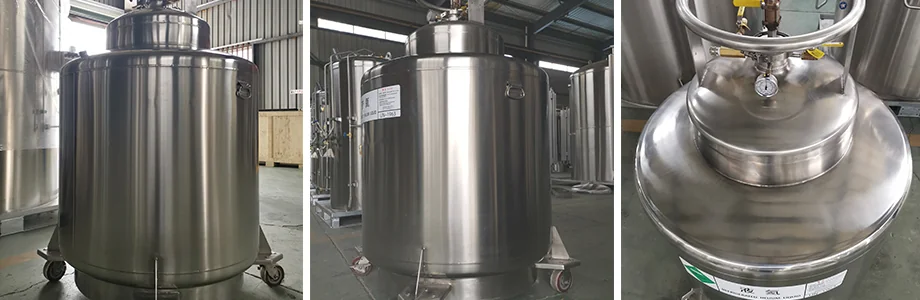

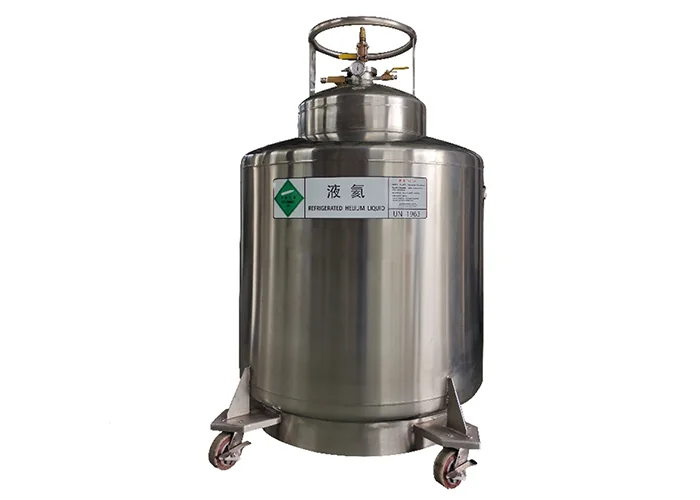

SinoCleansky Ultra Helium Dewars are designed and built for reliable transport. They are light, maneuverable and durable, while providing superior thermal performance. The unique neck tube design provides proven support during transportation. The outboard caster base provides maximum stability in a compact design.
Available in sizes ranging from 3 0 to 10 00 liters. The Ultra Helium Dewars are suitable for air transport （ IATA conforming ） with the optional absolute pressure relief valve. All models are 100% non-magnetic for Magnetic Resonance Imagery(MRI) service.

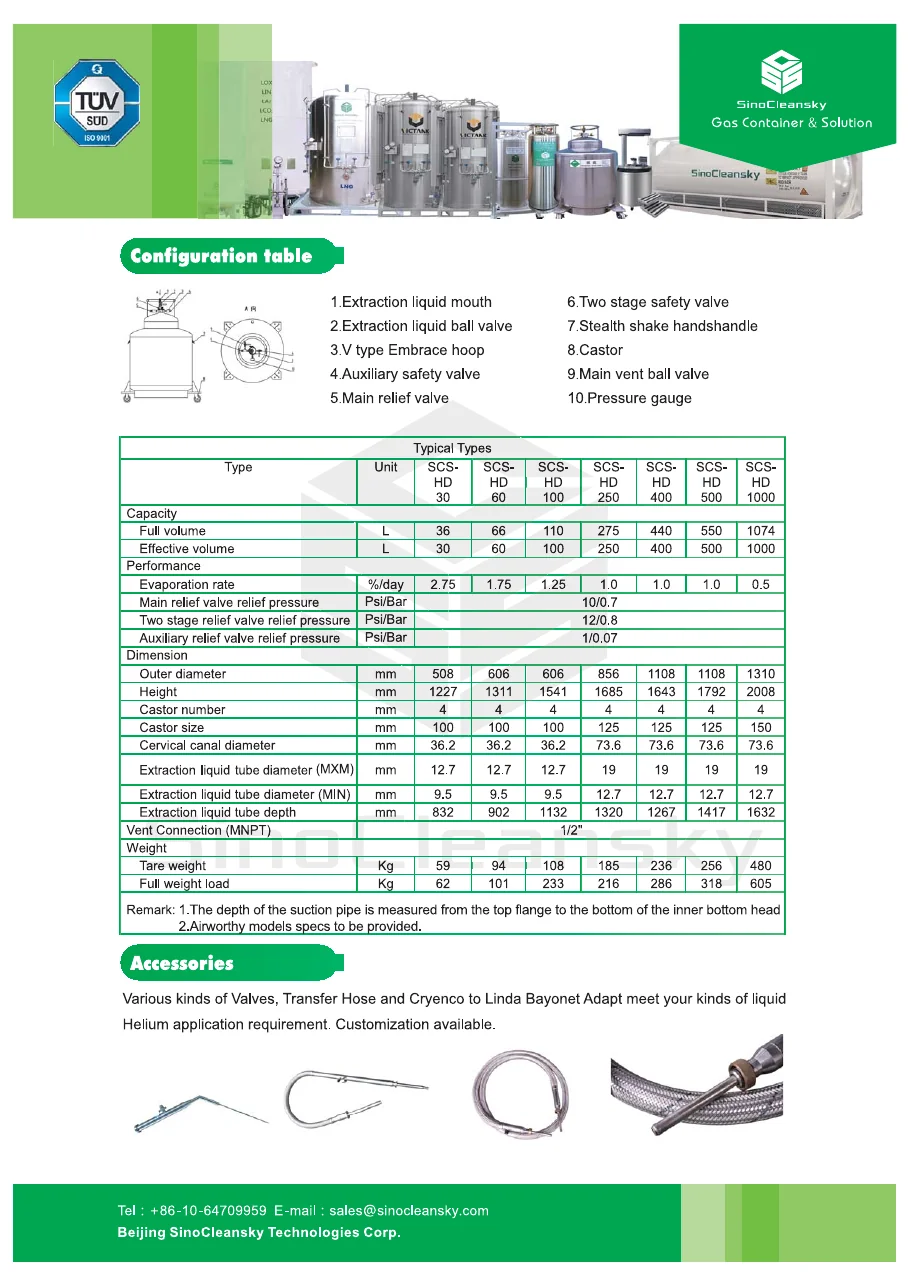

Technical Specifications
| Typical Types | ||||||||
| Type | Unit | SCS- HD30 | SCS-HD60 | SCS-HD100 | SCS-HD250 | SCS-HD400 | SCS-HD500 | SCS-HD1000 |
| Capacity | ||||||||
| Full volume | L | 36 | 66 | 110 | 275 | 440 | 550 | 1074 |
| Effective volume | L | 30 | 60 | 100 | 250 | 400 | 500 | 1000 |
| Performance | ||||||||
| Evaporation rate | %/day | 2.75 | 1.75 | 1.25 | 1 | 1 | 1 | 0.5 |
| Main relief valve relief pressure | Psi/Bar | 10/0.7 | ||||||
| Two stage relief valve relief pressure | Psi/Bar | 12/0.8 | ||||||
| Auxiliary relief valve relief pressure | Psi/Bar | 1/0.07 | ||||||
| Dimension | ||||||||
| Outer diameter | mm | 508 | 606 | 606 | 856 | 1108 | 1108 | 1310 |
| Height | mm | 1227 | 1311 | 1541 | 1685 | 1643 | 1792 | 2008 |
| Castor number | mm | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Castor size | mm | 100 | 100 | 100 | 125 | 125 | 125 | 150 |
| Cervical canal diameter | mm | 36.2 | 36.2 | 36.2 | 73.6 | 73.6 | 73.6 | 73.6 |
| Extraction liquid tube diameter (MXM) | mm | 12.7 | 12.7 | 12.7 | 19 | 19 | 19 | 19 |
| Extraction liquid tube diameter (MIN) | mm | 9.5 | 9.5 | 9.5 | 12.7 | 12.7 | 12.7 | 12.7 |
| Extraction liquid tube depth | mm | 832 | 902 | 1132 | 1320 | 1267 | 1417 | 1632 |
| Vent Connection (MNPT) | 1/2″ | |||||||
| Weight | ||||||||
| Tare weight | Kg | 59 | 94 | 108 | 185 | 236 | 256 | 480 |
| Full weight load | Kg | 62 | 101 | 233 | 216 | 286 | 318 | 605 |
| Remark:The depth of the suction pipe is measured from the top flange to the bottom of the inner bottom headkinds of liquid Helium application requirement | ||||||||
Packaging & Shipping

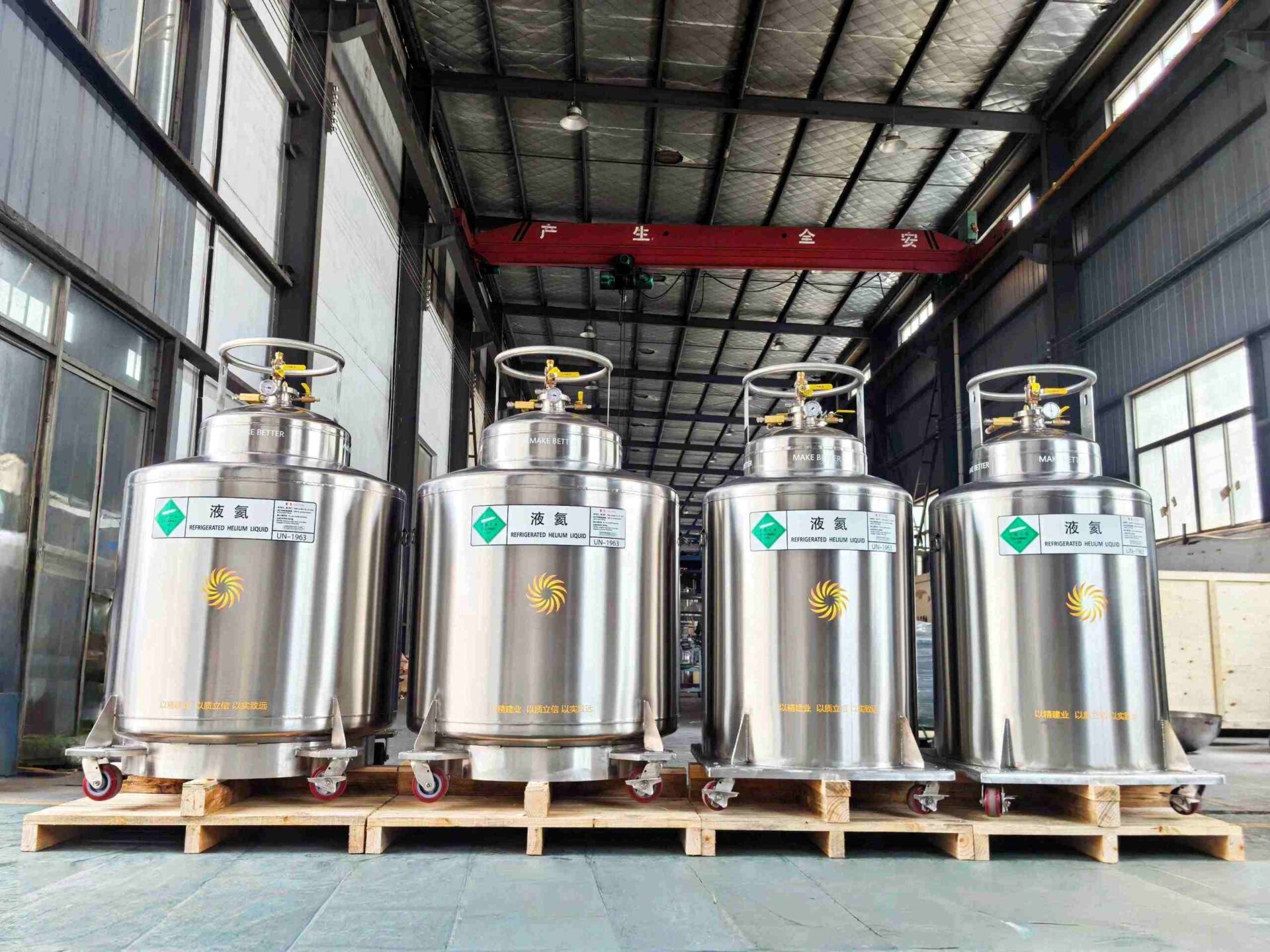

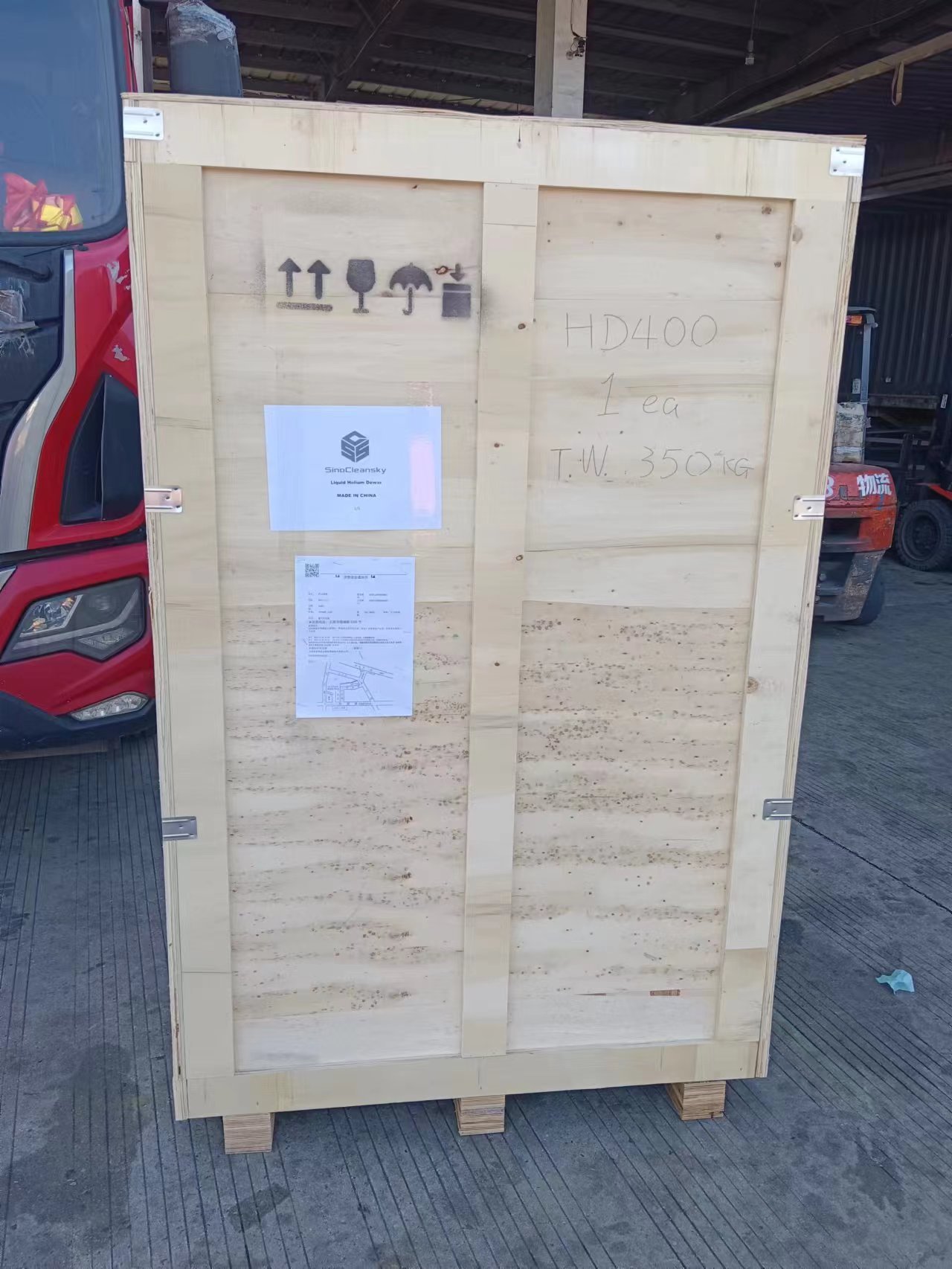

All the Helium Dewar will be packed with plastic film or carton or wooden boxes for protection of surface. And the Helium Dewar can be delivered with pallet.
Report & Certifications
Helium Dewar are delivered with detailed factory test report.
Reference BV Report :
E-mail [email protected] to get more detailed test report specimen.
FAQs

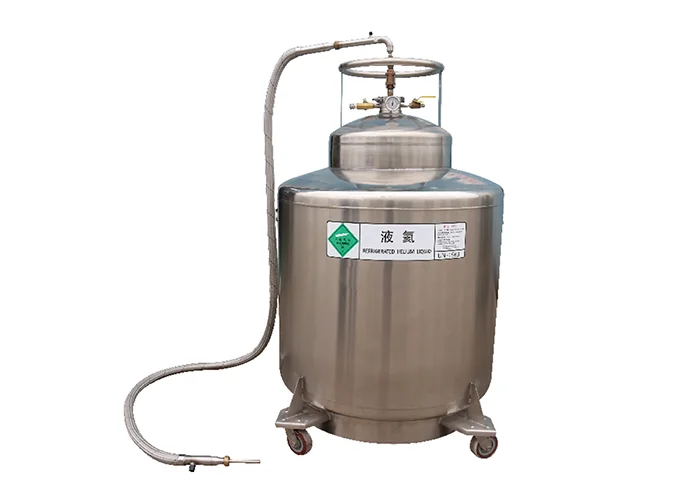

Various kinds of Valves, Transfer Hose and Cryenco to Linda Bayonet Adapt meets your kinds of liquid Helium application requirement.
For a 20ft-container quantity, it usually takes 3 month to finish the production. nBut if there are stocks, then the delivery time could be about 2 to 3 weeks.
Yes, we can provide frame and wheels.
